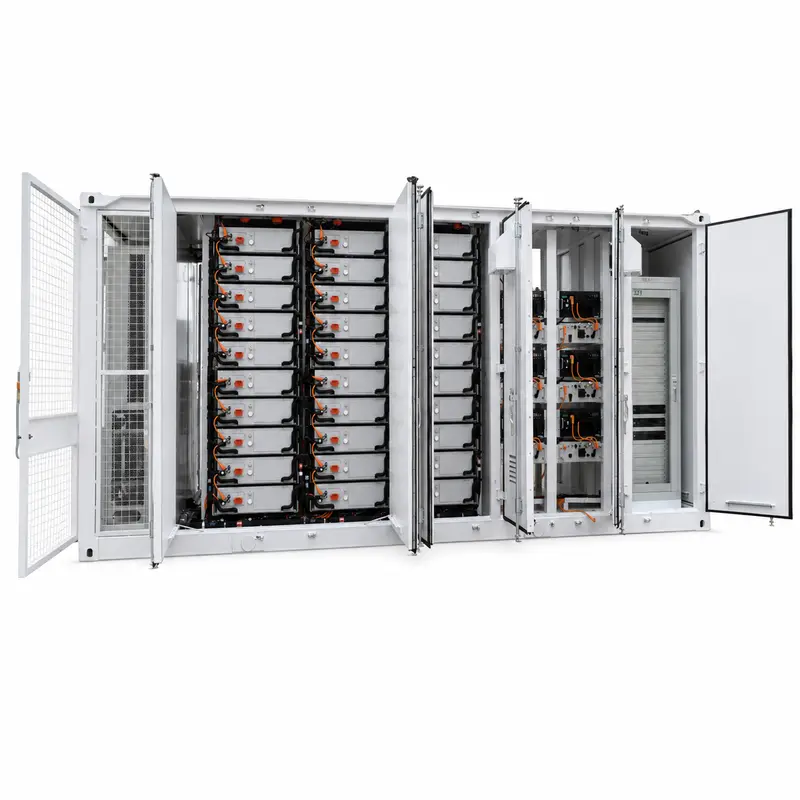

Containerised Battery Energy Storage Systems
Packaged in standard 20ft and 40ft containers, this outdoor battery storage system scales lithium-ion capacity for industrial and commercial sites. Spanning…
| Parameter | Value |
|---|---|
| Product Type | Outdoor Containerized Energy Storage System (BESS) |
| Battery Type | Lithium Ion |
| Capacity | 1MWh / 2MWh / 2000kWh (up to 5MWh) |
| System Voltage | 768 V |
| Battery Configuration | 10P384S |
| Cooling | Liquid Cooling |
| BMS | Integrated Battery Management System |
| Grid Connection | Hybrid Grid |
| Power Source | Solar Panel |
| Communication | CAN / RS485 |
| Protection Class | IP67 |
| Container Dimension (L×W×H) | 12196 × 2438 × 2896 mm (40ft) |
| Weight | 27.5 t |
| Application | Industrial and Commercial Energy Storage |
Figures reflect the product data provided. Actual dimensions, materials, finish, and packaging depend on the confirmed sample and final order details.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Packaged in standard 20ft and 40ft containers, this outdoor battery storage system scales lithium-ion capacity for industrial and commercial sites. Spanning 1MWh to 5MWh (2000kWh being a typical size), it combines liquid cooling, a built-in BMS, and IP67 protection to bank solar and grid power for peak-shaving, backup, and hybrid-grid duty.

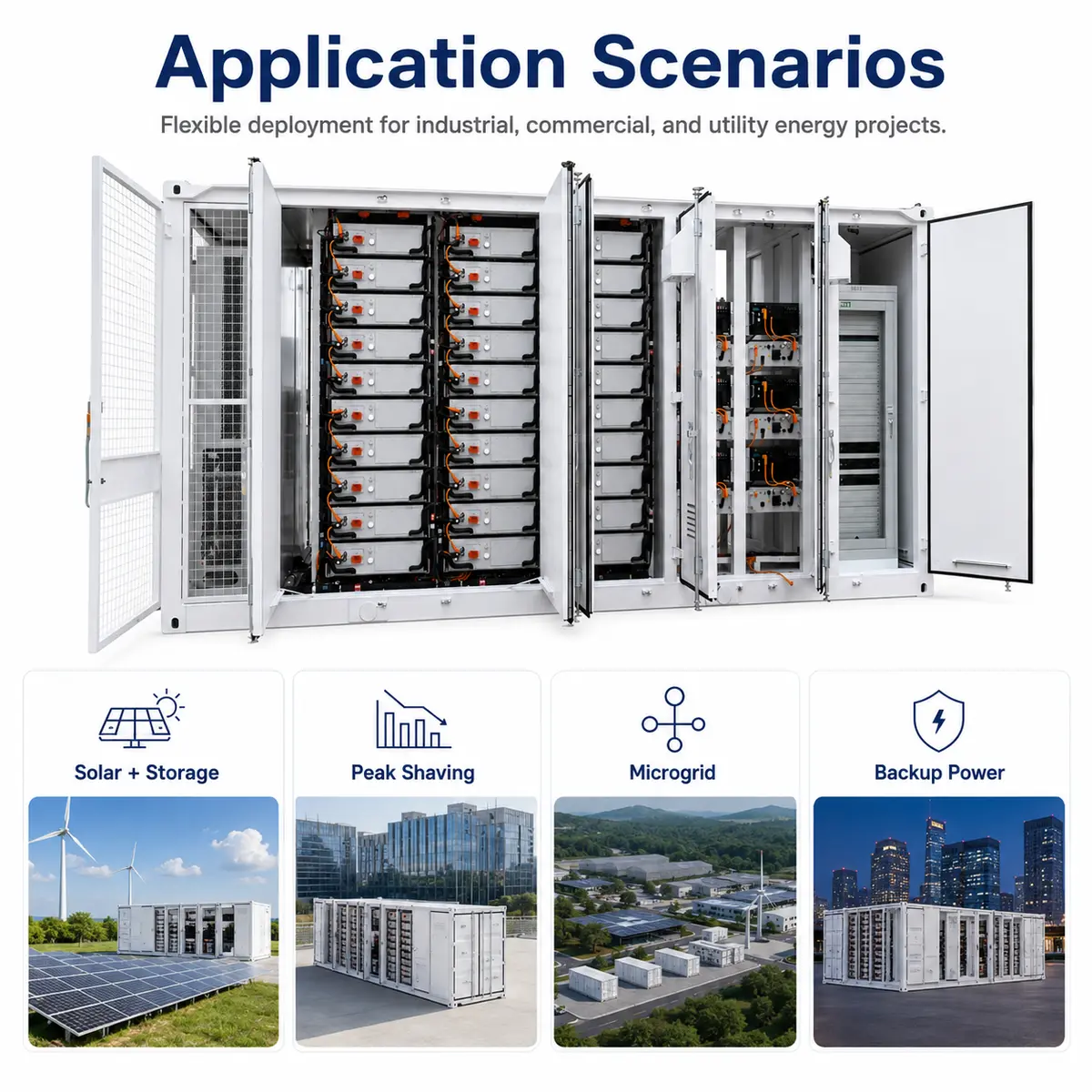

Suited to outdoor solar-plus-storage plants, industrial and commercial storage projects, peak-shaving and load-shifting programs, and hybrid-grid backup at megawatt-hour scale.
Capacity, container size (20ft/40ft), system voltage, grid setup, and communication interface can be tailored to project requirements.
Please confirm the capacity, container size, system voltage, and grid-connection type required when ordering.
The rated capacity is 1MWh / 2MWh / 2000kWh (up to 5MWh). Other ratings in the same series are quoted on request.
Outdoor containerized BESS available in 20ft and 40ft sizes; Capacity range from 1MWh to 5MWh (2000kWh typical); Liquid-cooled lithium-ion racks deliver stable performance.
Capacity, container size (20ft/40ft), system voltage, grid setup, and communication interface can be tailored to project requirements.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
