Philippines: 13.8 kV Island Microgrid Substation

Why the specification takes this shape

The Philippines follows ANSI/IEEE convention through the Philippine Electrical Code, which means a 13.8 kV network here is a 15 kV class system running at 60 Hz — a different animal from an IEC 15 kV system, with its own insulation levels, clearances and equipment ratings. Nailing that down at enquiry stage keeps a buyer from ending up with a transformer and switchgear that are electrically sound but the wrong size and dielectric class for the network they're meant to join.

The real driver of the design, though, is that an island microgrid has nowhere else to draw power from. On a mainland grid, a fault simply means an outage until an alternate feed is switched in. Here there is no alternate feed, so resilience has to be built into the substation itself: a bus that can be sectionalised, feeder capacity held in reserve, a backed-up auxiliary supply, and spare parts on hand that can't just be flown in overnight. Reliability has to be purchased upfront, because it can't be added later.

Low fault current follows close behind, and it's fundamentally a protection challenge. Where inverters supply most of the generation, their fault contribution tops out near rated current and shifts depending on which sources happen to be online at the time. Traditional overcurrent grading — which depends on a wide, stable gap between load and fault current — stops being dependable under those conditions. The practical fixes are directional, differential or communication-assisted protection, adaptive relay settings, or a controller capable of switching between setting groups as the operating mode changes. Frequency stability presents a related challenge: with so little rotating inertia in the system, a grid-forming source and rapid frequency response become essential to ride through sudden load changes.

The local environment settles the case for a containerized design. Between typhoon-level wind loading under the NSCP, storm surge and flood exposure, and a marine atmosphere sitting at the top of the corrosivity scale, the sensible answer is a sealed, anchored, elevated steel enclosure that keeps every valuable component protected inside it.

How the system is built

Sequence of works on site

This contact sheet steps through the four stages typical of an installation of this kind: equipment delivery to the island, crane placement onto the raised pad, switchgear and cable connection work, and the finished, fenced microgrid site. Logistics drive the order here as much as engineering does. Nothing reaches an island by accident, so the foundation, ground grid, ducts and drainage are complete and verified before the container is ever set down, and there's no realistic option to send out a forgotten item on a follow-up delivery. Cable is measured and cut to the positions as actually placed. Any testing that requires panels to be open gets finished before the compound is sealed up, because reopening it later means another boat trip.

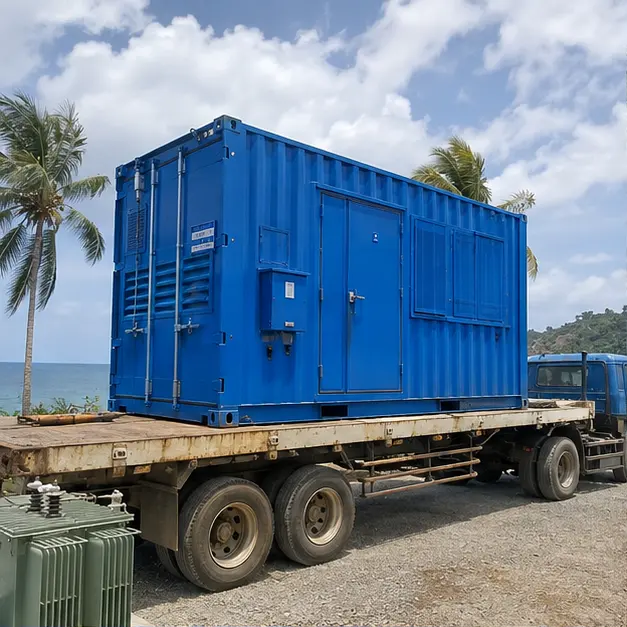

Getting equipment to an island community adds a marine leg — and often a beach or small-port landing — on top of the usual road-transport planning. Barge capacity, tidal windows, ramp gradient and the bearing capacity of the landing site all need confirming before dispatch, and the equipment has to be shielded from salt spray for the entire crossing, since a container arriving with chloride deposits on exposed steel is already corroding. Receiving inspection checks for transport damage, seal and louvre alignment, water ingress, shifted internal fixings and, on an oil-immersed transformer, oil level and pressure gauge reading. Spares and consumables are checked against the packing list with particular attention, because any shortfall can't easily be made good on the island.

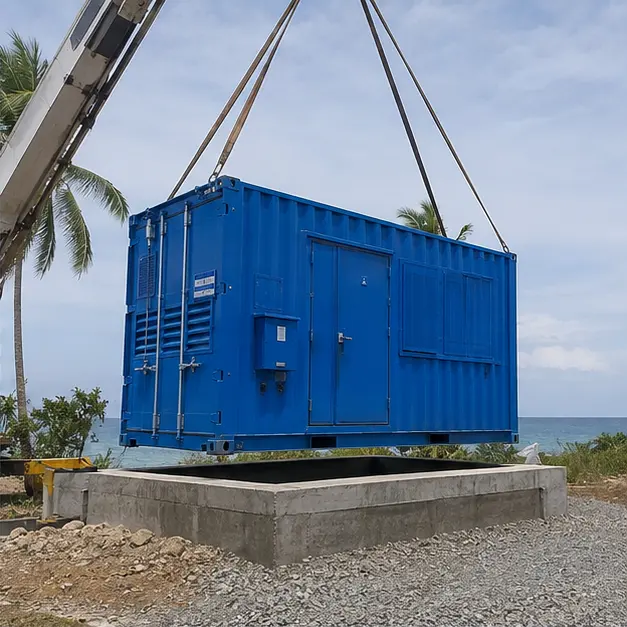

The raised pad is the signature structural element of a coastal Philippine build, and its height is derived directly from the site's flood and storm-surge assessment rather than chosen as a construction preference. Raising the pad keeps the enclosure floor and cable entries above expected inundation and gives the cable trench a fall for drainage during heavy rain. Placement uses the designated lifting points and a spreader beam; crane capacity is checked at working radius on ground whose bearing pressure has been verified, and the lift is scheduled within a wind window since a container enclosure catches a lot of wind. The pad is confirmed level before the unit is lowered onto it, and anchoring is completed to the full typhoon uplift and overturning detail.

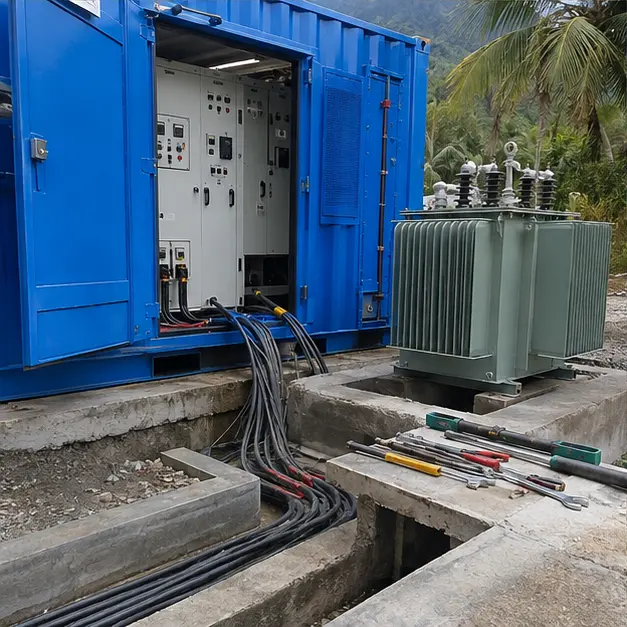

Interior work covers MV and LV cable termination, busbar connection and the grounding system. MV terminations are the single highest-risk piece of workmanship on the site: cut-back length, removal of the semiconducting layer, cleanliness and correct stress-cone seating all determine how long the termination lasts, and in tropical humidity each one is finished in a single controlled session rather than left half-done overnight. Cable screens and arrester earths are bonded to the station ground bar with conductors sized for the prospective fault current and its clearing time. Bushings, insulators and any external terminations get extra attention on a salt-air site, where leakage-current tracking across contaminated surfaces is a genuine failure mode. Busbar and terminal bolts are torqued to value and marked once made up.

Before energisation the installation is proved as a chain. Transformer turns ratio is measured on every tap with the vector group verified; insulation resistance is recorded; ground continuity is confirmed from every enclosure part and equipment frame back to the main bar, and grid resistance plus step and touch potential are measured against the IEEE 80 design. Protection is tested end-to-end by injection, with each setting group checked against the operating mode it belongs to. The microgrid controller is exercised through its transitions — grid-forming start, load pickup, source changeover, load shedding and black start — because those transitional sequences, rather than steady-state running, are where a microgrid is most likely to fail. Energisation itself is staged, with load brought on progressively.

Ways the specification can flex

For a comparable island or microgrid enquiry, Millenium can size the voltage ratio, tapping range, transformer capacity, vector group and impedance to the load profile and the inverter fault contribution, offering copper or aluminium windings with 15 kV class insulation to ANSI/IEEE practice. The transformer can be cast-resin dry-type where enclosure fire load is the concern, or oil-immersed with containment. MV switching can be metal-enclosed load-break or metal-clad with vacuum breakers, with sectionalising and spare feeder ways sized to the reliability target. Protection can be extended to directional, differential and communication-assisted schemes with multiple setting groups. Enclosures can be built to a stated NSCP wind loading, raised-pad height, marine corrosion category and coating system, with filtered ventilation or air conditioning and anti-condensation heating as needed. Storage, PCS and controller functions can all be integrated, with reporting over Modbus, DNP3 or IEC 61850.

Information we need to quote this

• A single-line diagram of the microgrid showing sources, the distribution network and the proposed substation location
• Incoming and outgoing voltage, tapping range required, and the vector group needed
• Transformer capacity, the island's load profile with daily and seasonal variation, and the largest motor load
• The generation mix — solar capacity, storage energy and power, any generating sets — and which source is grid-forming
• Expected fault current from each source under each operating mode, and the required protection philosophy
• The reliability target, redundancy required, and the sectionalising and spare-feeder arrangement wanted
• Site ambient temperature range, humidity, NSCP basic wind speed, and flood and storm-surge levels
• Marine corrosivity classification, required enclosure IP rating, coating system and hardware material
• Soil resistivity and chemistry for the ground grid design, and the compound area available
• Required station battery autonomy and the auxiliary supply arrangement
• Microgrid controller functions needed, communication protocol, and any remote supervision required
• The delivery route including the marine leg, landing constraints, crane capacity available, and delivery terms
