Containerised Battery Energy Storage Systems

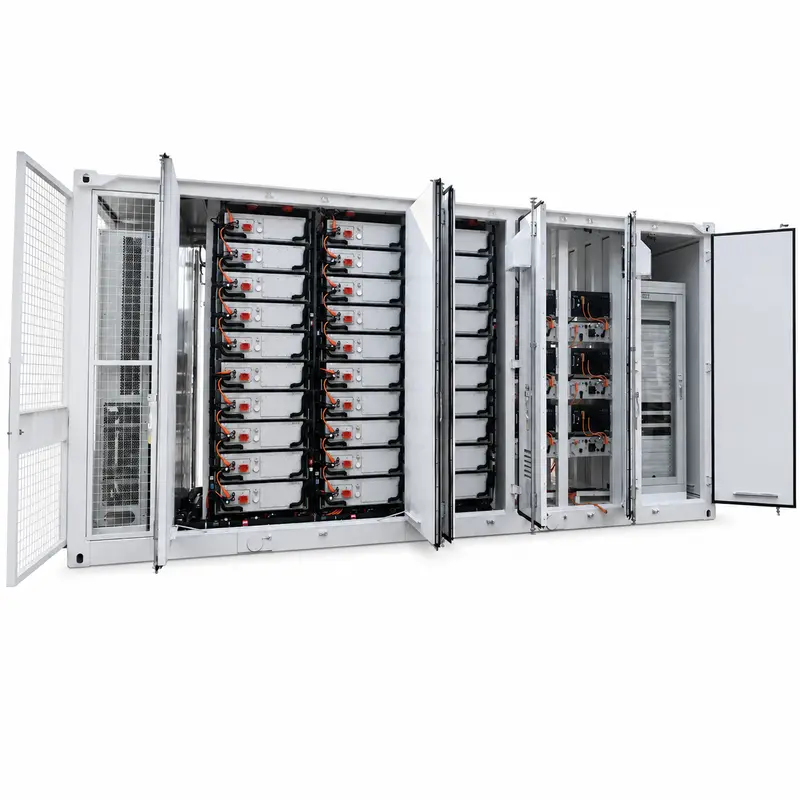

Housed in a standard 20ft or 40ft shipping container, this battery energy storage system brings lithium-ion storage to utility and commercial sites. Offered…
| Parameter | Value |
|---|---|
| Product Type | Containerized Energy Storage System (BESS) |
| Battery Type | Lithium Ion |
| Capacity | 1MWh / 2MWh / 3MWh / 5MWh |
| System Voltage | 768 V |
| Battery Configuration | 10P384S |
| Cooling | Liquid Cooling |
| BMS | Integrated Battery Management System |
| Grid Connection | Hybrid Grid |
| Power Source | Solar Panel |
| Communication | CAN / RS485 |
| Protection Class | IP67 |

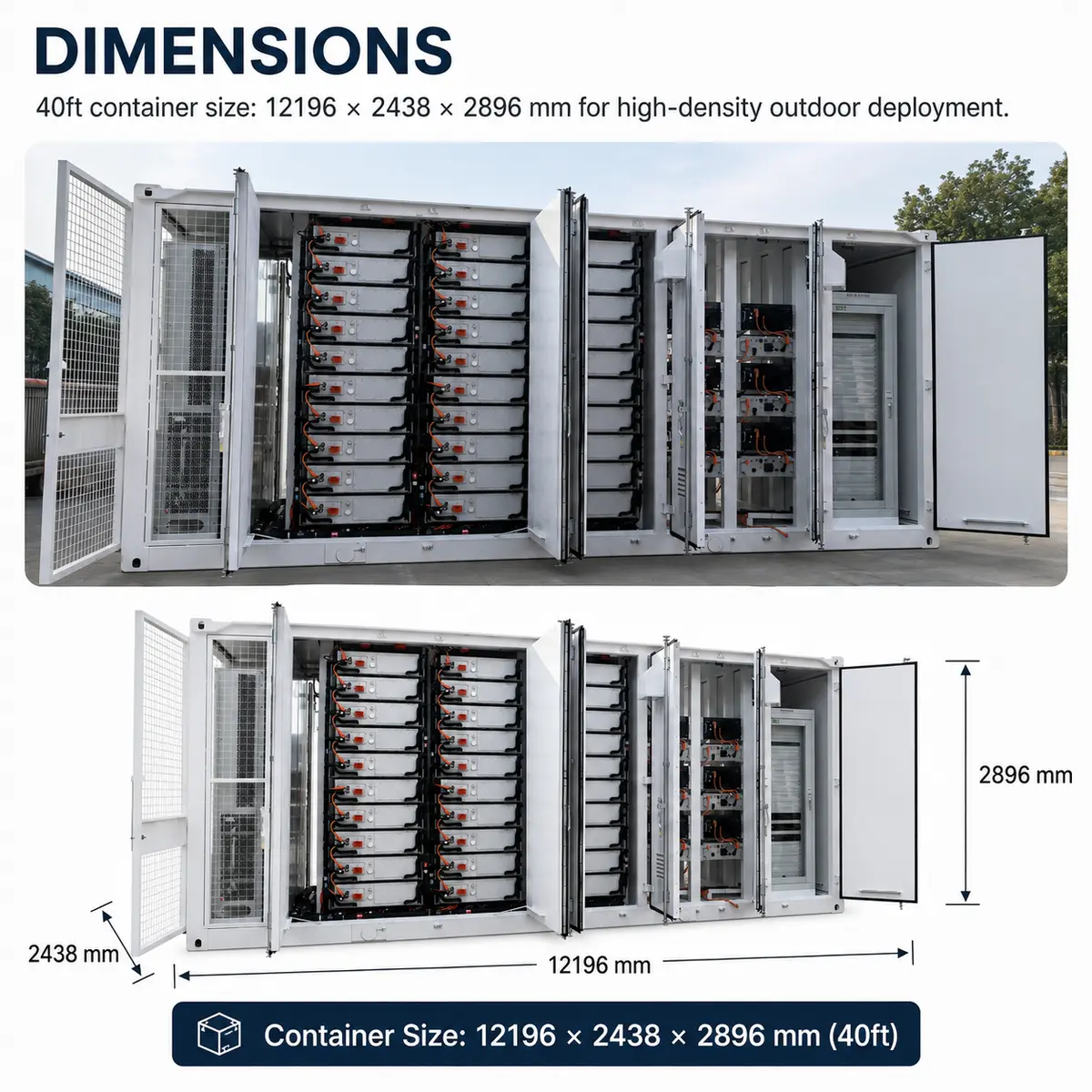

| Container Dimension (L×W×H) | 12196 × 2438 × 2896 mm |
| Weight | 27.5 t |
| Application | Industrial and Commercial Energy Storage |
Figures reflect the product data provided. Actual dimensions, materials, finish, and packaging depend on the confirmed sample and final order details.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Housed in a standard 20ft or 40ft shipping container, this battery energy storage system brings lithium-ion storage to utility and commercial sites. Offered from 1MWh to 5MWh, it combines liquid cooling, a built-in BMS, and IP67 protection to bank solar and grid power for peak-shaving, backup, and hybrid-grid use across industrial and commercial settings.
A fit for industrial and commercial storage projects, solar-plus-storage farms, peak-shaving and load-shifting schemes, and hybrid-grid backup at megawatt-hour scale.

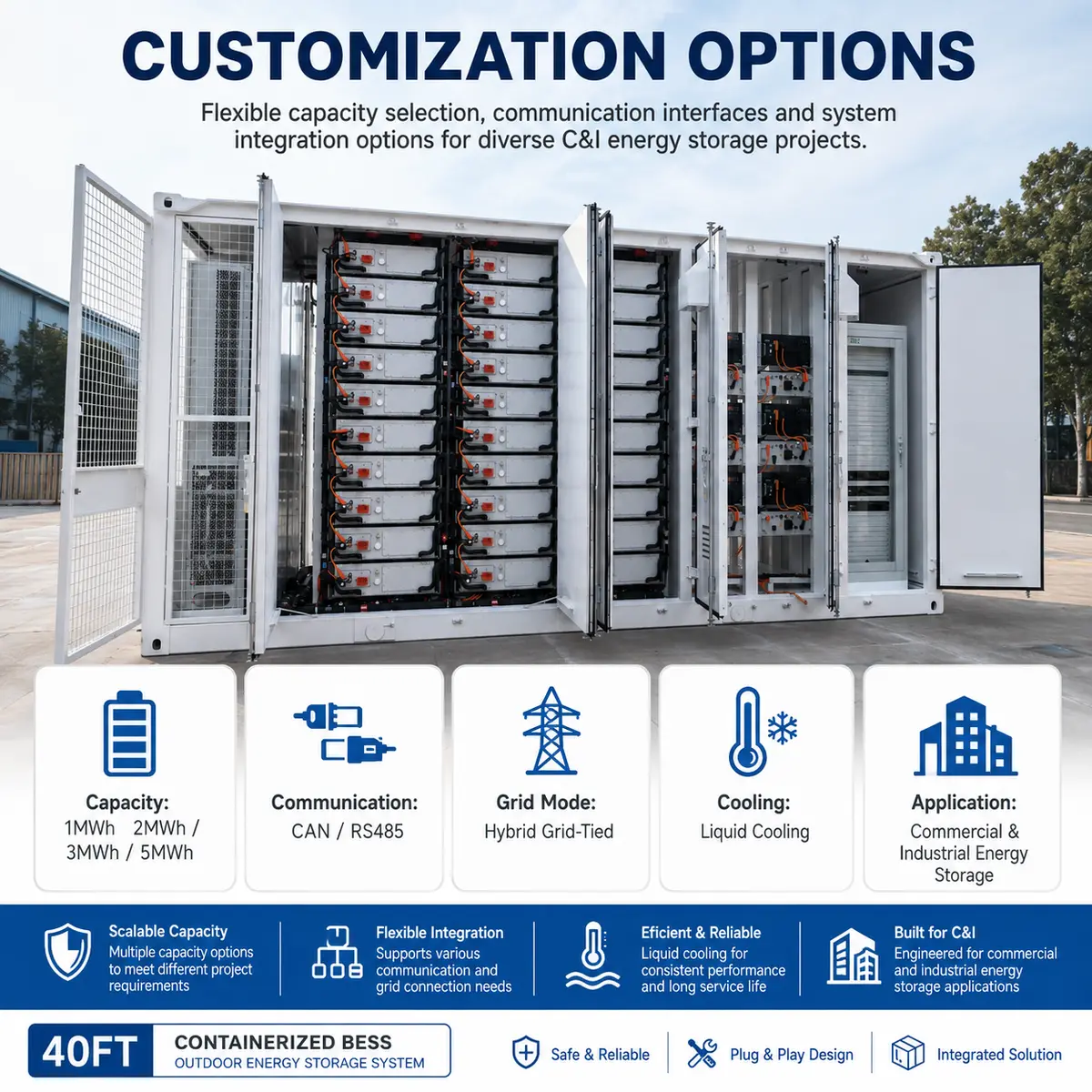

Capacity (1–5MWh), system voltage, container footprint (20ft/40ft), grid setup, and communication interface can be configured per project.
Please indicate the capacity, system voltage, container size, and grid-connection type you require when placing an order.
The rated capacity is 1MWh / 2MWh / 3MWh / 5MWh. Other ratings in the same series are quoted on request.

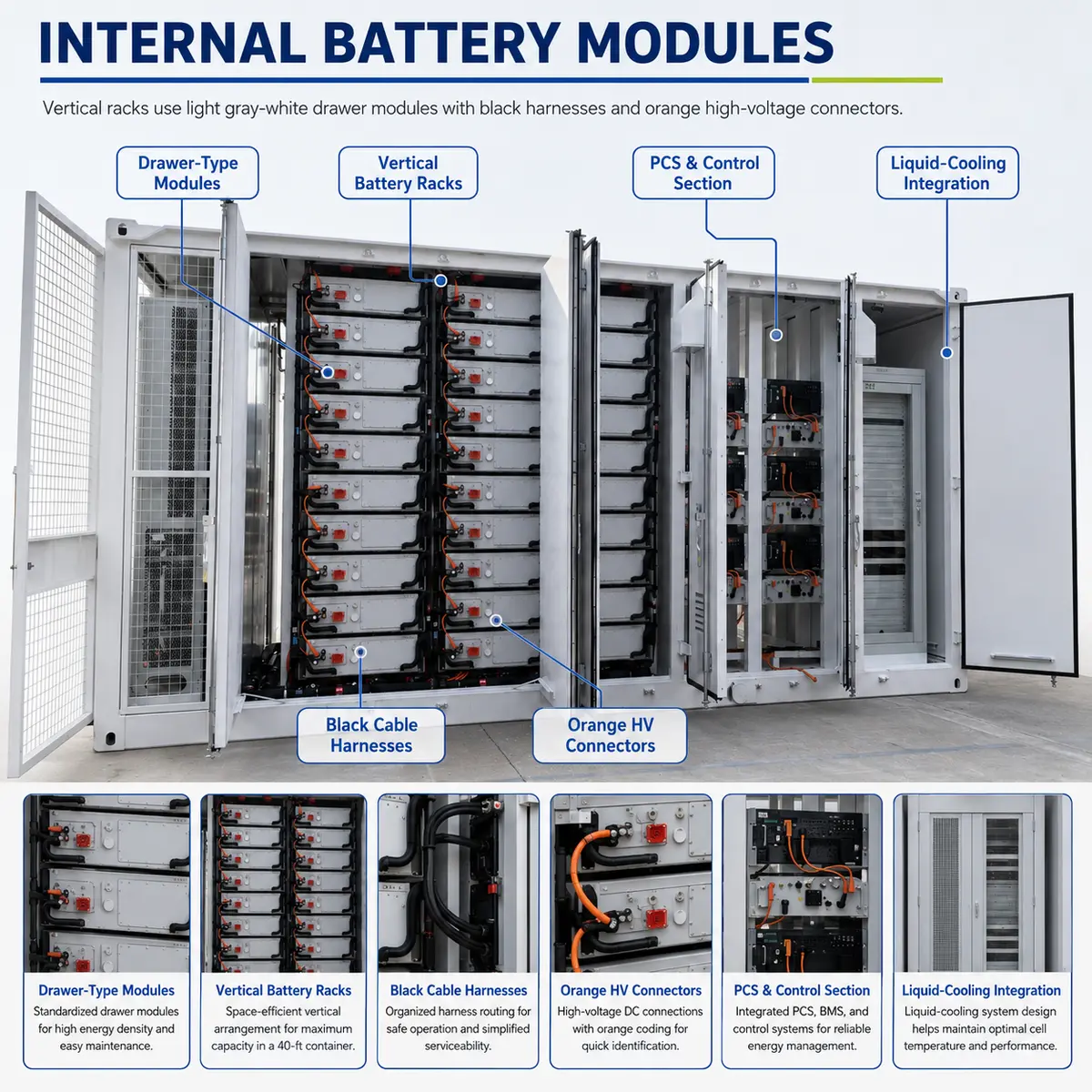

Scalable containerized BESS from 1MWh to 5MWh, expandable into multi-MW plants; Liquid-cooled lithium-ion racks maintain steady thermal performance; Onboard Battery Management System (BMS) with CAN / RS485 links.
Capacity (1–5MWh), system voltage, container footprint (20ft/40ft), grid setup, and communication interface can be configured per project.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
