Containerised Battery Energy Storage Systems
Backed by a 10-year warranty, this high-voltage containerized battery system uses liquid-cooled lithium-ion storage to serve both off-grid and hybrid-grid…
| Parameter | Value |
|---|---|
| Product Type | High-Voltage Energy Storage System (BESS) |
| Battery Type | Lithium Ion |
| Capacity | 1000kWh – 5MWh |
| System Voltage | 768 V |
| Battery Configuration | 10P384S |
| Cooling | Liquid Cooling |
| BMS | Integrated Battery Management System |
| Grid Connection | Off-Grid / Hybrid Grid |
| Power Source | Solar Panel |
| Communication | CAN / RS485 |
| Protection Class | IP67 |
| Dimension (L×W×H) | 3000 × 1500 × 2200 mm |
| Weight | 7700 kg |
| Warranty | 10 Years |
| Application | Industrial and Commercial Energy Storage |
Figures reflect the product data provided. Actual dimensions, materials, finish, and packaging depend on the confirmed sample and final order details.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Backed by a 10-year warranty, this high-voltage containerized battery system uses liquid-cooled lithium-ion storage to serve both off-grid and hybrid-grid applications. Available from 1000kWh to 5MWh with IP67 protection and an onboard BMS, it delivers dependable industrial and commercial storage inside a compact, transport-ready enclosure.

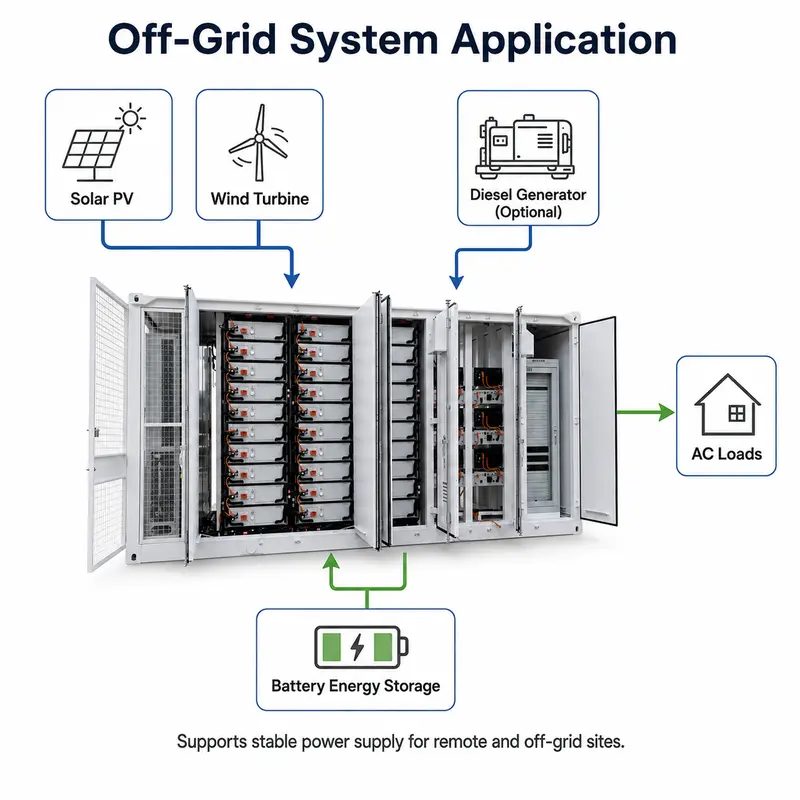

Fits off-grid solar systems, remote installations, industrial and commercial storage needs, peak-shaving programs, and hybrid-grid backup.
Capacity, system voltage, grid setup (off-grid/hybrid), and communication interface can be tailored to project requirements.
Please confirm the capacity, system voltage, and grid-connection type required when ordering.
The rated capacity is 1000kWh – 5MWh. Other ratings in the same series are quoted on request.
High-voltage lithium-ion BESS spanning 1000kWh to 5MWh; Liquid cooling supports stable temperatures and long cycle life; Handles off-grid and hybrid-grid duty, solar-fed.
Capacity, system voltage, grid setup (off-grid/hybrid), and communication interface can be tailored to project requirements.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
