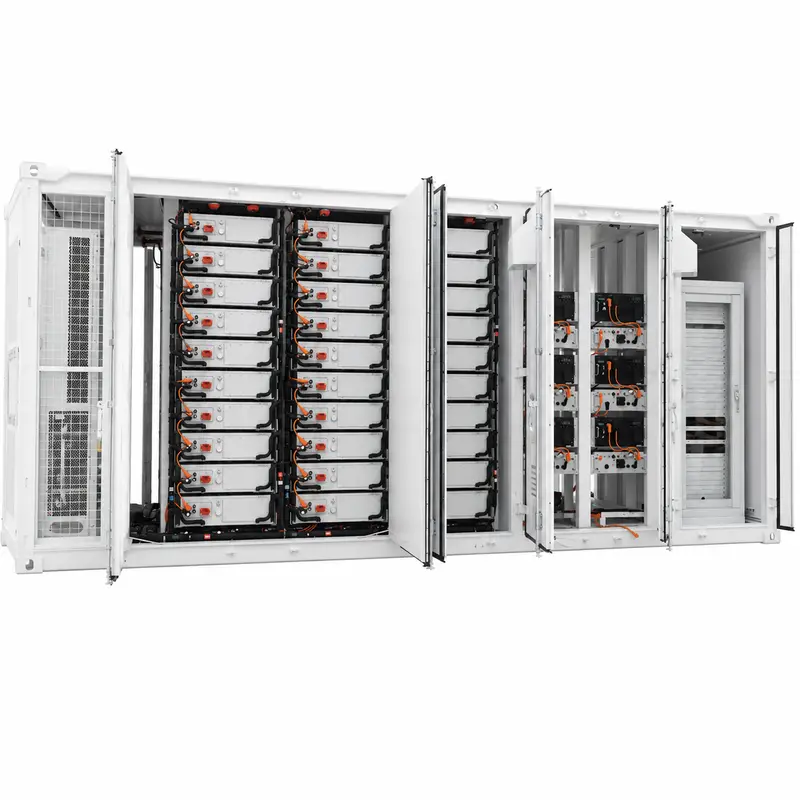

Containerised Battery Energy Storage Systems
This all-in-one containerized battery system delivers large-scale lithium-ion storage in the 6MWh-to-9MWh range for industrial, commercial, and…
| Parameter | Value |
|---|---|
| Product Type | All-in-One Containerized Energy Storage System (BESS) |
| Battery Type | Lithium Ion |
| Capacity | 6MWh / 9MWh |
| Rated Voltage | 768 V |
| Cooling | Liquid Cooling |
| BMS | Integrated Battery Management System |
| Grid Connection | Hybrid Grid (On/Off-Grid) |
| Power Source | Solar Panel |
| Communication | CAN / RS485 |
| Protection Class | IP67 |
| Container Dimension (L×W×H) | 8190 × 2438 × 2896 mm |
| Application | Industry and Commerce |
Figures reflect the product data provided. Actual dimensions, materials, finish, and packaging depend on the confirmed sample and final order details.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

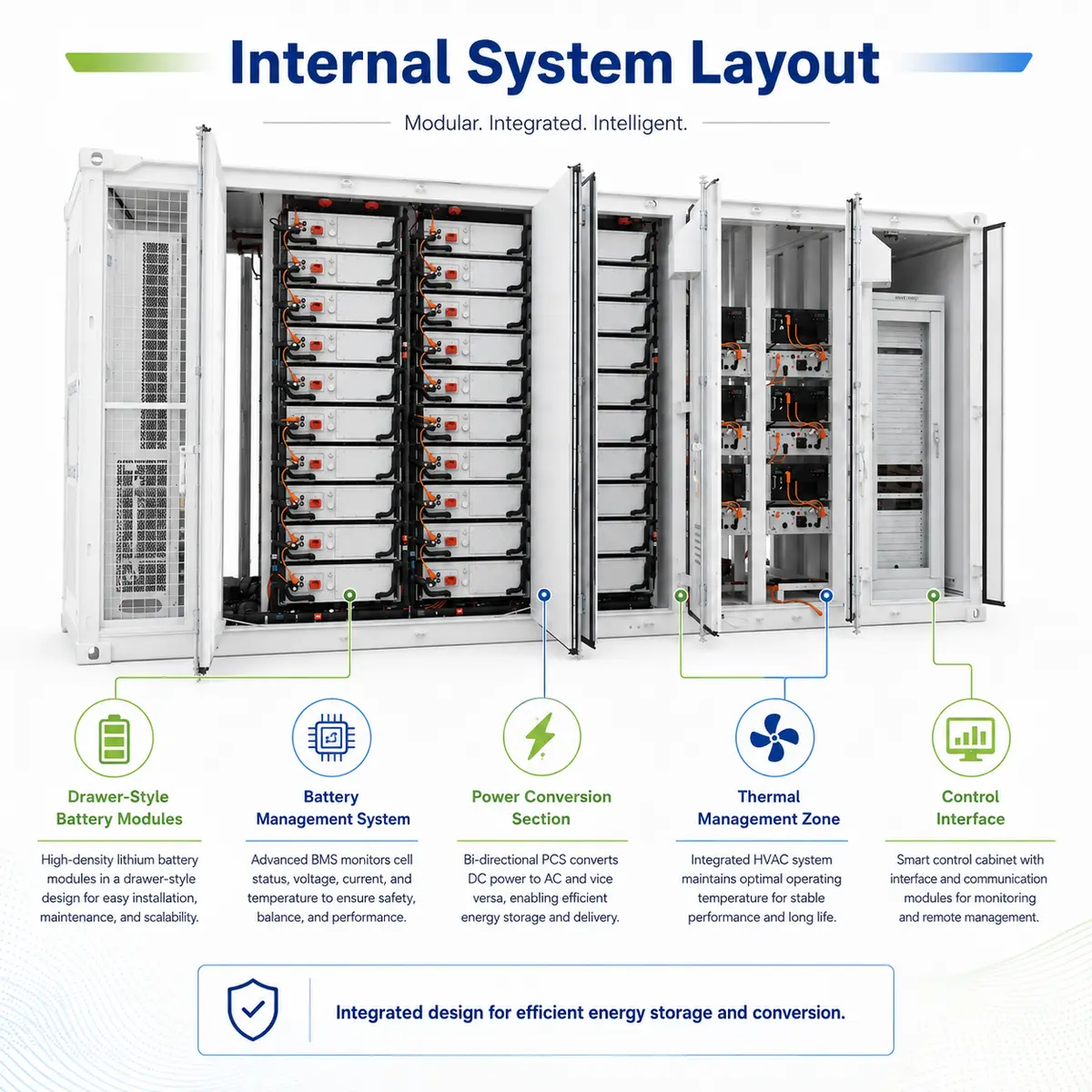

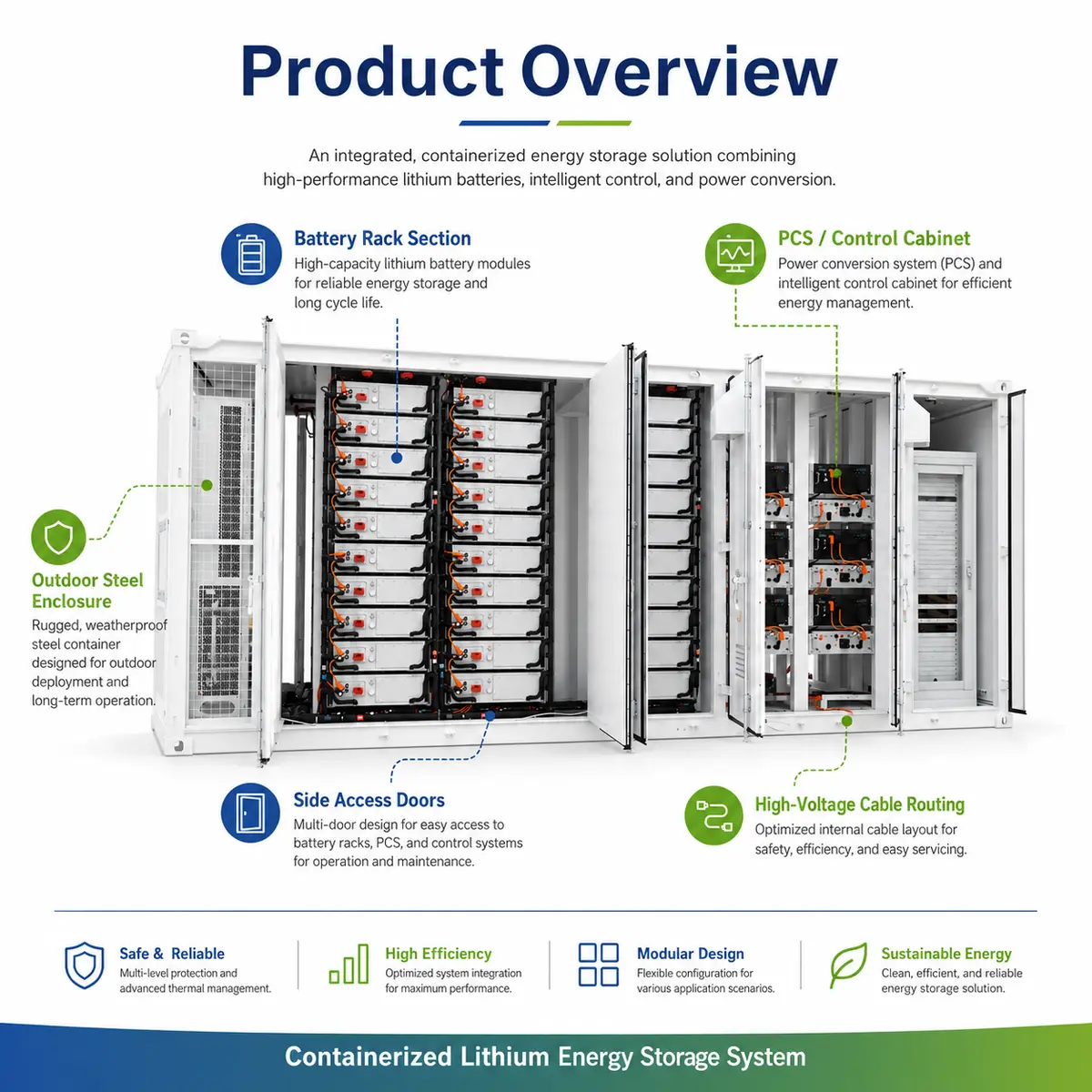

This all-in-one containerized battery system delivers large-scale lithium-ion storage in the 6MWh-to-9MWh range for industrial, commercial, and renewable-energy projects. Liquid cooling, a built-in BMS, and IP67 protection let it store wind, solar, and grid power while running in either on-grid or off-grid mode.

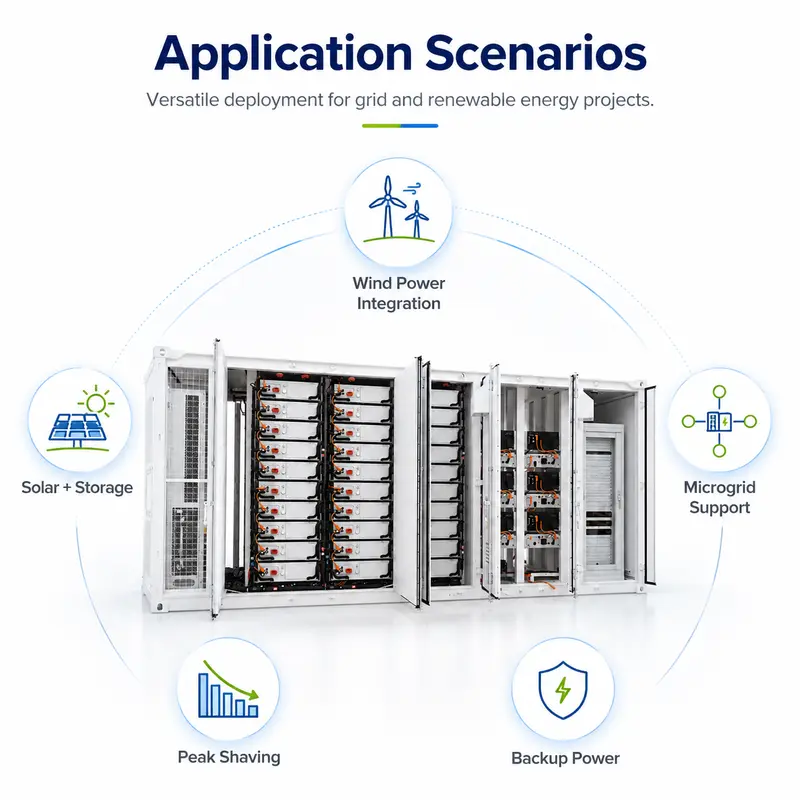

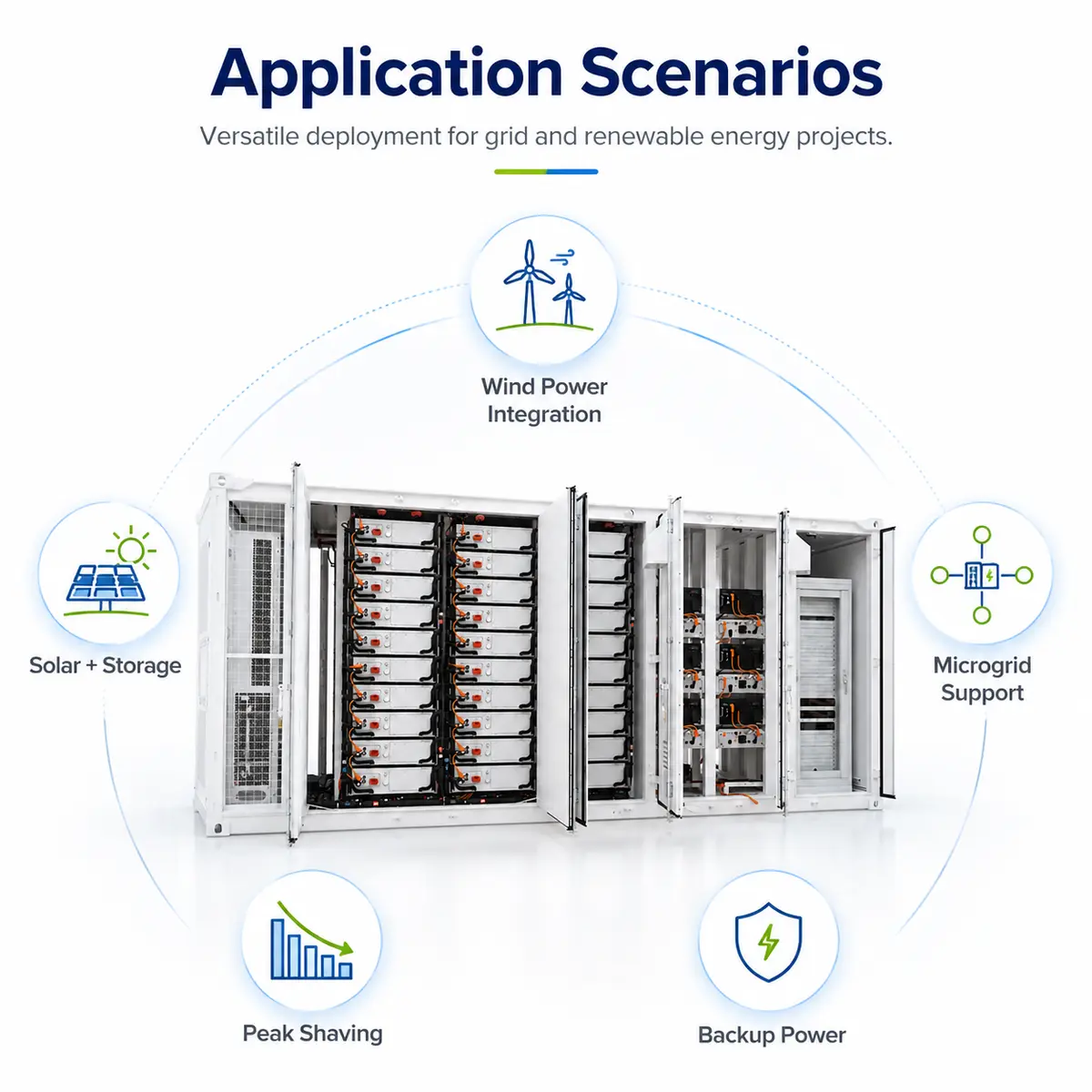

Fits wind and solar farms, utility and commercial storage projects, peak-shaving and load-shifting work, and on/off-grid backup at multi-megawatt-hour scale.
Capacity (6MWh–9MWh), system voltage, grid setup (on/off-grid), and communication interface can be tailored to project requirements.
Please confirm the capacity, system voltage, and grid-connection type required when ordering.
The rated capacity is 6MWh / 9MWh, with an input voltage of 768 V. Other ratings in the same series are quoted on request.

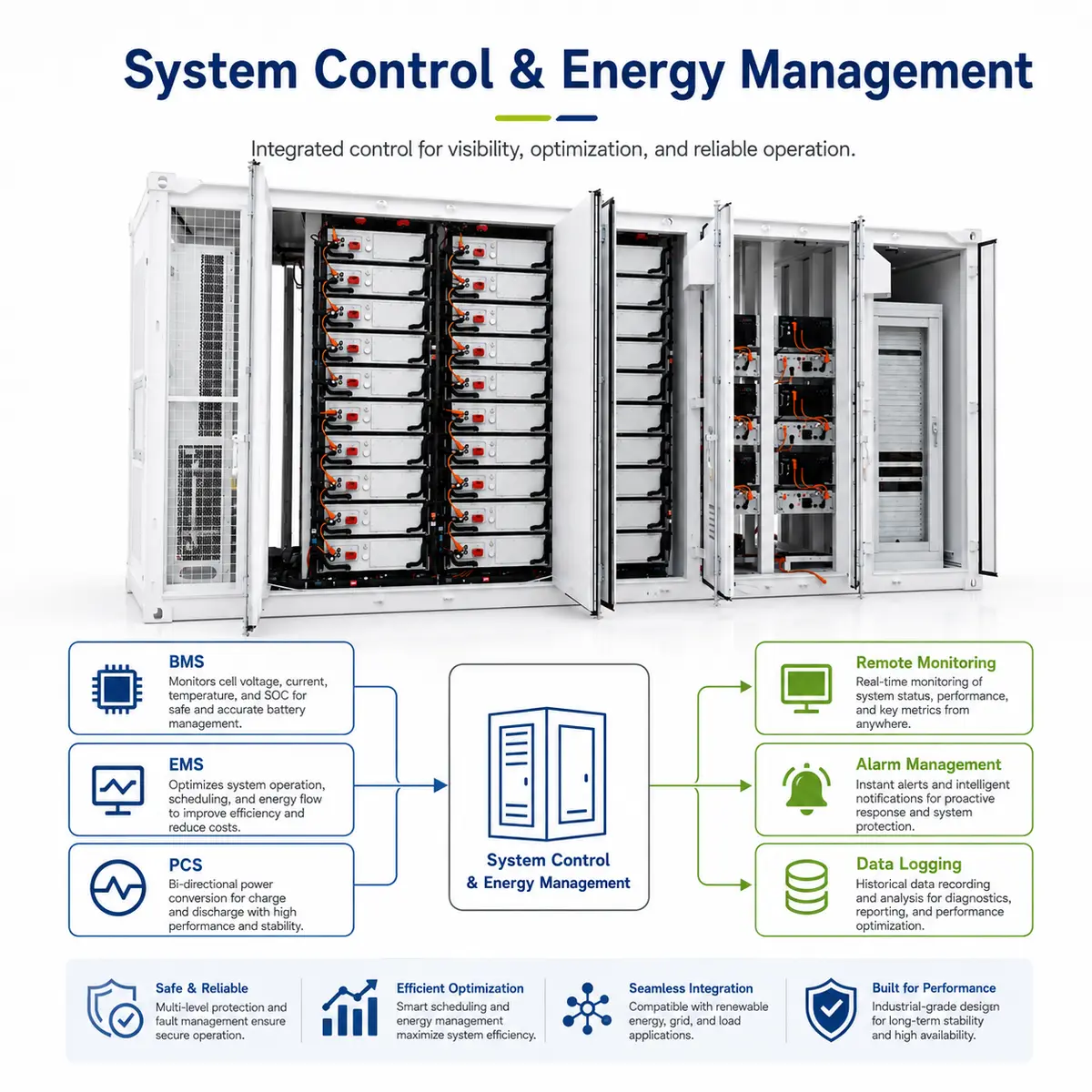

High-capacity all-in-one BESS spanning 6MWh to 9MWh; Liquid-cooled lithium-ion racks for steady, long-life performance; Built-in BMS with CAN / RS485 communication.
Capacity (6MWh–9MWh), system voltage, grid setup (on/off-grid), and communication interface can be tailored to project requirements.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
