Containerised Battery Energy Storage Systems

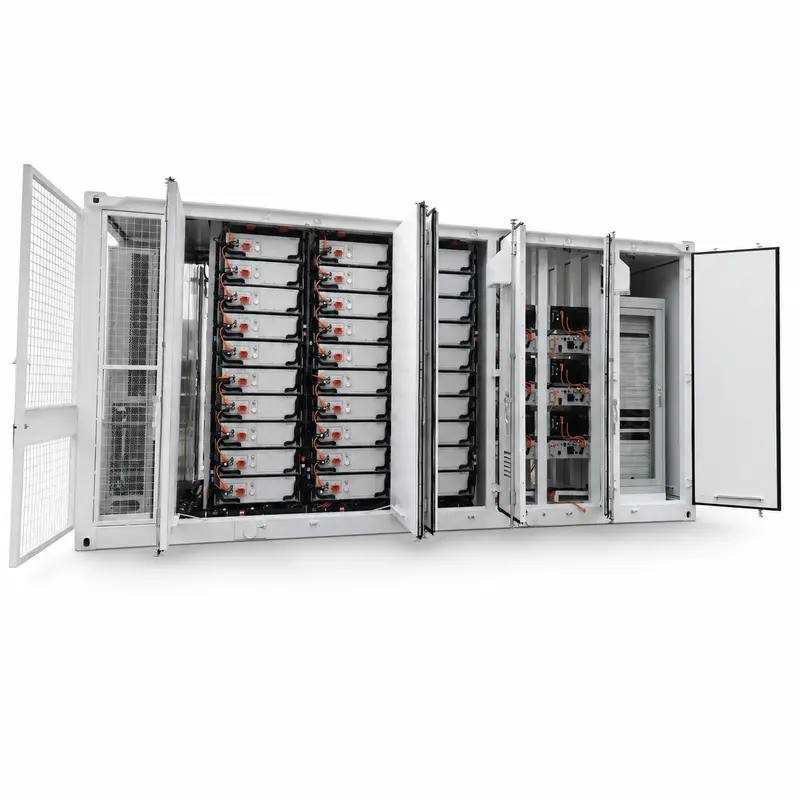

Aimed at grid and industrial-scale needs, this utility-grade containerized battery system pairs lithium-ion racks with a BMS and power conversion equipment…
| Parameter | Value |
|---|---|
| Product Type | Utility-Scale Energy Storage System (BESS) |
| Battery Type | Lithium Ion |
| Capacity | 1000kWh – 5MWh |
| System Voltage | 768 V |
| Battery Configuration | 10P384S |
| Cooling | Liquid Cooling |
| BMS | Integrated Battery Management System |
| Grid Connection | Hybrid Grid |
| Power Source | Solar Panel |
| Communication | CAN / RS485 |
| Protection Class | IP67 |
| Dimension (L×W×H) | 3000 × 1500 × 2200 mm |
| Weight | 7700 kg |
| Application | Utility, Industrial and Commercial Energy Storage |
Figures reflect the product data provided. Actual dimensions, materials, finish, and packaging depend on the confirmed sample and final order details.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

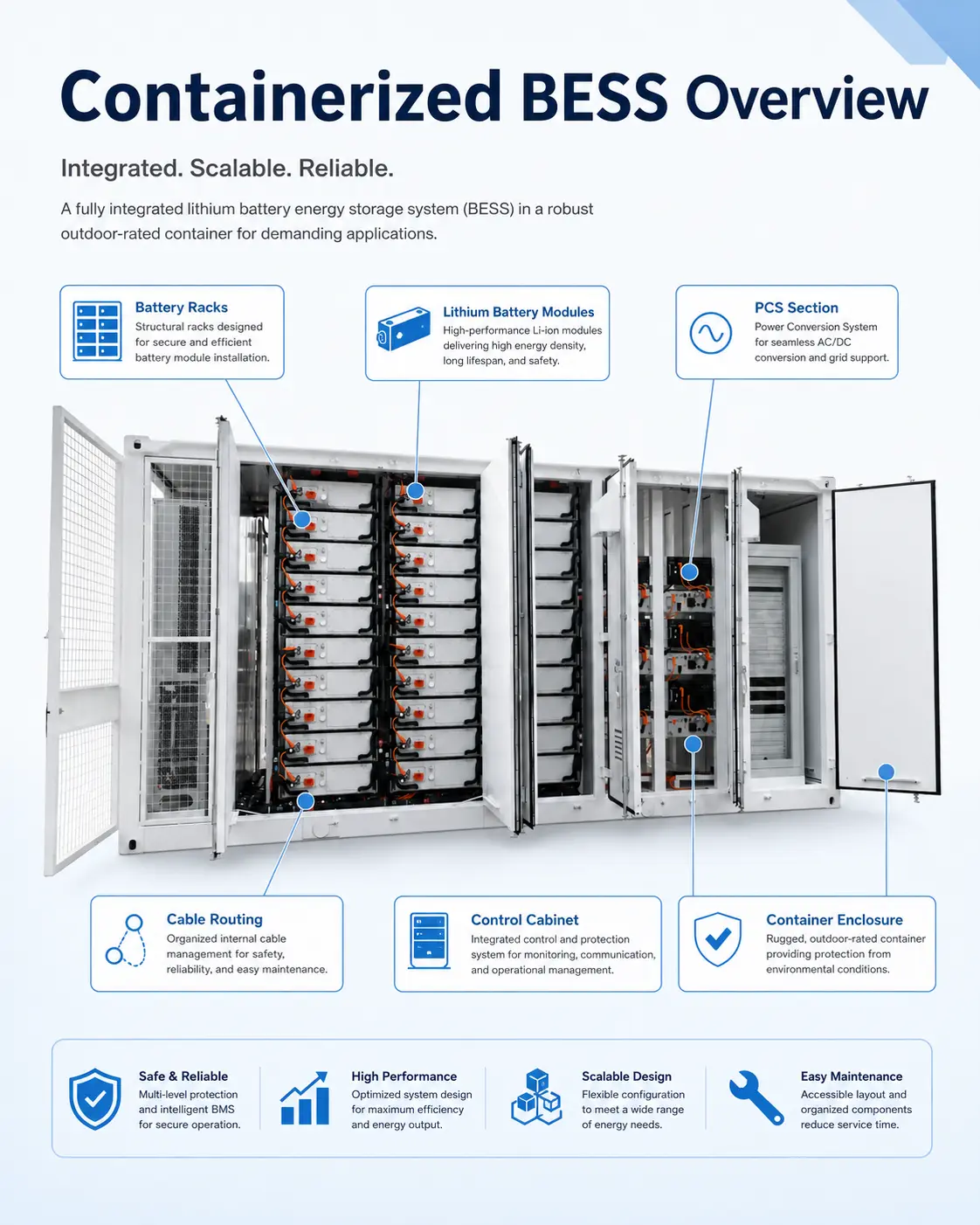

Aimed at grid and industrial-scale needs, this utility-grade containerized battery system pairs lithium-ion racks with a BMS and power conversion equipment behind IP67 protection and liquid cooling. Spanning 1000kWh to 5MWh, it supports solar power plants along with large commercial and utility installations.
Well suited to utility-scale solar power plants, grid storage, large industrial and commercial storage needs, peak-shaving programs, and hybrid-grid backup.
Capacity, system voltage, grid setup, and communication interface can be tailored to project requirements.
Please confirm the capacity, system voltage, and grid-connection type required when ordering.
The rated capacity is 1000kWh – 5MWh. Other ratings in the same series are quoted on request.
Utility-grade containerized BESS covering 1000kWh to 5MWh; Liquid-cooled lithium-ion racks for steady, long-life operation; Built-in BMS with CAN / RS485 communication.
Capacity, system voltage, grid setup, and communication interface can be tailored to project requirements.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
