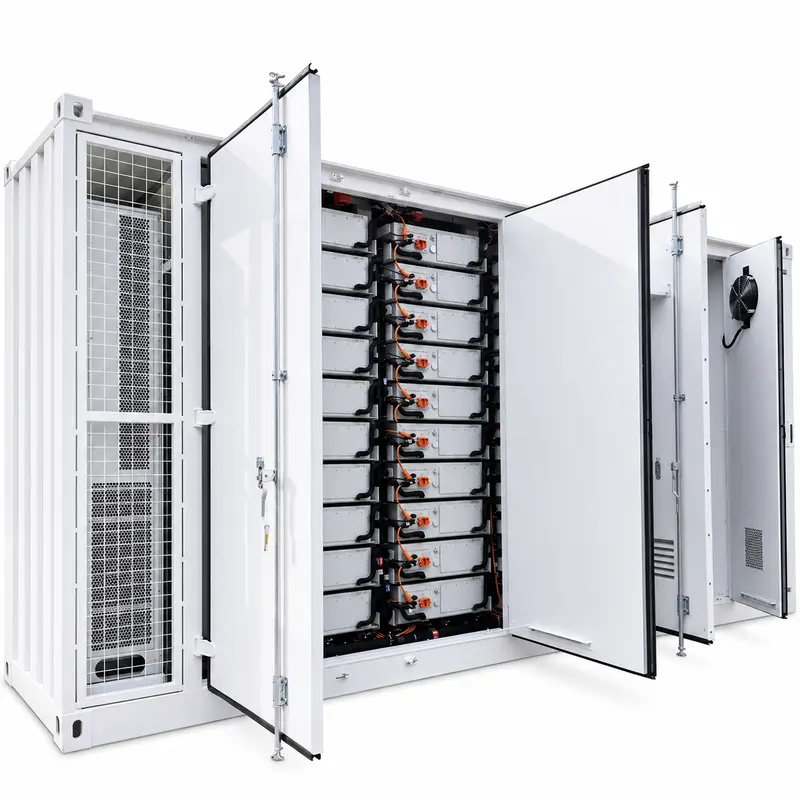

Containerised Battery Energy Storage Systems
Configurable to project needs, this containerized battery energy storage system offers capacities from 1000kWh through 2150kWh for industrial and commercial…
| Parameter | Value |
|---|---|
| Product Type | Customized Containerized Energy Storage System (BESS) |
| Battery Type | Lithium Ion |
| Capacity | 1000kWh / 1500kWh / 2150kWh |
| Rated Voltage | 768 V |
| Battery Configuration | 10P384S |
| Cooling | Liquid Cooling |
| BMS | Integrated Battery Management System |
| Grid Connection | Hybrid Grid |
| Power Source | Solar Panel |
| Communication | CAN / RS485 |
| Protection Class | IP67 |
| Container Dimension (L×W×H) | 12196 × 2438 × 2896 mm |
| Weight | 27.5 t |
| Application | Industry and Commerce |
Figures reflect the product data provided. Actual dimensions, materials, finish, and packaging depend on the confirmed sample and final order details.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

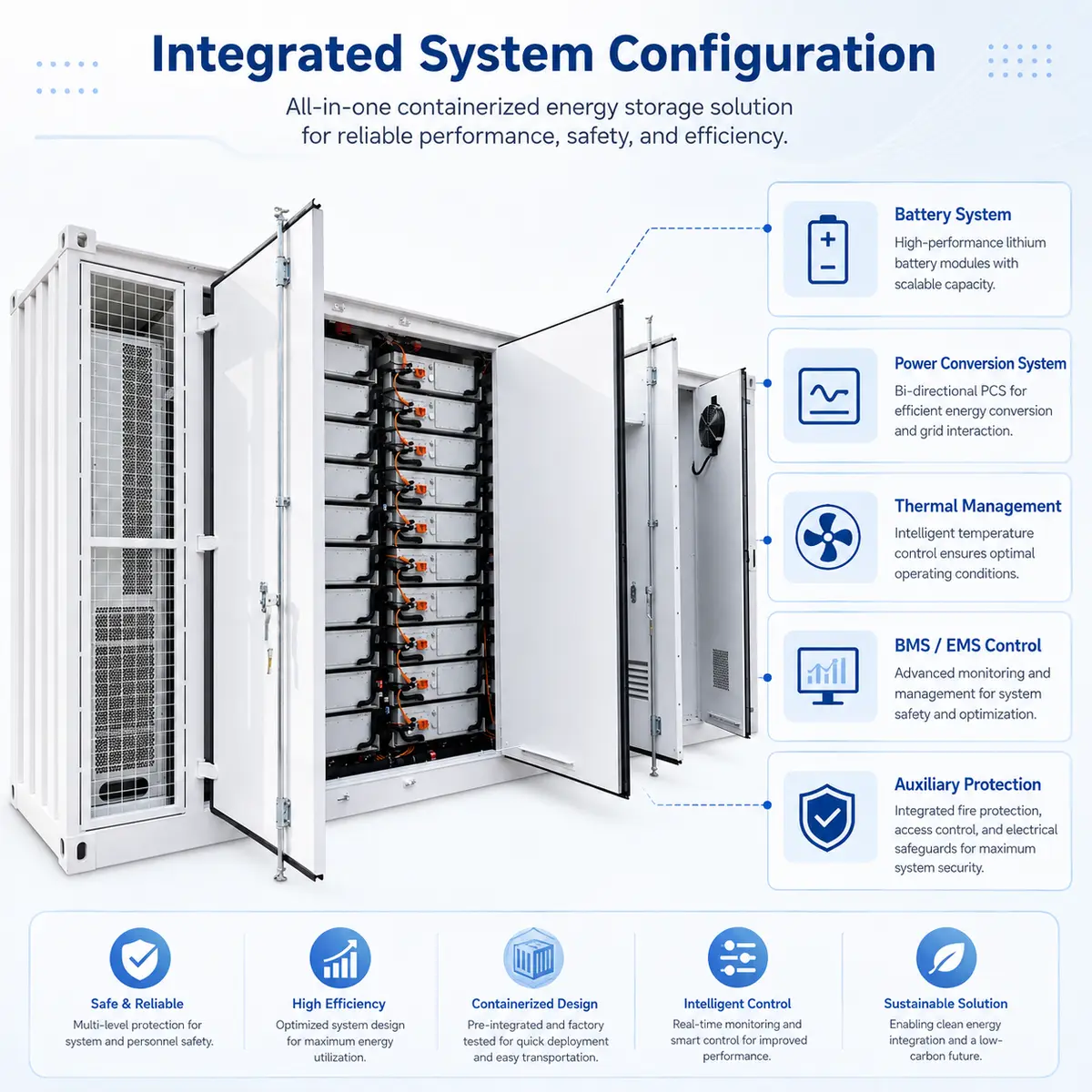

Configurable to project needs, this containerized battery energy storage system offers capacities from 1000kWh through 2150kWh for industrial and commercial use. Liquid cooling, an onboard BMS, and IP67 protection let it store solar and grid power in a rugged, purpose-built enclosure for reliable hybrid-grid operation.

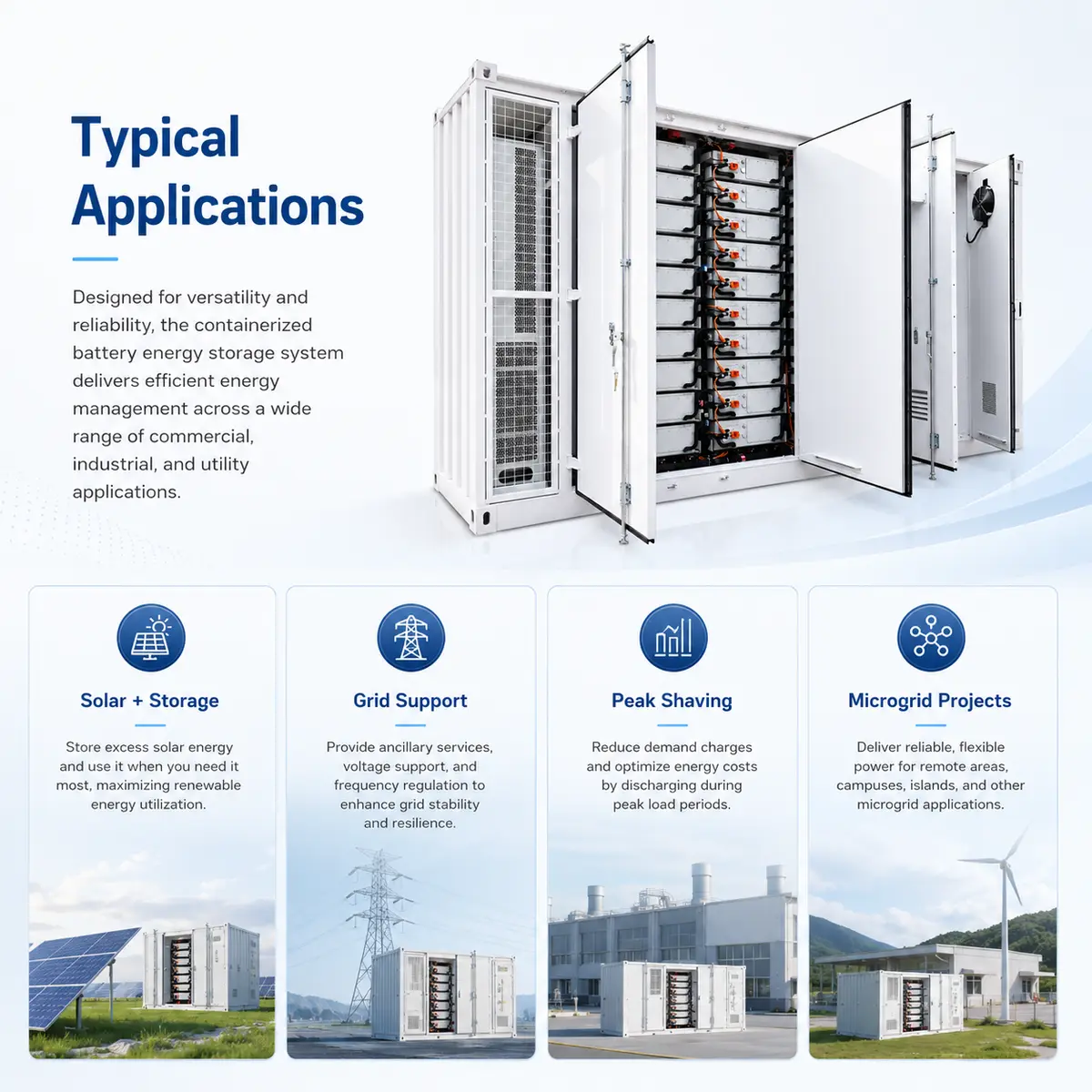

Well suited to industrial and commercial storage needs, solar-plus-storage plants, peak-shaving and load-shifting programs, and hybrid-grid backup wherever a custom capacity is required.
Capacity (1000kWh–2150kWh), system voltage, grid setup, and communication interface can be tailored to project requirements.
Please confirm the capacity, system voltage, and grid-connection type required when ordering.
The rated capacity is 1000kWh / 1500kWh / 2150kWh, with an input voltage of 768 V. Other ratings in the same series are quoted on request.

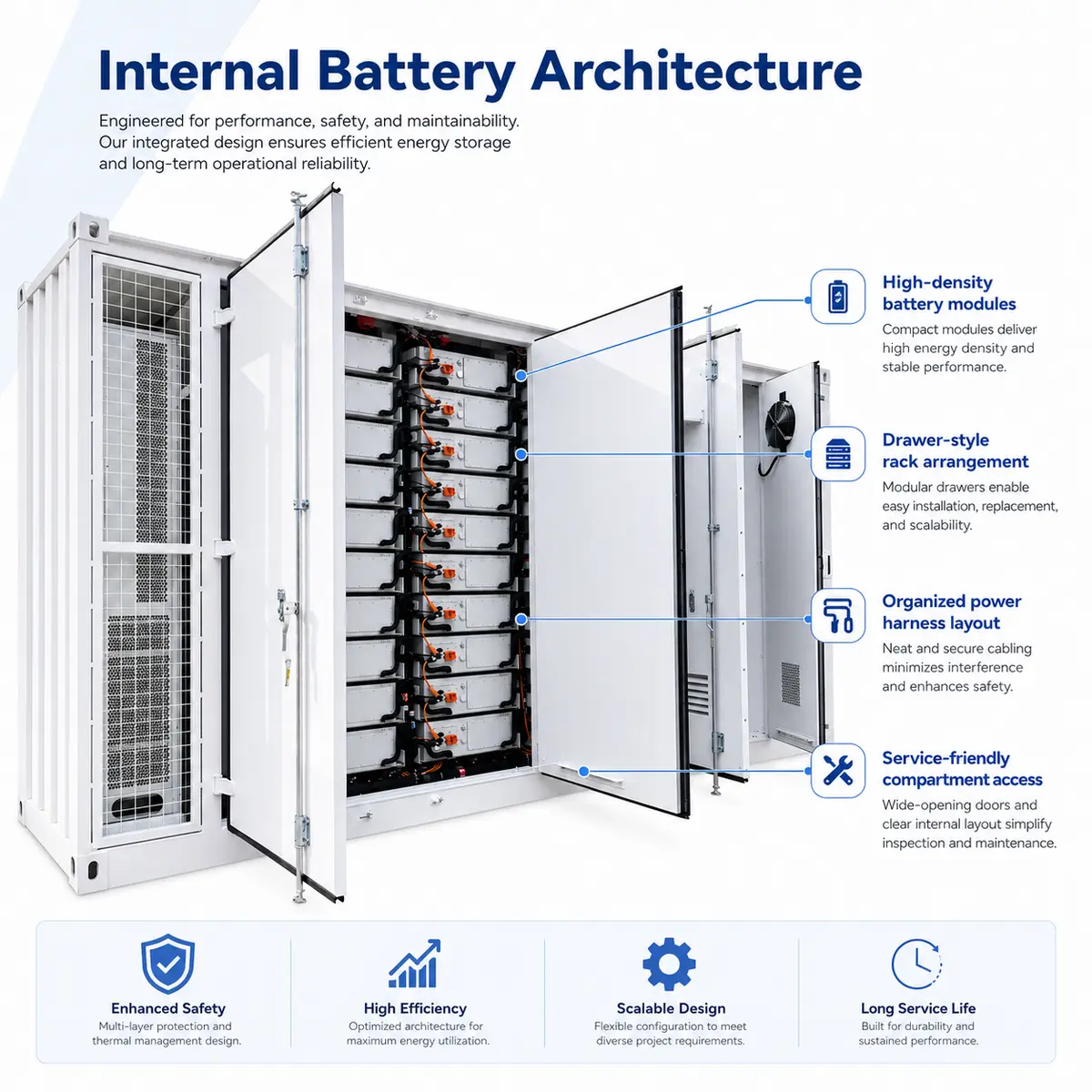

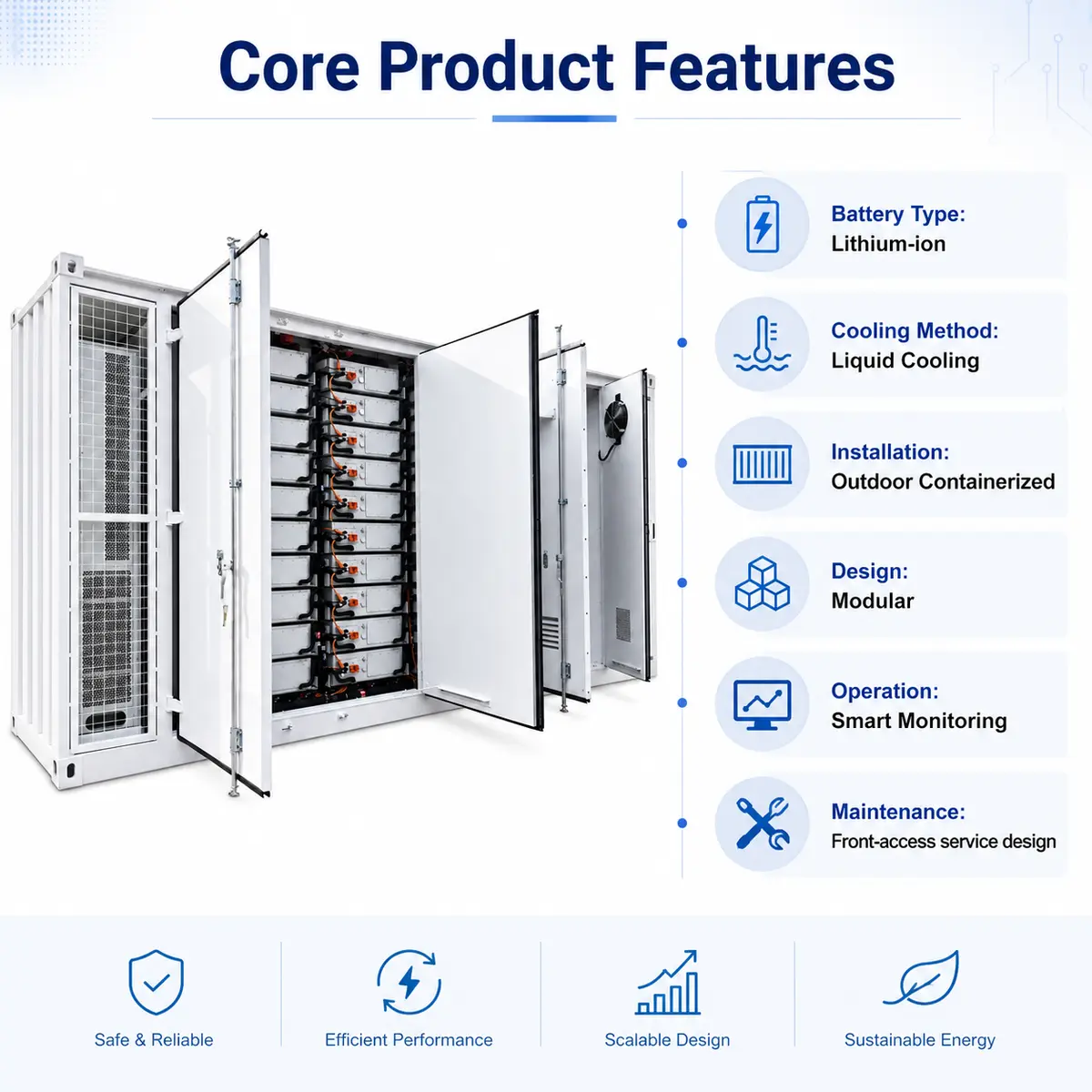

Configurable capacity options: 1000kWh / 1500kWh / 2150kWh; Liquid-cooled lithium-ion racks for steady, long-life performance; Onboard BMS with CAN / RS485 communication.
Capacity (1000kWh–2150kWh), system voltage, grid setup, and communication interface can be tailored to project requirements.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
