Containerised Battery Energy Storage Systems
Built for solar-plus-storage projects, this containerized photovoltaic energy storage unit combines lithium-ion racks with a built-in BMS and power…
| Parameter | Value |
|---|---|
| Product Type | Containerized PV Energy Storage System (BESS) |
| Battery Type | Lithium Ion |
| Capacity | 1000kWh (500kW–1MW) |
| System Voltage | 768 V |
| Battery Configuration | 10P384S |
| Cooling | Liquid Cooling |
| BMS | Integrated Battery Management System |
| Grid Connection | Hybrid Grid |
| Power Source | Solar Panel |
| Communication | CAN / RS485 |
| Protection Class | IP67 |

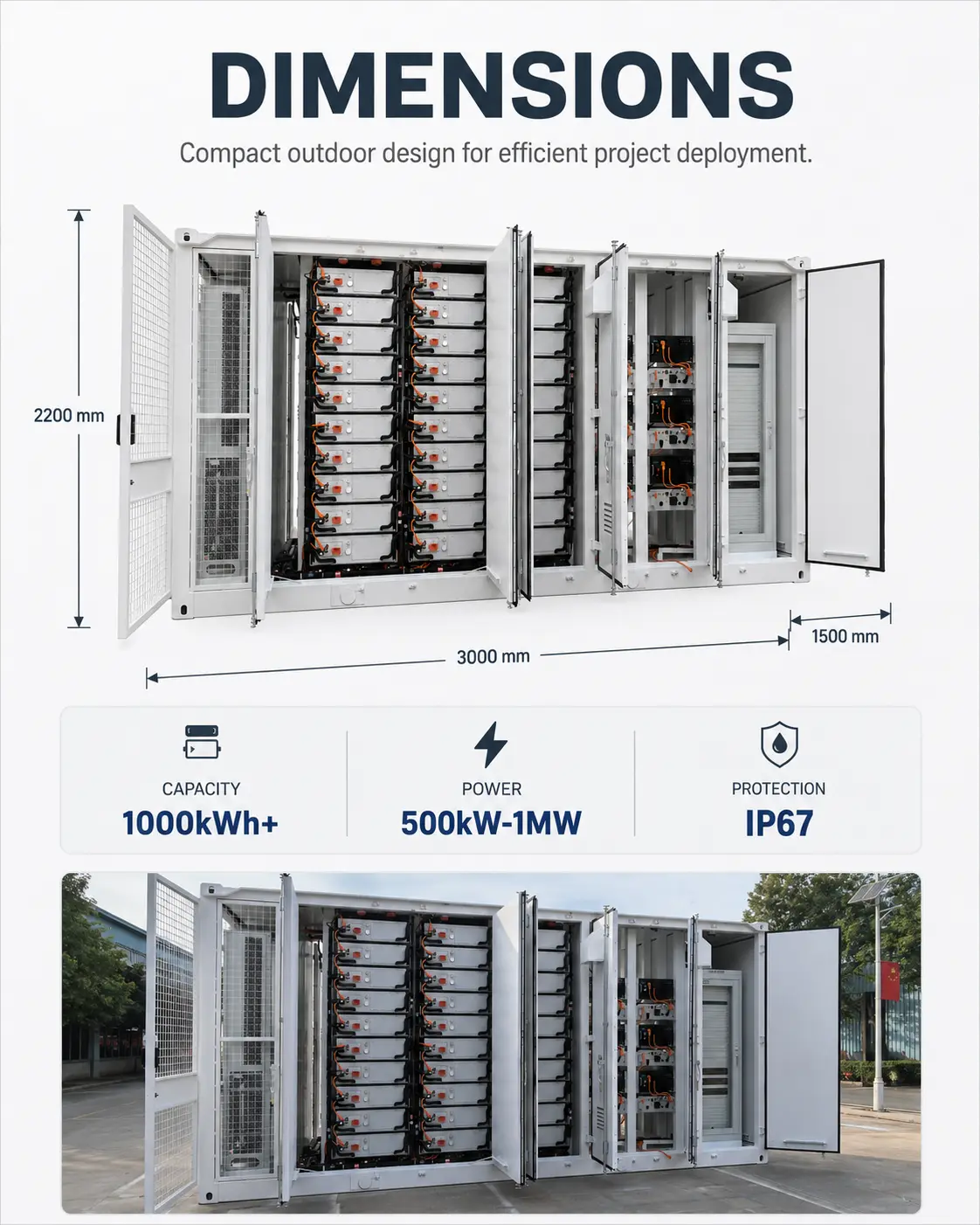

| Dimension (L×W×H) | 3000 × 1500 × 2200 mm |
| Weight | 7700 kg |
| Application | Industrial and Commercial PV Energy Storage |
Figures reflect the product data provided. Actual dimensions, materials, finish, and packaging depend on the confirmed sample and final order details.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Built for solar-plus-storage projects, this containerized photovoltaic energy storage unit combines lithium-ion racks with a built-in BMS and power conversion gear. Starting at 1000kWh with 500kW-to-1MW output and liquid cooling, it gives industrial and commercial PV sites cost-effective, IP67-rated hybrid-grid storage.
Suited to solar-plus-storage plants, industrial and commercial PV installations, peak-shaving programs, and hybrid-grid backup.

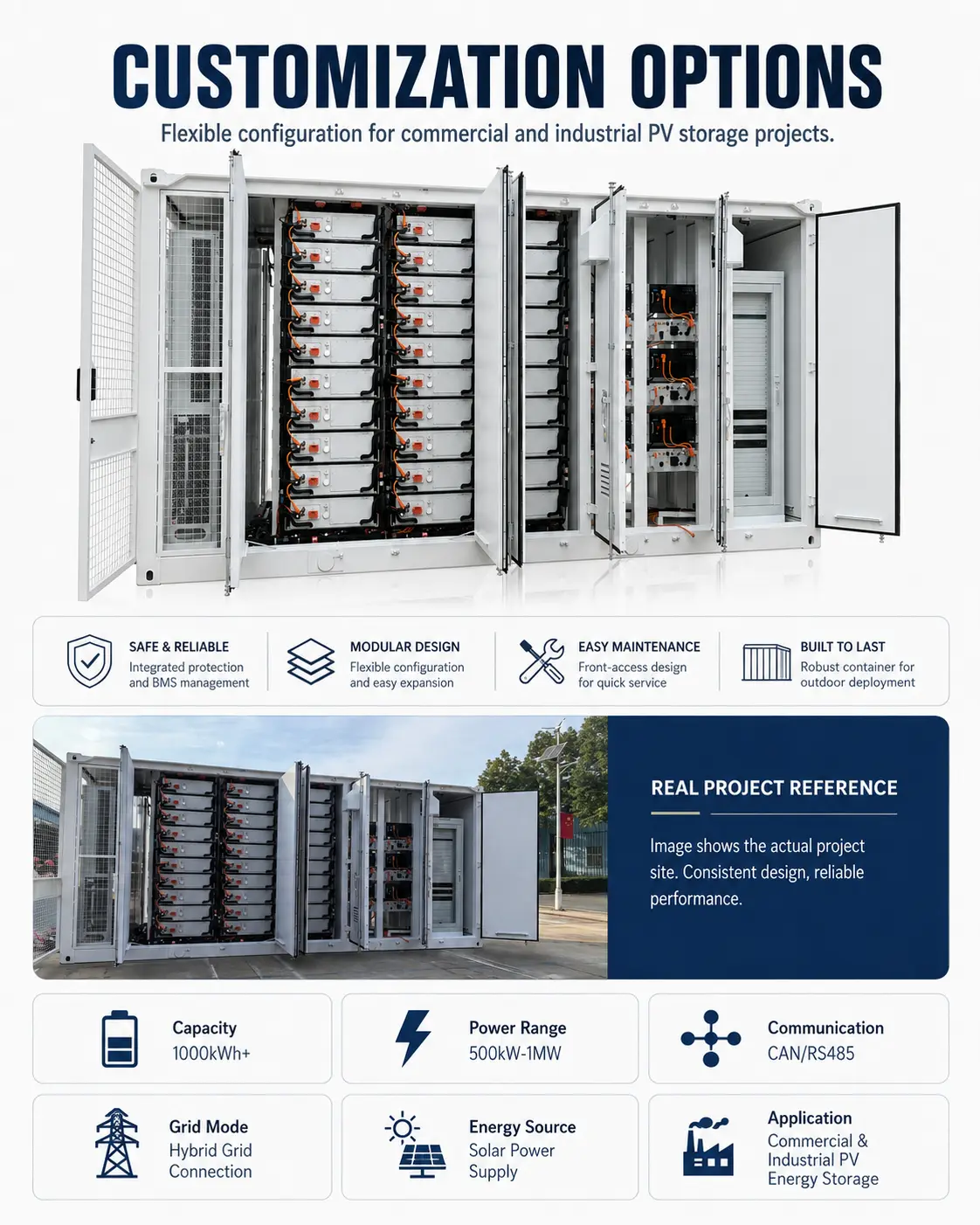

Capacity, power rating, system voltage, grid setup, and communication interface can be tailored to project needs.
Please confirm the capacity, power rating, system voltage, and grid-connection type required when ordering.
The rated capacity is 1000kWh (500kW–1MW). Other ratings in the same series are quoted on request.
Cost-competitive containerized PV storage package; 1000kWh capacity paired with 500kW–1MW output; Liquid-cooled lithium-ion racks for consistent performance.
Capacity, power rating, system voltage, grid setup, and communication interface can be tailored to project needs.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
