Containerised Battery Energy Storage Systems
This containerized LiFePO4 battery storage system scales from 1MWh up to 10MWh to suit industrial and commercial deployments. Liquid cooling, a built-in BMS…
| Parameter | Value |
|---|---|
| Product Type | Containerized Energy Storage System (BESS) |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Capacity | 1MWh / 5MWh / 10MWh |
| Rated Voltage | 768 V |
| Battery Configuration | 10P384S |
| Cooling | Liquid Cooling |
| BMS | Integrated Battery Management System |
| Grid Connection | Hybrid Grid |
| Power Source | Solar Panel |
| Communication | CAN / RS485 |
| Protection Class | IP67 |
| Container Dimension (L×W×H) | 12196 × 2438 × 2896 mm |
| Weight | 27.5 t |
| Application | Industry and Commerce |
Figures reflect the product data provided. Actual dimensions, materials, finish, and packaging depend on the confirmed sample and final order details.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
This containerized LiFePO4 battery storage system scales from 1MWh up to 10MWh to suit industrial and commercial deployments. Liquid cooling, a built-in BMS, and IP67 protection let it store solar and grid power inside a rugged, transport-ready enclosure for dependable hybrid-grid operation.

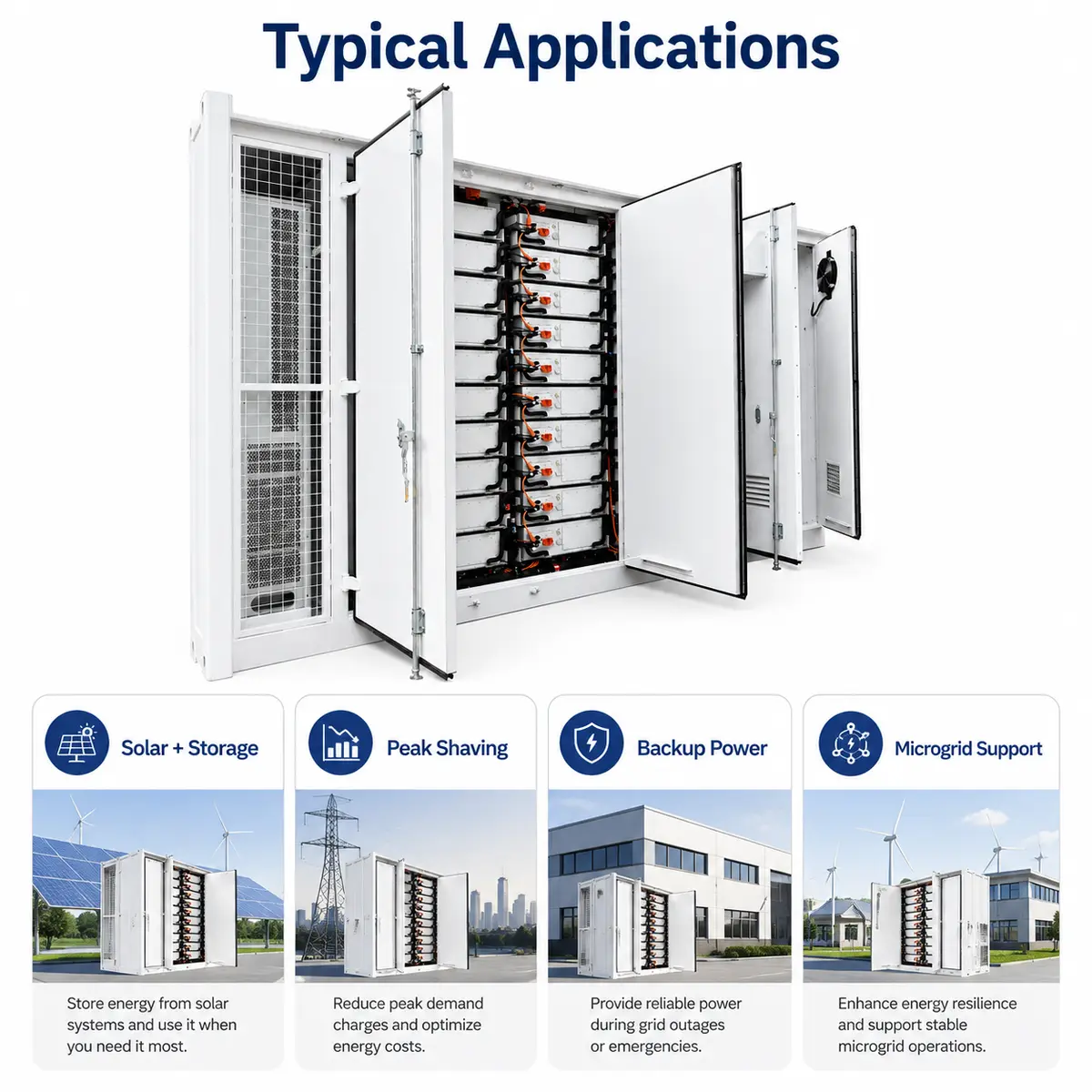

Fits industrial and commercial storage needs, solar-plus-storage plants, peak-shaving and load-shifting programs, and hybrid-grid backup at megawatt-hour scale.
Capacity (1MWh–10MWh), system voltage, grid setup, and communication interface can be tailored to project requirements.
Please confirm the capacity, system voltage, and grid-connection type required when ordering.
The rated capacity is 1MWh / 5MWh / 10MWh, with an input voltage of 768 V. Other ratings in the same series are quoted on request.
LiFePO4 chemistry brings safety and a long service life; Scalable across a 1MWh to 10MWh range; Liquid-cooled racks keep thermal performance steady.
Capacity (1MWh–10MWh), system voltage, grid setup, and communication interface can be tailored to project requirements.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
