Containerised Battery Energy Storage Systems
Housed in a 20-foot outdoor container, this high-voltage lithium-ion storage system stores solar and grid power for industrial and commercial use. It runs at…
| Parameter | Value |
|---|---|
| Product Type | Outdoor Containerized Energy Storage System (BESS) |
| Battery Type | Lithium Ion (High Voltage) |
| Power | 1 MW |
| Capacity | 500kWh – 1000kWh (up to 5MWh) |
| Rated Voltage | 768 V |
| Battery Configuration | 10P384S |
| Cooling | Liquid Cooling |
| BMS | Integrated Battery Management System |
| Grid Connection | Hybrid Grid |
| Power Source | Solar Panel |
| Communication | CAN / RS485 |
| Protection Class | IP67 |
| Container Dimension (L×W×H) | 12196 × 2438 × 2896 mm (20FT) |
| Application | Industry and Commerce |
Figures reflect the product data provided. Actual dimensions, materials, finish, and packaging depend on the confirmed sample and final order details.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

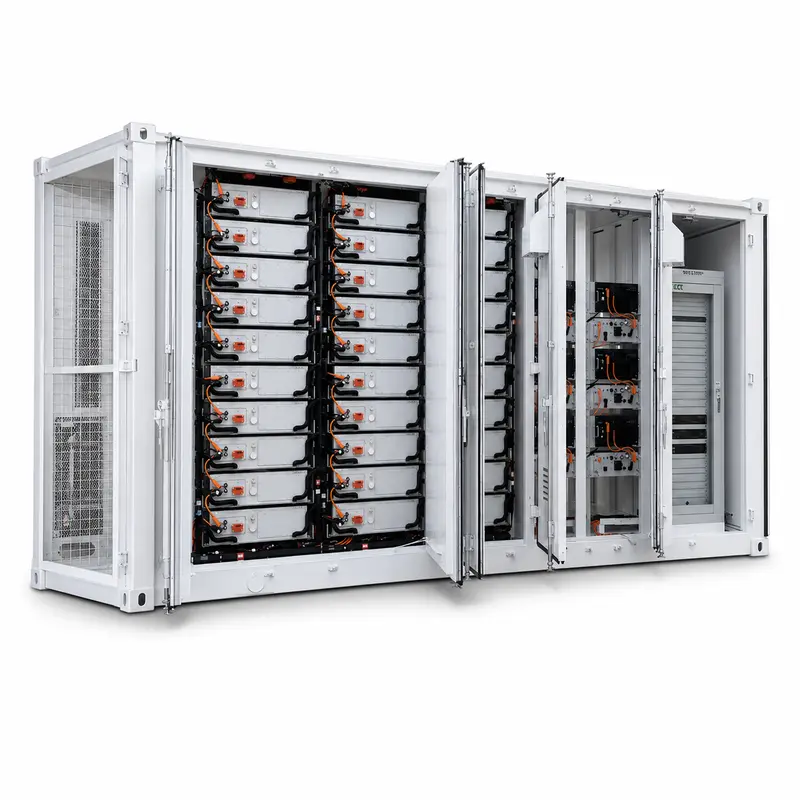

Housed in a 20-foot outdoor container, this high-voltage lithium-ion storage system stores solar and grid power for industrial and commercial use. It runs at 1MW power with a 500kWh-to-1000kWh capacity band (scalable up to 5MWh), backed by liquid cooling, an onboard BMS, and IP67 protection for dependable hybrid-grid storage.
Suited to outdoor solar-plus-storage plants, industrial and commercial storage projects, peak-shaving programs, and hybrid-grid backup.
Power rating, capacity, system voltage, grid setup, and communication interface can all be tailored to project needs.
Please confirm the power rating, capacity, system voltage, and grid-connection type required when ordering.
The rated capacity is 500kWh – 1000kWh (up to 5MWh), with an input voltage of 768 V. Other ratings in the same series are quoted on request.

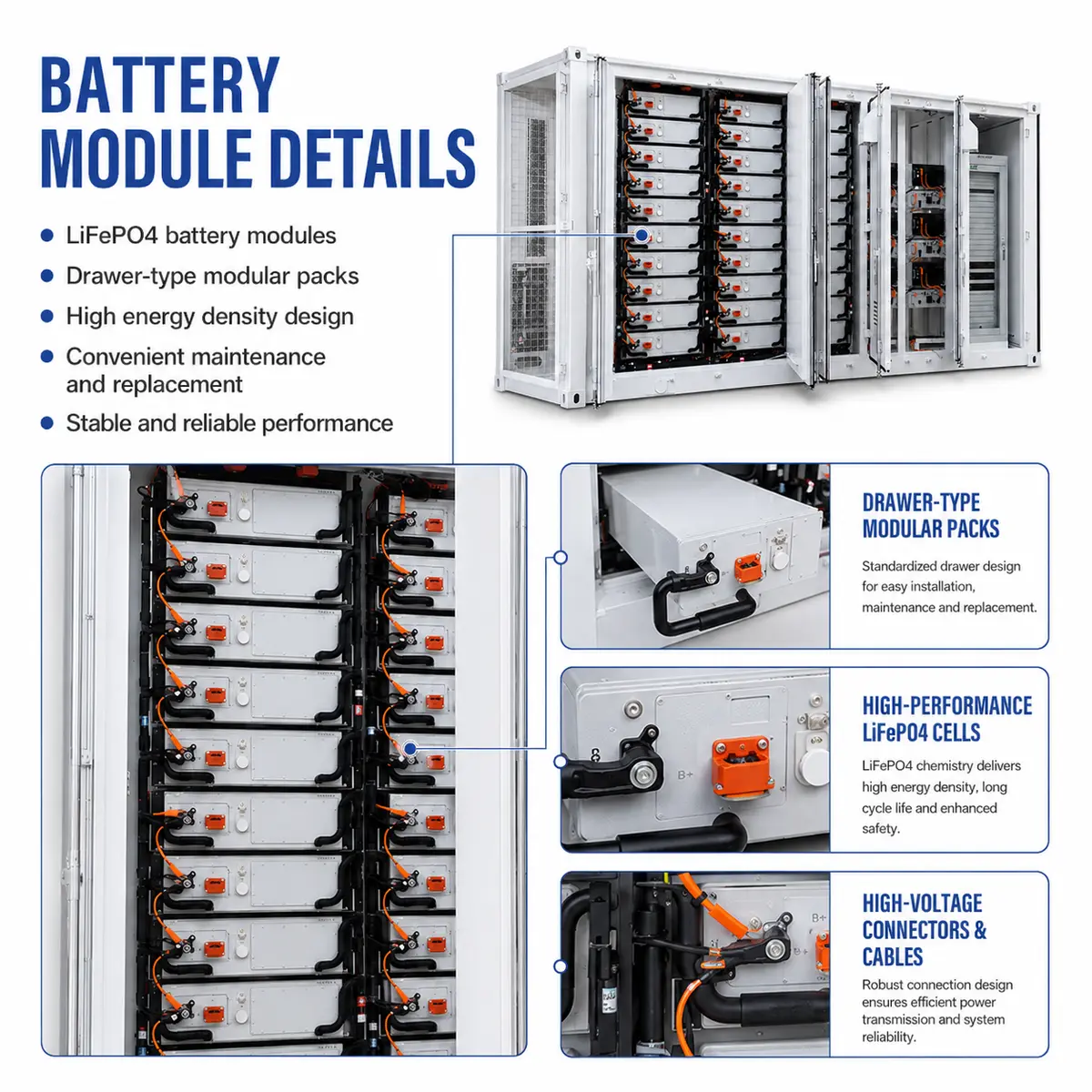

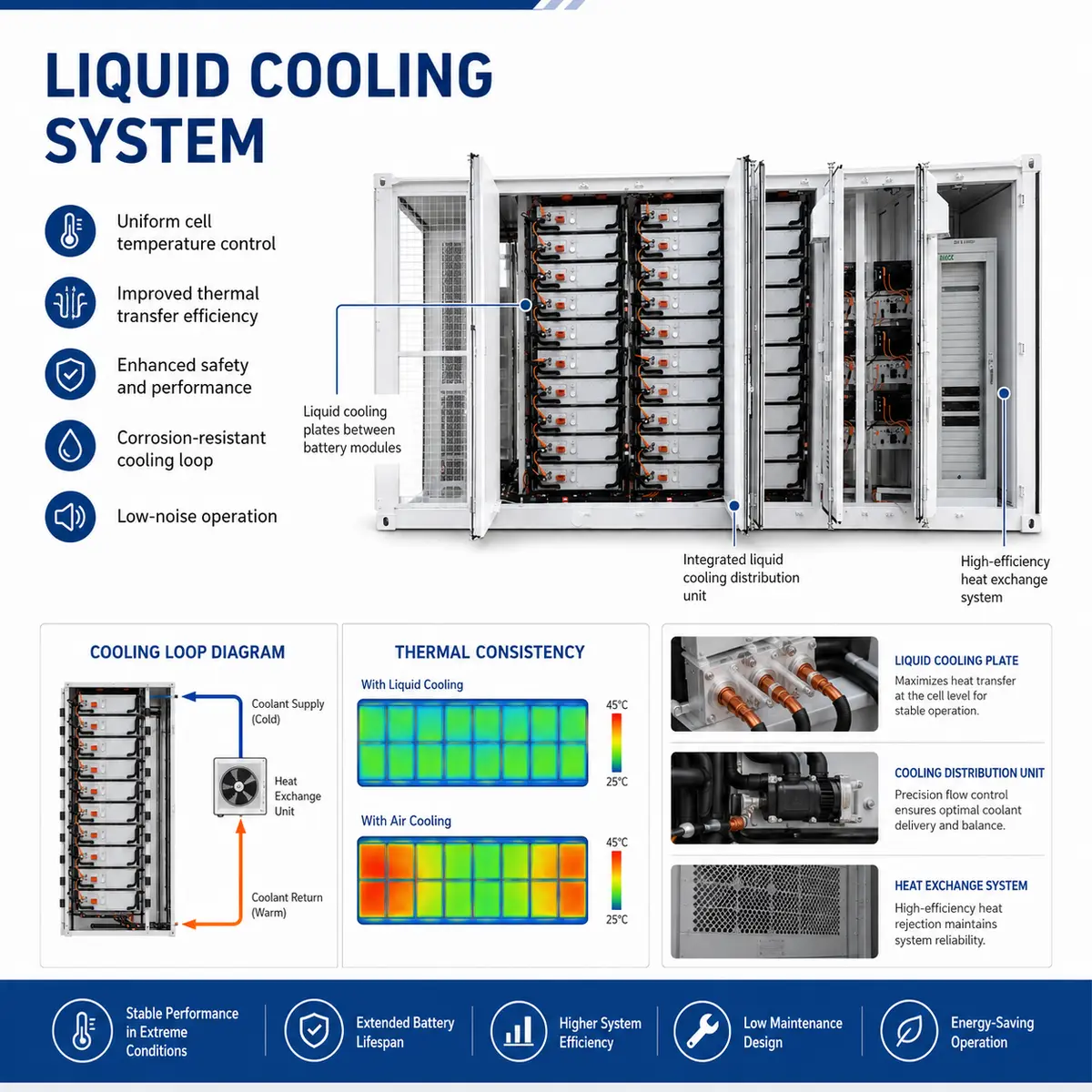

Outdoor 20FT container format rated at 1MW power; Capacity from 500kWh to 1000kWh, expandable to 5MWh; High-voltage lithium-ion chemistry with liquid-cooled racks.
Power rating, capacity, system voltage, grid setup, and communication interface can all be tailored to project needs.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
