Containerised Battery Energy Storage Systems

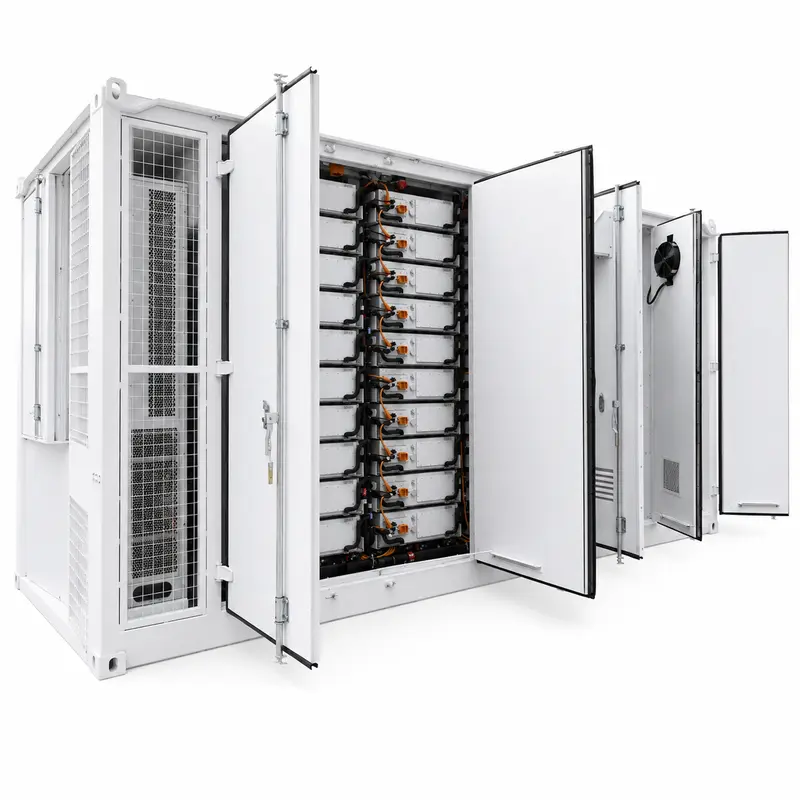

This lithium iron phosphate (LiFePO4) storage system folds the battery pack, BMS, and PCS into a single containerized unit, ready to drop into place. Sized…

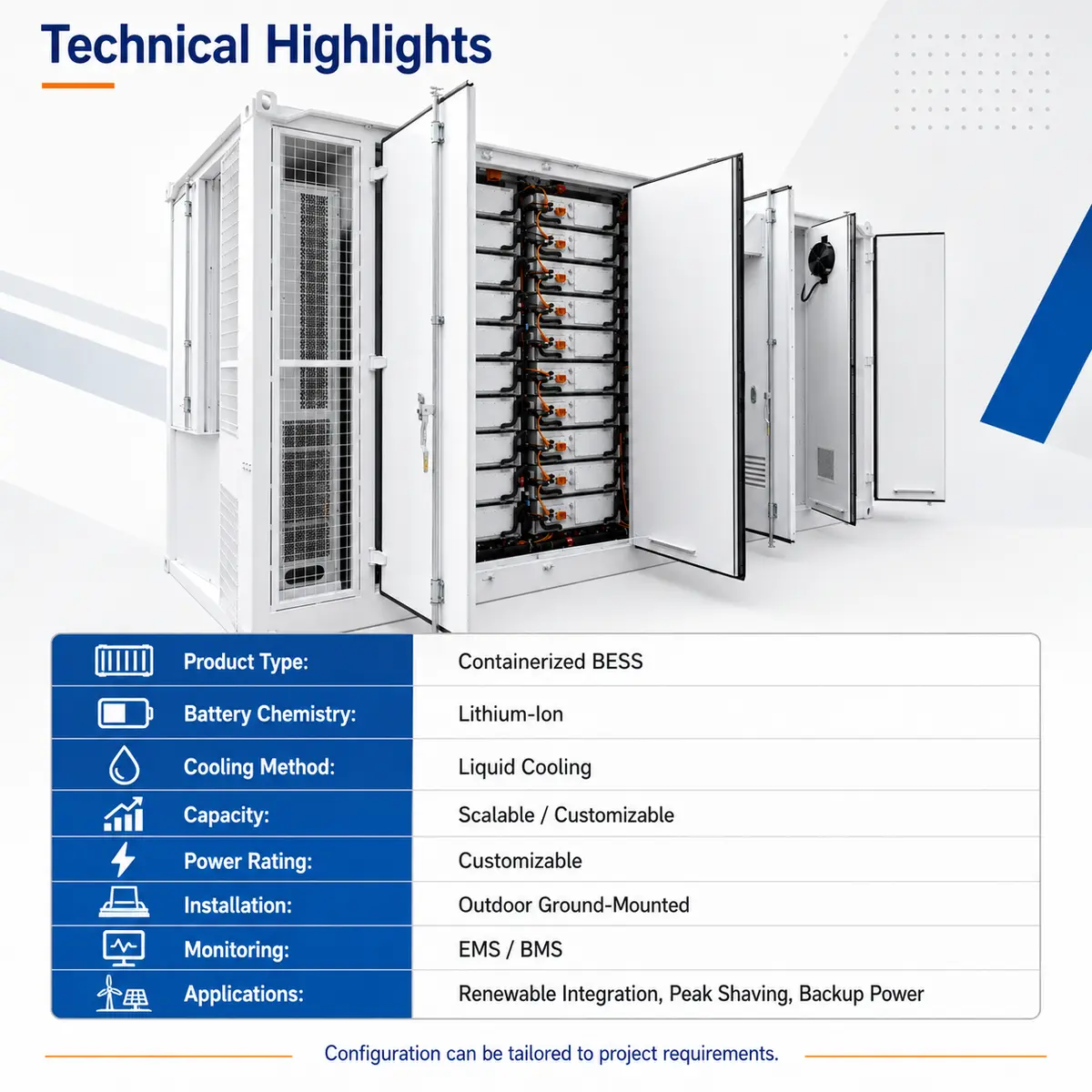

| Parameter | Value |
|---|---|
| Product Type | Integrated Battery-BMS-PCS Energy Storage System |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Capacity | 500kWh / 1MWh / 2MWh / 5MWh |
| System Voltage | 768 V |
| Battery Configuration | 10P384S |
| Cooling | Liquid Cooling |
| BMS | Integrated Battery Management System |
| PCS | Integrated Power Conversion System |
| Grid Connection | Hybrid Grid |
| Power Source | Solar Panel |
| Communication | CAN / RS485 |
| Protection Class | IP67 |
| Container Dimension (L×W×H) | 12196 × 2438 × 2896 mm |
| Weight | 27.5 t |
| Application | Industrial and Commercial Energy Storage |
Figures reflect the product data provided. Actual dimensions, materials, finish, and packaging depend on the confirmed sample and final order details.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

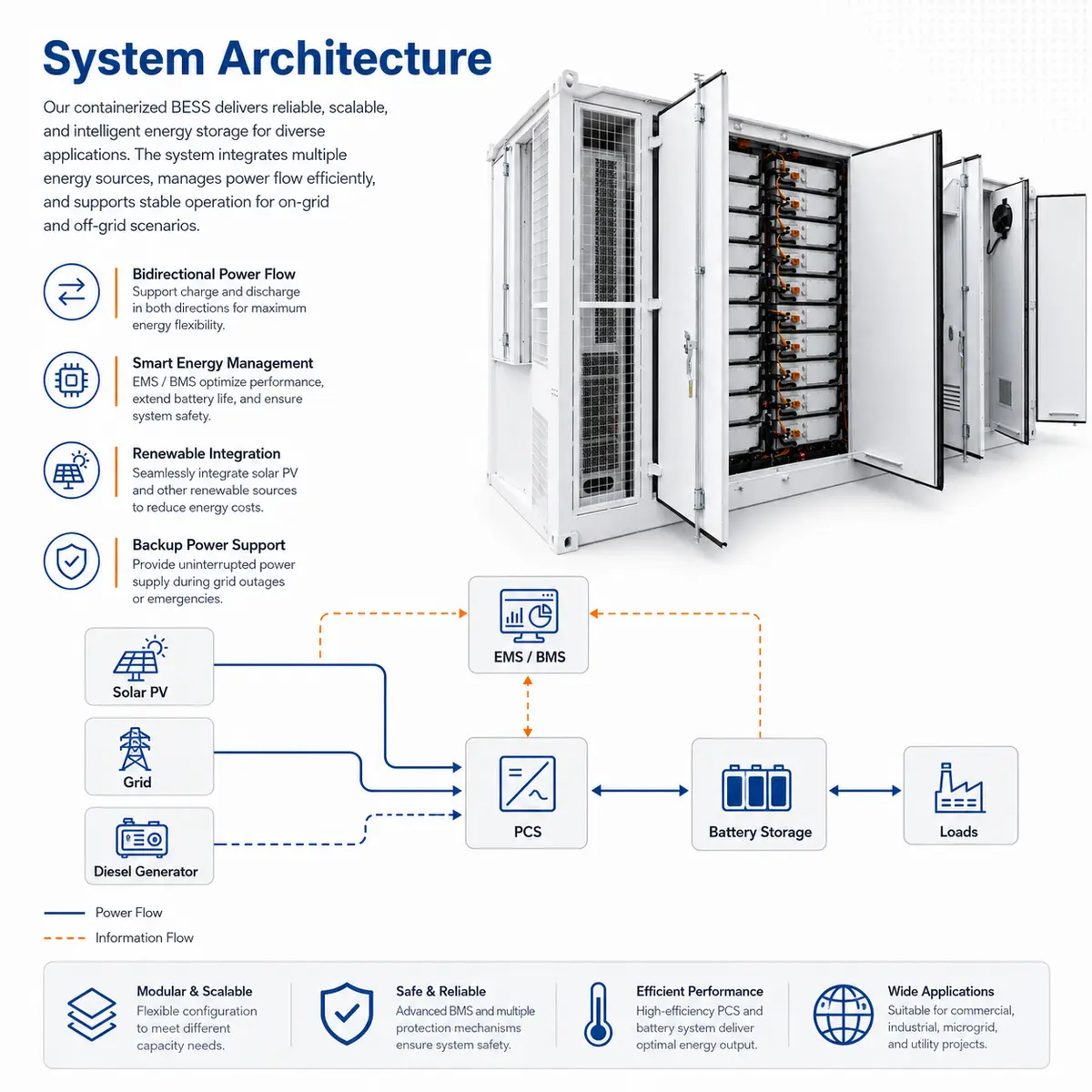

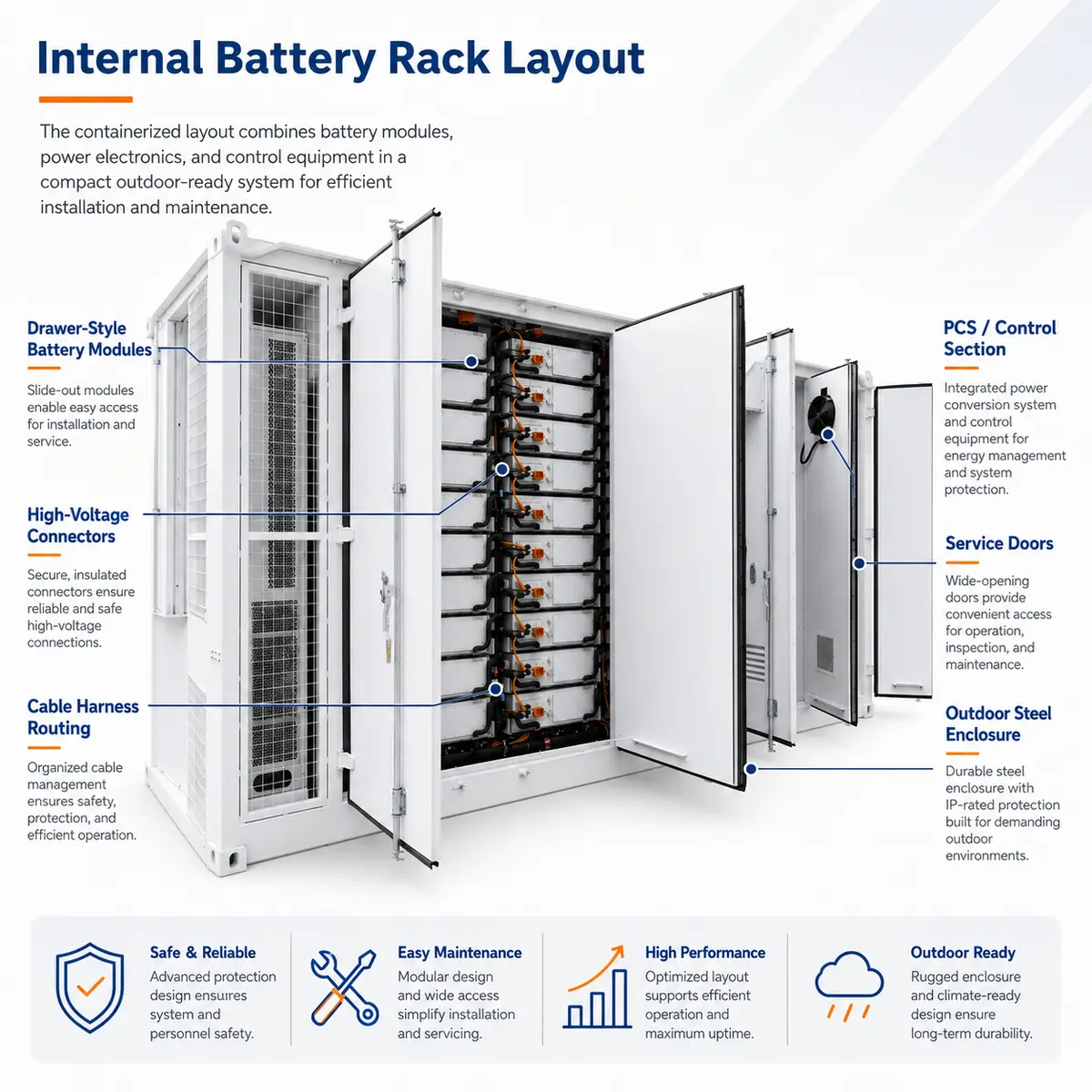

This lithium iron phosphate (LiFePO4) storage system folds the battery pack, BMS, and PCS into a single containerized unit, ready to drop into place. Sized from 500kWh to 5MWh with liquid cooling and IP67 protection, it offers a complete package for industrial, commercial, and hybrid-grid storage needs.
Well matched to turnkey industrial and commercial storage projects, solar-plus-storage sites, peak-shaving needs, and hybrid-grid backup wherever a single integrated unit is preferred.
Capacity (500kWh–5MWh), system voltage, grid setup, and communication interface can be tailored to individual project requirements.
Please confirm the capacity, system voltage, and grid-connection type needed at the time of ordering.
The rated capacity is 500kWh / 1MWh / 2MWh / 5MWh. Other ratings in the same series are quoted on request.
Battery, BMS, and PCS combined into one integrated package; LiFePO4 chemistry delivers safety and a long cycle life; Capacity range of 500kWh to 5MWh.
Capacity (500kWh–5MWh), system voltage, grid setup, and communication interface can be tailored to individual project requirements.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
