Power Transformers (up to 110 kV)
Built to the IEC 60076 standard, this three-phase, three-winding oil-immersed transformer steps a 66 kV supply down to 22 kV for utility substations and…

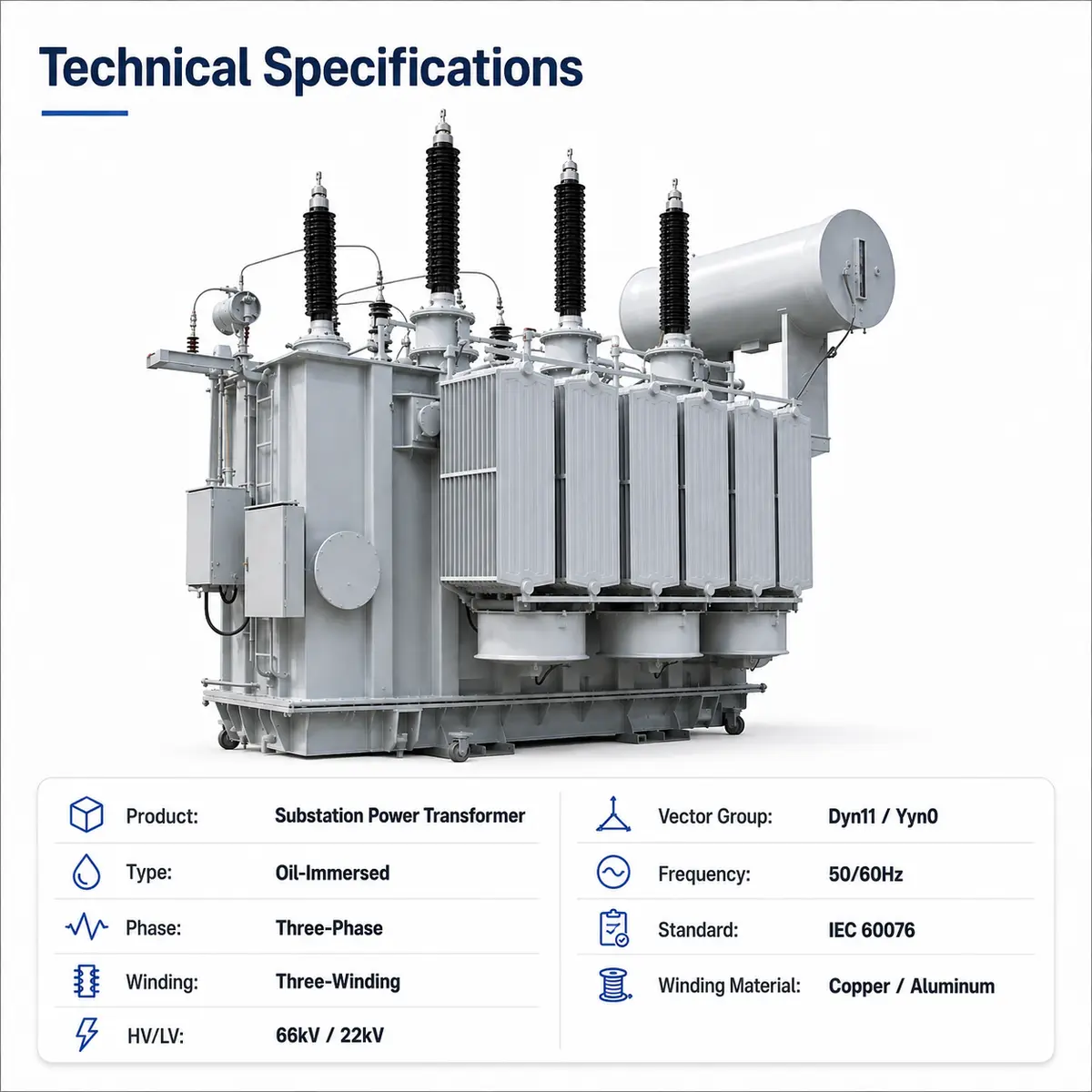

| Parameter | Value |
|---|---|
| Product Type | Three-Phase Three-Winding Oil-Immersed Power Transformer |
| Input Voltage (HV) | 66 kV |
| Output Voltage (LV) | 22 kV |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Coil Number | Three Windings |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN / ONAF (oil-immersed, radiator) |
| Standard | IEC 60076 / GB |
| Certification | ISO9001 |
| Packing | Wooden Case |
Figures shown reflect the supplied product data. Exact dimensions, materials, finish and packaging are confirmed at sample approval and order confirmation.
Designed and tested to IEC 60076 / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

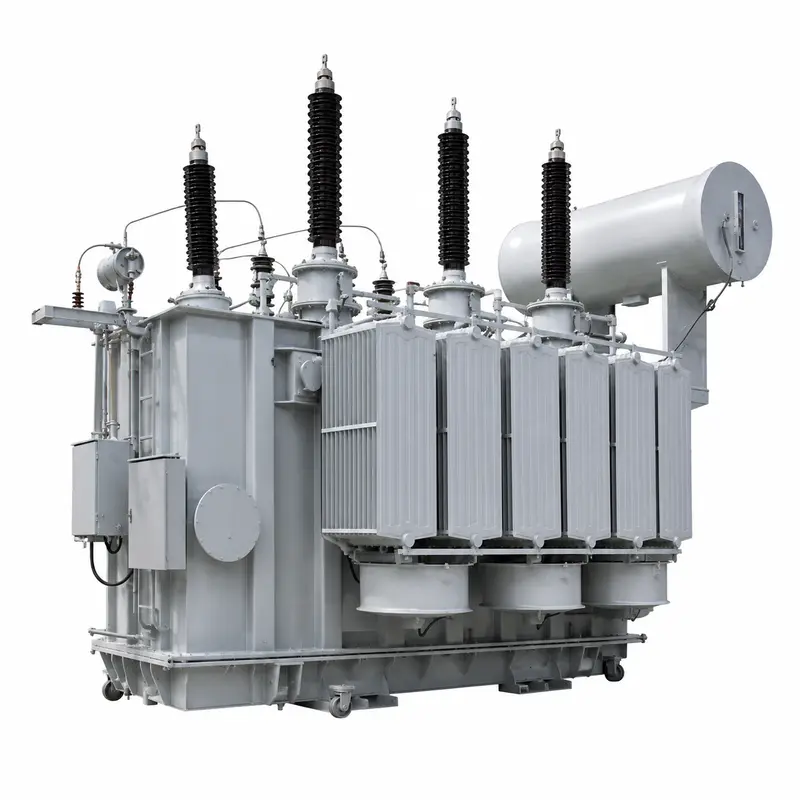

Built to the IEC 60076 standard, this three-phase, three-winding oil-immersed transformer steps a 66 kV supply down to 22 kV for utility substations and distribution networks. It uses a sealed steel tank, radiator cooling and a conservator oil-expansion system to provide efficient, standards-compliant transformation. Windings come in copper or aluminium.

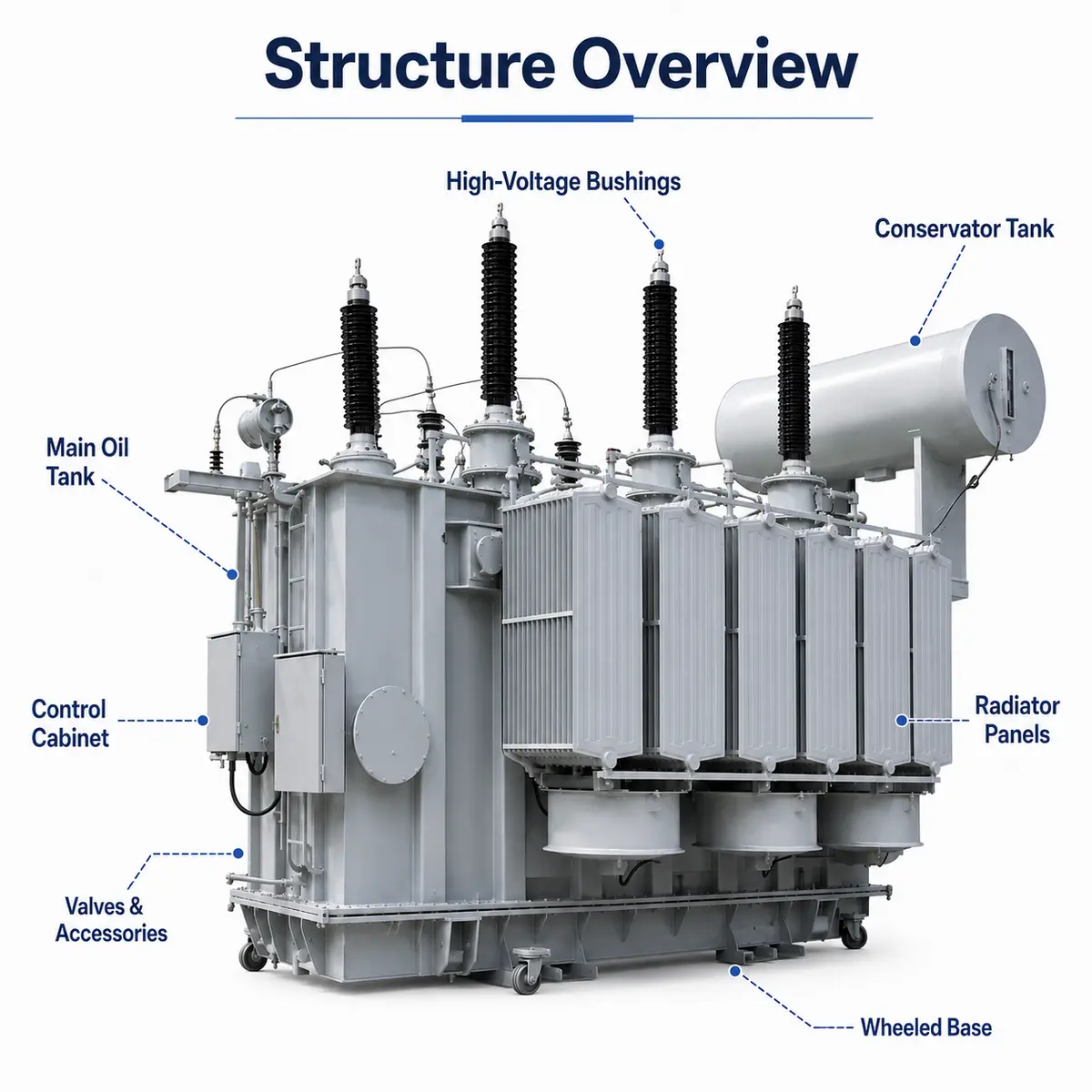

The sealed tank carries high-voltage porcelain bushings, a top-mounted conservator for oil expansion, radiator banks along the sides, and a cabinet for monitoring and protection. Designed and tested against IEC 60076, this three-winding, oil-immersed build keeps cooling efficient and insulation stable for reliable substation service.

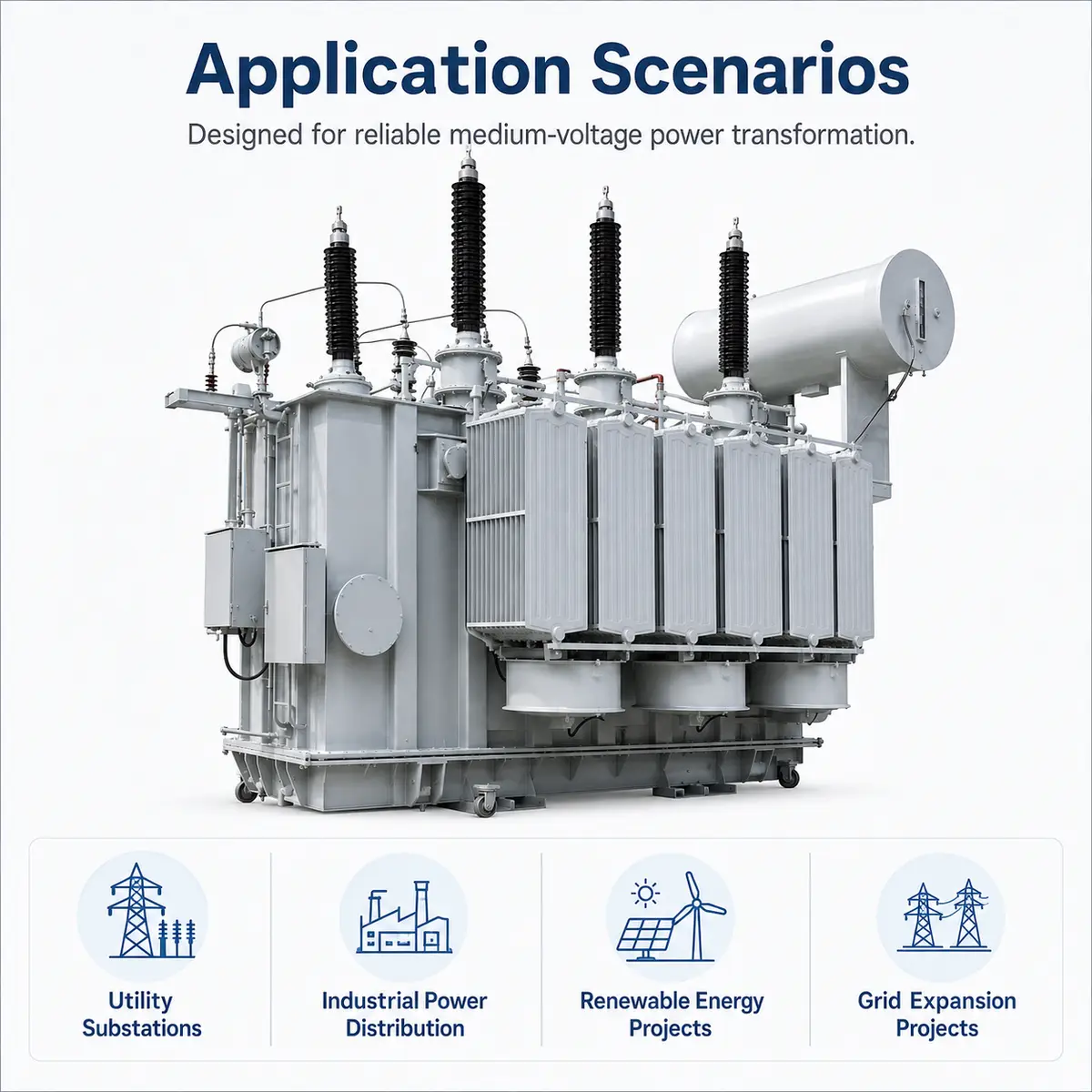

Fits utility and industrial substations, transmission and distribution networks, and interconnection stations that need IEC 60076-compliant 66-kV-class transformation.
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be tailored to a project's single-line requirements.

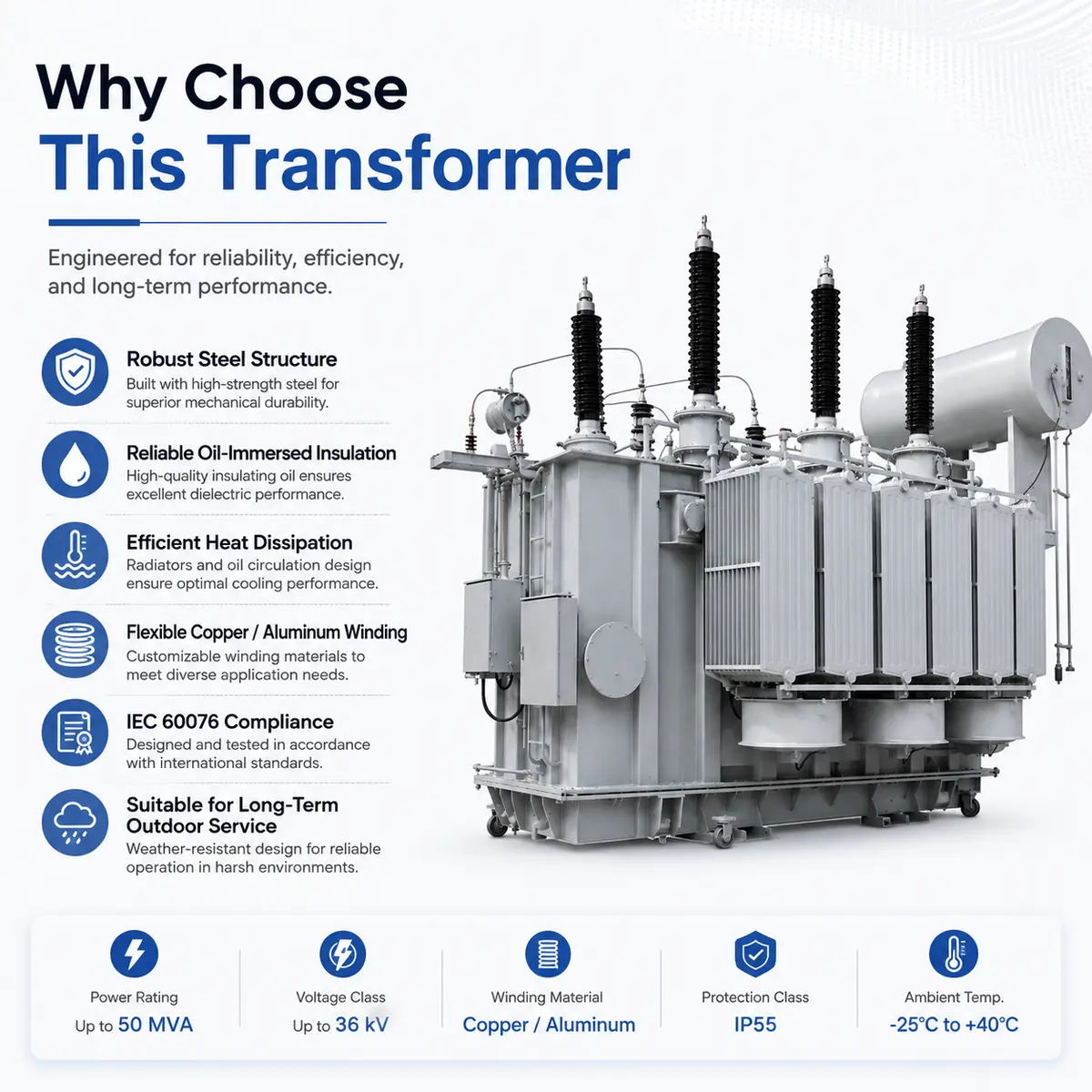

Fully compliant with the IEC 60076 power-transformer standard; Three-winding design covers the 66 kV / 22 kV substation class; Sealed oil-immersed tank with radiator cooling and conservator.
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be tailored to a project's single-line requirements.
Designed and tested to IEC 60076 / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
