Power Transformers (up to 110 kV)
This three-phase oil-immersed transformer, rated 15 or 20 MVA, converts a 33 or 66 kV supply down to 10 kV or 415 V, built to handle substation, industrial…

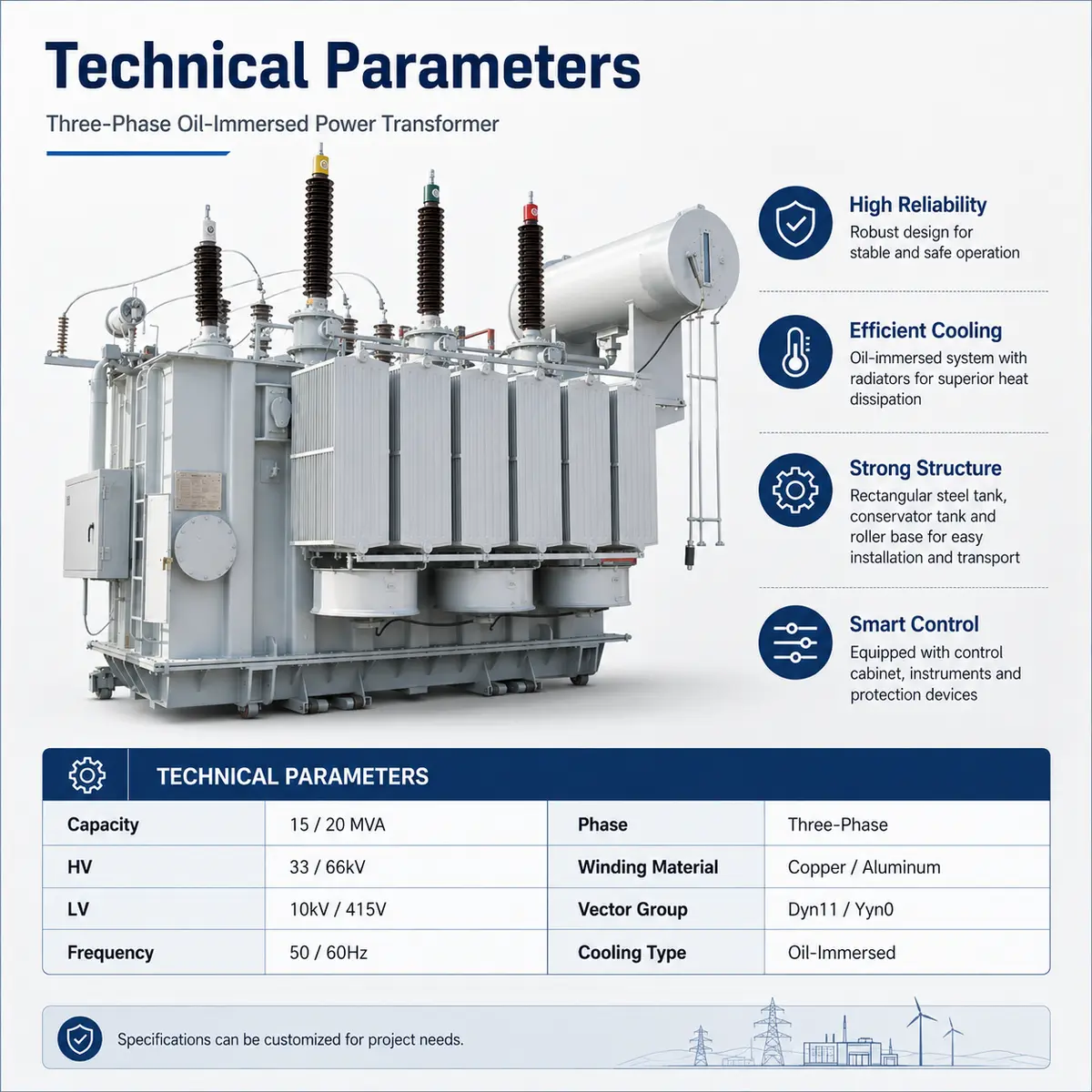

| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Power Transformer |
| Rated Capacity | 15 / 20 MVA |
| Input Voltage (HV) | 33 / 66 kV |
| Output Voltage (LV) | 10 kV / 415 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN / ONAF (oil-immersed, radiator) |
| Standard | IEC / GB |
| Certification | CE, UL, ISO9001 |
| Packing | Wooden Case |
Figures shown reflect the supplied product data. Exact dimensions, materials, finish and packaging are confirmed at sample approval and order confirmation.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

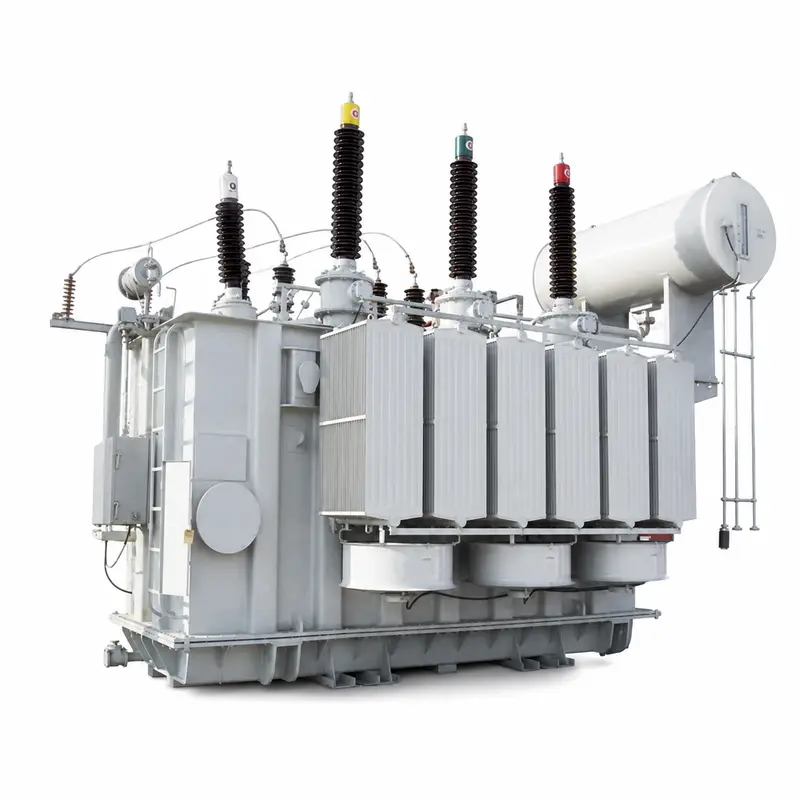

This three-phase oil-immersed transformer, rated 15 or 20 MVA, converts a 33 or 66 kV supply down to 10 kV or 415 V, built to handle substation, industrial and oil-field power needs. Construction includes a sealed steel tank, radiator cooling and a conservator oil-expansion system, engineered specifically to withstand harsh field conditions such as those found on oil-and-gas sites. Copper or aluminium windings meet IEC/GB requirements.

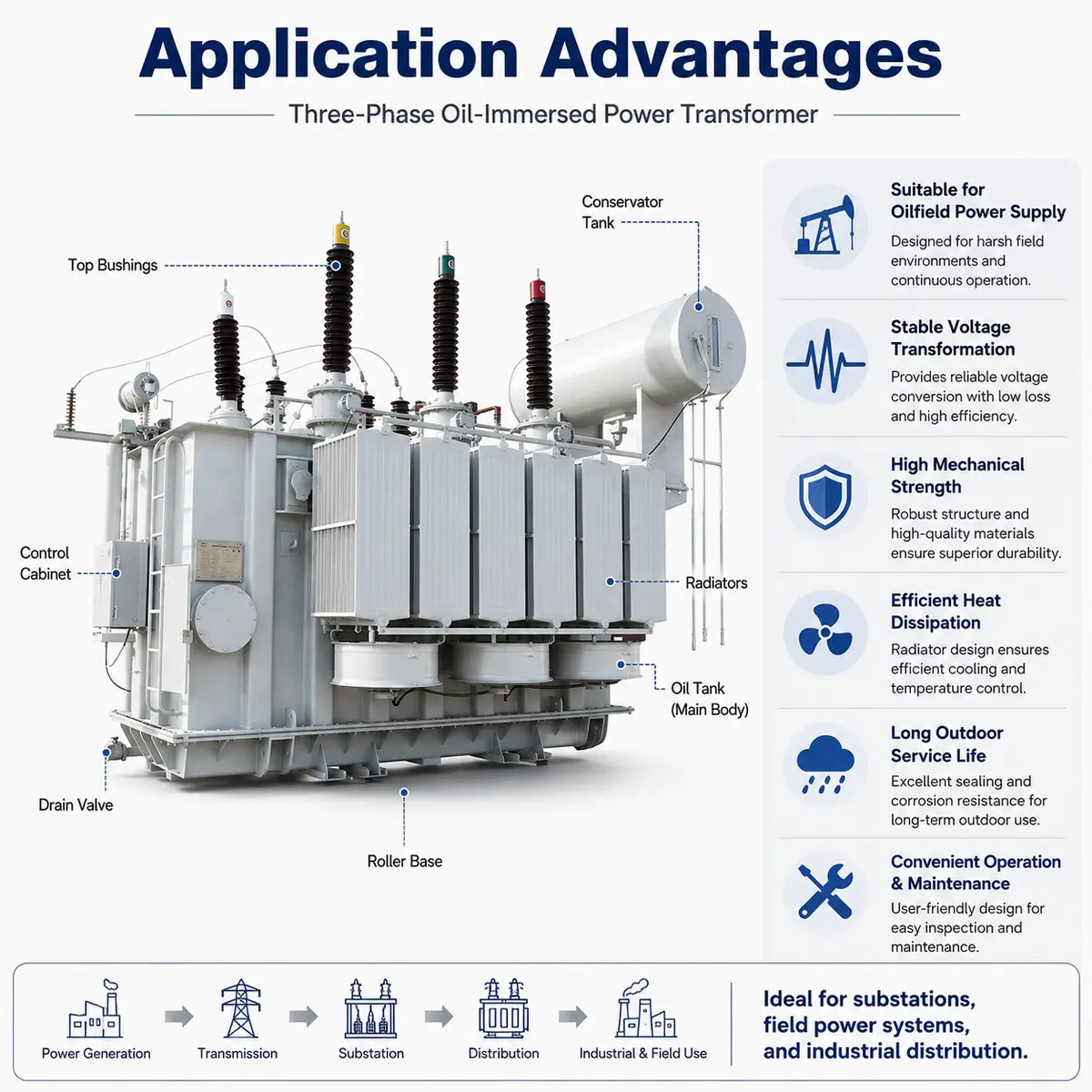

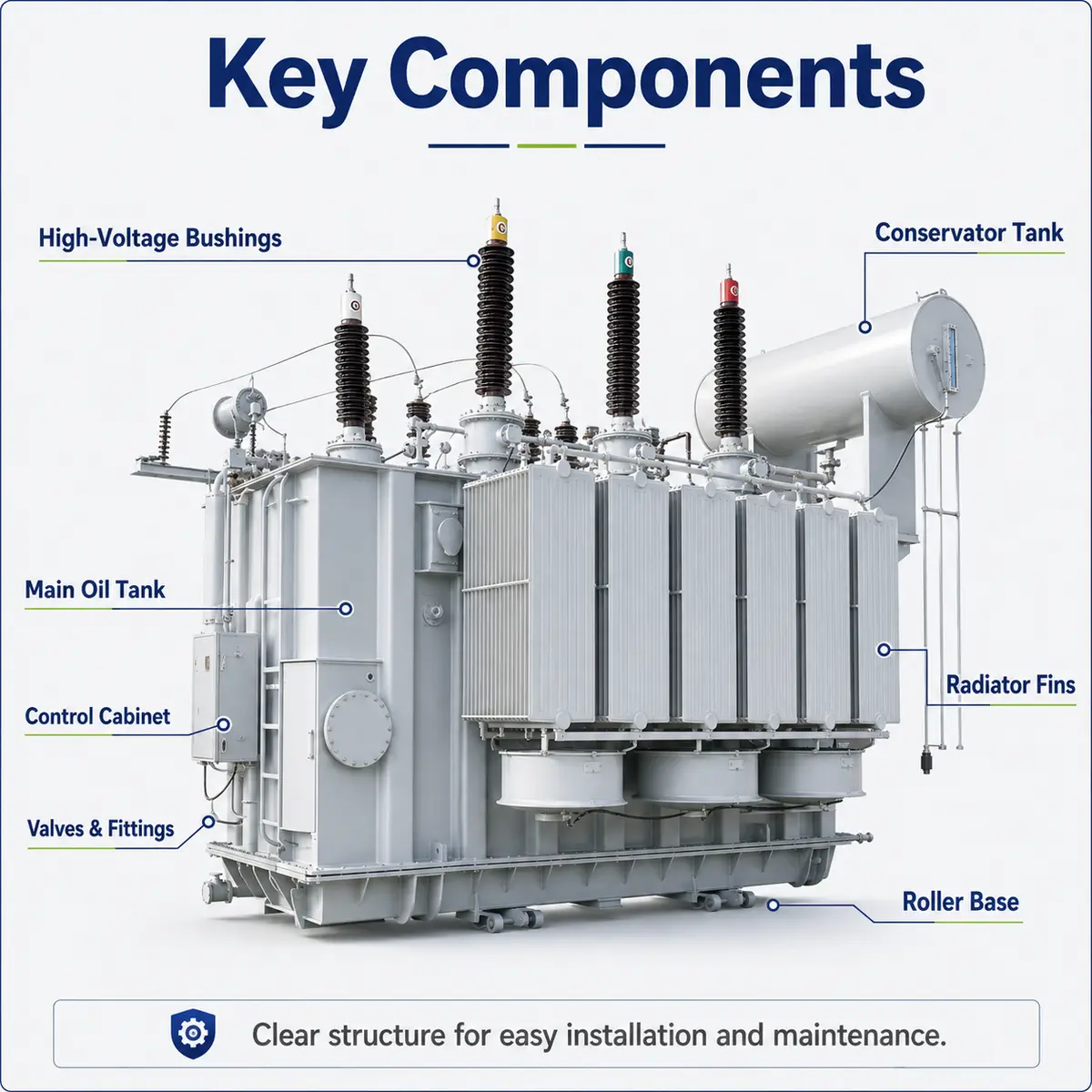

High-voltage porcelain bushings sit on the sealed tank alongside a top-mounted conservator for oil expansion, radiator banks for heat rejection, and a control cabinet for monitoring and protection. The oil-immersed build keeps cooling efficient and insulation stable, giving reliable performance in both substation settings and oil-field power systems.
Well suited to oil-and-gas field power supply, utility and industrial substations, transmission and distribution networks, and large plants needing 33/66-kV-class transformation.

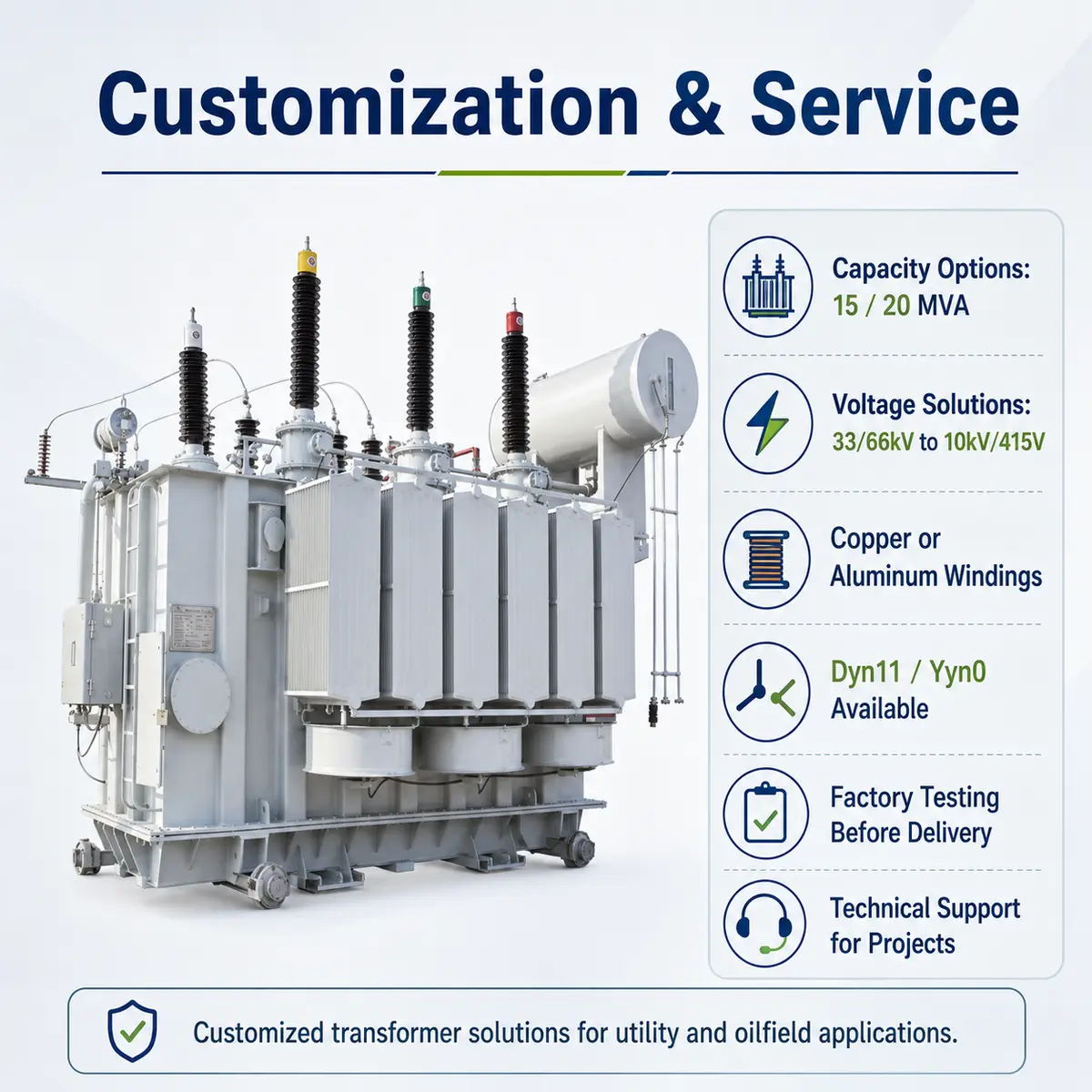

Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be adapted to a project's single-line requirements.
The rated capacity is 15 / 20 MVA, with an input voltage of 33 / 66 kV. Other ratings in the same series are quoted on request.
Covers 33 / 66 kV service in 15 or 20 MVA ratings for substation and oil-field applications; Sealed oil-immersed tank with radiator cooling and conservator; Dyn11 / Yyn0 vector groups match single-line requirements.
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be adapted to a project's single-line requirements.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
