Power Transformers (up to 110 kV)
Rated at 1, 5 or 16 MVA, this three-phase oil-immersed transformer brings a 110 kV supply down to 20 or 35 kV for substation and industrial use. Manufactured…

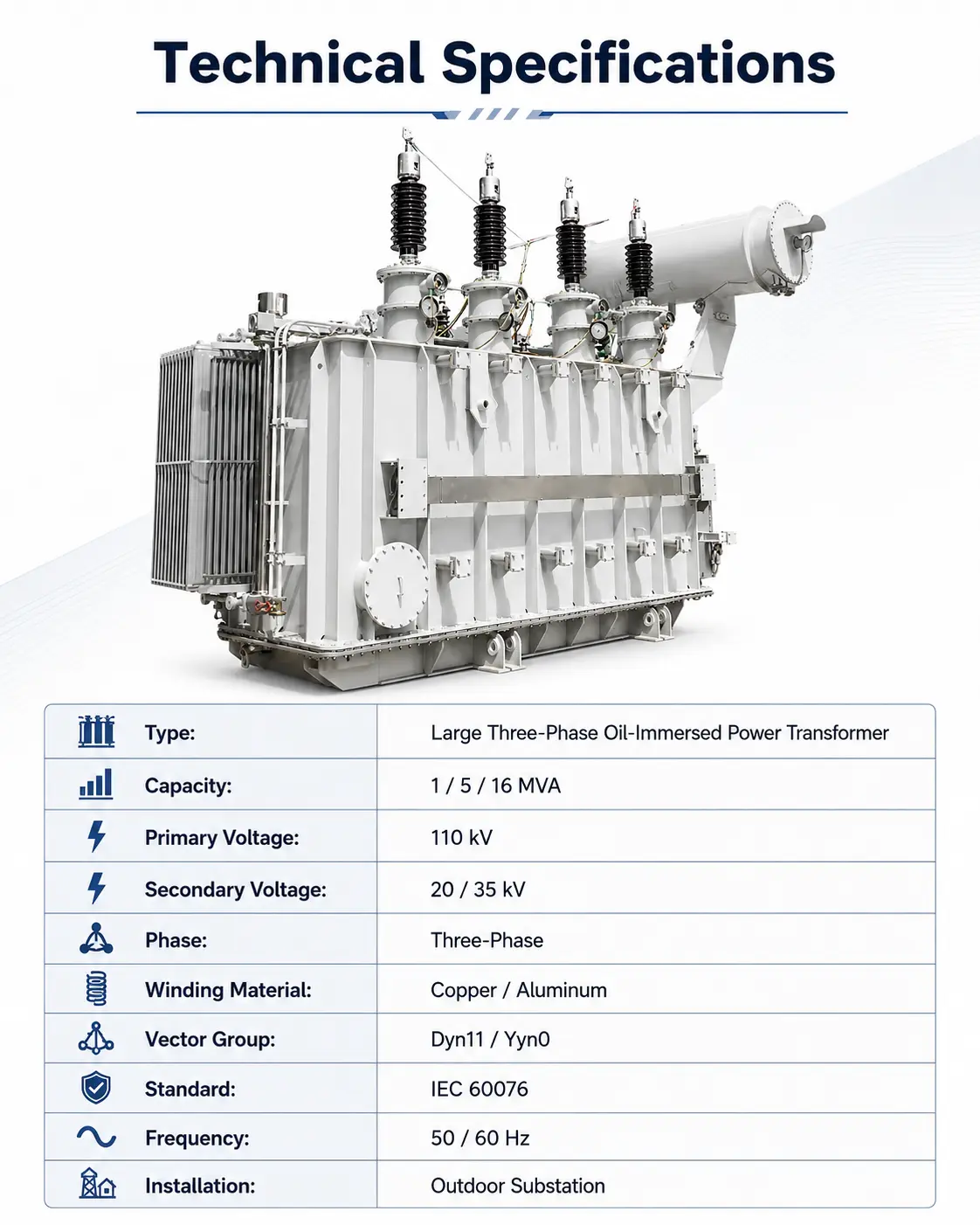

| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Power Transformer |
| Rated Capacity | 1 / 5 / 16 MVA |
| Input Voltage (HV) | 110 kV |
| Output Voltage (LV) | 20 / 35 kV |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN / ONAF (oil-immersed, radiator) |
| Standard | IEC 60076 / GB |
| Certification | IEC 60076, ISO9001, ISO14001, CE, CQC |
| Packing | Wooden Case |
Figures shown reflect the supplied product data. Exact dimensions, materials, finish and packaging are confirmed at sample approval and order confirmation.
Designed and tested to IEC 60076 / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Rated at 1, 5 or 16 MVA, this three-phase oil-immersed transformer brings a 110 kV supply down to 20 or 35 kV for substation and industrial use. Manufactured to IEC 60076, it combines a sealed steel tank, radiator cooling and a conservator oil-expansion system to deliver dependable, efficient transformation over a long service life. Copper and aluminium winding options are both available, and the unit meets IEC/GB requirements.

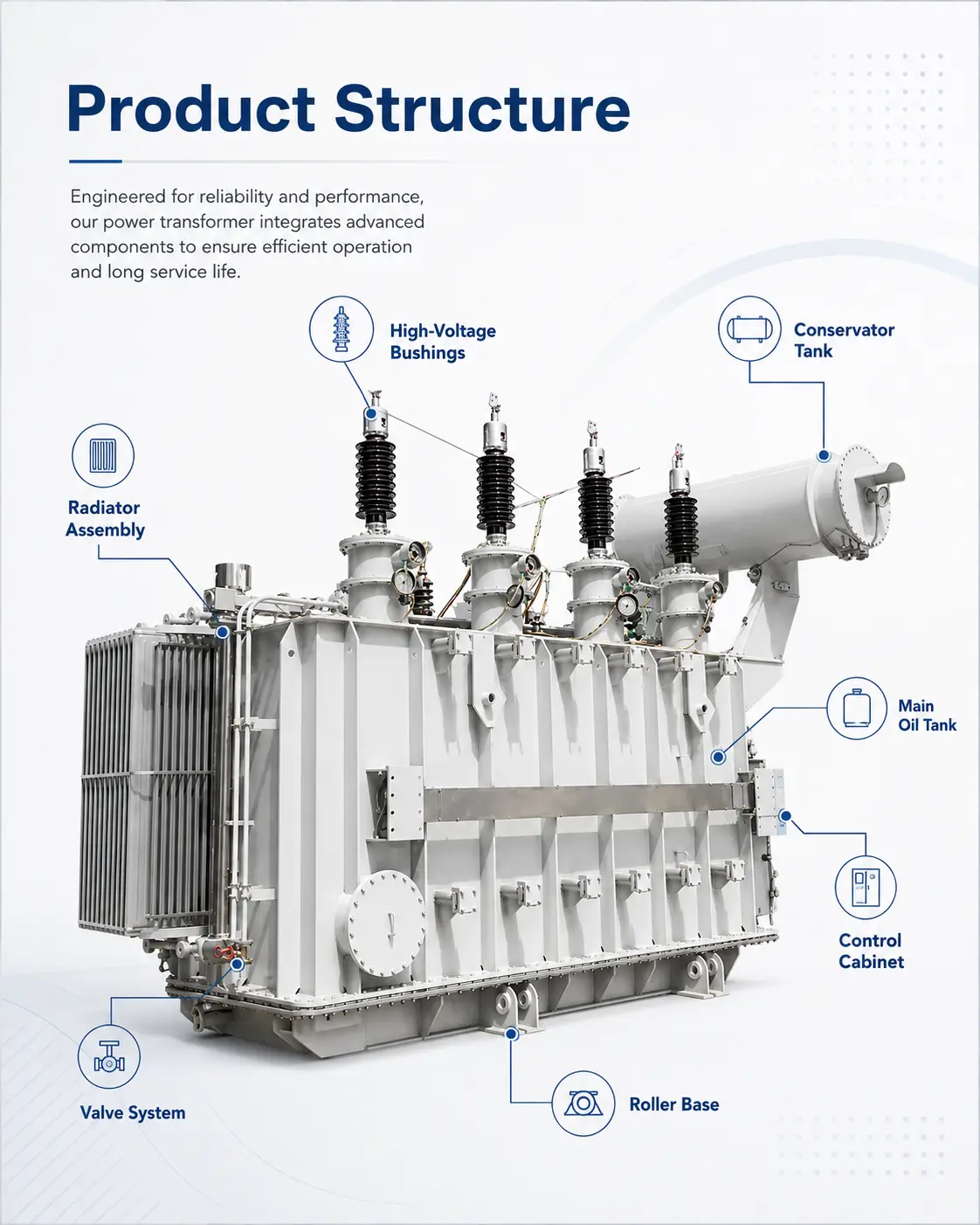

Three high-voltage porcelain bushings sit atop the sealed steel tank, alongside a conservator for oil expansion, side-mounted radiator banks, and a cabinet for monitoring and protective devices. The oil-immersed build keeps cooling efficient and insulation stable, supporting long-term operation in both substation and industrial settings.

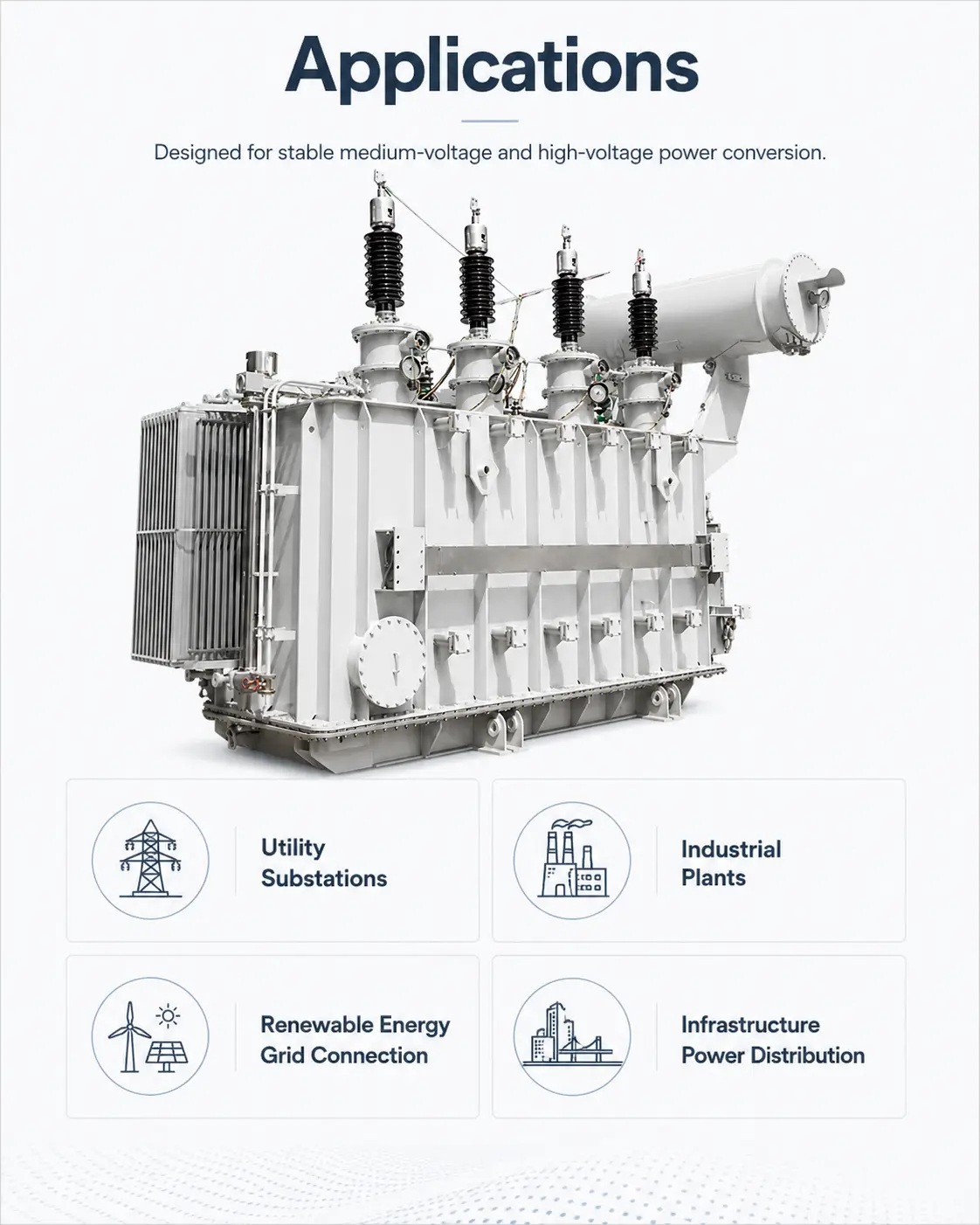

Suited to utility and industrial substations, transmission and distribution networks, renewable-energy installations, and large facilities needing 110-kV-class transformation.

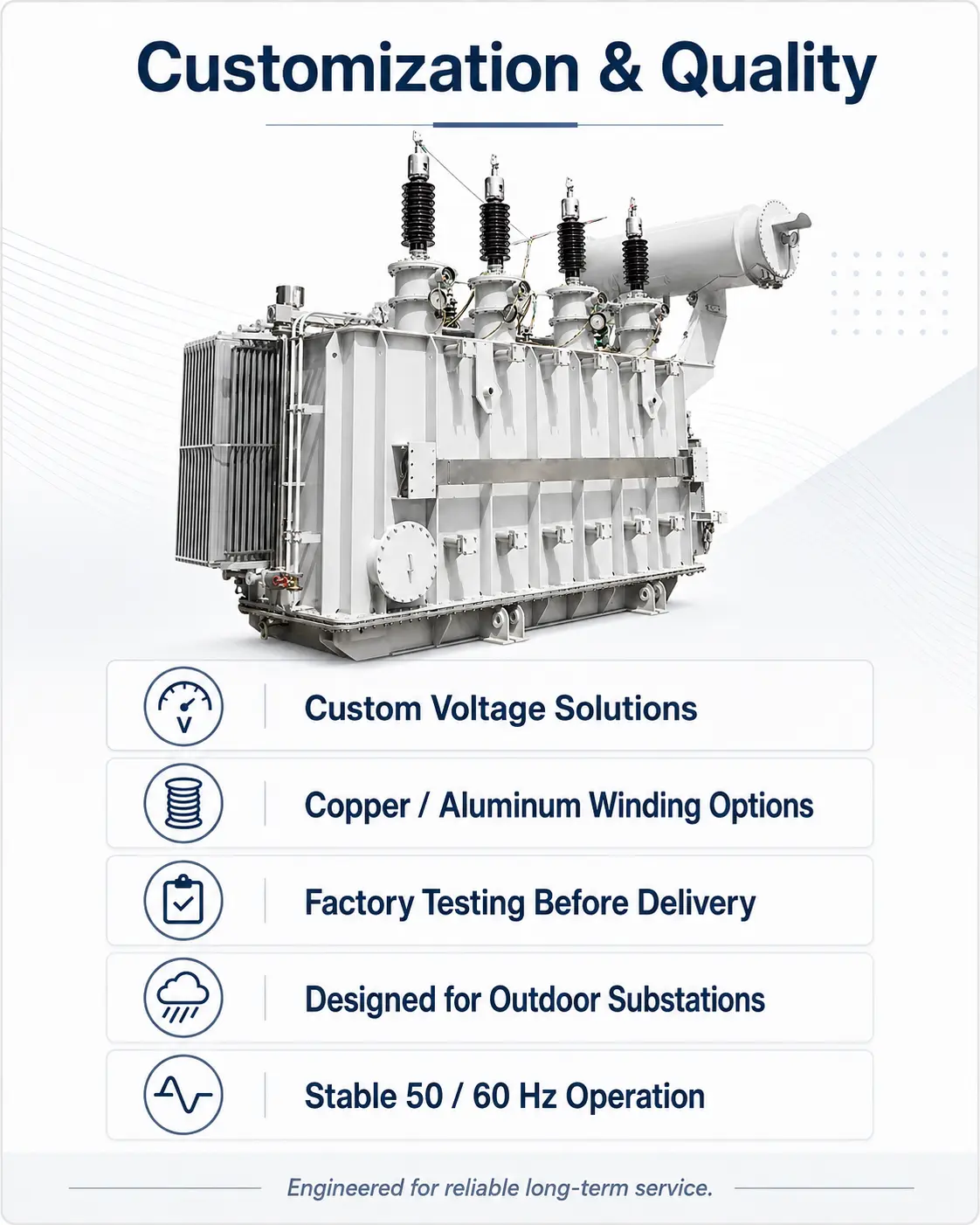

Capacity, HV/LV voltage, vector group, tap-changer arrangement, cooling class and fittings can be configured to a project's single-line requirements.
The rated capacity is 1 / 5 / 16 MVA, with an input voltage of 110 kV. Other ratings in the same series are quoted on request.
Covers the 110 kV transmission class across 1, 5 and 16 MVA ratings; Sealed oil-immersed tank with radiator cooling and conservator; Dyn11 / Yyn0 vector groups fit standard substation single-line diagrams.
Capacity, HV/LV voltage, vector group, tap-changer arrangement, cooling class and fittings can be configured to a project's single-line requirements.
Designed and tested to IEC 60076 / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
