Power Transformers (up to 110 kV)
This three-phase, dual-winding oil-immersed transformer is rated 12500 kVA and steps a 110 kV supply down to 15 kV for substation and distribution networks.…

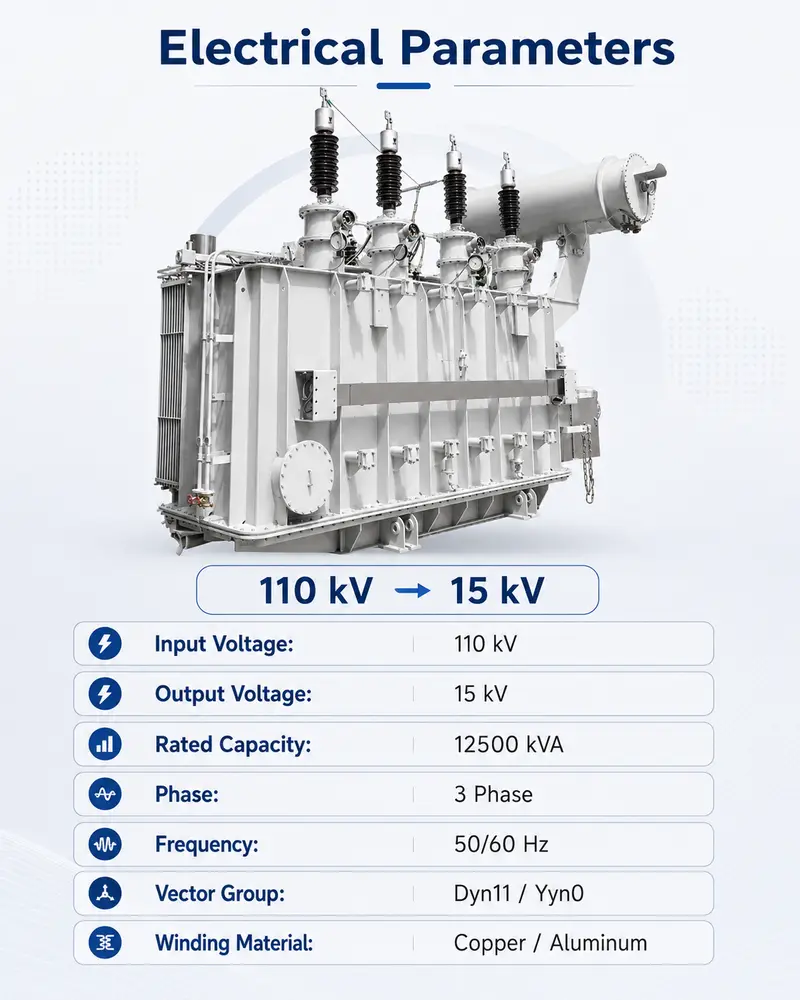

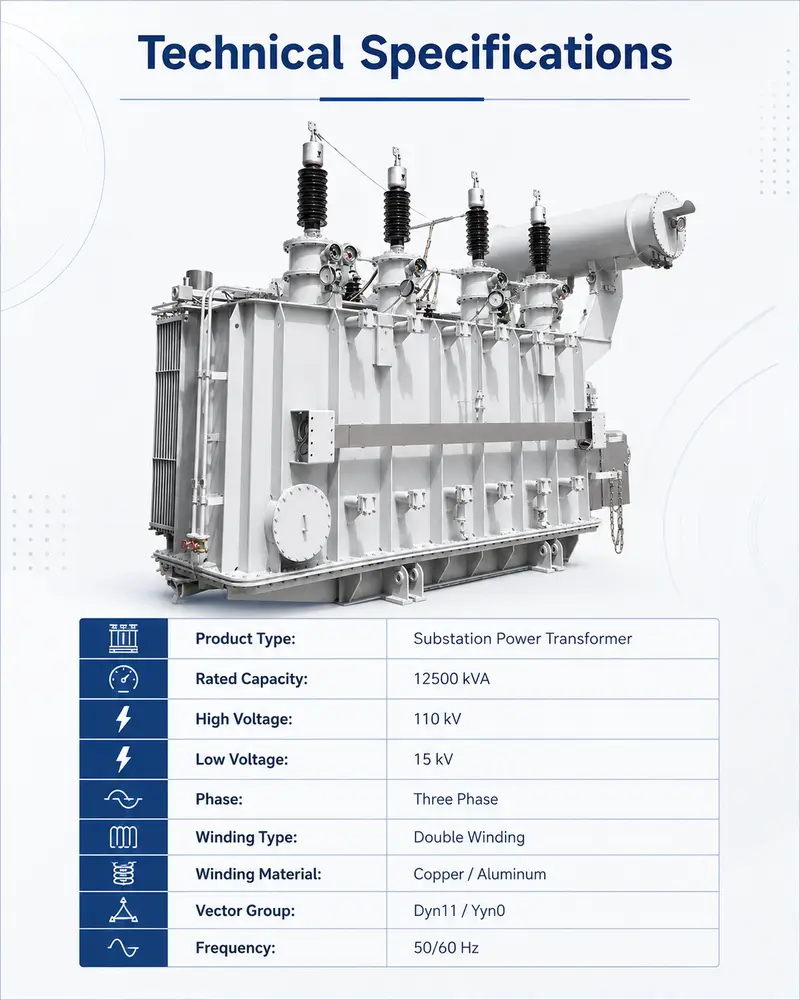

| Parameter | Value |
|---|---|
| Product Type | Three-Phase Dual-Winding Oil-Immersed Power Transformer |
| Rated Capacity | 12500 kVA |
| Input Voltage (HV) | 110 kV |
| Output Voltage (LV) | 15 kV |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN / ONAF (oil-immersed, radiator) |
| Standard | IEC / GB |
| Certification | UL, IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
Figures shown reflect the supplied product data. Exact dimensions, materials, finish and packaging are confirmed at sample approval and order confirmation.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

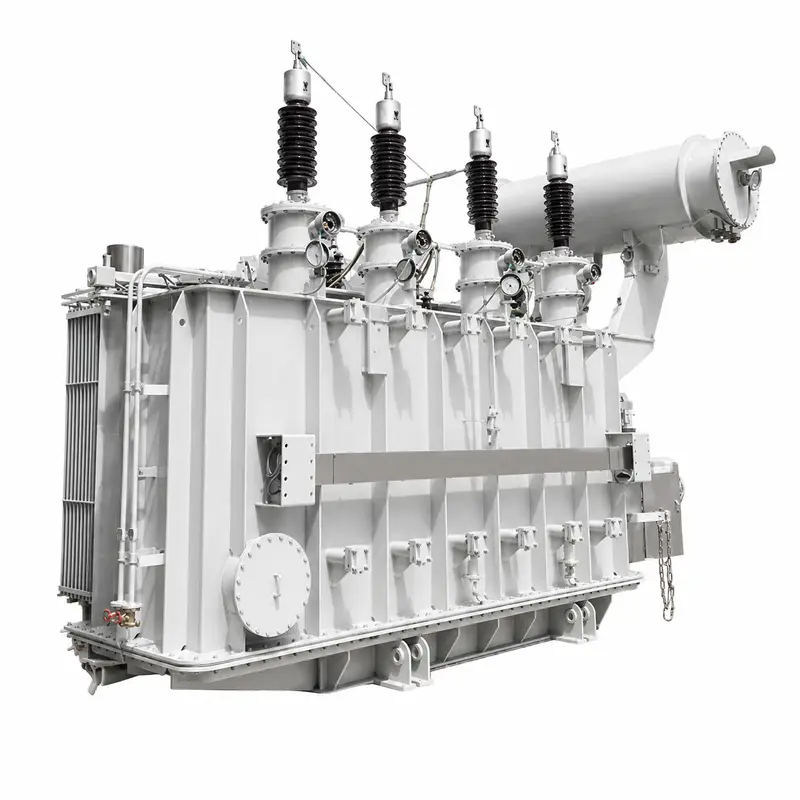

This three-phase, dual-winding oil-immersed transformer is rated 12500 kVA and steps a 110 kV supply down to 15 kV for substation and distribution networks. Supplied factory-direct, it's built with a sealed steel tank, radiator cooling and a conservator oil-expansion system for efficient, dependable transformation. Windings come in copper or aluminium, meeting IEC/GB requirements.

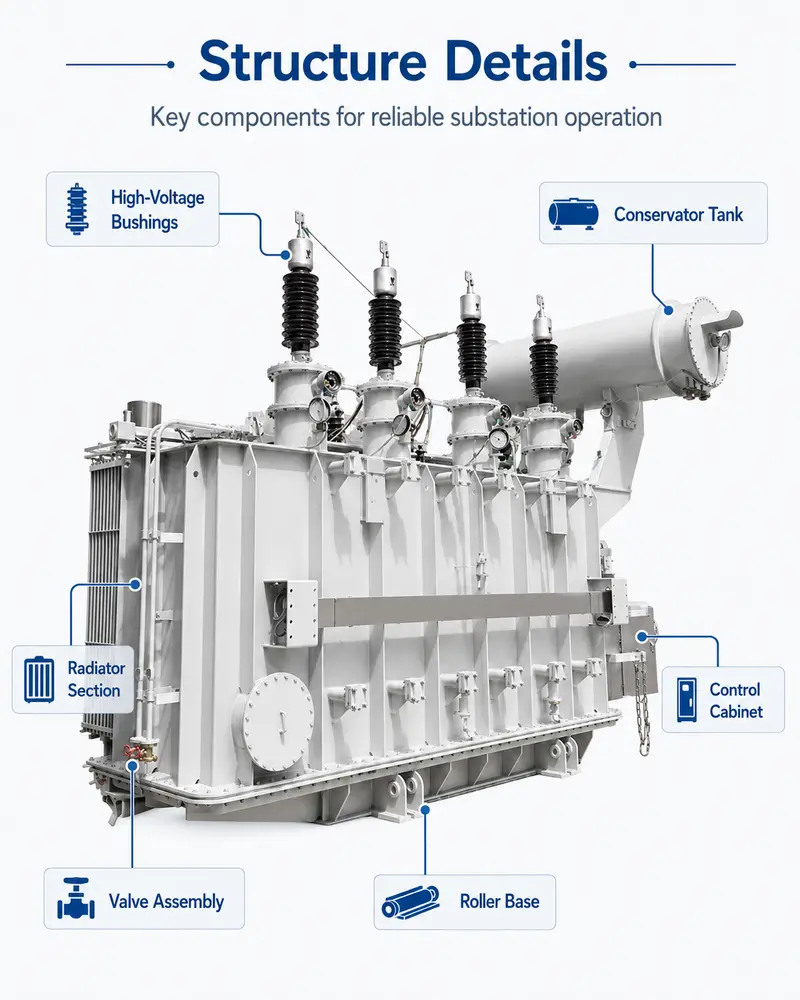

The sealed tank carries high-voltage porcelain bushings, a top-mounted conservator for oil expansion, side radiator banks, and a cabinet for monitoring and protection gear. This dual-winding, oil-immersed build keeps cooling efficient and insulation stable for reliable substation and distribution service.
Fits utility and industrial substations, transmission and distribution networks, renewable-energy installations, and large facilities that need 110-kV-class transformation.
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be tailored to a project's single-line requirements.
The rated capacity is 12500 kVA, with an input voltage of 110 kV. Other ratings in the same series are quoted on request.
110 kV / 12500 kVA dual-winding design at factory-direct pricing; Sealed oil-immersed tank with radiator cooling and conservator; Dyn11 / Yyn0 vector groups fit substation single-line layouts.
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be tailored to a project's single-line requirements.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
