Power Transformers (up to 110 kV)
Designed to cut operating cost, this three-phase oil-immersed transformer is rated 25 or 30 MVA and steps a 66 or 110 kV supply down to 23 kV for substation…

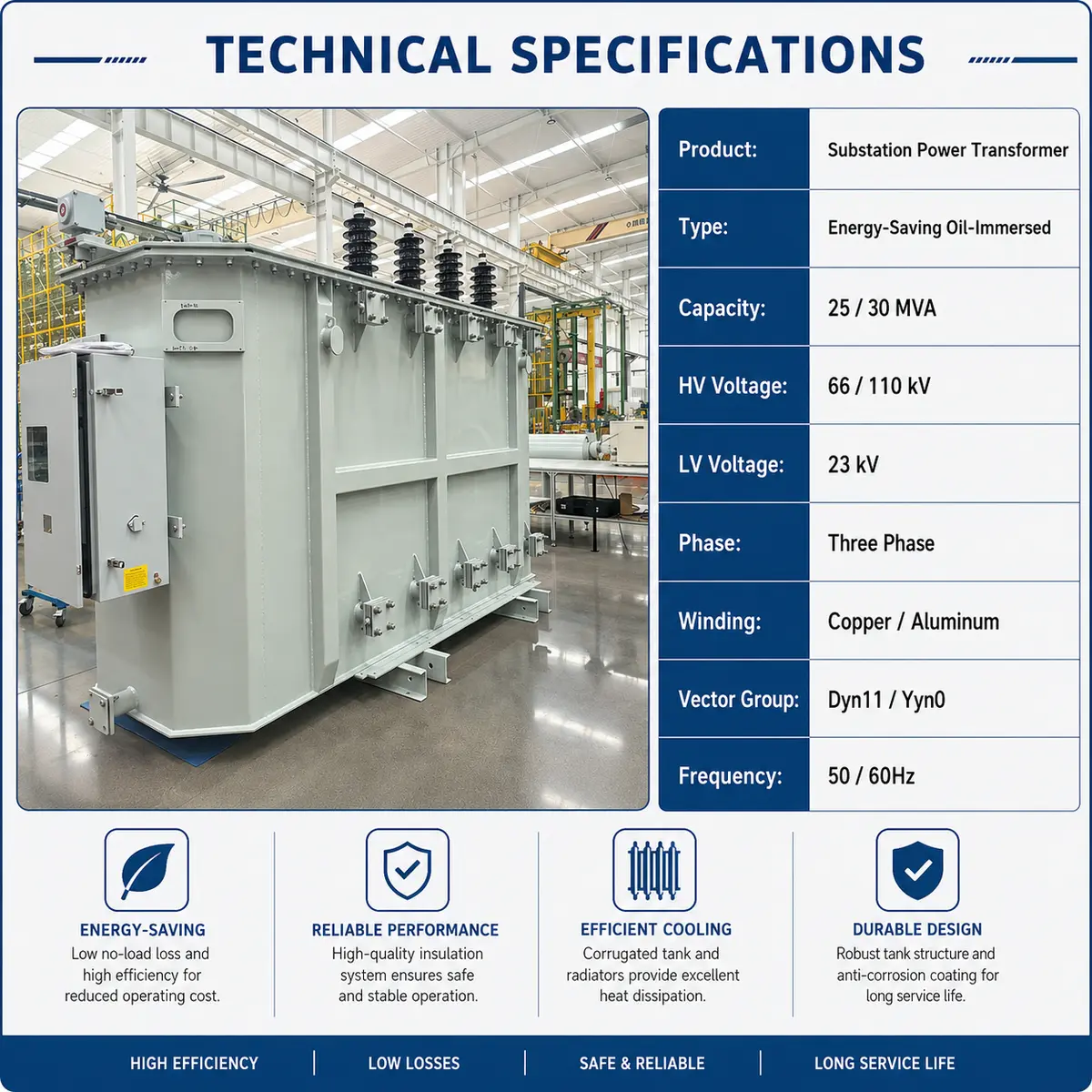

| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Power Transformer |
| Rated Capacity | 25 / 30 MVA |
| Input Voltage (HV) | 66 / 110 kV |
| Output Voltage (LV) | 23 kV |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN / ONAF (oil-immersed, radiator) |
| Standard | IEC / GB |
| Certification | UL, IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Service Life | 20 Years |
| Packing | Wooden Case |
Figures shown reflect the supplied product data. Exact dimensions, materials, finish and packaging are confirmed at sample approval and order confirmation.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

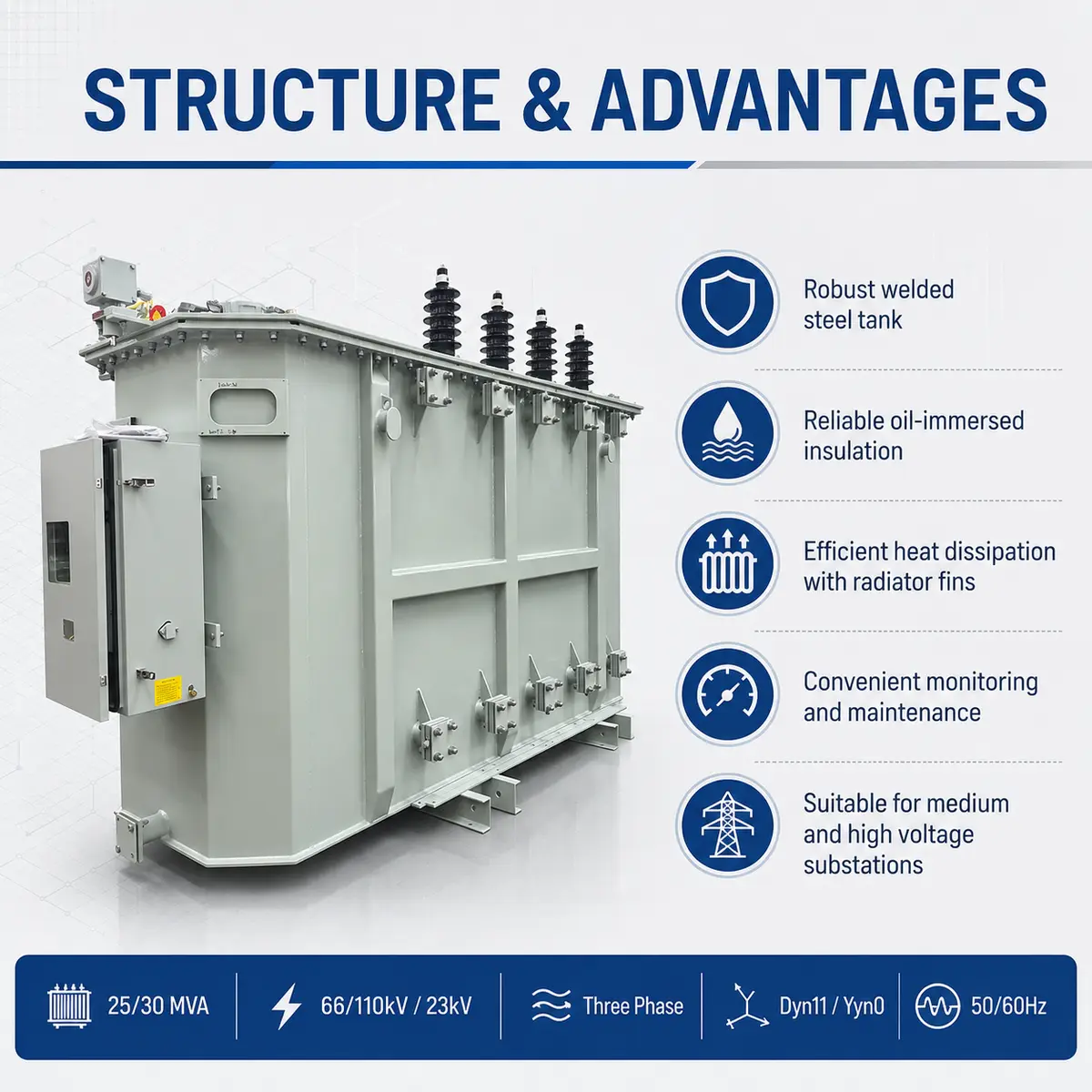

Designed to cut operating cost, this three-phase oil-immersed transformer is rated 25 or 30 MVA and steps a 66 or 110 kV supply down to 23 kV for substation and distribution use. Low-loss core and winding materials reduce both no-load and load losses across a 20-year design life. It's built with a sealed steel tank, radiator cooling and a conservator oil-expansion system, using copper or aluminium windings that meet IEC/GB requirements.

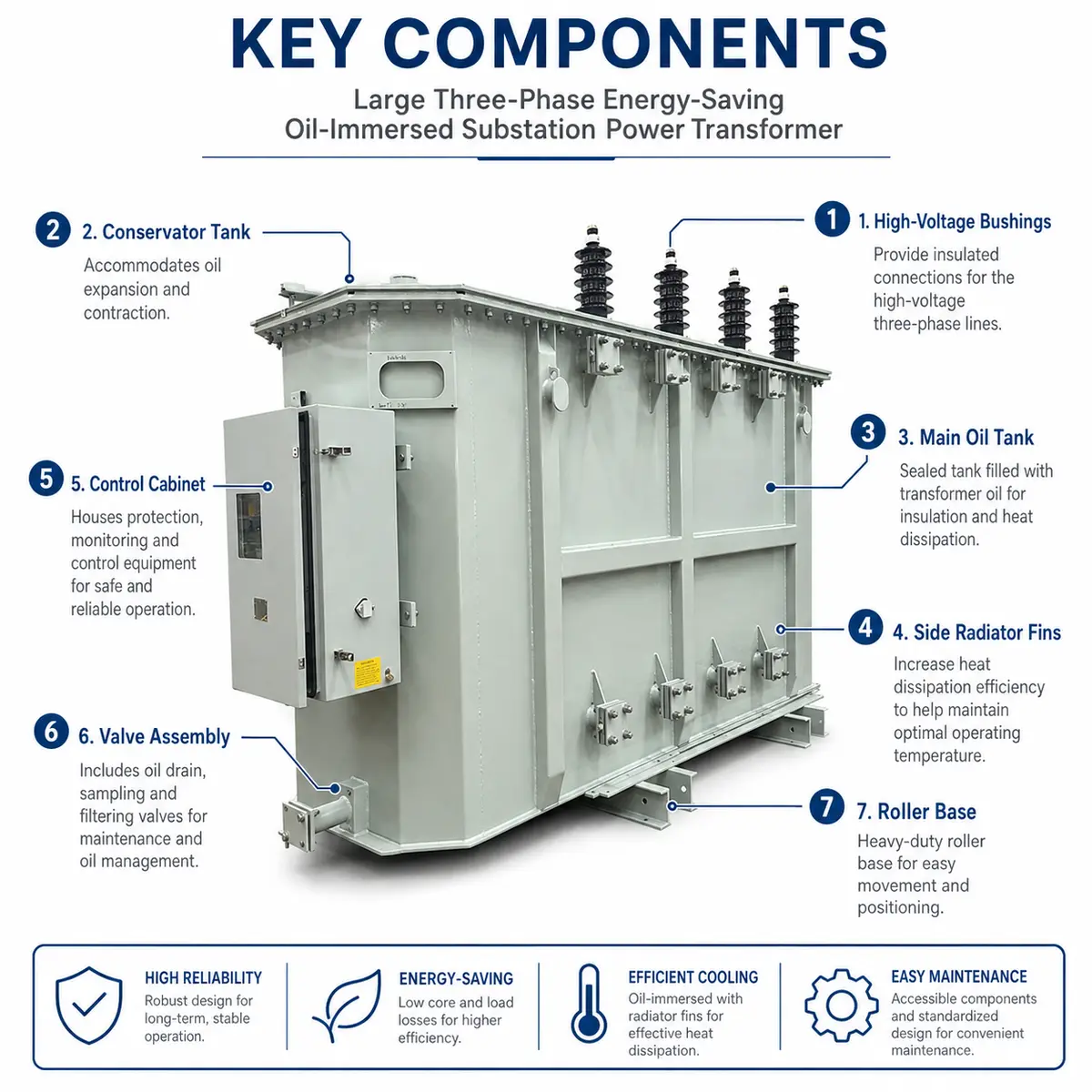

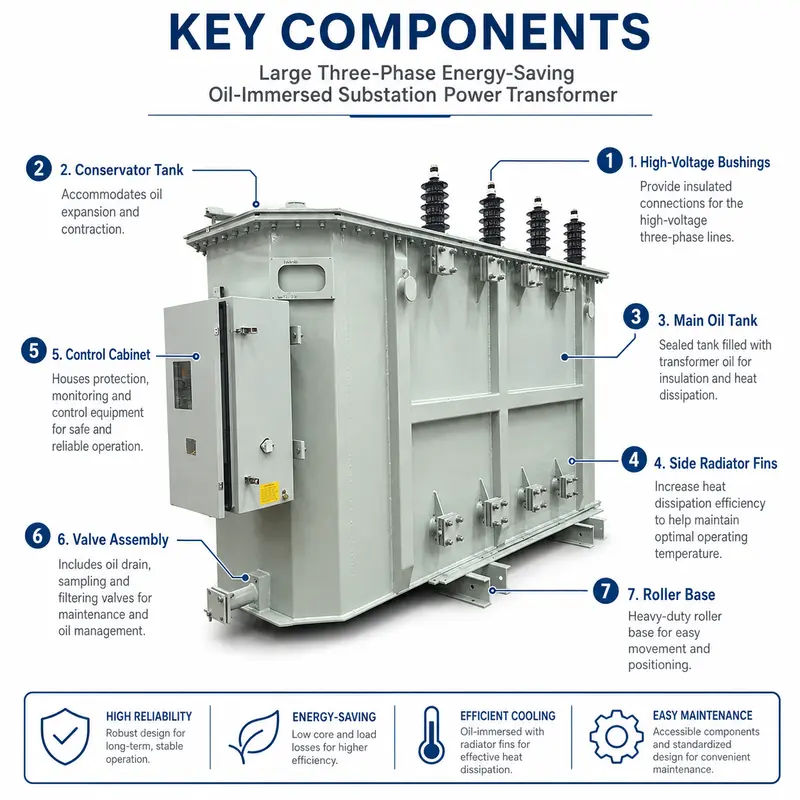

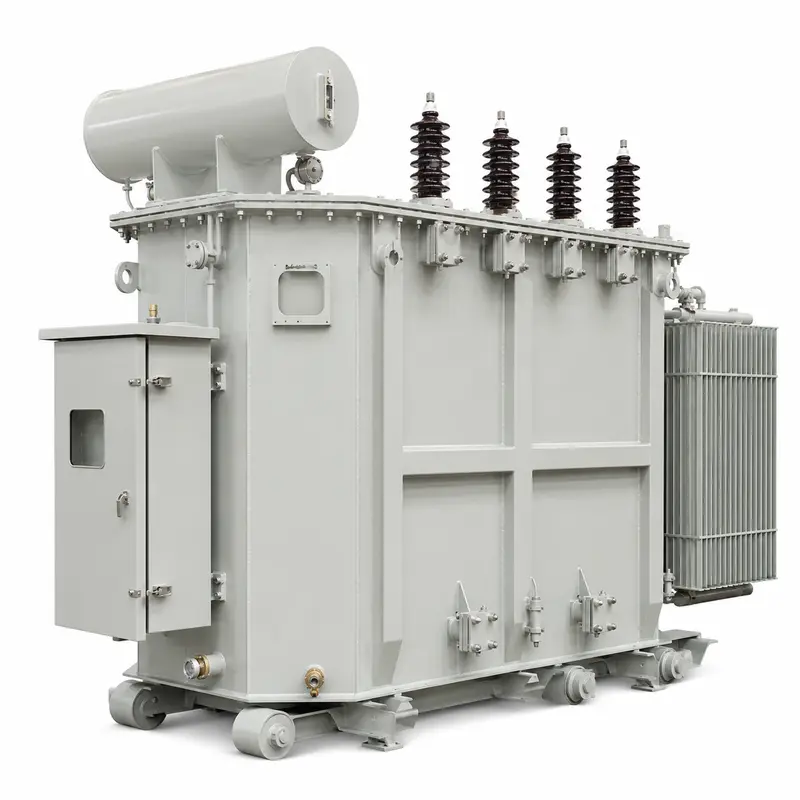

High-voltage porcelain bushings sit on the sealed tank alongside a top-mounted conservator for oil expansion, side radiator banks, and a cabinet for monitoring and protection. Low-loss materials trim lifetime running costs, while the oil-immersed build keeps cooling efficient and insulation stable for dependable substation service.

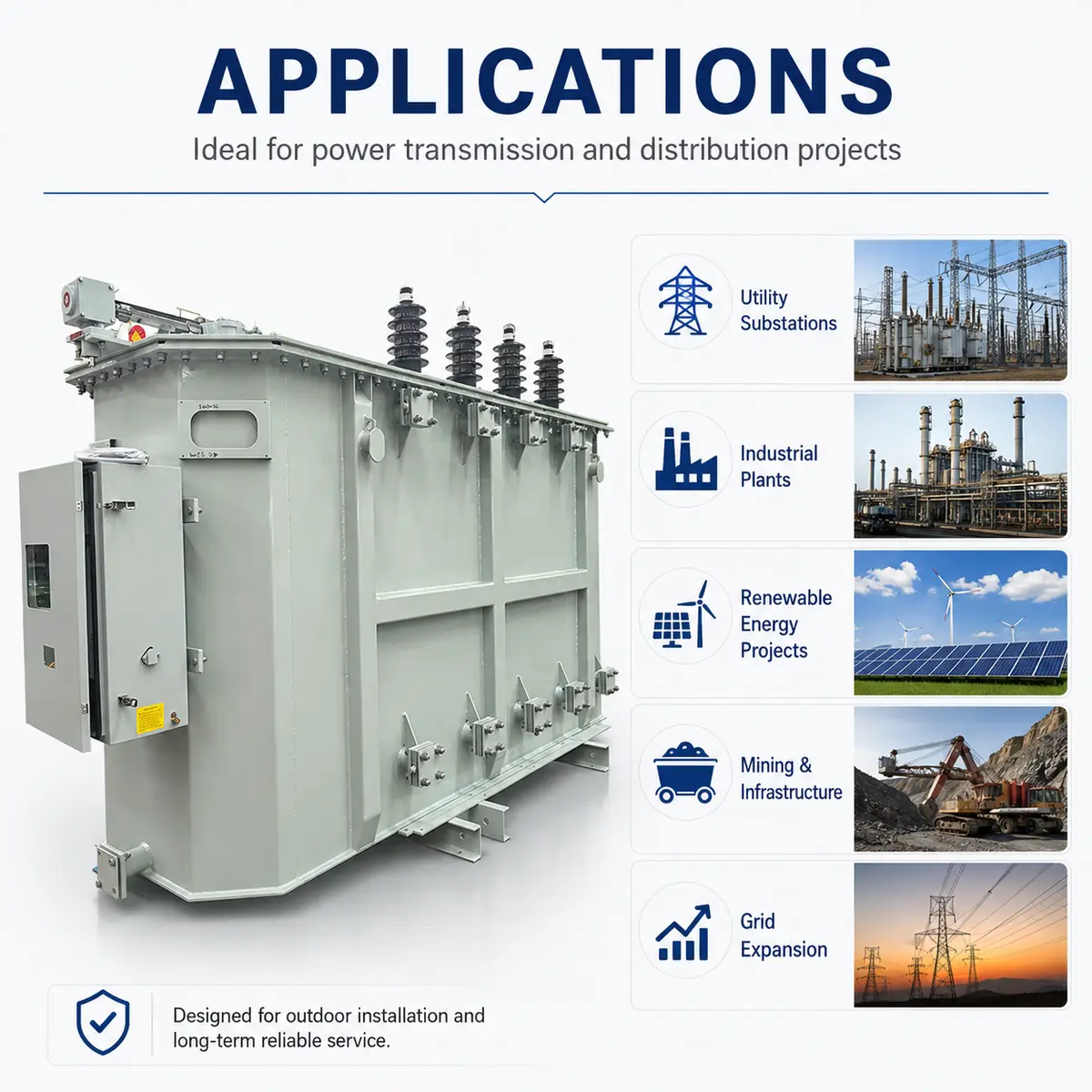

Fits utility and industrial substations, transmission and distribution networks, renewable-energy installations, and large facilities that need efficient 66–110-kV-class transformation.
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be tailored to a project's single-line requirements.
The rated capacity is 25 / 30 MVA, with an input voltage of 66 / 110 kV. Other ratings in the same series are quoted on request.
Energy-saving, low-loss design lowers no-load and load losses; 25 / 30 MVA rating covers 66–110 kV substation and distribution needs; Sealed oil-immersed tank with radiator cooling and conservator.
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be tailored to a project's single-line requirements.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
