Power Transformers (up to 110 kV)
Built to order, this three-phase oil-immersed transformer is rated 2500 kVA and steps 66 kV directly down to 415 V for industrial and distribution power…

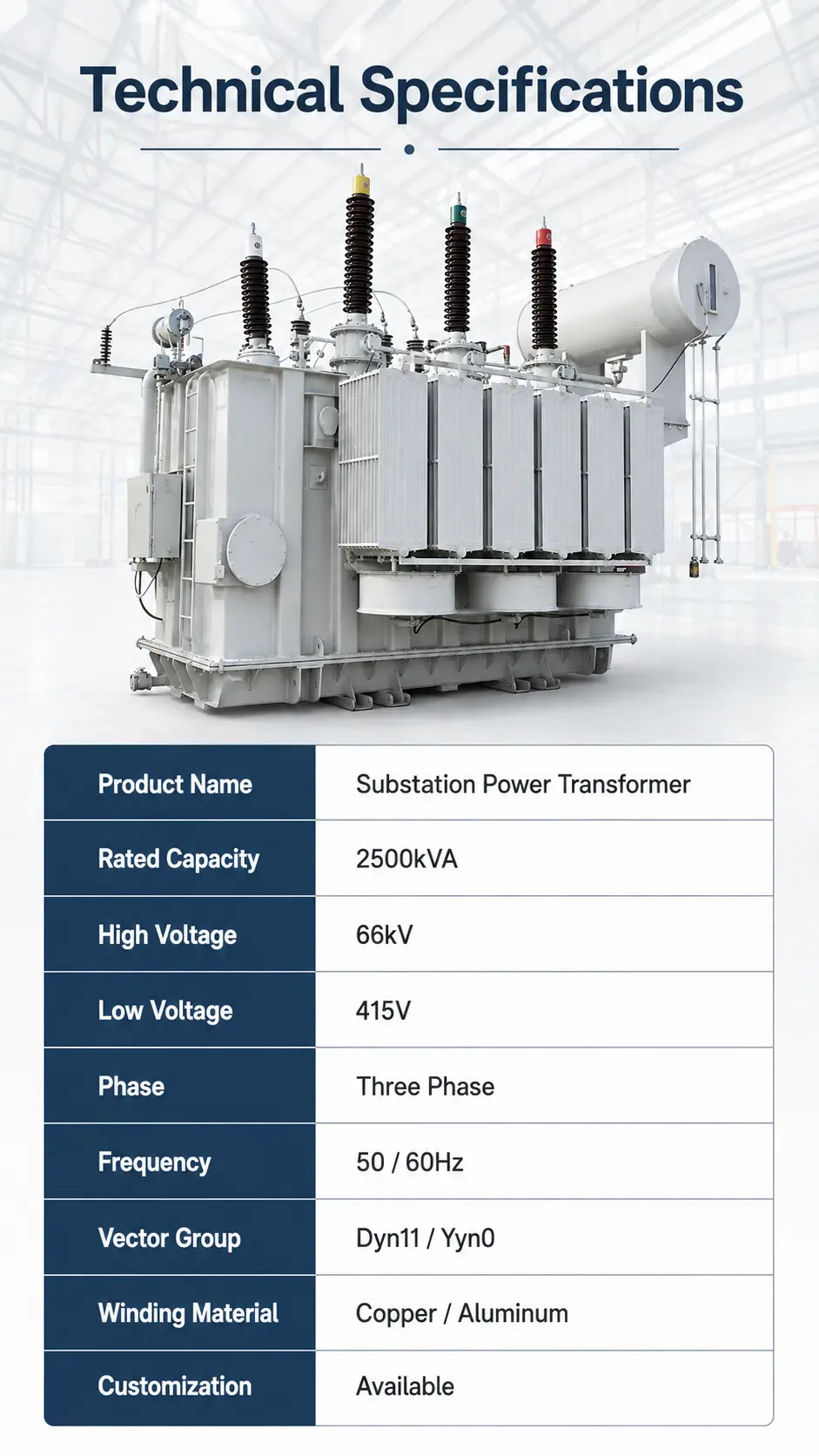

| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Power Transformer |
| Rated Capacity | 2500 kVA |
| Input Voltage (HV) | 66 kV |
| Output Voltage (LV) | 415 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN (oil-immersed, radiator) |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Service Life | 20 Years |
| Packing | Wooden Case |
Figures shown reflect the supplied product data. Exact dimensions, materials, finish and packaging are confirmed at sample approval and order confirmation.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Built to order, this three-phase oil-immersed transformer is rated 2500 kVA and steps 66 kV directly down to 415 V for industrial and distribution power feeds. It uses a sealed steel tank, radiator cooling and a conservator oil-expansion system, designed for a 20-year service life and configured around each project's single-line diagram. Windings come in copper or aluminium, meeting IEC/GB requirements.

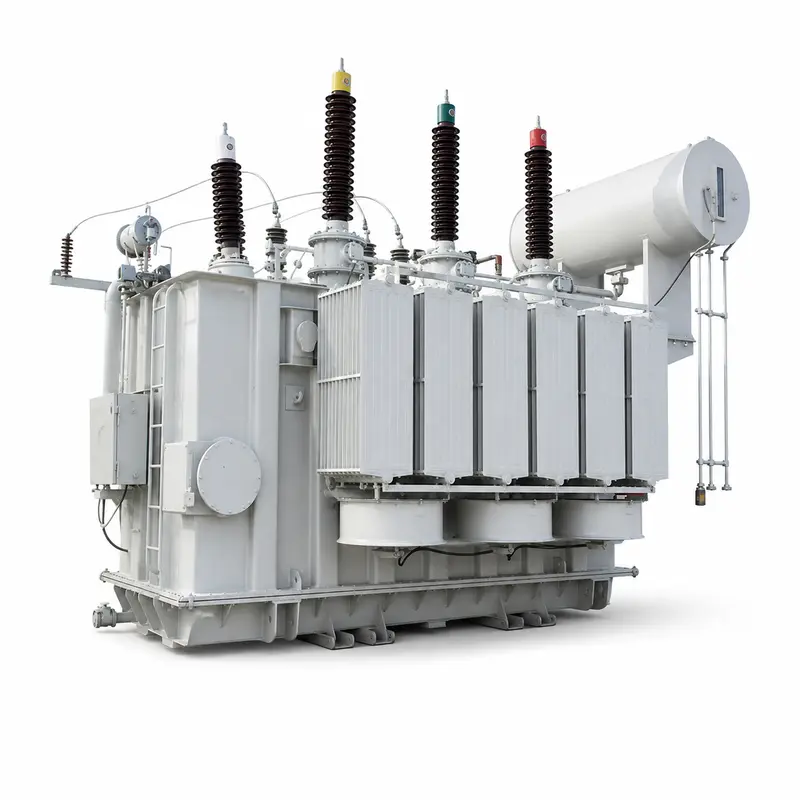

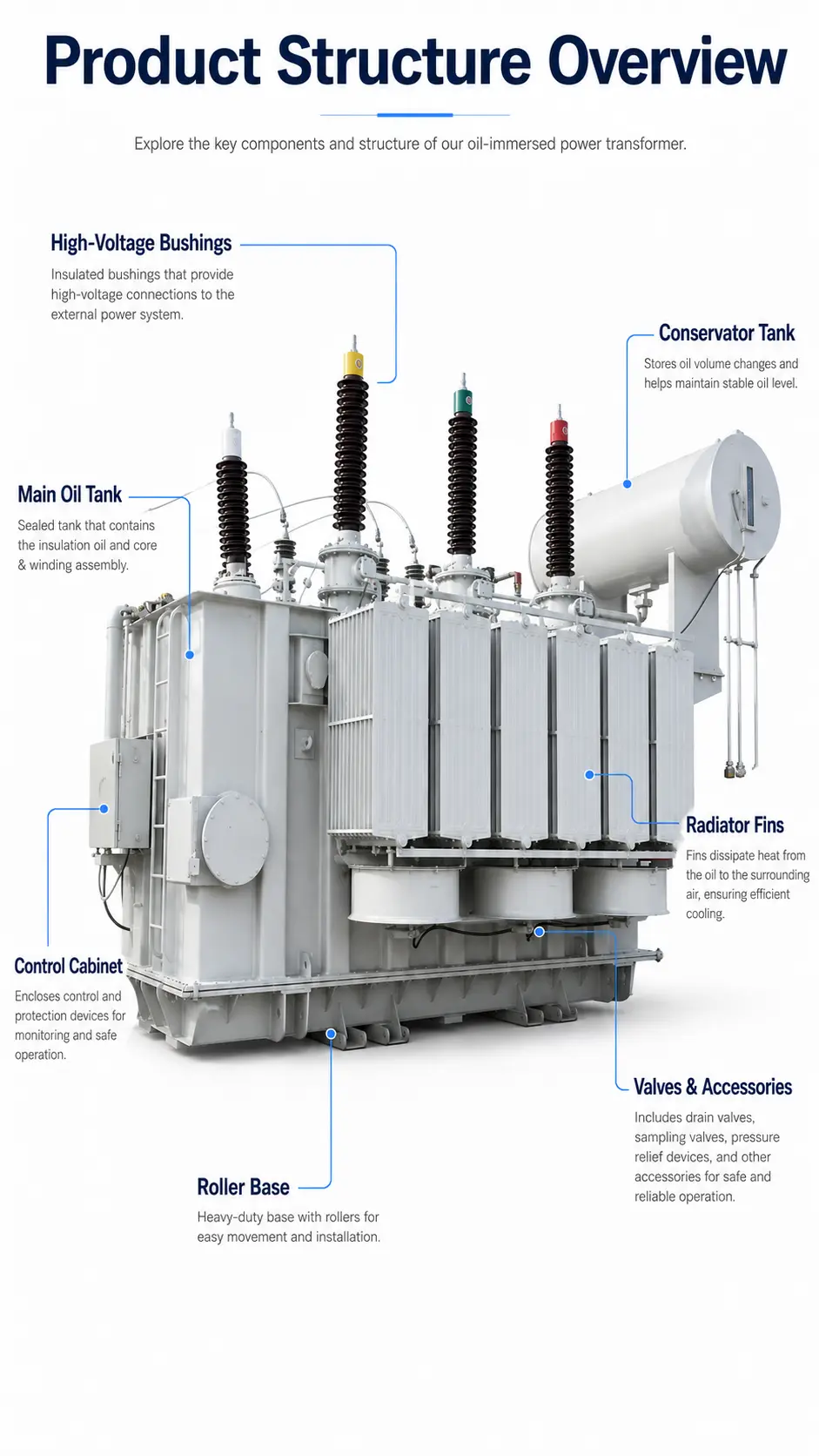

High-voltage porcelain bushings sit on the sealed tank next to a top-mounted conservator for oil expansion, side radiator banks, and a control cabinet for monitoring and protection. Engineered for direct 66 kV / 415 V supply, the oil-immersed design keeps cooling efficient and insulation stable for long, dependable industrial service.

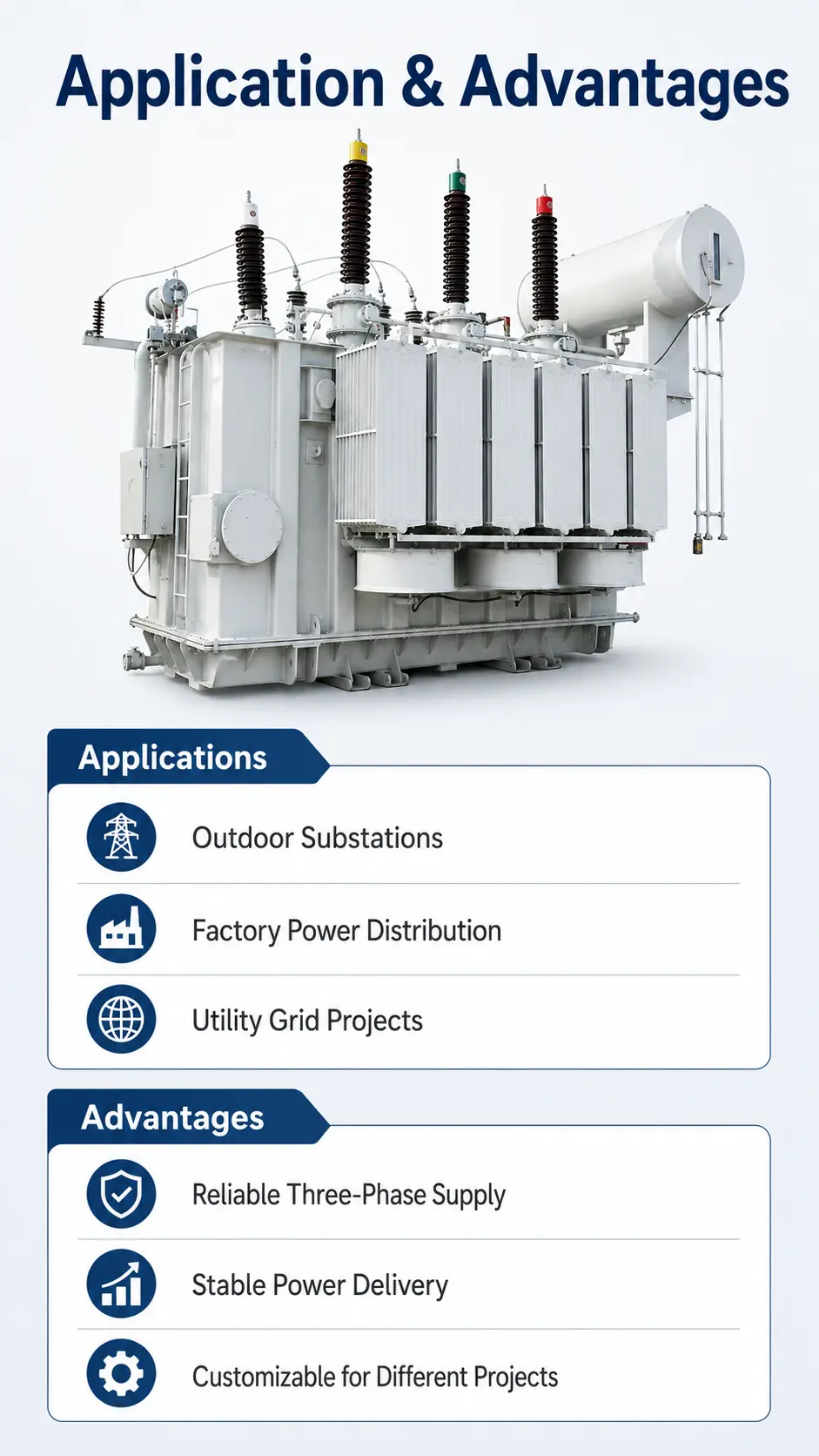

Suited to industrial plants, mining operations, infrastructure projects and distribution networks that need a compact 66-kV-to-415-V step-down unit.

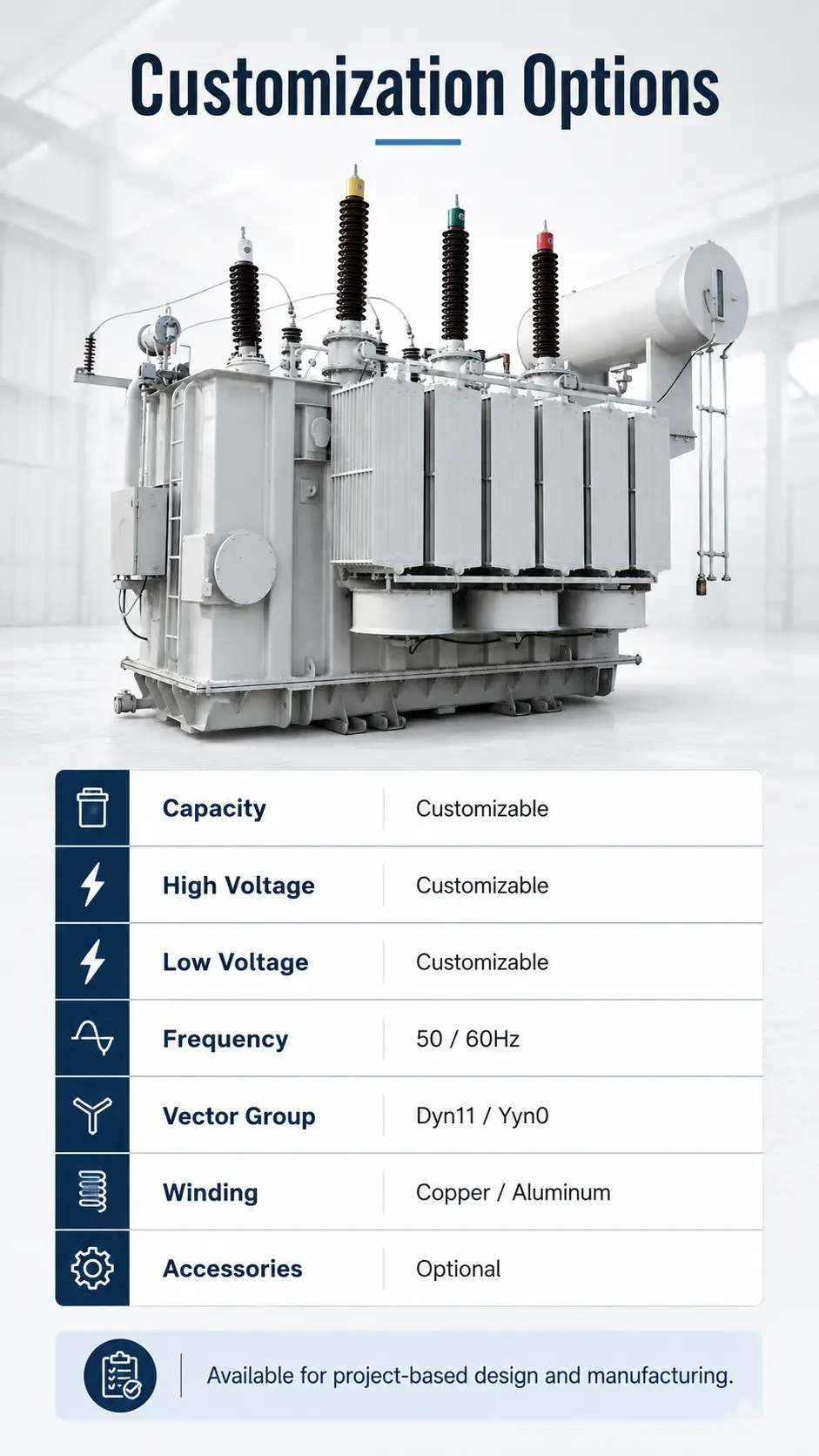

Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be adjusted to a project's single-line requirements.
The rated capacity is 2500 kVA, with an input voltage of 66 kV. Other ratings in the same series are quoted on request.
Steps straight from 66 kV to 415 V in a compact 2500 kVA unit; Sealed oil-immersed tank with radiator cooling and conservator; Dyn11 / Yyn0 vector groups fit single-line requirements.
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be adjusted to a project's single-line requirements.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
