Power Transformers (up to 110 kV)
Engineered to order, this three-phase oil-immersed transformer is rated 25 MVA (31500 kVA) and steps 66, 69 or 72.5 kV down to 15 kV for substation and…
| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Power Transformer |
| Rated Capacity | 25 MVA / 31500 kVA |
| Input Voltage (HV) | 66 / 69 / 72.5 kV |
| Output Voltage (LV) | 15 kV |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN / ONAF (oil-immersed, radiator) |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Service Life | 20 Years |
| Packing | Wooden Case |
Figures shown reflect the supplied product data. Exact dimensions, materials, finish and packaging are confirmed at sample approval and order confirmation.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Engineered to order, this three-phase oil-immersed transformer is rated 25 MVA (31500 kVA) and steps 66, 69 or 72.5 kV down to 15 kV for substation and distribution service. It's built with a sealed steel tank, radiator cooling and a conservator oil-expansion system for a 20-year design life, and configured to match each project's single-line diagram. Windings are available in copper or aluminium, per IEC/GB requirements.

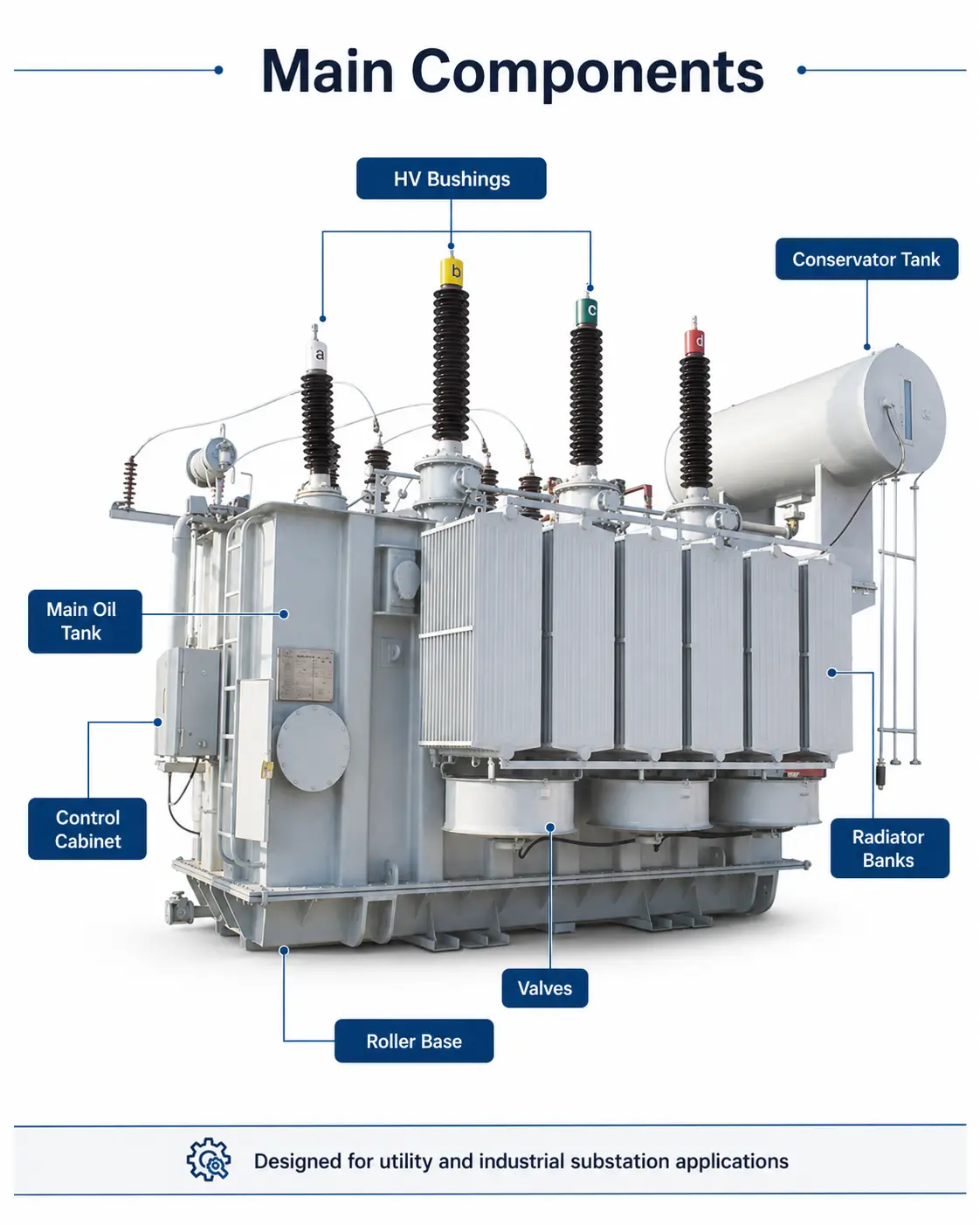

The sealed tank carries high-voltage porcelain bushings, a top-mounted conservator for oil expansion, radiator banks on the sides, and a control cabinet for monitoring and protection. Built around each customer's single-line diagram, the oil-immersed design keeps cooling efficient and insulation stable for long-term substation service.

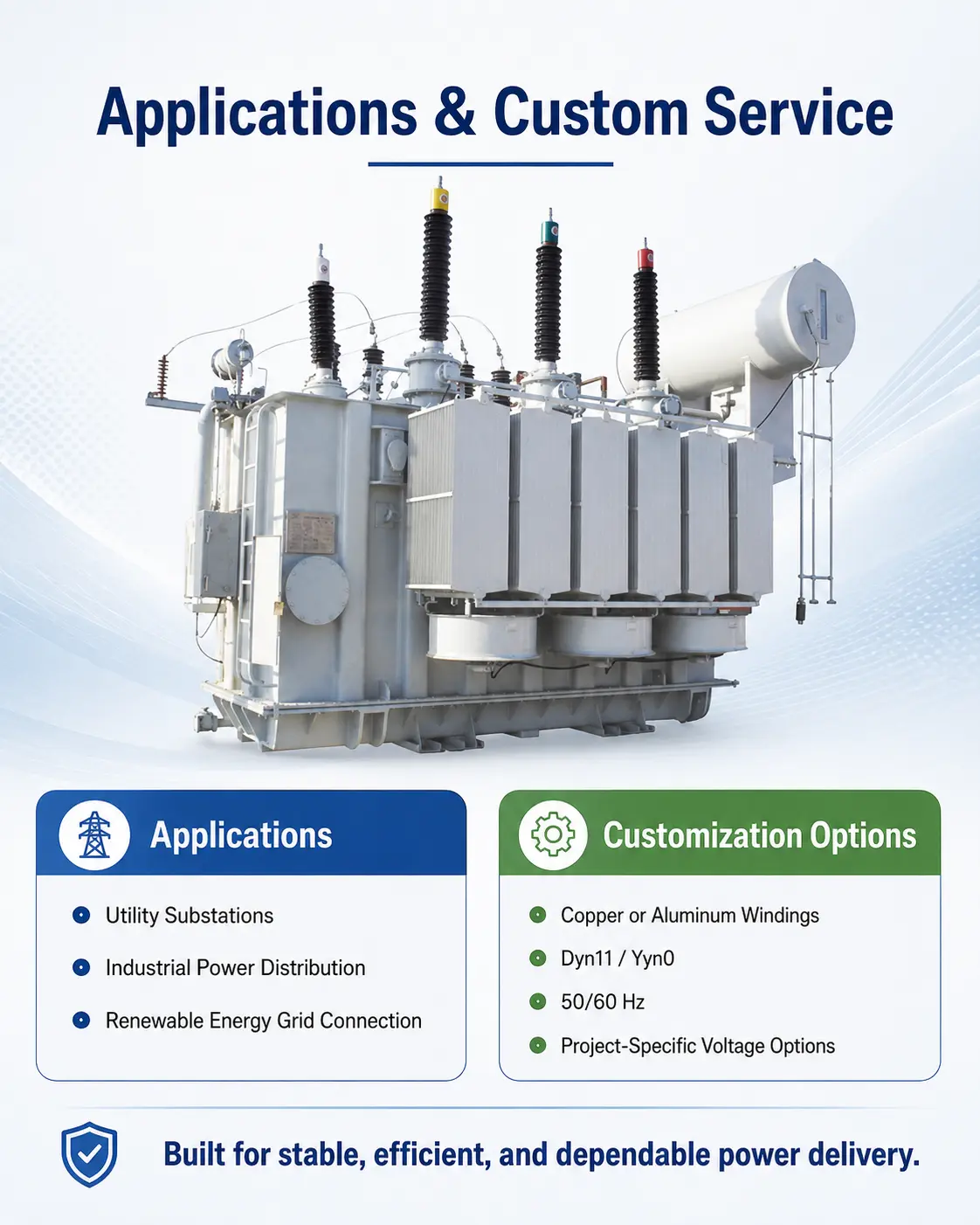

Fits utility and industrial substations, transmission and distribution networks, renewable-energy installations, and large facilities that need custom 66–72.5-kV-class transformation.
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be adjusted to a project's single-line requirements.
The rated capacity is 25 MVA / 31500 kVA, with an input voltage of 66 / 69 / 72.5 kV. Other ratings in the same series are quoted on request.

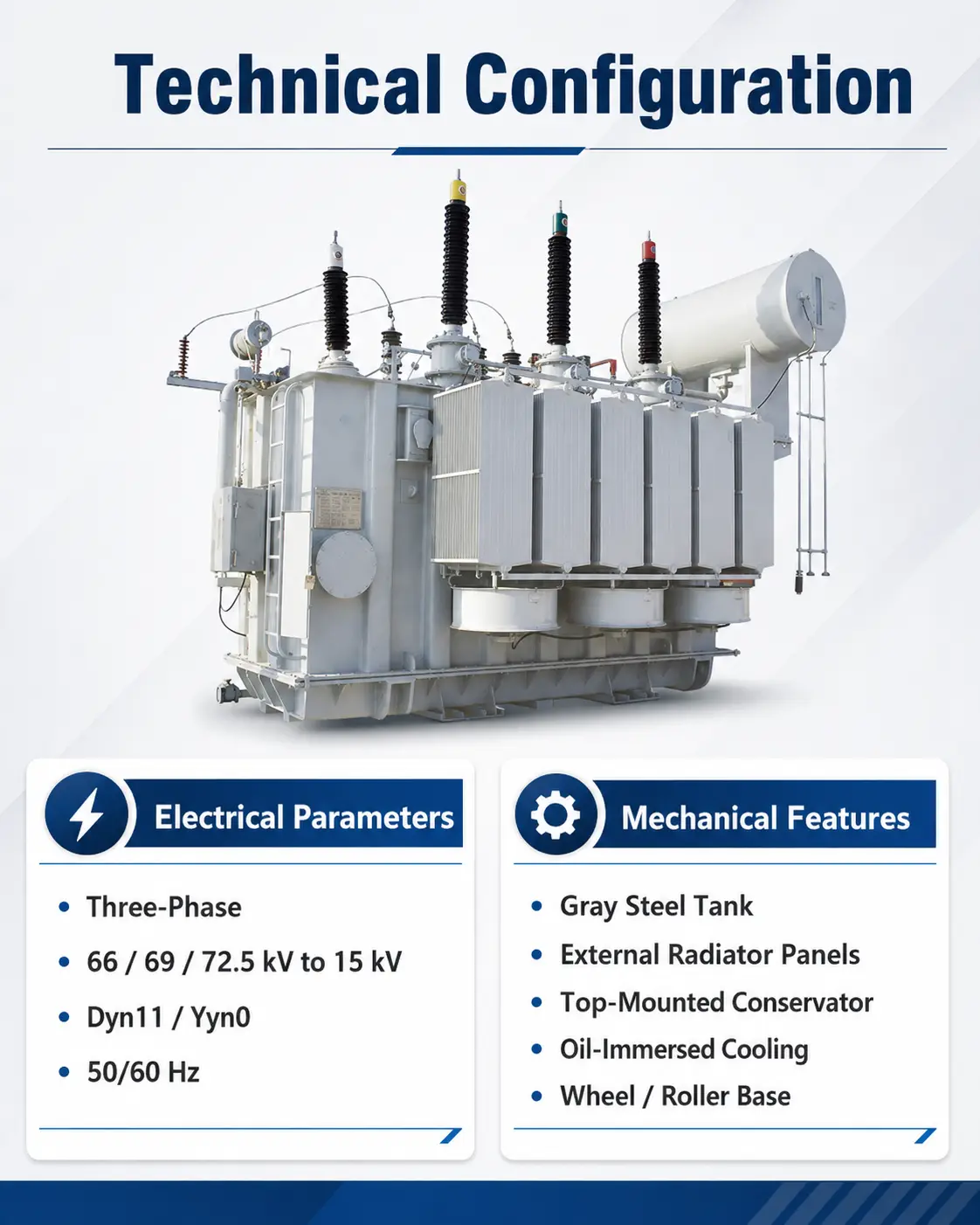

Fully customizable 25 MVA / 31500 kVA rating at 66–72.5 kV; Sealed oil-immersed tank with radiator cooling and conservator; Dyn11 / Yyn0 vector groups fit substation single-line layouts.
Capacity, HV/LV voltage, vector group, tap-changer type, cooling class and fittings can be adjusted to a project's single-line requirements.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
