Oil-Immersed Distribution Transformers
This 1000 kVA three-phase oil-immersed step-down transformer takes a 10 kV input (with 6 / 10 / 15 / 35 kV options available) and brings it down to 400 V…
| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Distribution Transformer |
| Rated Capacity | 1000 kVA (range 15 kVA–31500 kVA) |
| Input Voltage | 10 kV (options 6 / 10 / 15 / 35 kV) |
| Output Voltage | 400 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |

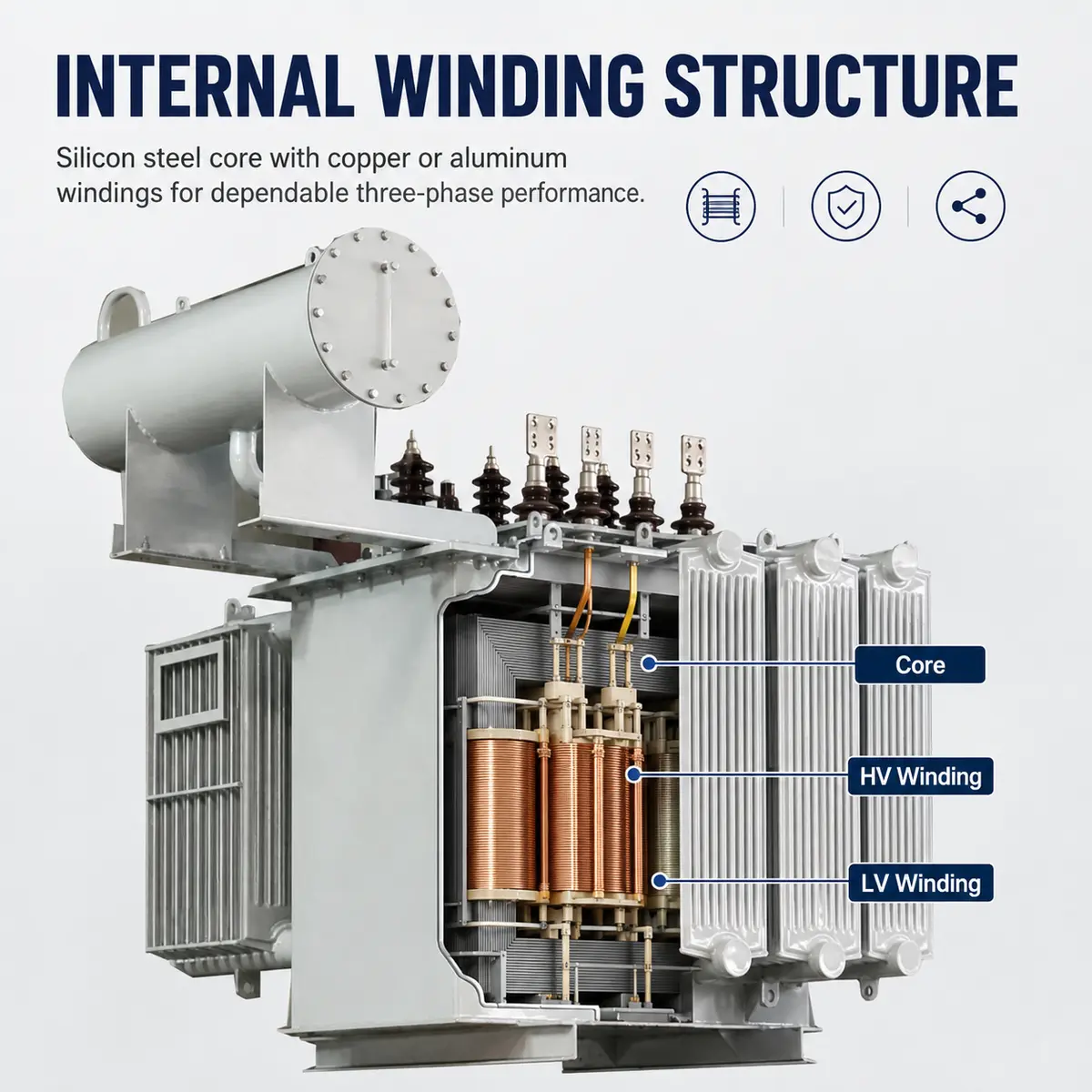

| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Vector Group | Dyn11 / Yyn0 / Yd11 / YNd11 / Dyn5 |
| Service Life | 20–30 Years |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |

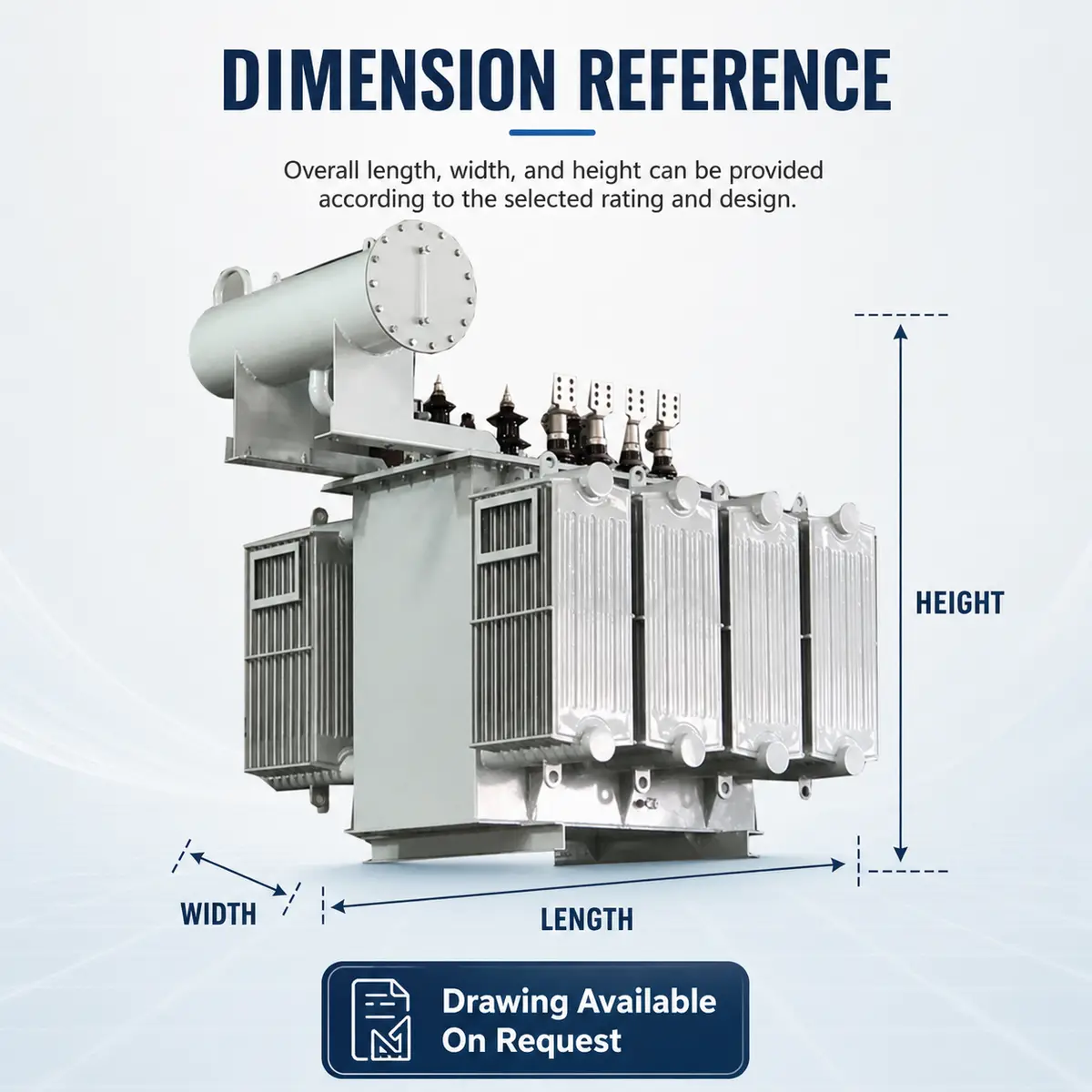

| Package Size | 280 × 200 × 250 cm |
| Gross Weight | 5400 kg |
Figures reflect the supplied product data. Actual dimensions, materials, colors, and packaging depend on the confirmed sample and final order agreement.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

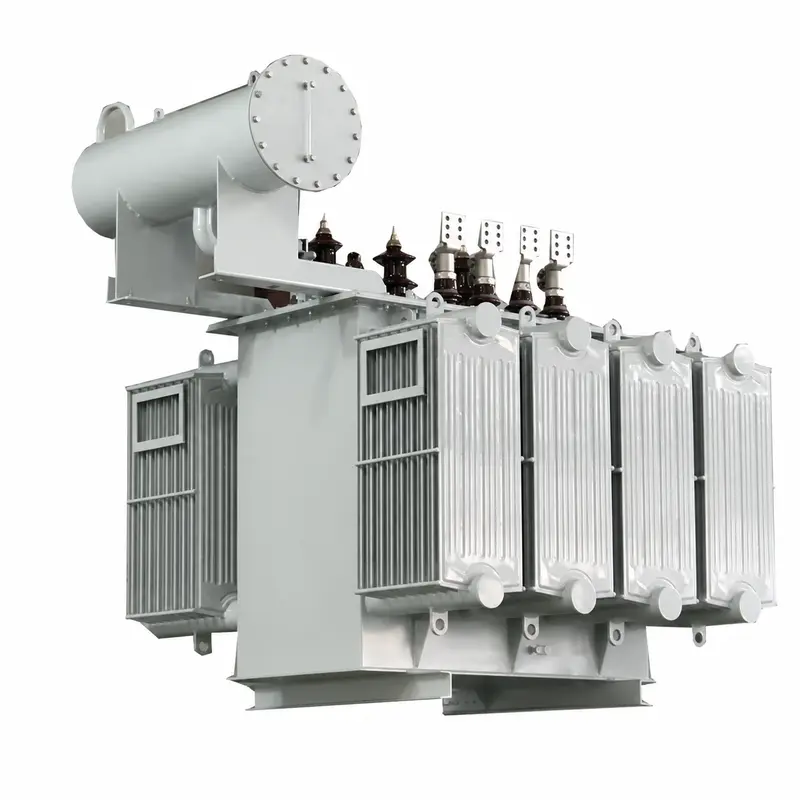

This 1000 kVA three-phase oil-immersed step-down transformer takes a 10 kV input (with 6 / 10 / 15 / 35 kV options available) and brings it down to 400 V, part of a wider lineup spanning 15 kVA to 31500 kVA. Cooling is handled by detachable panel-radiator banks paired with an oil conservator, giving efficient heat dissipation and oil management that support a low-maintenance service life of 20–30 years in outdoor and substation distribution roles. Windings are available in copper or aluminium, with construction meeting both IEC and GB standards.

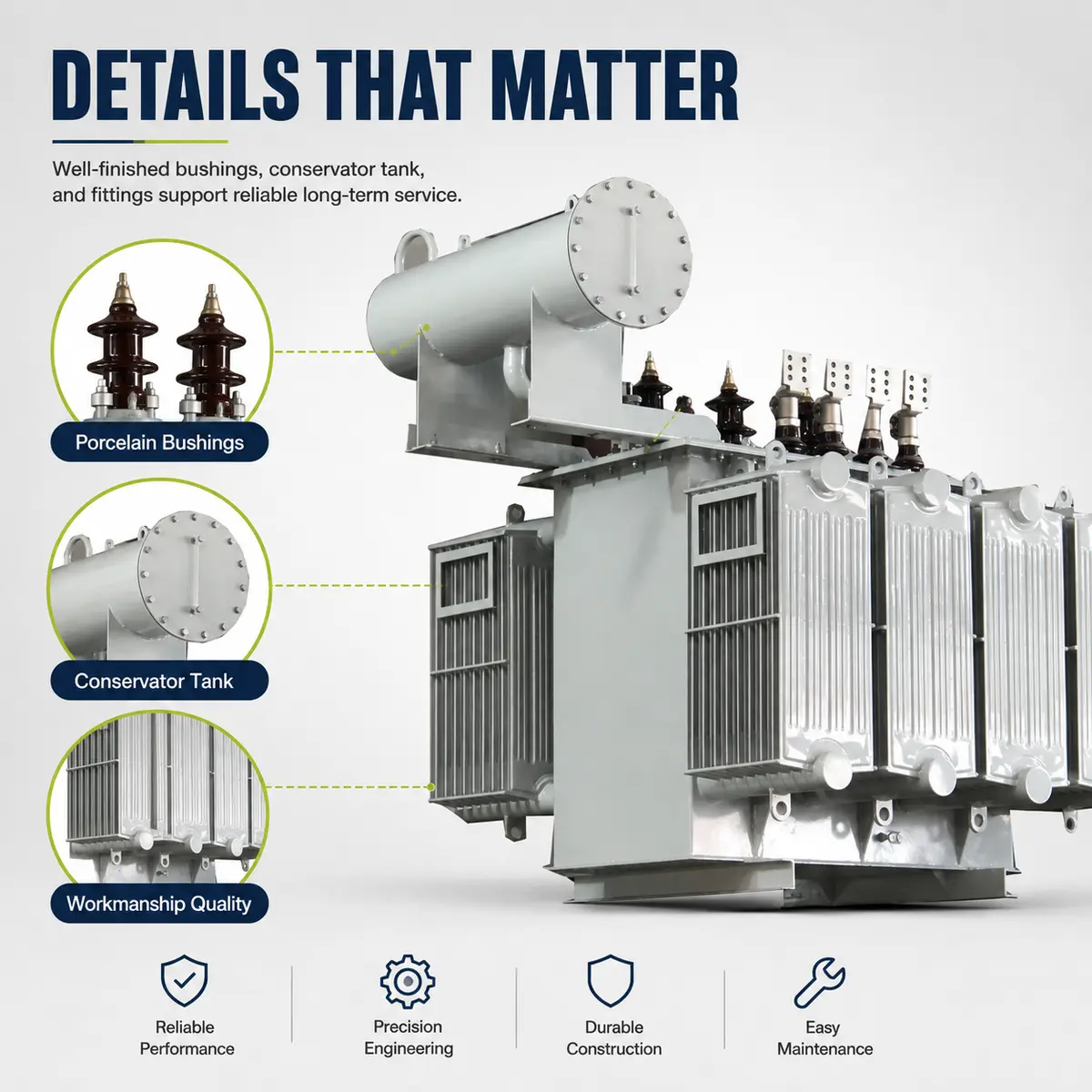

A hermetically sealed steel tank fitted with corrugated cooling fins keeps the transformer oil isolated from outside air, blocking oxidation and moisture while still shedding heat effectively. High-voltage porcelain bushings and the low-voltage terminal block sit on the tank cover, and the assembly includes pressure-relief and oil-level protection devices. Together these elements deliver steady, low-loss performance that asks very little of maintenance crews.
Suited to outdoor and indoor distribution work for utilities, industrial facilities, mining operations, oil fields, commercial developments and rural electrification projects that need dependable medium-voltage step-down.

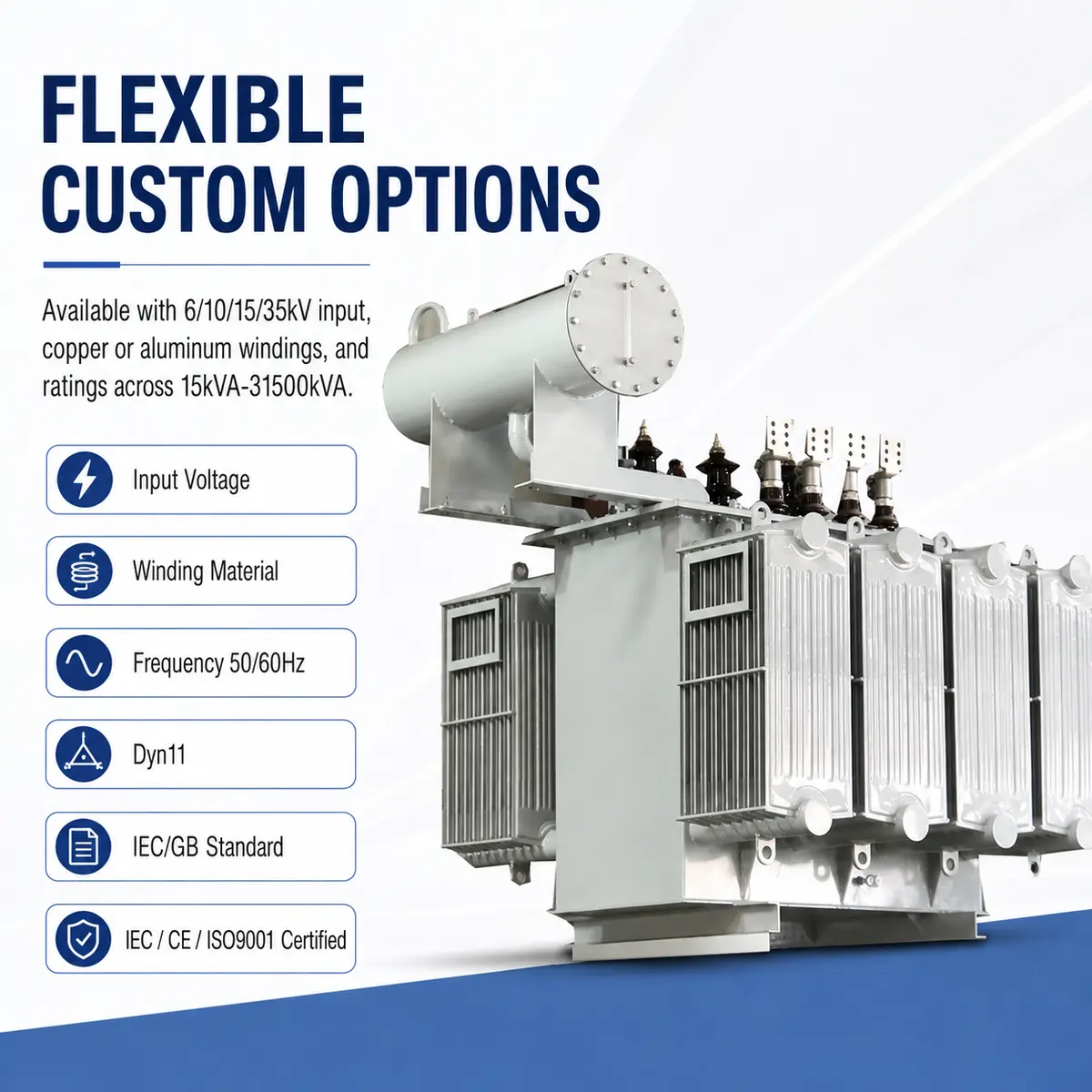

Project teams can specify capacity, voltage ratio, vector group, winding material (copper or aluminium), tap-changer type (off-load or on-load) and bushing arrangement to match site requirements.
The rated capacity is 1000 kVA (range 15 kVA–31500 kVA), with an input voltage of 10 kV (options 6 / 10 / 15 / 35 kV). Other ratings in the same series are quoted on request.
Detachable panel-radiator cooling working alongside an oil conservator for efficient heat dissipation; Low no-load loss combined with a low operating temperature drives high overall efficiency; Built to hold up for 20–30 years even in demanding outdoor conditions.
Project teams can specify capacity, voltage ratio, vector group, winding material (copper or aluminium), tap-changer type (off-load or on-load) and bushing arrangement to match site requirements.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
