Oil-Immersed Distribution Transformers

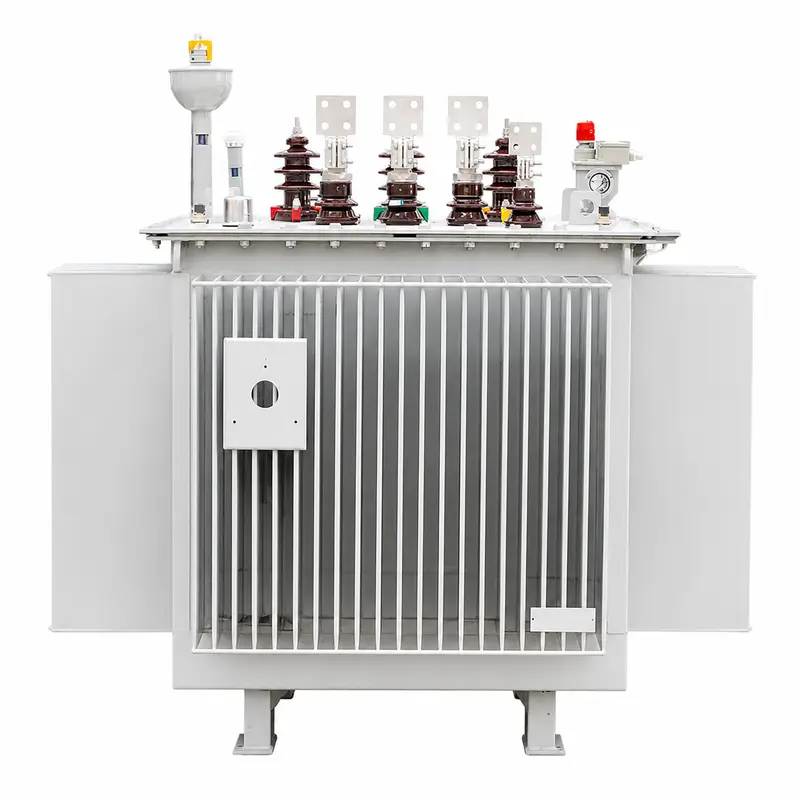

This fully (hermetically) sealed three-phase oil-immersed distribution transformer steps 10 kV down to 400 V and is offered from 630 kVA through 1250 kVA…
| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Distribution Transformer |
| Rated Capacity | 630 kVA – 1250 kVA (range 15 kVA–31500 kVA) |
| Input Voltage | 10 kV (range 6 kV–35 kV) |
| Output Voltage | 400 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Vector Group | Dyn11 / Yyn0 / Yd11 / YNd11 / Dyn5 |
| Service Life | 20–30 Years |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |

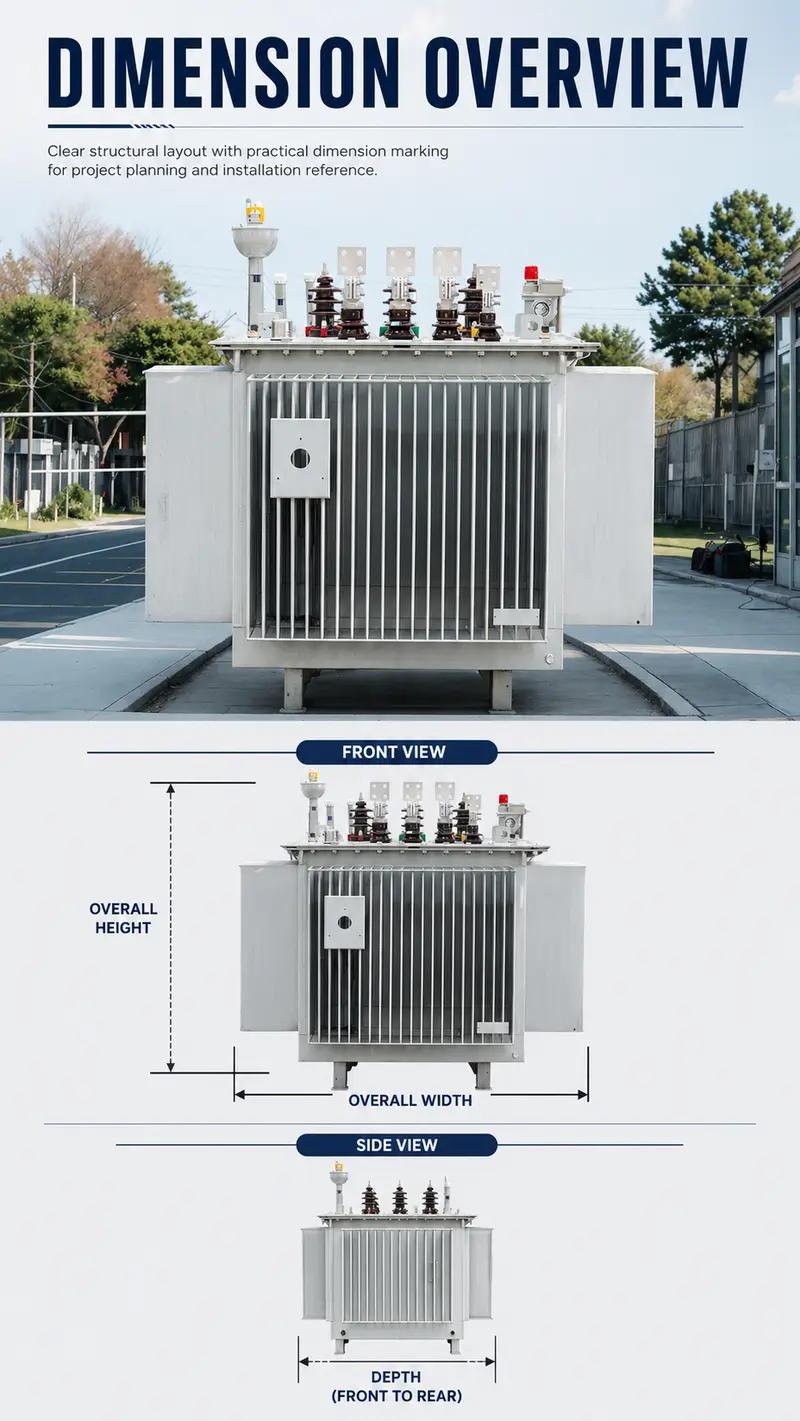

| Package Size | 280 × 200 × 250 cm |
| Gross Weight | 5400 kg |
These specifications reflect the product data supplied. Final dimensions, materials, colors, and packaging are confirmed at the sample and order stage.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
This fully (hermetically) sealed three-phase oil-immersed distribution transformer steps 10 kV down to 400 V and is offered from 630 kVA through 1250 kVA, sitting within a wider product range of 15 kVA to 31500 kVA and 6 kV to 35 kV. Corrugated fins on the sealed tank keep the oil from oxidizing and remove the need for topping-up, delivering a low-maintenance 20 to 30 year service life suited to outdoor substation and distribution work. Copper or aluminium windings are available, built to IEC and GB standards.

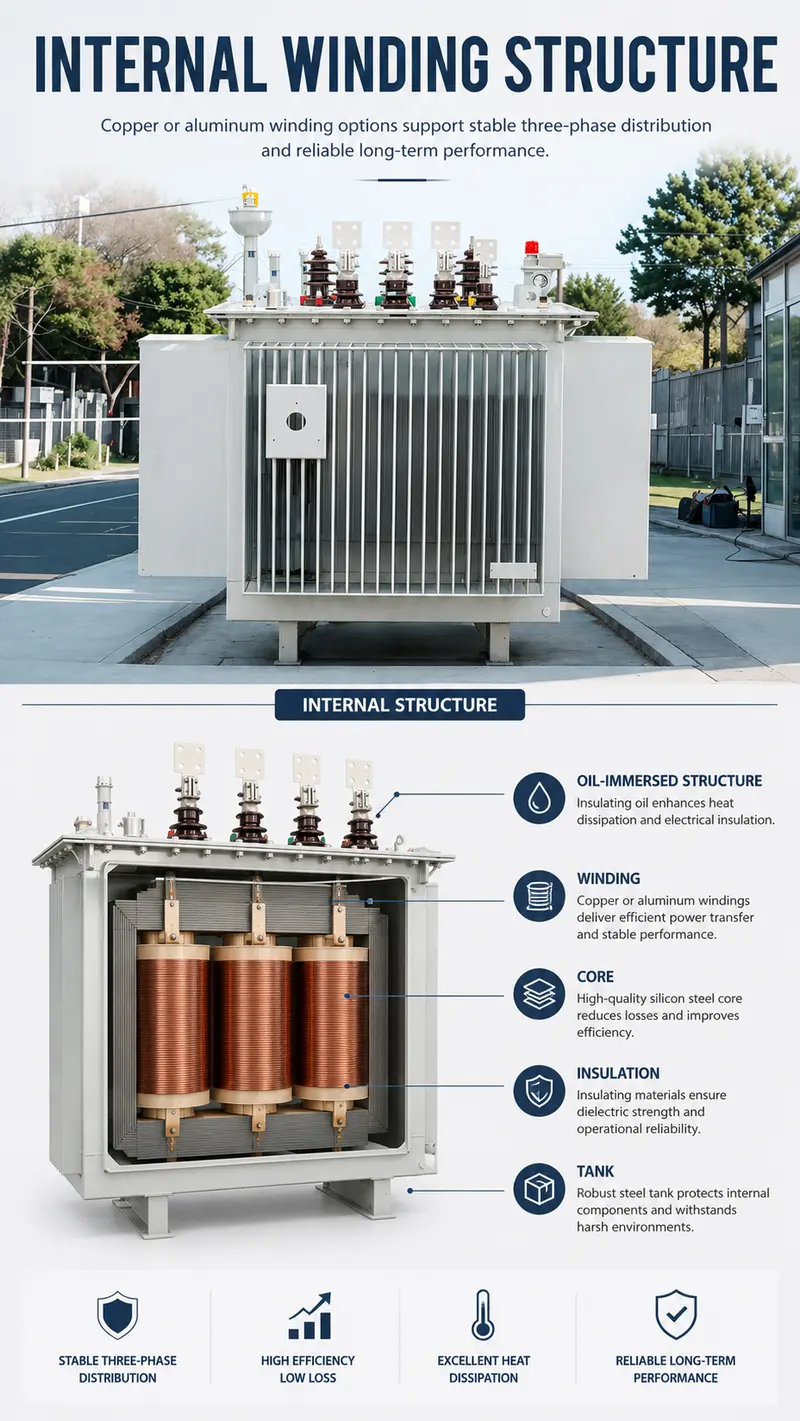

A hermetically sealed steel tank with corrugated cooling fins keeps the transformer oil isolated from outside air, guarding against oxidation and moisture while dissipating heat effectively. The tank cover holds high-voltage porcelain bushings and low-voltage terminals, and pressure-relief along with oil-level protection is built into the design. The outcome is stable, low-loss operation that asks very little of routine servicing.
Utilities, industrial facilities, mining operations, oil fields, commercial complexes, and rural electrification networks turn to this unit for both outdoor and indoor power distribution wherever dependable step-down from medium voltage is required.
Capacity, voltage ratio, vector group, winding material (copper or aluminium), tap changer type (off-load or on-load), and bushing configuration can be tailored to fit project requirements.
The rated capacity is 630 kVA – 1250 kVA (range 15 kVA–31500 kVA), with an input voltage of 10 kV (range 6 kV–35 kV). Other ratings in the same series are quoted on request.
A fully sealed, corrugated-fin tank that prevents oil oxidation, eliminates breathing, and keeps maintenance minimal; High efficiency from low no-load loss combined with a low running temperature; A 20 to 30 year service life built to withstand harsh outdoor environments.
Capacity, voltage ratio, vector group, winding material (copper or aluminium), tap changer type (off-load or on-load), and bushing configuration can be tailored to fit project requirements.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
