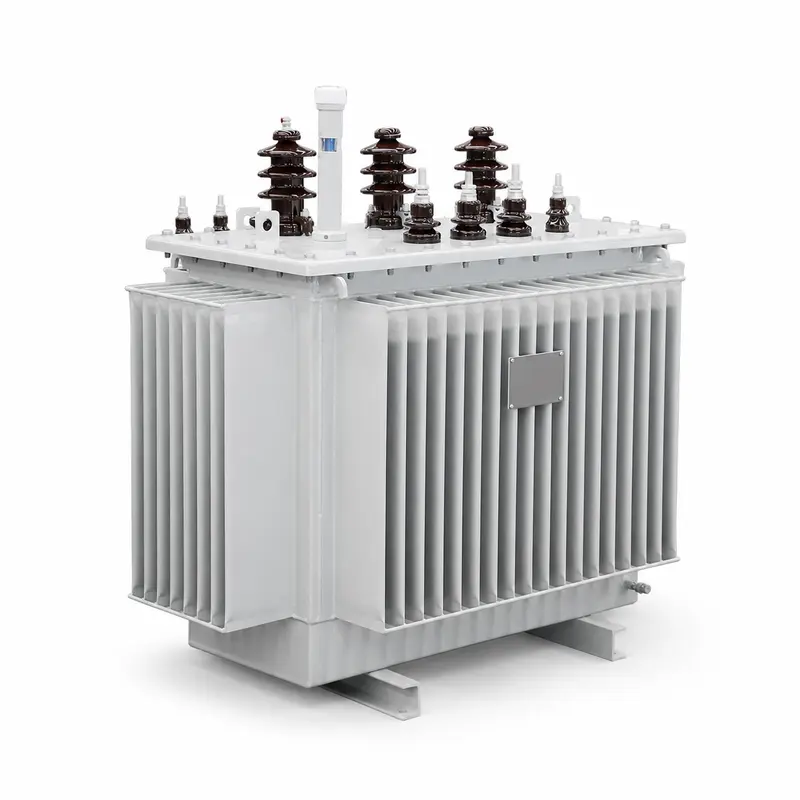

Oil-Immersed Distribution Transformers
Available in 160 kVA and 200 kVA ratings, this fully sealed three-phase oil-immersed transformer converts an 11 / 22 kV supply down to 415 V, within a…
| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Distribution Transformer |
| Rated Capacity | 160 kVA & 200 kVA |
| Input Voltage | 11 / 22 kV |
| Output Voltage | 415 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |

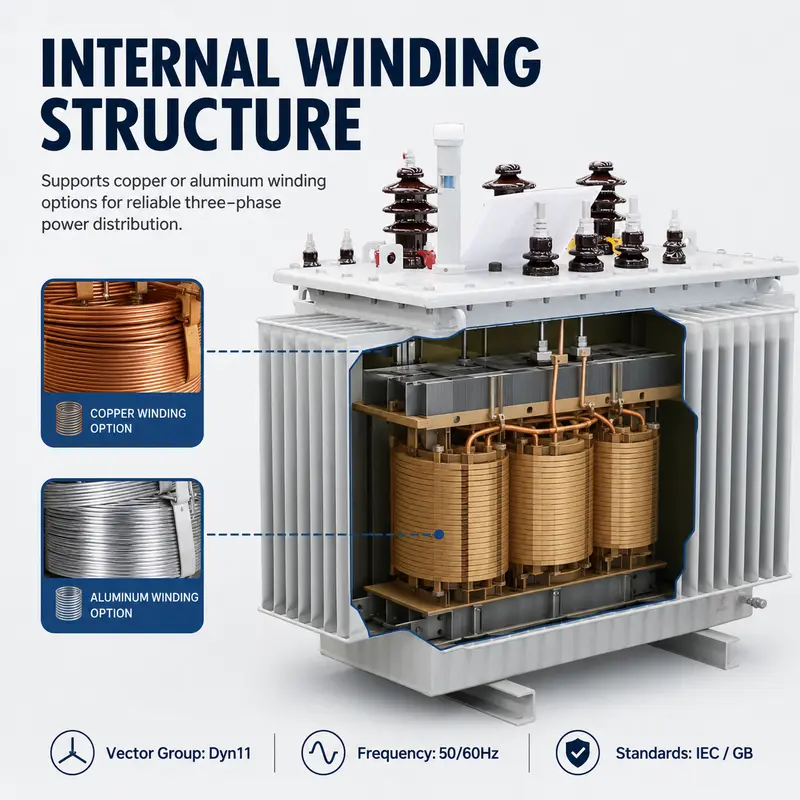

| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Vector Group | Dyn11 / Yyn0 / Yd11 / YNd11 / Dyn5 |
| Service Life | 20–30 Years |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |

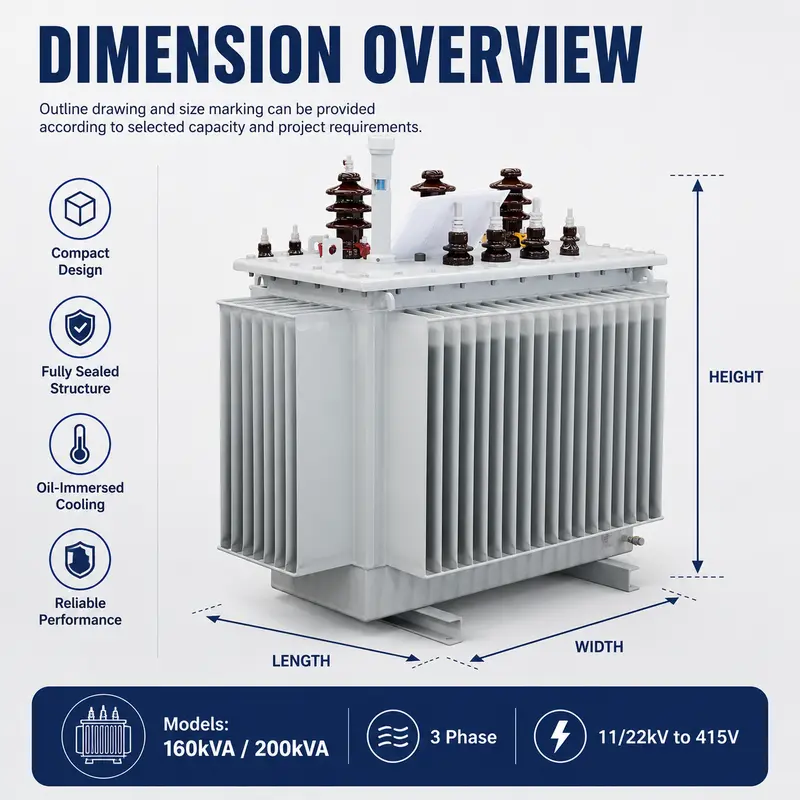

| Package Size | 280 × 200 × 250 cm |
| Gross Weight | 5400 kg |
Data shown reflects the supplied product specifications. Final dimensions, materials, colors, and packaging are confirmed with the sample and order agreement.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Available in 160 kVA and 200 kVA ratings, this fully sealed three-phase oil-immersed transformer converts an 11 / 22 kV supply down to 415 V, within a broader lineup that spans 15 kVA to 31500 kVA. The sealed corrugated-fin tank keeps the internal oil free from oxidation and never needs refilling, which is why the unit can deliver 20–30 years of low-maintenance service outdoors or in substation settings. It is offered with copper or aluminium windings and manufactured to IEC and GB standards.

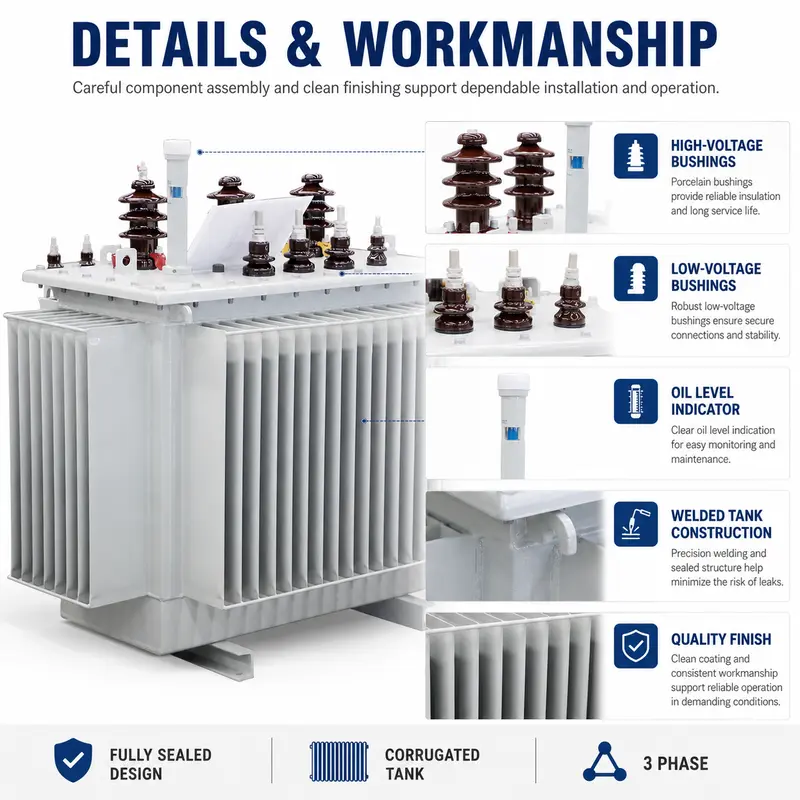

The steel tank is hermetically sealed and ribbed with corrugated cooling fins, keeping oil separated from the outside air to prevent oxidation and moisture while still radiating heat efficiently. The tank cover carries the high-voltage porcelain bushings and low-voltage terminal connections, and the unit incorporates pressure-relief and oil-level safeguards. Together these elements keep losses low and service calls rare.
Fits outdoor and indoor distribution needs for utility networks, industrial sites, mining operations, oil-field installations, commercial developments and rural electrification schemes that depend on reliable medium-voltage step-down.

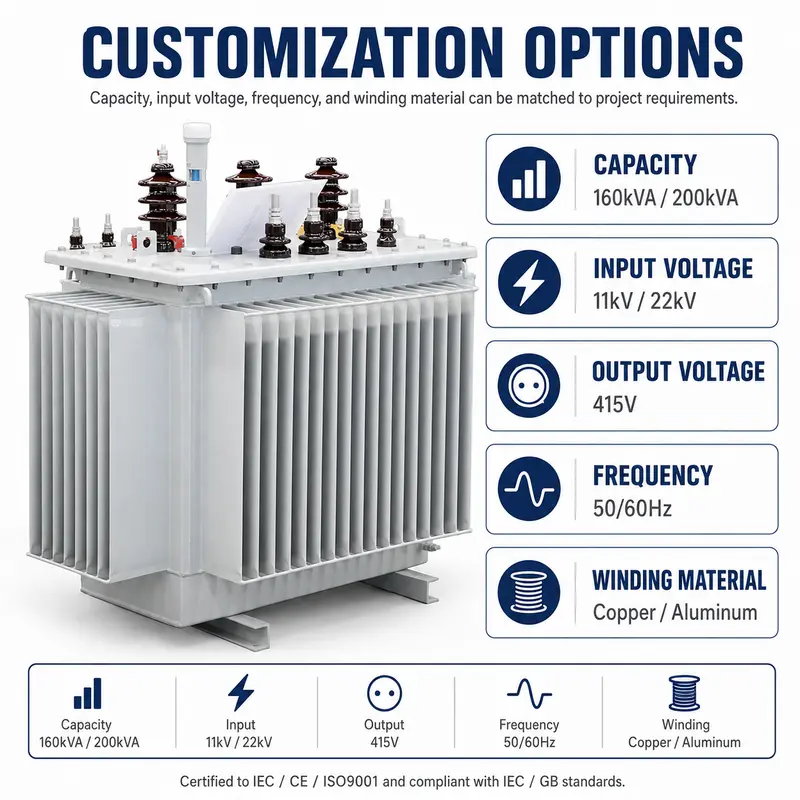

Capacity, voltage ratio, vector group, winding material (copper or aluminium), tap-changer type (off-load or on-load) and bushing layout can all be tailored to the project's needs.
The rated capacity is 160 kVA & 200 kVA, with an input voltage of 11 / 22 kV. Other ratings in the same series are quoted on request.
A sealed corrugated-fin tank stops oil oxidation and breathing outright, cutting maintenance to a minimum; Low no-load loss paired with cool running temperatures keeps efficiency high; Engineered for 20–30 years of service, even in tough outdoor settings.
Capacity, voltage ratio, vector group, winding material (copper or aluminium), tap-changer type (off-load or on-load) and bushing layout can all be tailored to the project's needs.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
