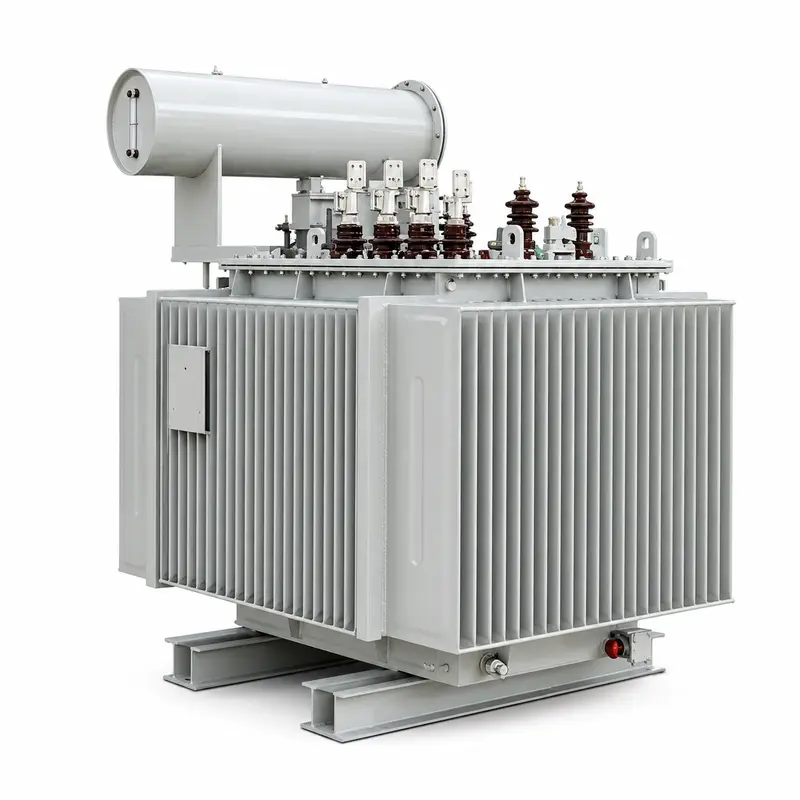

Oil-Immersed Distribution Transformers
Engineered for efficiency, this three-phase oil-immersed distribution transformer converts 35kV down to 480V and serves utility, industrial, and EV-charging…
| Parameter | Value |
|---|---|
| Product Type | Oil-Immersed Power Distribution Transformer |
| Rated Capacity | 500 kVA – 3500 kVA |
| Input Voltage | 35 kV |
| Output Voltage | 480 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 / Yd11 / YNd11 / Dyn5 |
| Feature | Energy Saving |
| Standard | IEC / GB |
| Certification | UL, CE, ISO9001, EAC, ISO14001, ISO45001 |
These specifications reflect the product data supplied. Final dimensions, materials, colors, and packaging are confirmed at the sample and order stage.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

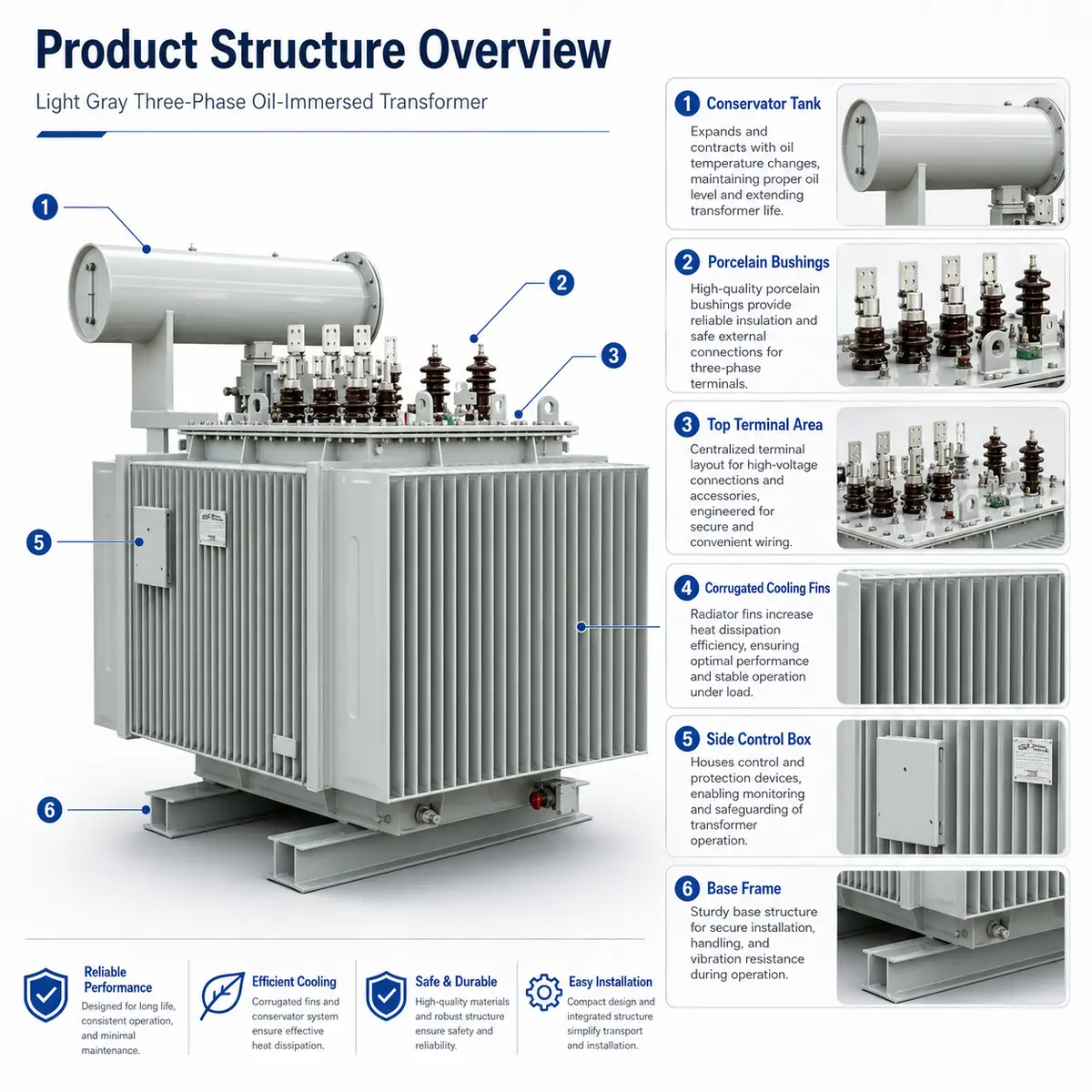

Engineered for efficiency, this three-phase oil-immersed distribution transformer converts 35kV down to 480V and serves utility, industrial, and EV-charging applications. It spans a capacity range from 500kVA to 3500kVA, with copper or aluminium windings inside a fully sealed tank whose corrugated radiators keep operation efficient and reliable at 50Hz or 60Hz.

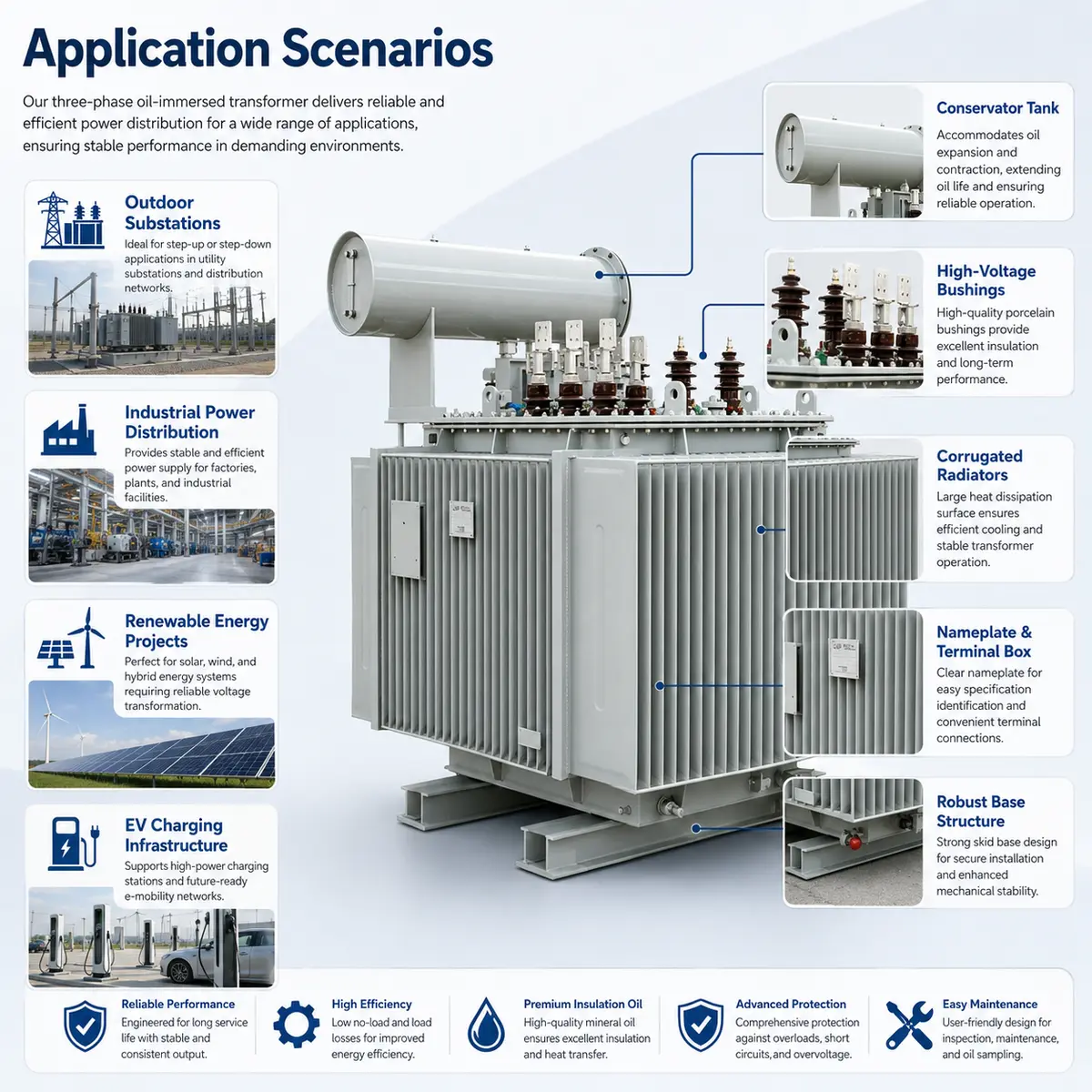

This transformer fits utility substations, industrial power supply setups, EV charging stations, and distribution networks that call for energy-efficient 35kV step-down conversion.
Capacity, voltage ratio, vector group, cooling configuration, and certification can be adapted to project needs, with copper or aluminium winding material available on request.
When placing an order, please specify the rated capacity, primary/secondary voltage, frequency, vector group, and the applicable standard.
The rated capacity is 500 kVA – 3500 kVA, with an input voltage of 35 kV. Other ratings in the same series are quoted on request.

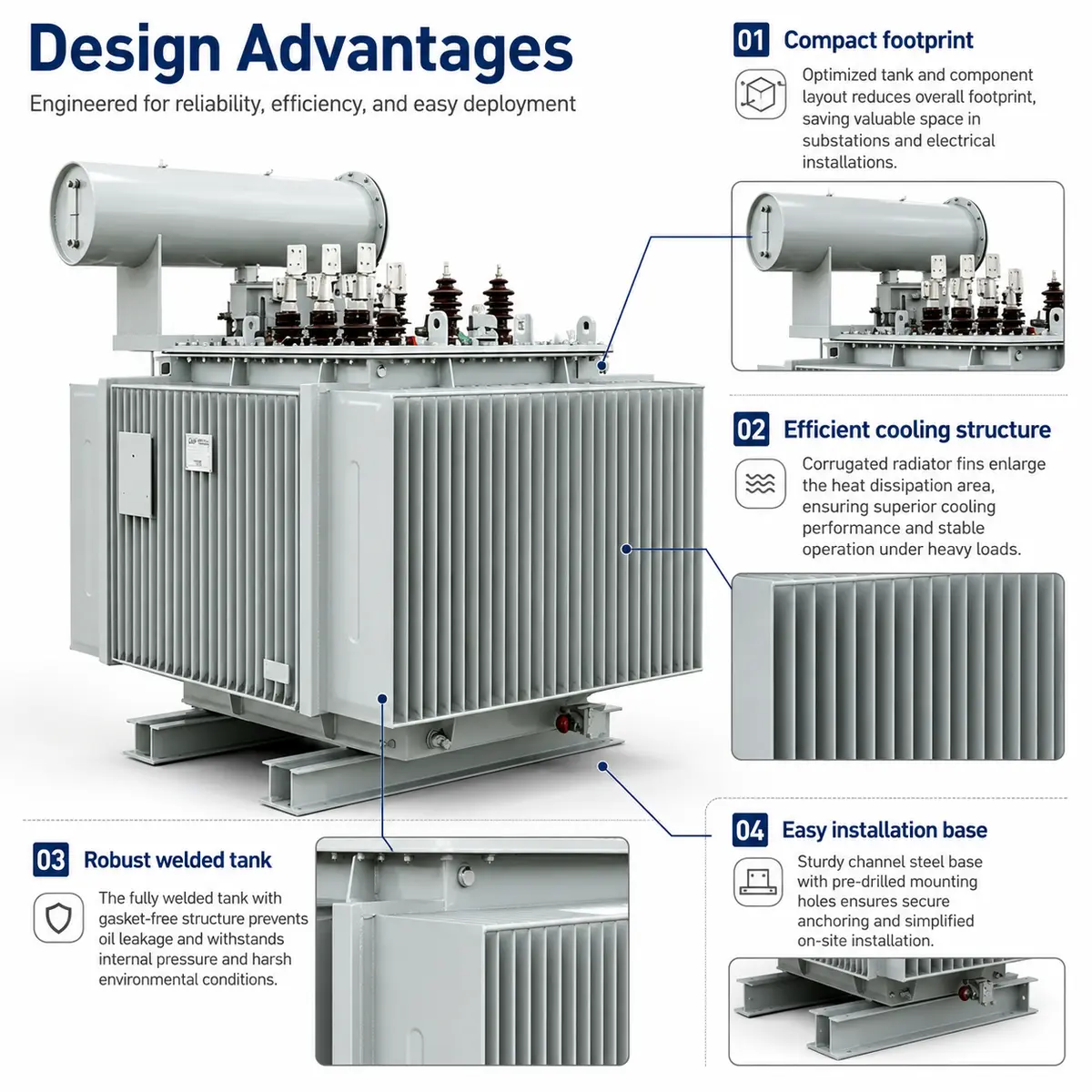

An energy-saving design covering the 500kVA–3500kVA range; Three-phase step-down from 35kV to 480V; A fully sealed tank with corrugated radiators for efficient cooling.
Capacity, voltage ratio, vector group, cooling configuration, and certification can be adapted to project needs, with copper or aluminium winding material available on request.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
