Oil-Immersed Distribution Transformers

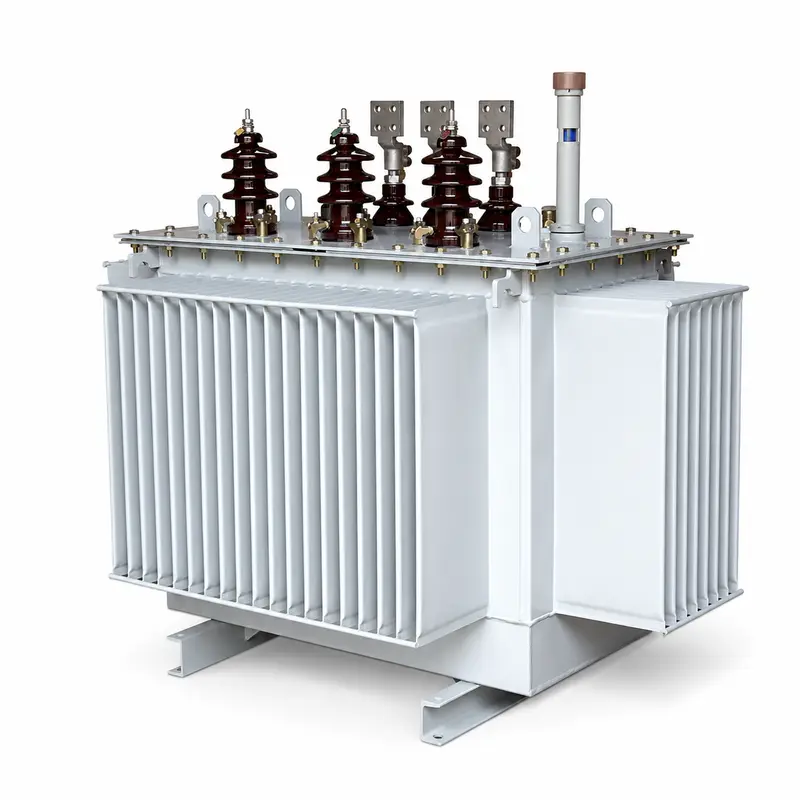

Rated at 500 kVA and 1000 kVA, this fully sealed three-phase oil-immersed distribution transformer steps 11 kV down to 400 V. A sealed tank with corrugated…
| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Distribution Transformer |
| Rated Capacity | 500 kVA & 1000 kVA |
| Input Voltage | 11 kV |
| Output Voltage | 400 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |

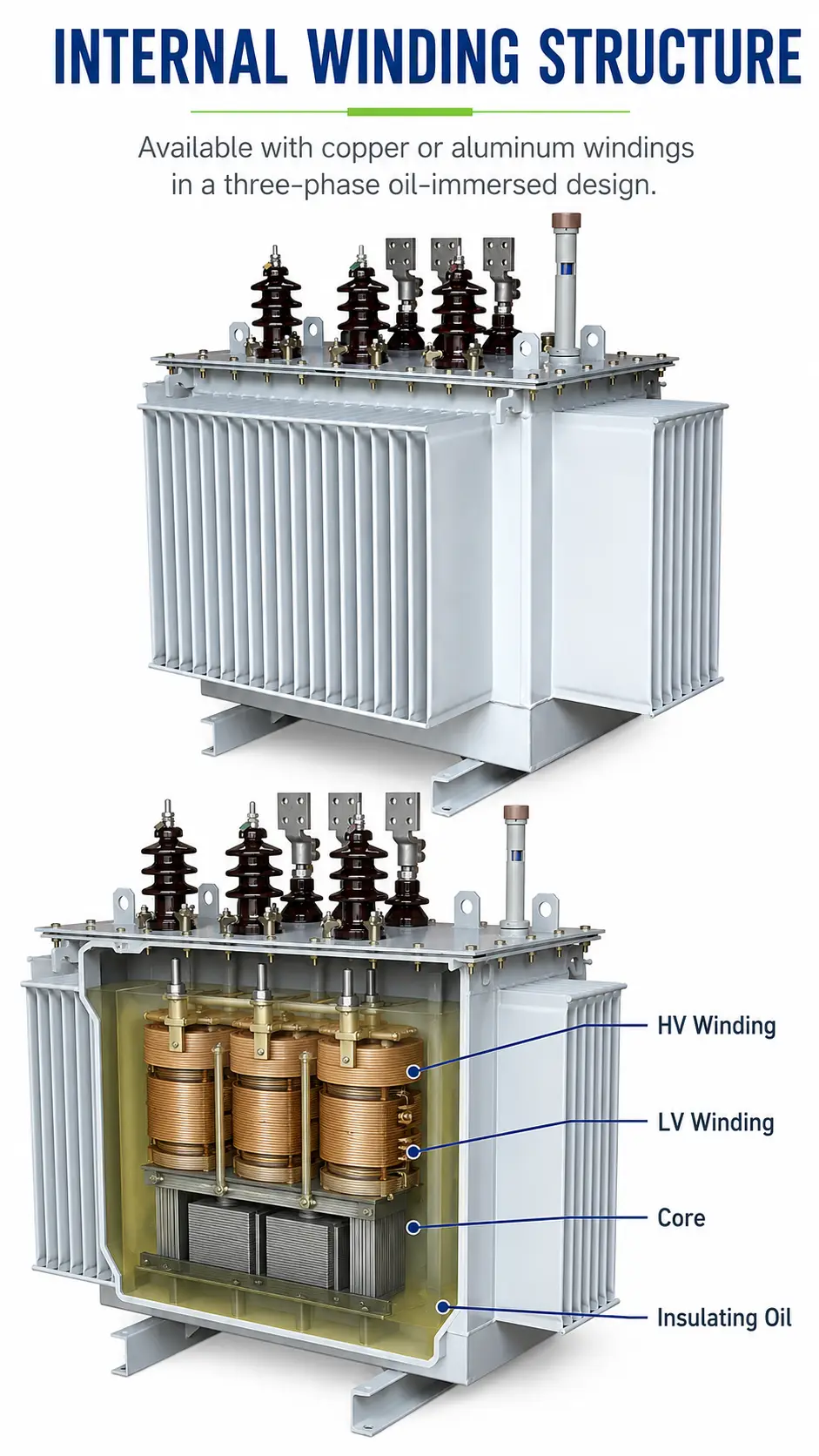

| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Vector Group | Dyn11 / Yyn0 / Yd11 / YNd11 / Dyn5 |
| Service Life | 20–30 Years |
| Standard | IEC / GB |
| Certification | UL, IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |

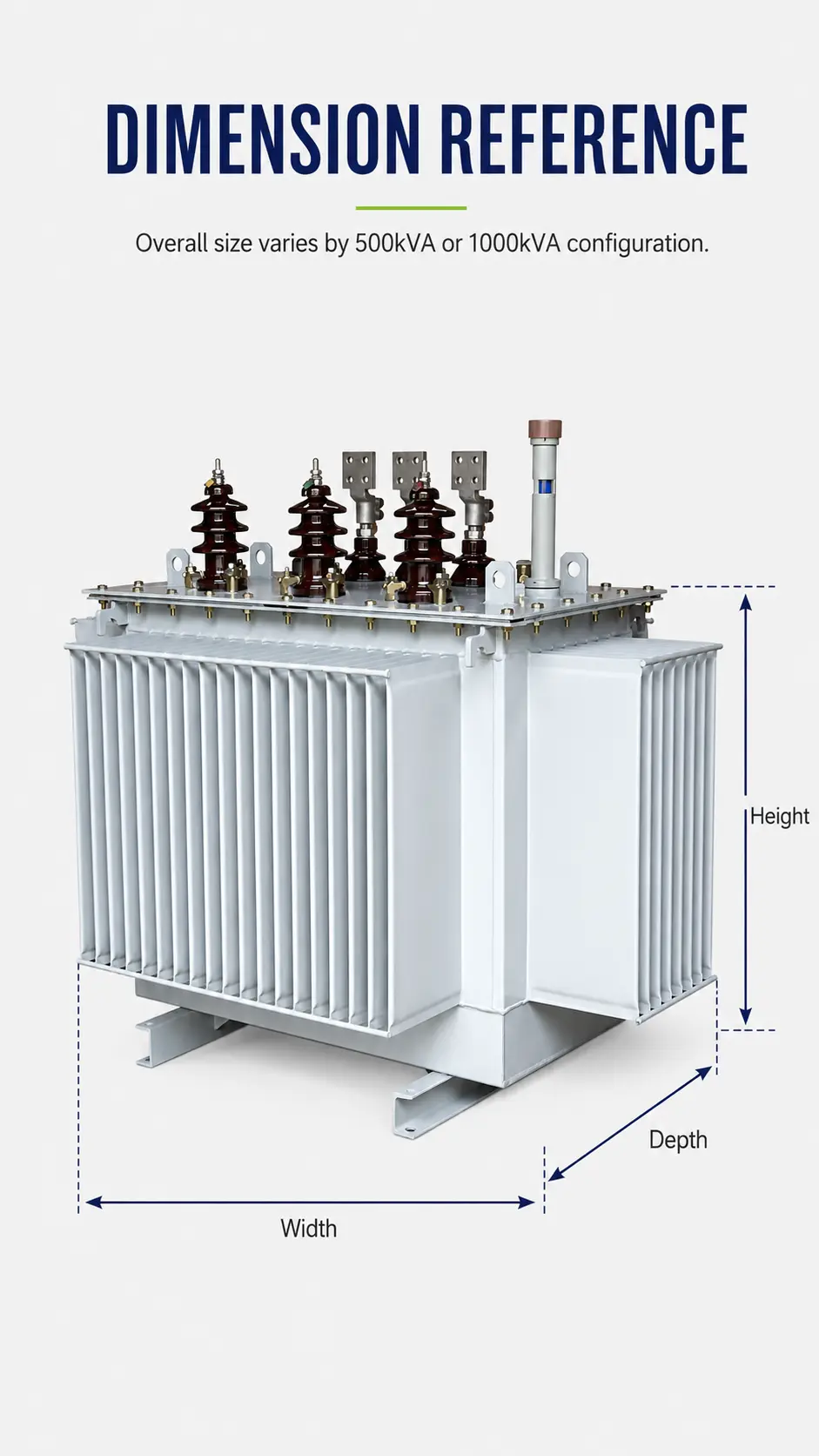

| Package Size | 280 × 200 × 250 cm |
| Gross Weight | 5400 kg |
These specifications reflect the product data supplied. Final dimensions, materials, colors, and packaging are confirmed at the sample and order stage.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Rated at 500 kVA and 1000 kVA, this fully sealed three-phase oil-immersed distribution transformer steps 11 kV down to 400 V. A sealed tank with corrugated fins keeps the oil from oxidizing and removes the need for topping-up, giving the unit a low-maintenance 20 to 30 year service life for outdoor substation and distribution use. Copper or aluminium windings are available, built to IEC and GB standards.

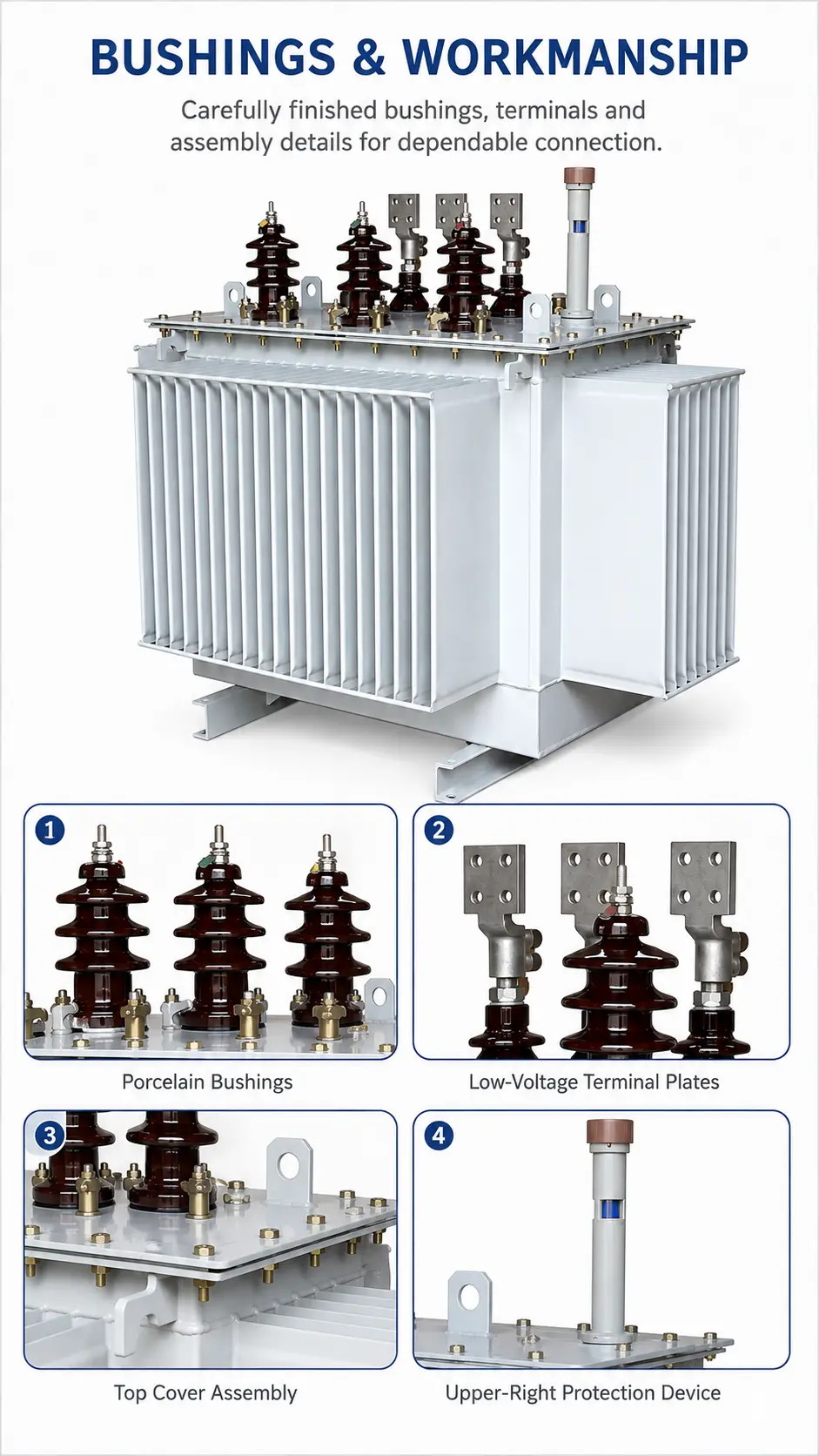

A hermetically sealed steel tank ringed with corrugated cooling fins keeps the transformer oil shielded from outside air, resisting oxidation and moisture while dissipating heat effectively. HV porcelain bushings and LV terminals sit on the tank cover, and pressure-relief plus oil-level protection is built into the structure. The result is stable, low-loss operation that needs very little routine attention.
Utilities, industrial plants, mining operations, oil fields, commercial complexes, and rural electrification networks all rely on this transformer for outdoor and indoor power distribution wherever dependable step-down from medium voltage is needed.

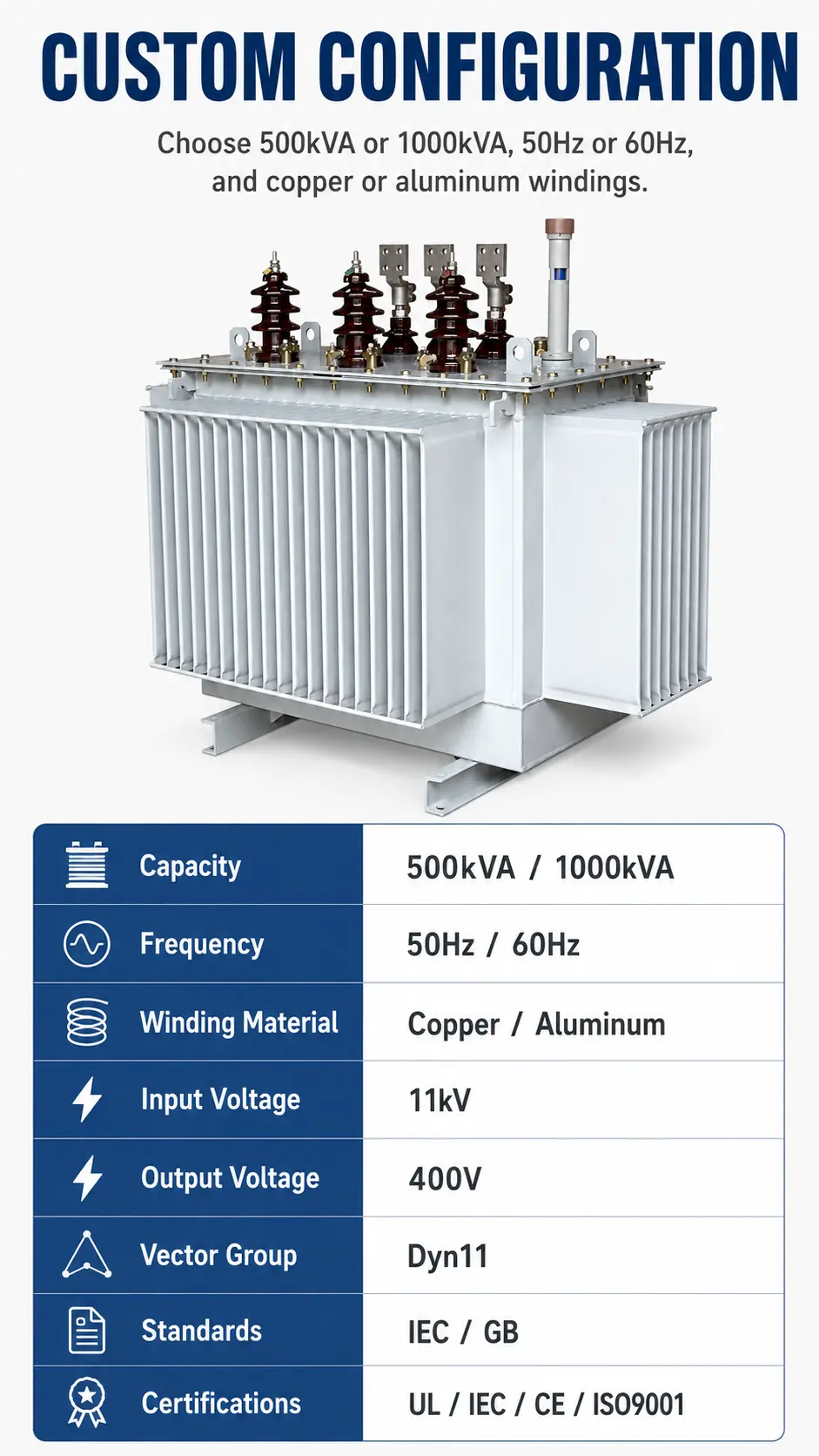

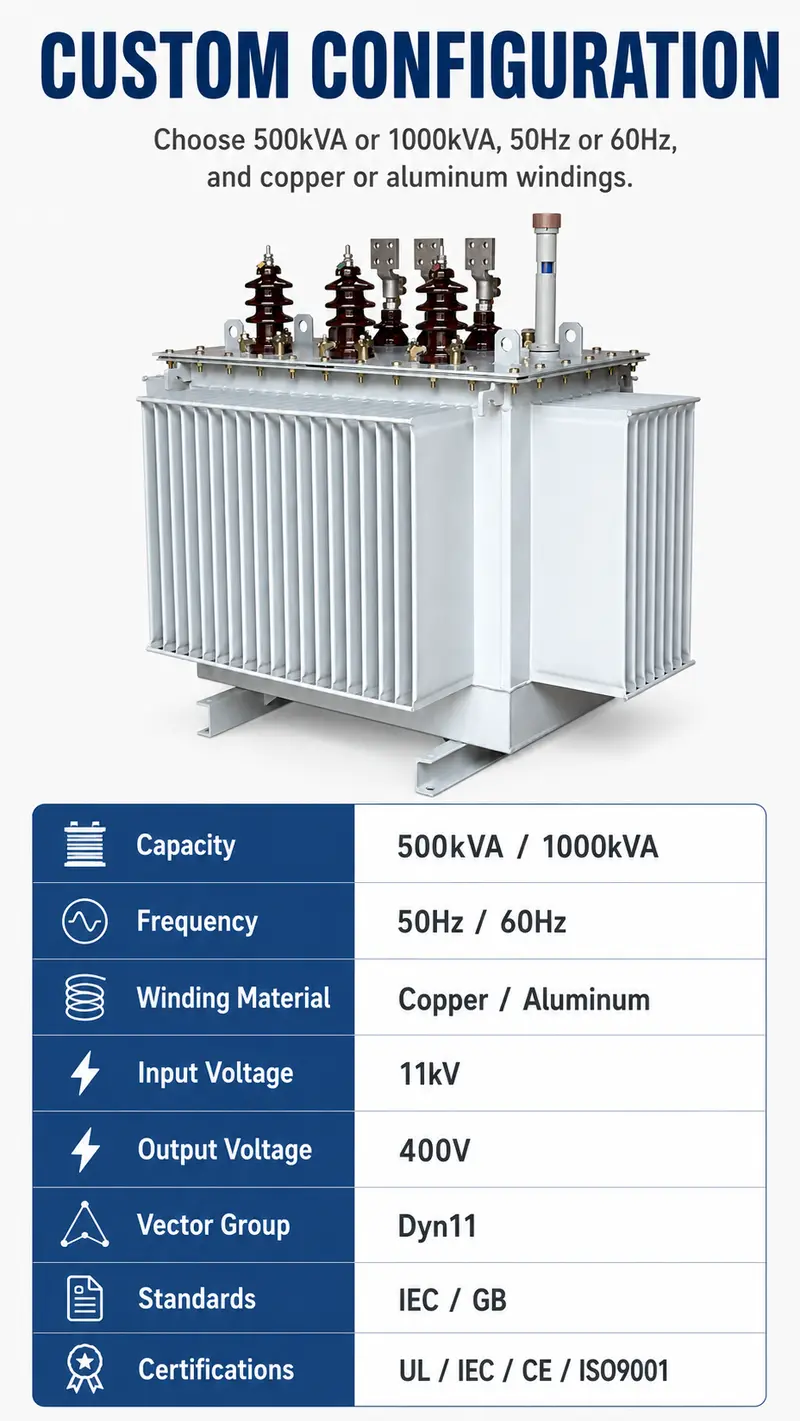

Capacity, voltage ratio, vector group, winding material (copper or aluminium), tap changer type (off-load or on-load), and bushing configuration can be tailored to project needs.
The rated capacity is 500 kVA & 1000 kVA, with an input voltage of 11 kV. Other ratings in the same series are quoted on request.
A fully sealed, corrugated-fin tank that prevents oil oxidation, needs no breathing, and keeps maintenance to a minimum; Efficient performance from low no-load loss and a low running temperature; Rated for 20 to 30 years of service, built to handle harsh outdoor conditions.
Capacity, voltage ratio, vector group, winding material (copper or aluminium), tap changer type (off-load or on-load), and bushing configuration can be tailored to project needs.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
