Oil-Immersed Distribution Transformers

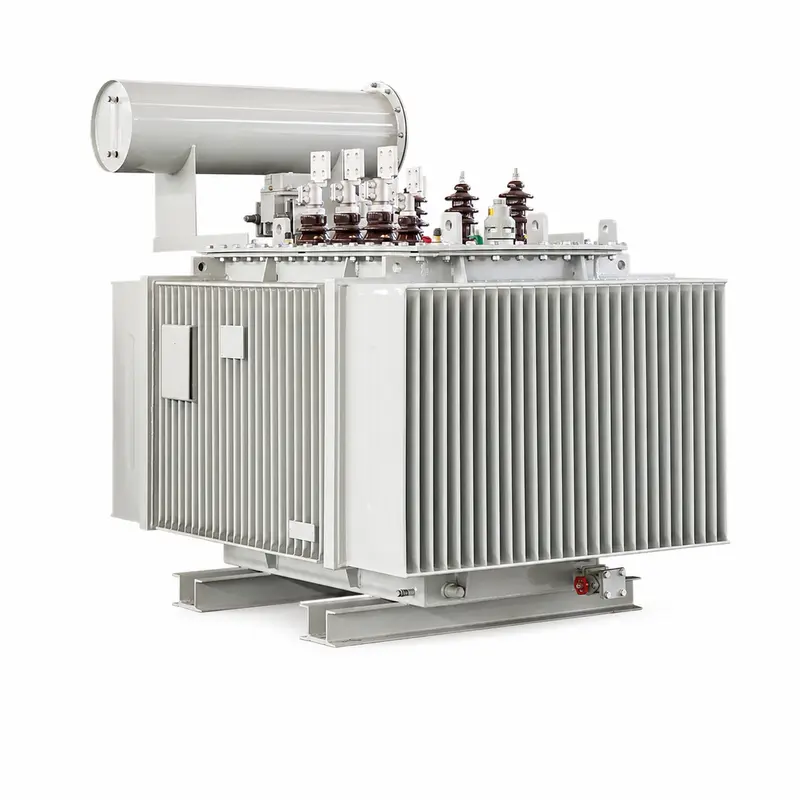

This three-phase oil-immersed distribution transformer is offered in 100, 630, 1000, 1250, 1600, and 2000 kVA ratings, converting 33/35 kV down to 400/415 V…
| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Distribution Transformer |
| Rated Capacity | 100 / 630 / 1000 / 1250 / 1600 / 2000 kVA |
| Input Voltage | 33 / 35 kV |
| Output Voltage | 400 / 415 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Vector Group | Dyn11 / Yyn0 / Yd11 / YNd11 / Dyn5 |
| Service Life | 20–30 Years |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |

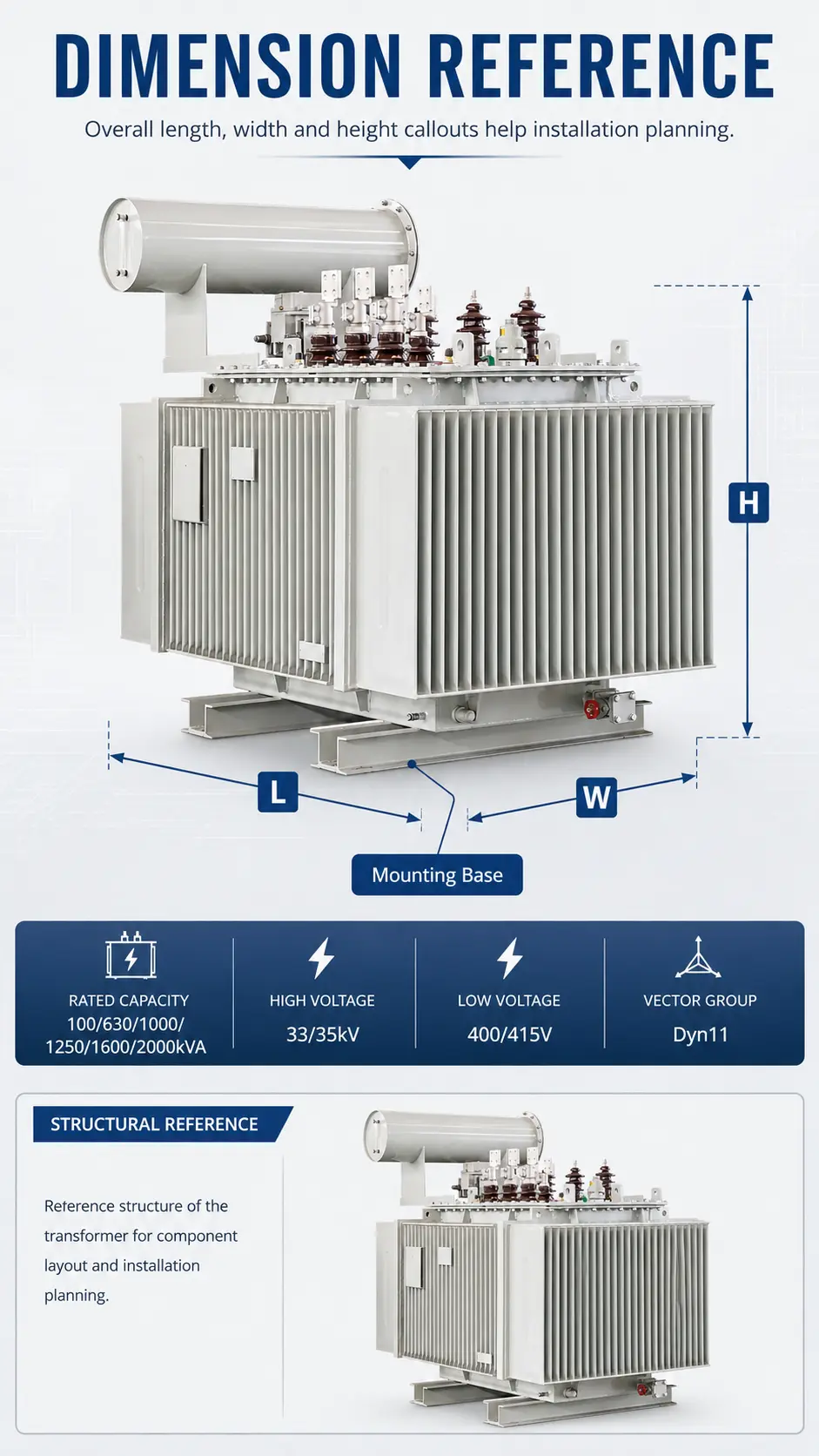

| Package Size | 280 × 200 × 250 cm |
| Gross Weight | 5400 kg |
These specifications reflect the product data supplied. Final dimensions, materials, colors, and packaging are confirmed at the sample and order stage.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

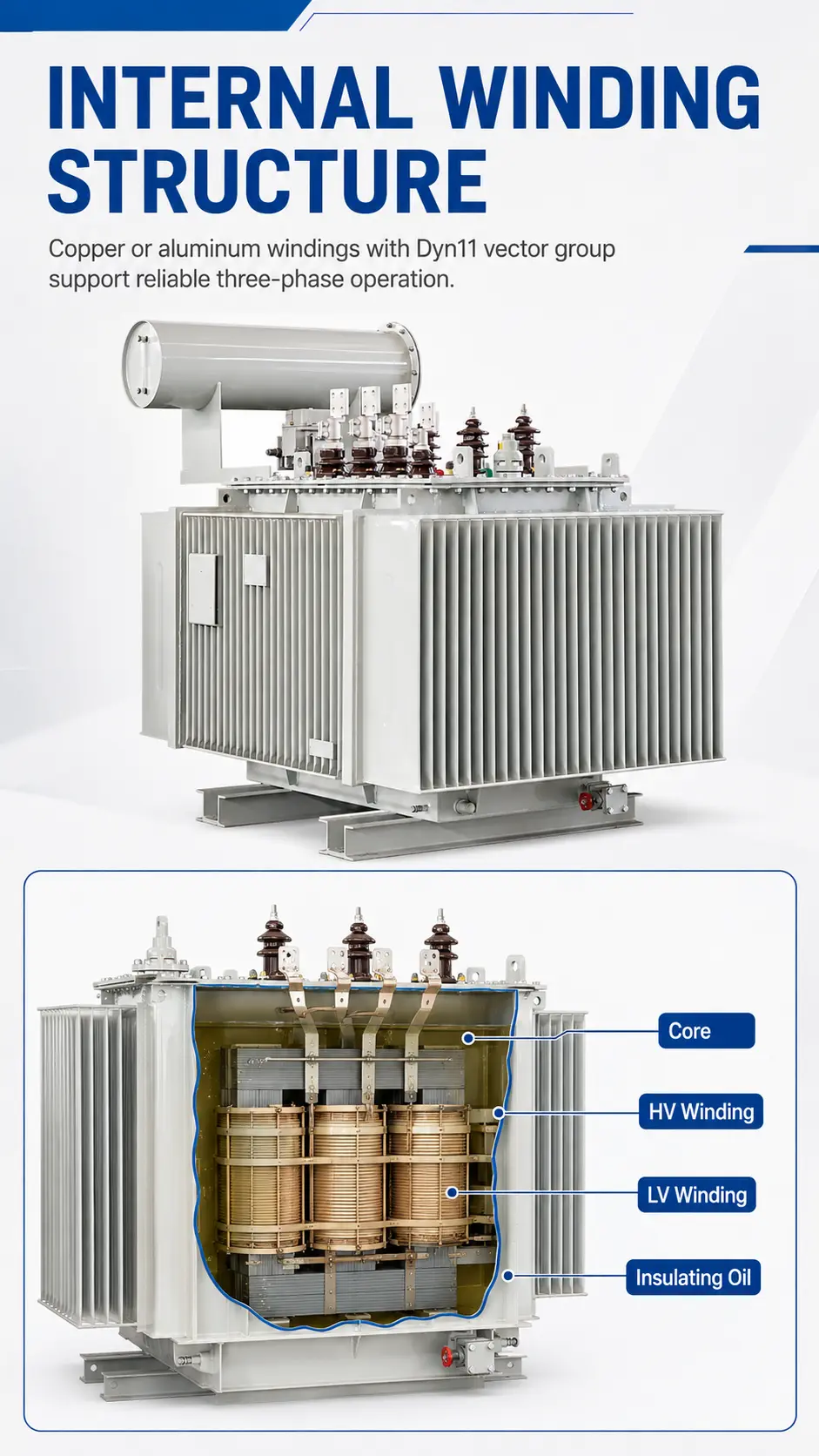

This three-phase oil-immersed distribution transformer is offered in 100, 630, 1000, 1250, 1600, and 2000 kVA ratings, converting 33/35 kV down to 400/415 V within a wider 15 kVA–31500 kVA product range. Its sealed tank with corrugated fins keeps oil from oxidizing and eliminates the need for topping-up, giving it a low-maintenance service life of 20 to 30 years in outdoor substation and distribution roles. Windings are available in copper or aluminium, built to IEC and GB standards.

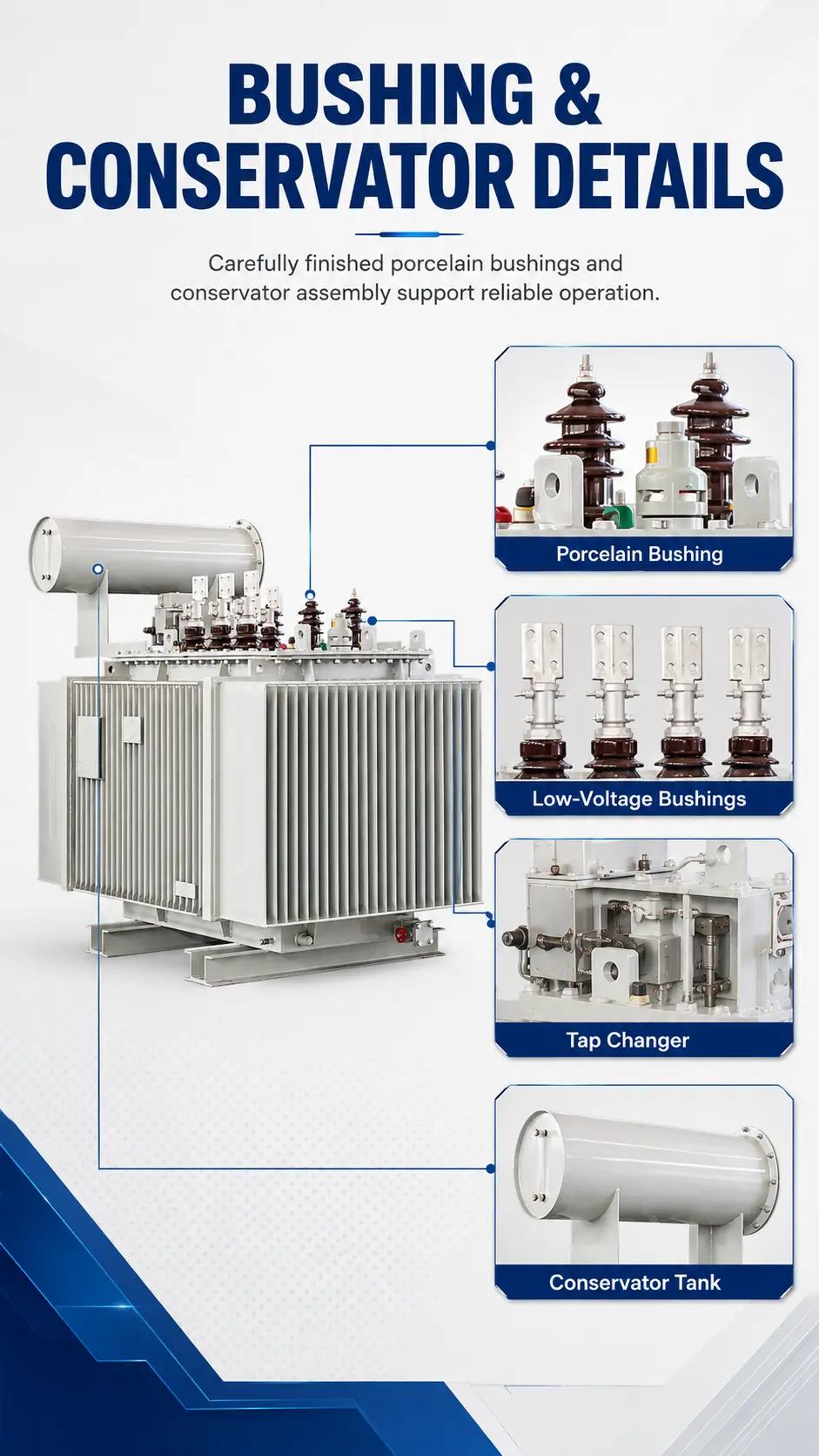

The steel tank is hermetically sealed and lined with corrugated cooling fins that keep the transformer oil isolated from outside air, resisting oxidation and moisture while dissipating heat efficiently. HV porcelain bushings and LV terminals are mounted on the tank cover, and the design includes pressure-relief and oil-level protection. Together these features deliver stable, low-loss operation with very little routine servicing needed.
This unit is a fit for outdoor and indoor power distribution at utilities, industrial plants, mining operations, oil fields, commercial complexes, and rural electrification networks that need dependable step-down from medium voltage.

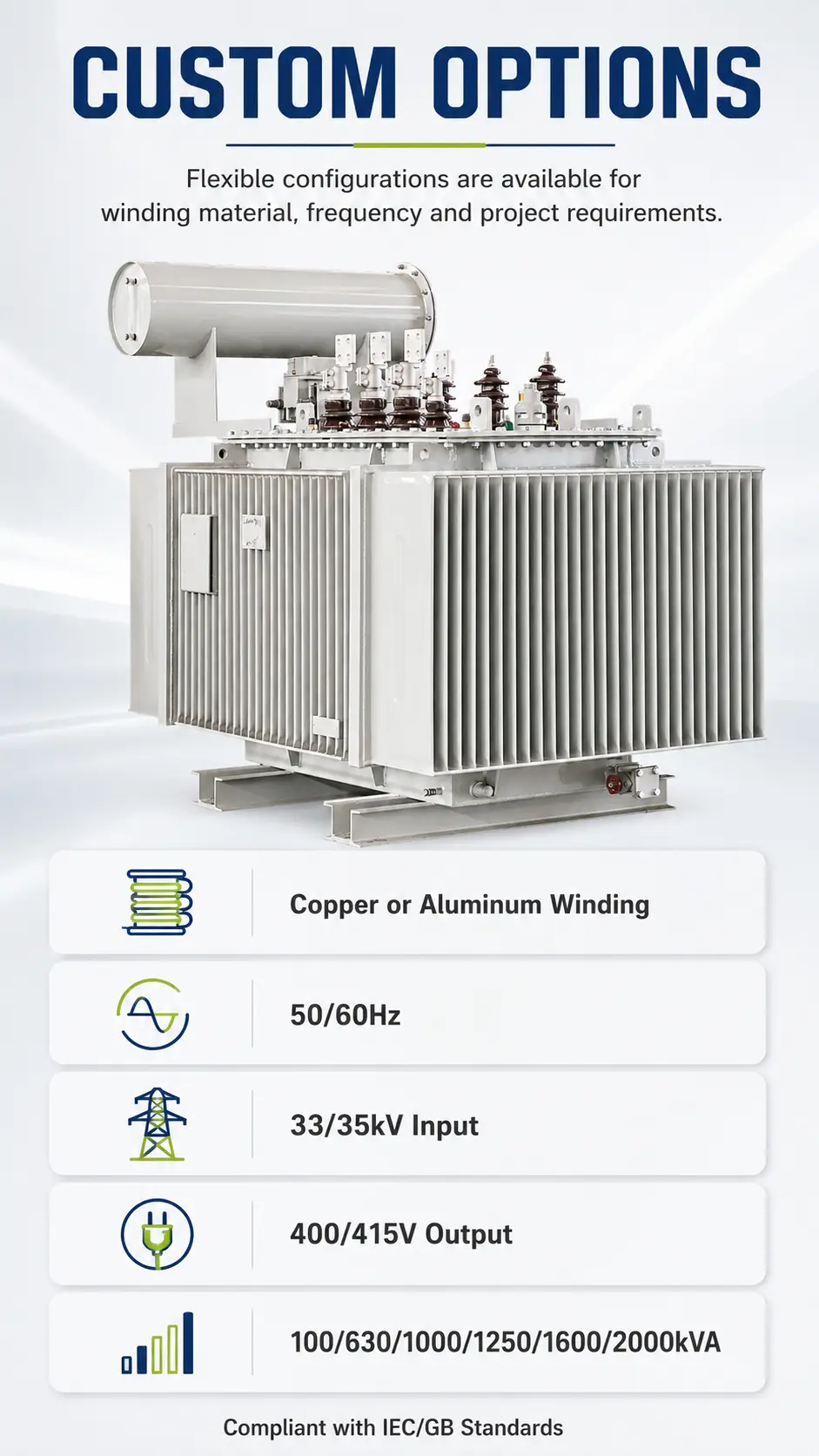

Capacity, voltage ratio, vector group, winding material (copper or aluminium), tap changer type (off-load or on-load), and bushing configuration can be customized to project requirements.
The rated capacity is 100 / 630 / 1000 / 1250 / 1600 / 2000 kVA, with an input voltage of 33 / 35 kV. Other ratings in the same series are quoted on request.
A fully sealed, corrugated-fin tank that stops oil oxidation, needs no breathing, and reduces maintenance; High efficiency achieved through low no-load loss and a low running temperature; A 20 to 30 year service life designed for tough outdoor environments.
Capacity, voltage ratio, vector group, winding material (copper or aluminium), tap changer type (off-load or on-load), and bushing configuration can be customized to project requirements.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
