Oil-Immersed Distribution Transformers
Rated at 4000 kVA, this three-phase oil-immersed power transformer converts 35 kV down to 10.5 kV and sits within a broader lineup covering 15 kVA to 31500…
| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Distribution Transformer |
| Rated Capacity | 4000 kVA (range 15 kVA–31500 kVA) |
| Input Voltage | 35 kV |
| Output Voltage | 10.5 kV |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Vector Group | Dyn11 / Yyn0 / Yd11 / YNd11 / Dyn5 |
| Service Life | 20–30 Years |
| Standard | IEC / GB |
| Packing | Wooden Case |

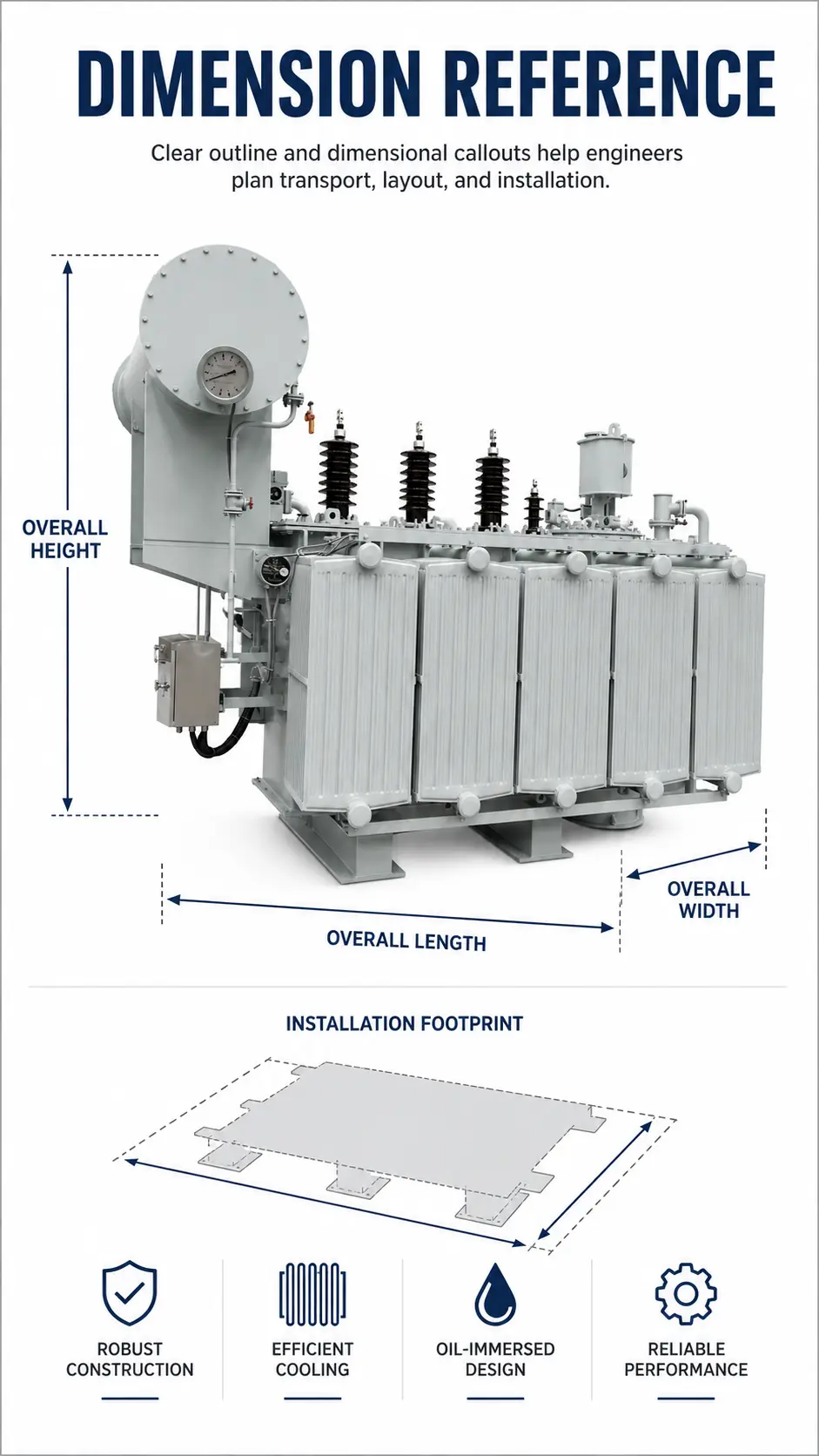

| Package Size | 280 × 200 × 250 cm |
| Gross Weight | 5400 kg |
These specifications reflect the product data supplied. Final dimensions, materials, colors, and packaging are confirmed at the sample and order stage.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

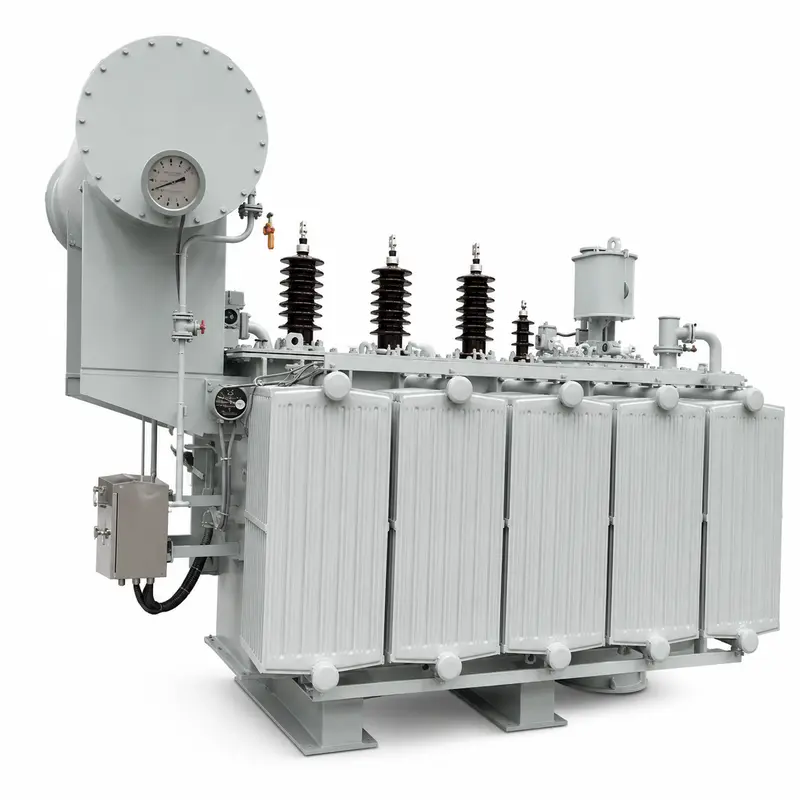

Rated at 4000 kVA, this three-phase oil-immersed power transformer converts 35 kV down to 10.5 kV and sits within a broader lineup covering 15 kVA to 31500 kVA. Detachable panel-radiator banks paired with an oil conservator fitted with a dial gauge handle cooling and oil management, supporting a low-maintenance service life of 20 to 30 years in outdoor substation settings. Copper or aluminium windings are available, manufactured to IEC and GB standards.

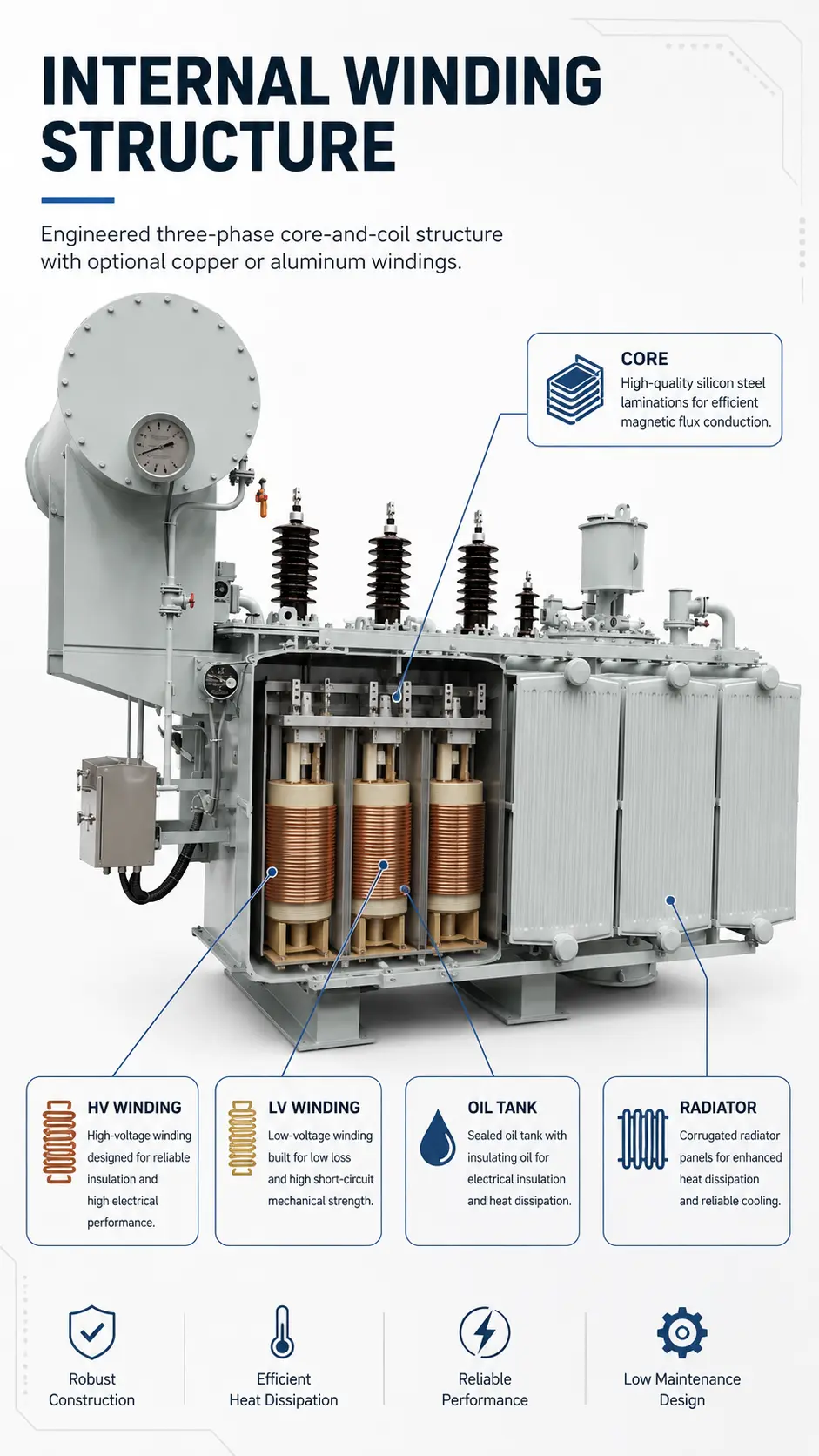

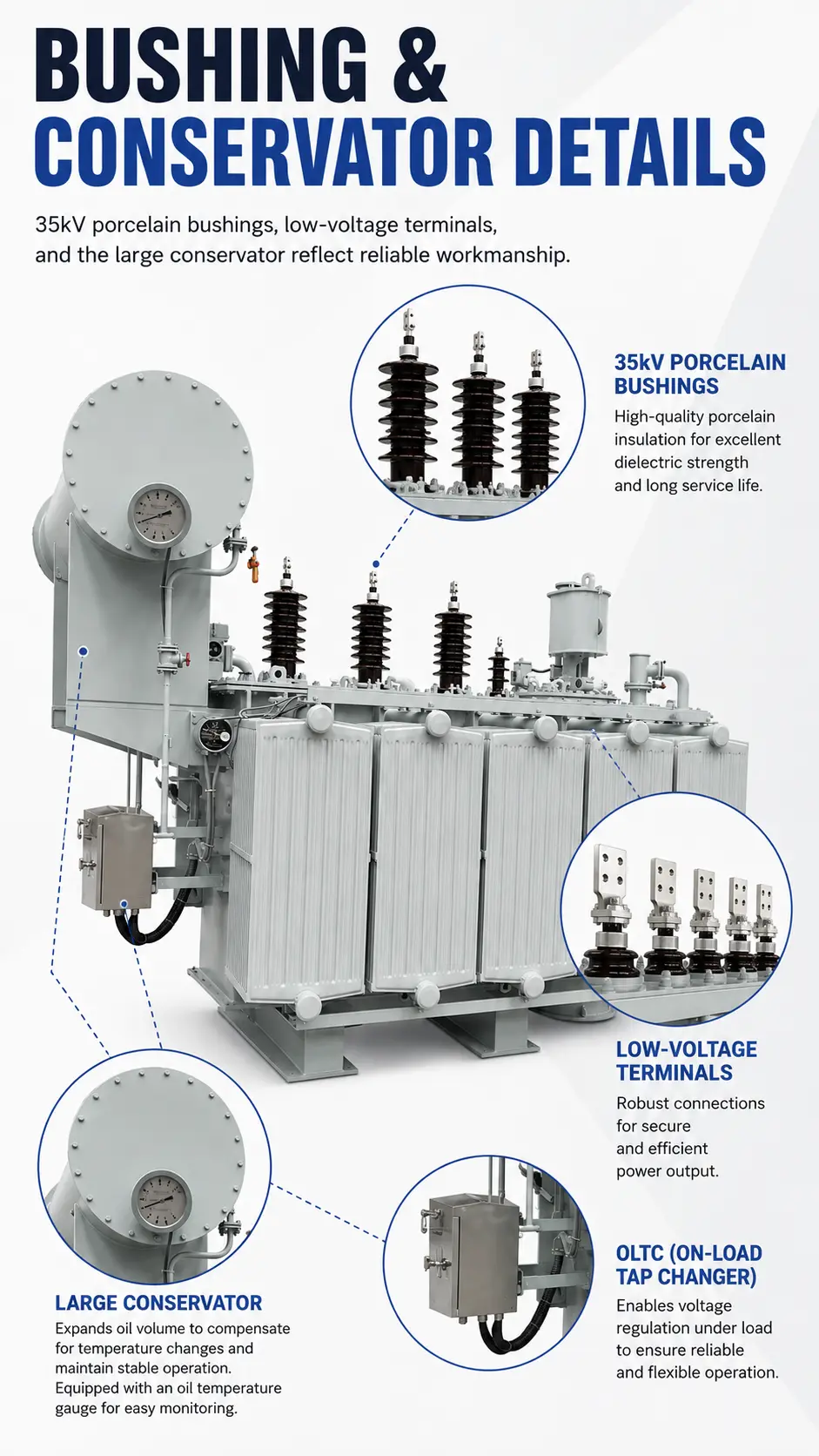

A hermetically sealed steel tank with corrugated cooling fins keeps the transformer oil shielded from air, guarding against oxidation and moisture ingress while dissipating heat effectively. The tank cover carries high-voltage porcelain bushings and low-voltage terminals, and pressure-relief along with oil-level protection is built into the structure. Together these give stable, low-loss performance that needs very little routine servicing.
Utilities, industrial plants, mining operations, oil fields, commercial complexes, and rural electrification networks rely on this unit for outdoor and indoor power distribution wherever dependable step-down from medium voltage is required.

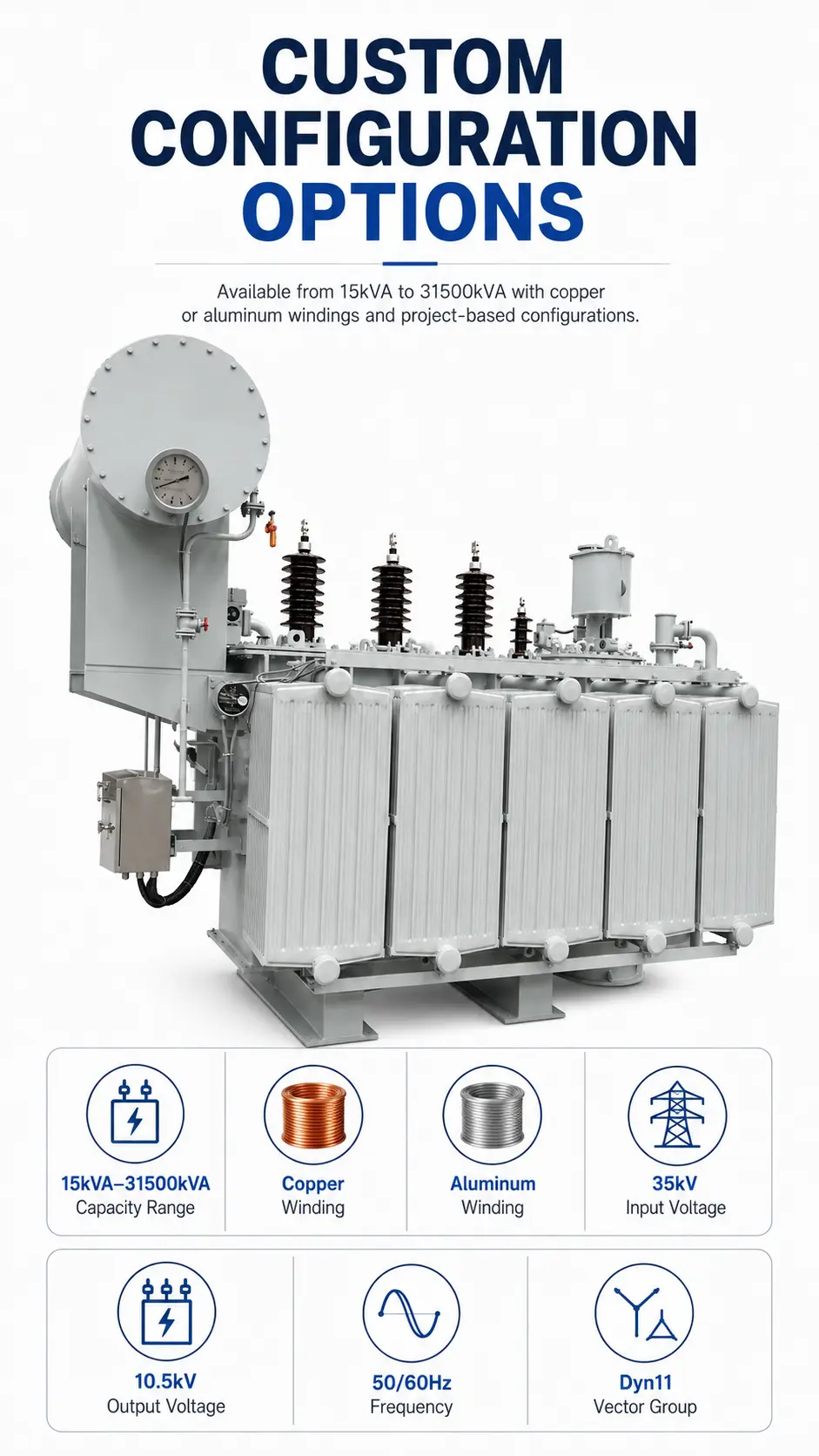

Capacity, voltage ratio, vector group, winding material (copper or aluminium), tap changer type (off-load or on-load), and bushing configuration can be tailored to project requirements.
The rated capacity is 4000 kVA (range 15 kVA–31500 kVA), with an input voltage of 35 kV. Other ratings in the same series are quoted on request.
Detachable panel-radiator cooling combined with an oil conservator for efficient heat dissipation; High efficiency from low no-load loss and a low running temperature; A 20 to 30 year service life engineered for demanding outdoor environments.
Capacity, voltage ratio, vector group, winding material (copper or aluminium), tap changer type (off-load or on-load), and bushing configuration can be tailored to project requirements.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
