Cast-Resin Dry-Type Transformers
Built for indoor and enclosed distribution where safety and low upkeep matter, this three-phase epoxy cast-resin dry-type transformer skips insulating oil…
| Parameter | Value |
|---|---|
| Type | Three-phase cast-resin dry-type transformer |
| Rated capacity | 100 / 150 / 500 / 1500 / 2000 / 2500 kVA |
| Primary voltage | 11 kV / 13.8 kV |
| Secondary voltage | 380 V |
| Frequency | 50 Hz / 60 Hz |
| Phase | Three phase |
| Vector group | Dyn11 / Yyn0 |
| Winding material | Copper / Aluminium |
| Insulation | Epoxy cast resin |
| Standards | ISO9001 / IEC / GB |
| Warranty | 2 years |
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Built for indoor and enclosed distribution where safety and low upkeep matter, this three-phase epoxy cast-resin dry-type transformer skips insulating oil entirely, giving it strong fire resistance and moisture protection well suited to buildings, plants and infrastructure projects. It is made to IEC/GB standards under ISO9001 certification, spans a 100–2500 kVA range and can be ordered with copper or aluminium windings.

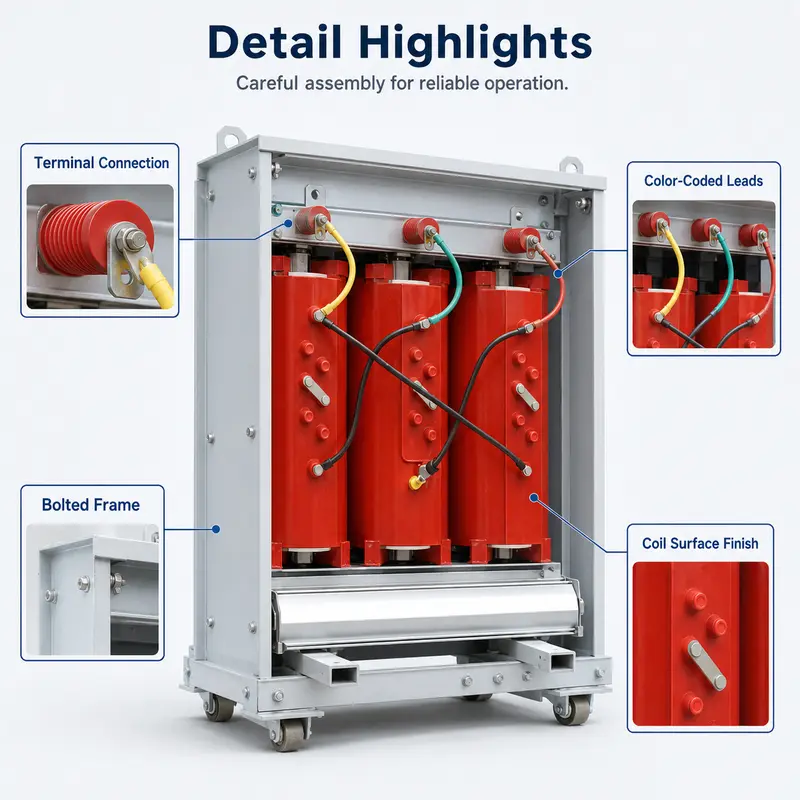

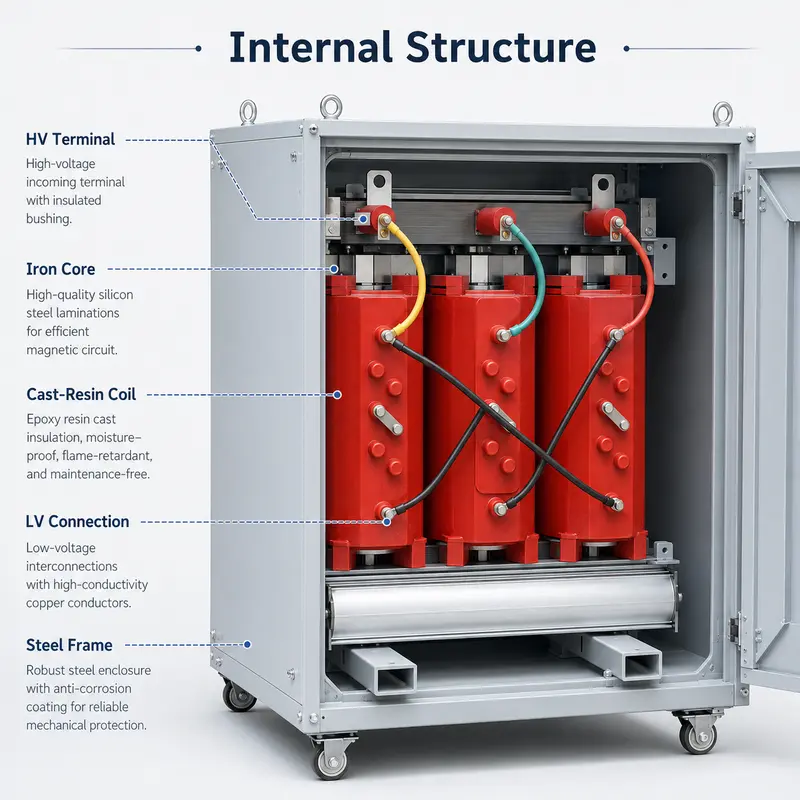

The three coils are cast in epoxy resin, giving oil-free insulation along with solid mechanical and short-circuit strength. Connection is straightforward thanks to HV bushing terminals with color-coded leads and low-voltage copper bar terminals, and the rollered steel base frame simplifies moving the unit into place. Cooling fans with temperature control are available as an option to support heavier loads, and the unit can be delivered either open-frame or inside a protective metal cabinet.
Commercial buildings, hospitals, data centers, factories and infrastructure projects where fire safety and minimal upkeep call for an oil-free indoor transformer.

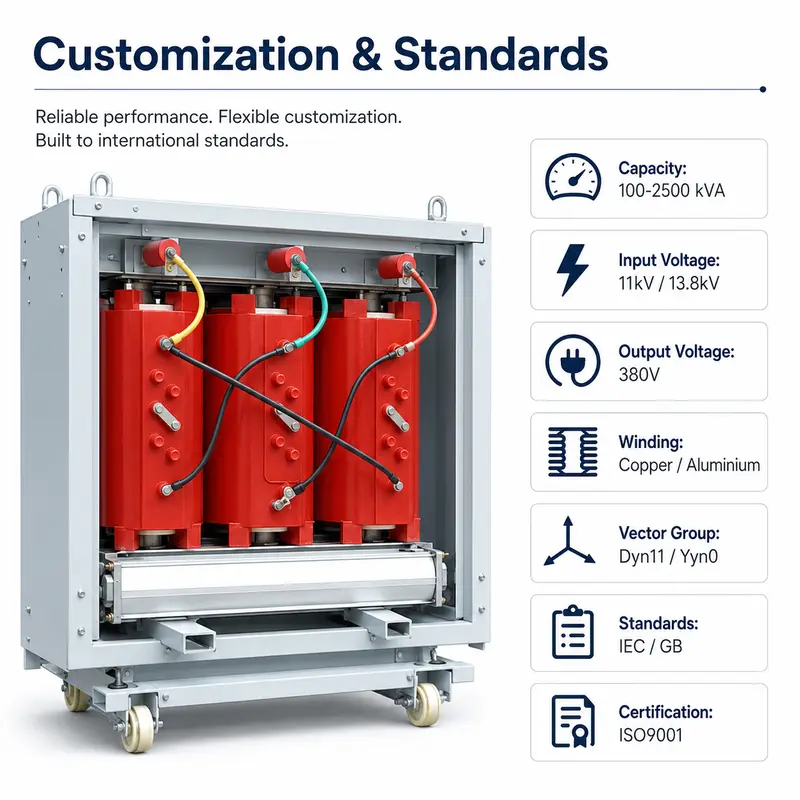

Project teams can specify capacity, voltage ratio, vector group, winding material, enclosure style (open frame or cabinet), cooling fans and temperature monitoring.
When requesting a quotation, please share the required capacity (kVA), primary/secondary voltage, frequency, vector group and installation conditions. OEM/ODM and project-based orders are welcome.

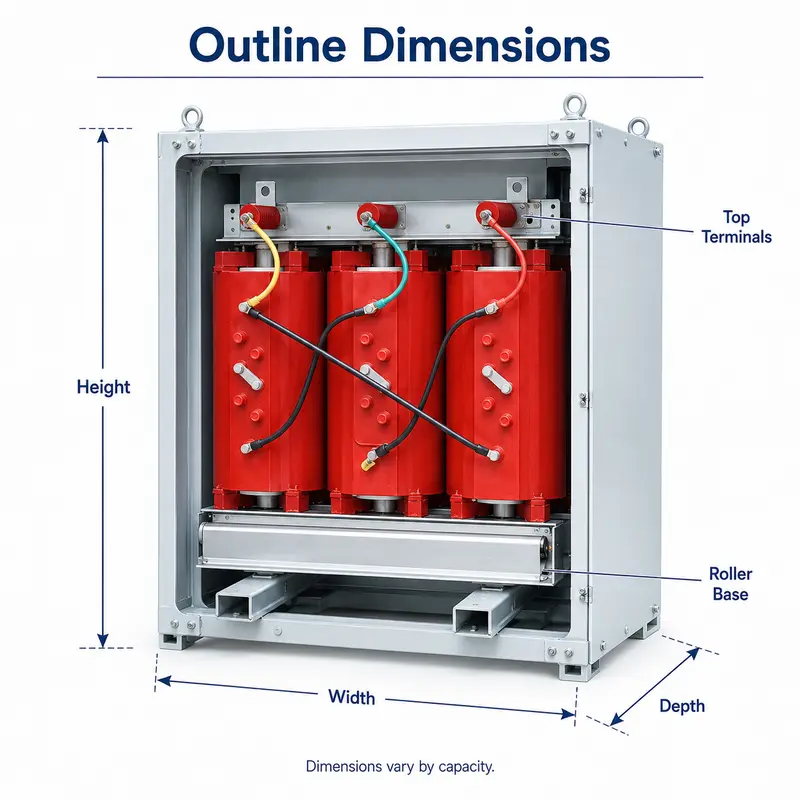

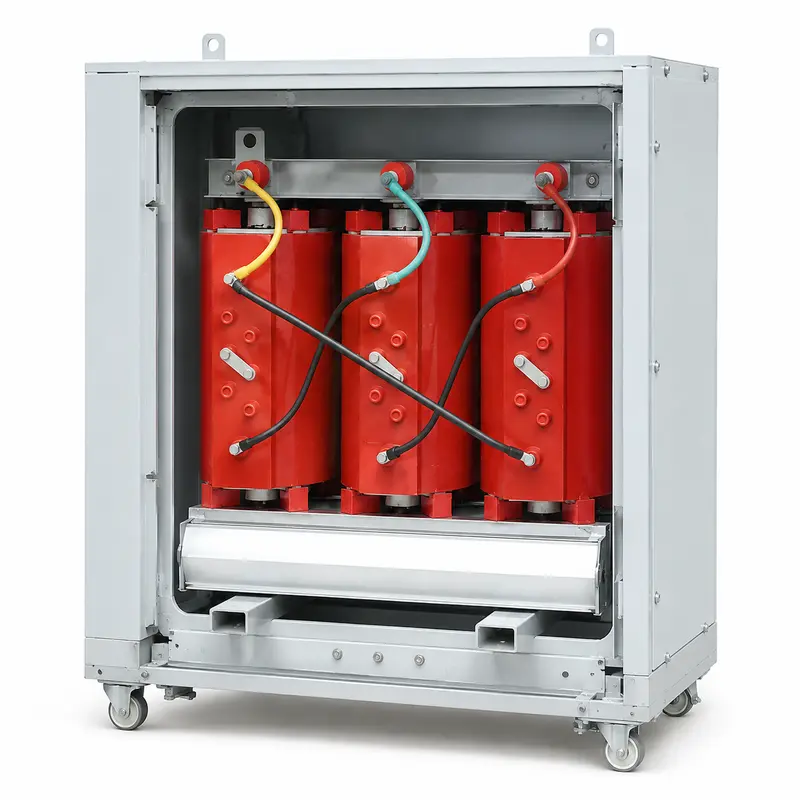

The product images shown are illustrative marketing renders; the transformer actually delivered is built to order against the confirmed specifications.
The rated capacity is 100 / 150 / 500 / 1500 / 2000 / 2500 kVA, with an input voltage of 11 kV / 13.8 kV. Other ratings in the same series are quoted on request.
Oil-free, cast-resin construction for fire safety and minimal maintenance; A broad capacity lineup: 100 / 150 / 500 / 1500 / 2000 / 2500 kVA; Steps 11 kV or 13.8 kV primary voltage down to a 380 V secondary at 50/60 Hz.
Project teams can specify capacity, voltage ratio, vector group, winding material, enclosure style (open frame or cabinet), cooling fans and temperature monitoring.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
