Cast-Resin Dry-Type Transformers

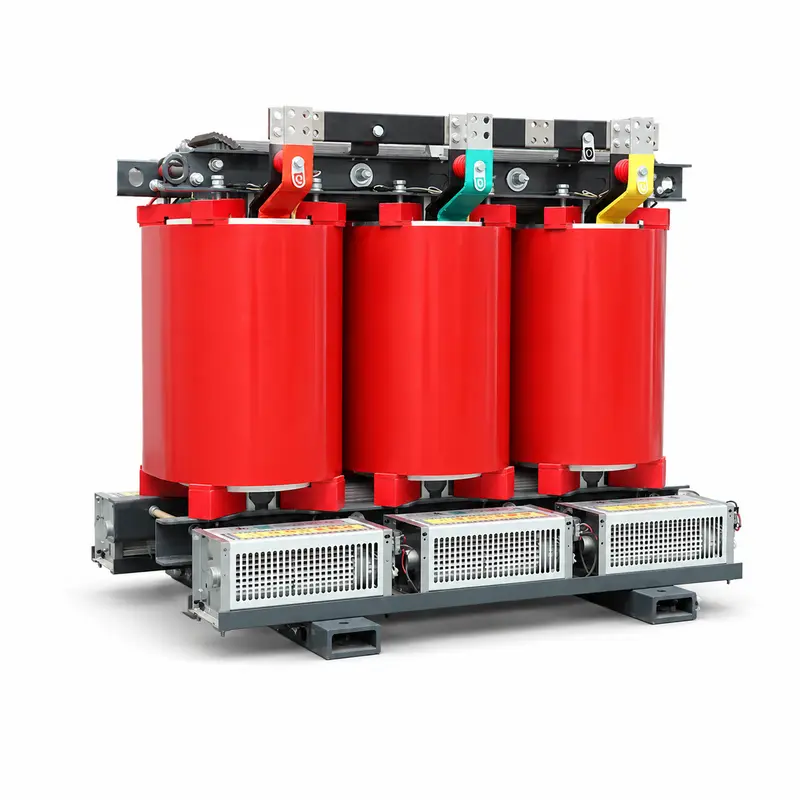

Available across a 250kVA to 1250kVA range, this three-phase dry-type step-down transformer brings 10kV, 11kV or 13.8kV down to 400V for indoor distribution…
| Parameter | Value |
|---|---|
| Product Type | Epoxy Resin Cast Dry-Type Step-Down Transformer |
| Rated Capacity | 250 / 400 / 630 / 1000 / 1250 kVA |
| Input Voltage | 10 kV / 11 kV / 13.8 kV |
| Output Voltage | 400 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Insulation | Epoxy Resin Cast |
| Feature | Fireproof, Explosion-proof |
| Standard | IEC 60076 |
| Certification | ISO9001, ISO14001, CE, CQC |
These specifications reflect the product data provided to us. Actual dimensions, materials, colors and packaging depend on the confirmed sample and final order agreement.
Designed and tested to IEC 60076. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

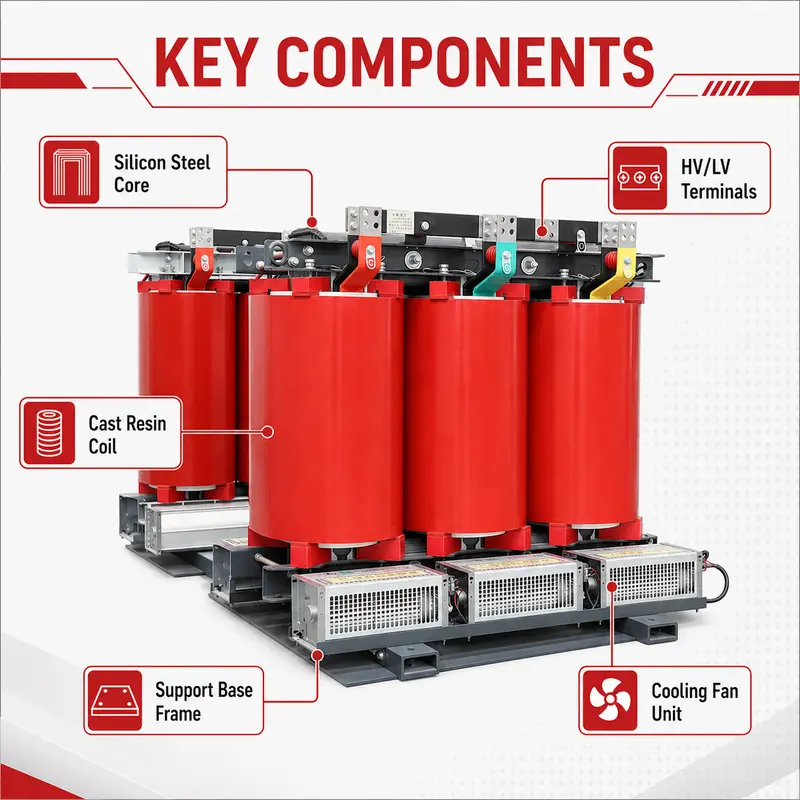

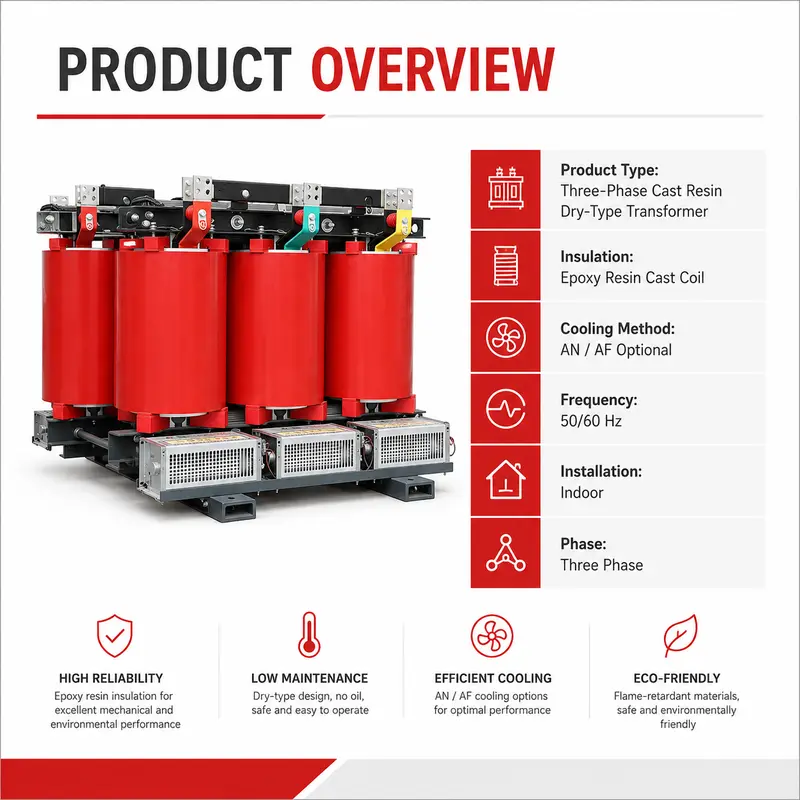

Available across a 250kVA to 1250kVA range, this three-phase dry-type step-down transformer brings 10kV, 11kV or 13.8kV down to 400V for indoor distribution work. Its epoxy-resin cast HV windings give it fireproof and explosion-proof properties, along with oil-free, low-maintenance running at 50Hz or 60Hz.

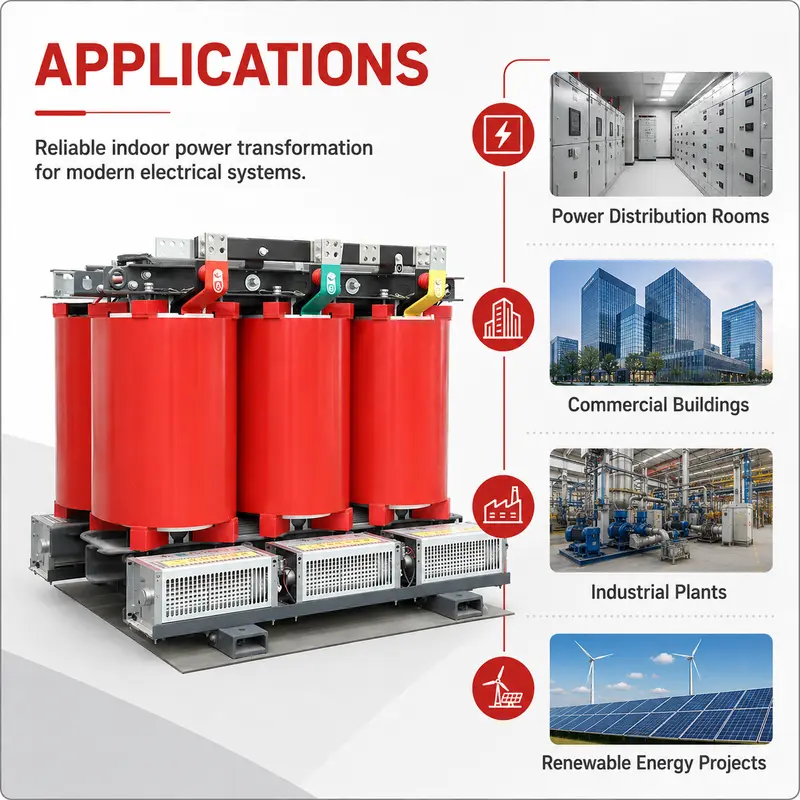

Well suited to indoor switchrooms, power plants, commercial buildings, hospitals and industrial sites where fireproof, oil-free step-down transformation is needed.
Capacity, voltage ratio, vector group, protective enclosure and temperature controller can be tailored to the project, with copper or aluminium windings offered on request.
When ordering, please confirm the rated capacity, primary/secondary voltage, frequency, vector group and the standard that applies.
The rated capacity is 250 / 400 / 630 / 1000 / 1250 kVA, with an input voltage of 10 kV / 11 kV / 13.8 kV. Other ratings in the same series are quoted on request.

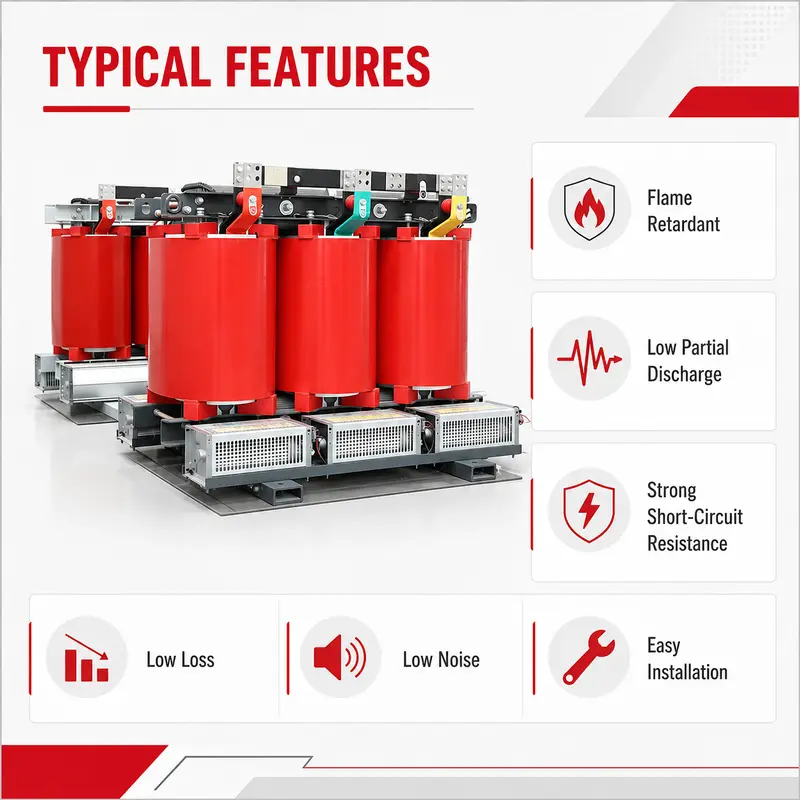

Spans a broad capacity range — 250 / 400 / 630 / 1000 / 1250 kVA; Accepts multiple input voltages: 10kV, 11kV or 13.8kV, stepping down to 400V; Resin-cast windings deliver fireproof, explosion-proof, oil-free performance.
Capacity, voltage ratio, vector group, protective enclosure and temperature controller can be tailored to the project, with copper or aluminium windings offered on request.
Designed and tested to IEC 60076. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
