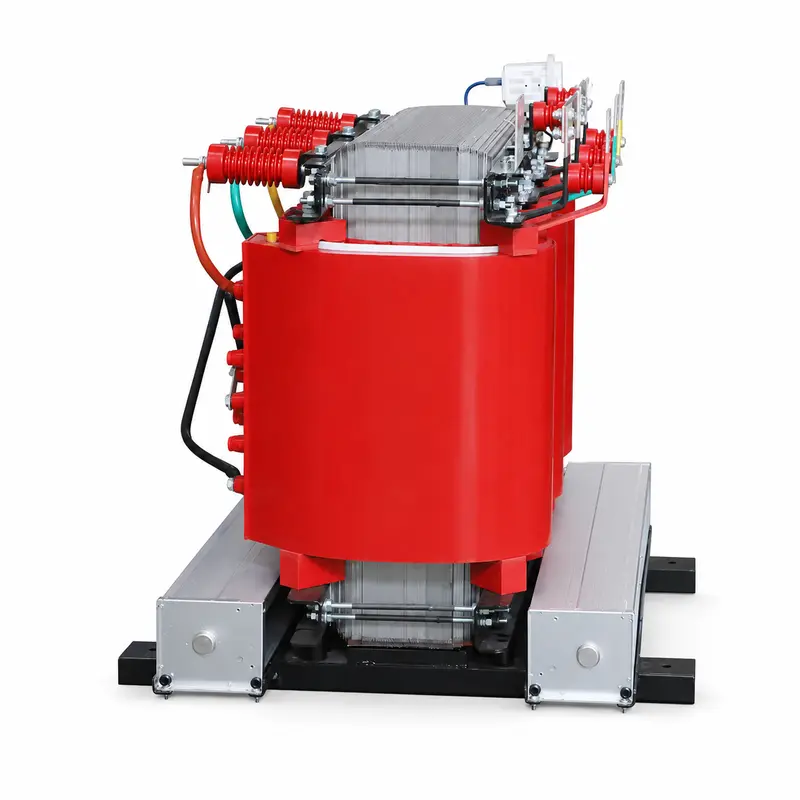

Cast-Resin Dry-Type Transformers
Built for indoor distribution in commercial, industrial and infrastructure settings, this epoxy-resin cast dry-type transformer steps 6.3kV down to 400V…

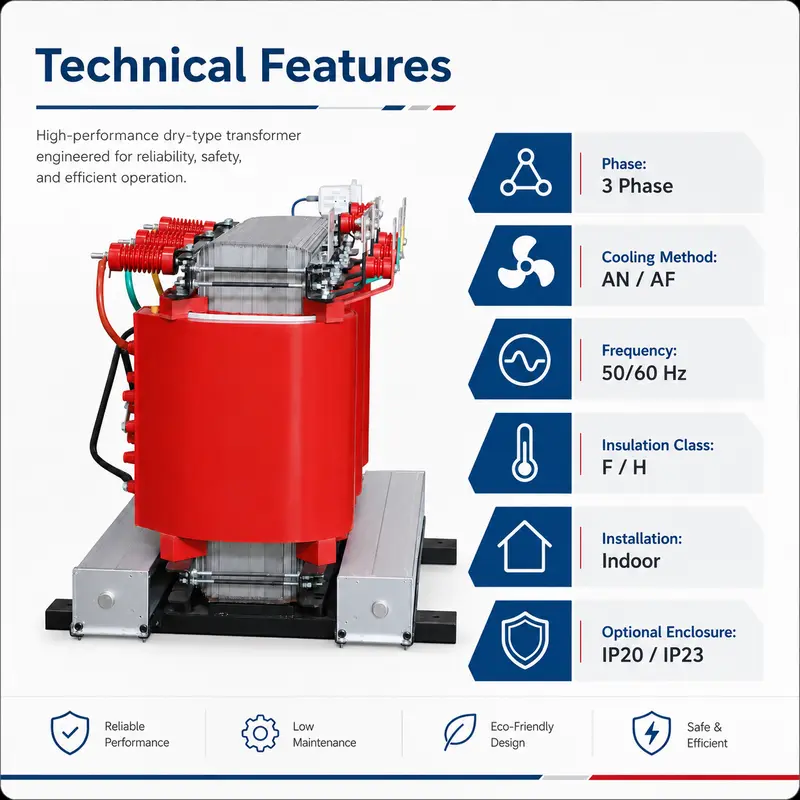

| Parameter | Value |
|---|---|
| Product Type | Epoxy Resin Cast Dry-Type Transformer |
| Rated Capacity | 2500 kVA |
| Input Voltage | 6.3 kV |
| Output Voltage | 400 V |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Insulation | Epoxy Resin Cast |
| Standard | IEC / GB |
| Certification | ISO9001 |
These specifications reflect the product data provided to us. Actual dimensions, materials, colors and packaging depend on the confirmed sample and final order agreement.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

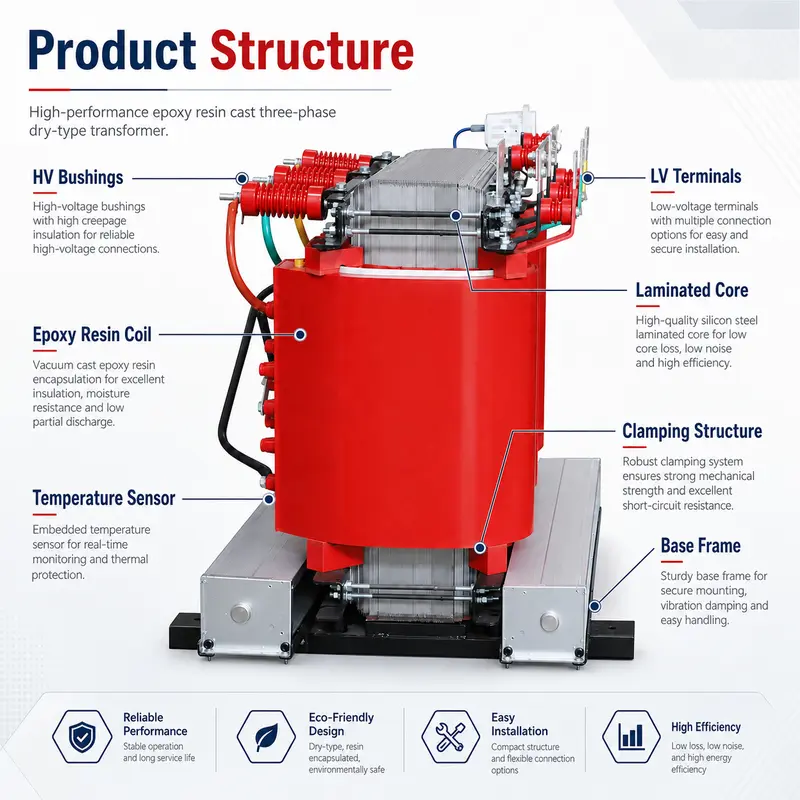

Built for indoor distribution in commercial, industrial and infrastructure settings, this epoxy-resin cast dry-type transformer steps 6.3kV down to 400V while keeping its environmental footprint light. Rated at 2500kVA, the HV windings are cast in resin and can be specified in copper or aluminium, giving oil-free, low-maintenance operation at either 50Hz or 60Hz.
A good match for indoor switchrooms, power plants, commercial buildings, hospitals and industrial sites that call for oil-free, fire-safe transformers.

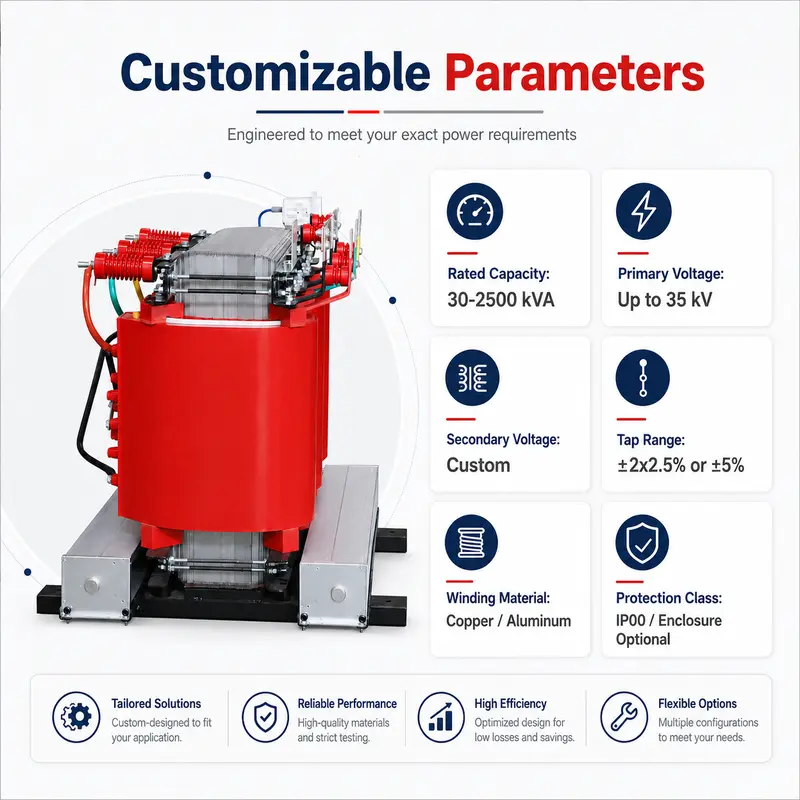

Capacity, voltage ratio, vector group, protective enclosure (IP-rated housing) and temperature controller can all be adapted to the project at hand, with copper or aluminium windings available on request.
When ordering, please confirm the rated capacity, primary/secondary voltage, frequency, vector group and the standard that applies.
The rated capacity is 2500 kVA, with an input voltage of 6.3 kV. Other ratings in the same series are quoted on request.
Rated 2500kVA, converting 6.3kV to 400V in a three-phase dry-type design; Cast epoxy-resin windings mean no oil, better fire safety and less upkeep; Energy-efficient with a genuinely low environmental impact.
Capacity, voltage ratio, vector group, protective enclosure (IP-rated housing) and temperature controller can all be adapted to the project at hand, with copper or aluminium windings available on request.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
