South Africa: 11 kV/0.4 kV Cast-Resin Dry-Type Mining Transformer

Why the specification takes this shape

A mining transformer for the South African market isn't specified against bare IEC alone. Purchasing practice runs through Eskom's NRS documents and the SANS standards built on top of them, and the two aren't interchangeable. SANS 780 fixes what a distribution transformer of this class has to be in this market — preferred ratings, impedance, tapping arrangement, terminal and marking conventions — while NRS 048-2 sets the voltage quality band the plant has to operate within. A transformer offered simply as "IEC compliant" can still miss the specification it's actually being purchased against, so the NRS and SANS references need to sit in the enquiry itself rather than surface later as a technical query.

Choosing cast-resin construction follows directly from where the unit sits. This is an indoor transformer inside an occupied surface plant. Dry-type construction keeps any insulating liquid out of the building entirely, eliminating the oil fire load, the bund, the separation distances and the containment drainage that an oil-filled unit inside the same building would otherwise demand. In exchange, you get an air-cooled machine whose rating is tied to the room it sits in — a genuine constraint on building services, not a minor detail to work around.

The load profile is the third factor at play. A concentrator runs heavy, repetitive motor duty — mills, crushers, conveyors, pumps and fans — so starting current pulls the busbar down and drive-fed equipment feeds harmonic current back into the windings. Both effects are set by the plant's actual motor and drive schedule, not by rule-of-thumb assumptions. At 50 Hz, on a network where the supply voltage itself drifts, the tapping range has to be chosen against how the network genuinely behaves, not against a nominal figure.

How the system is built

Sequence of works on site

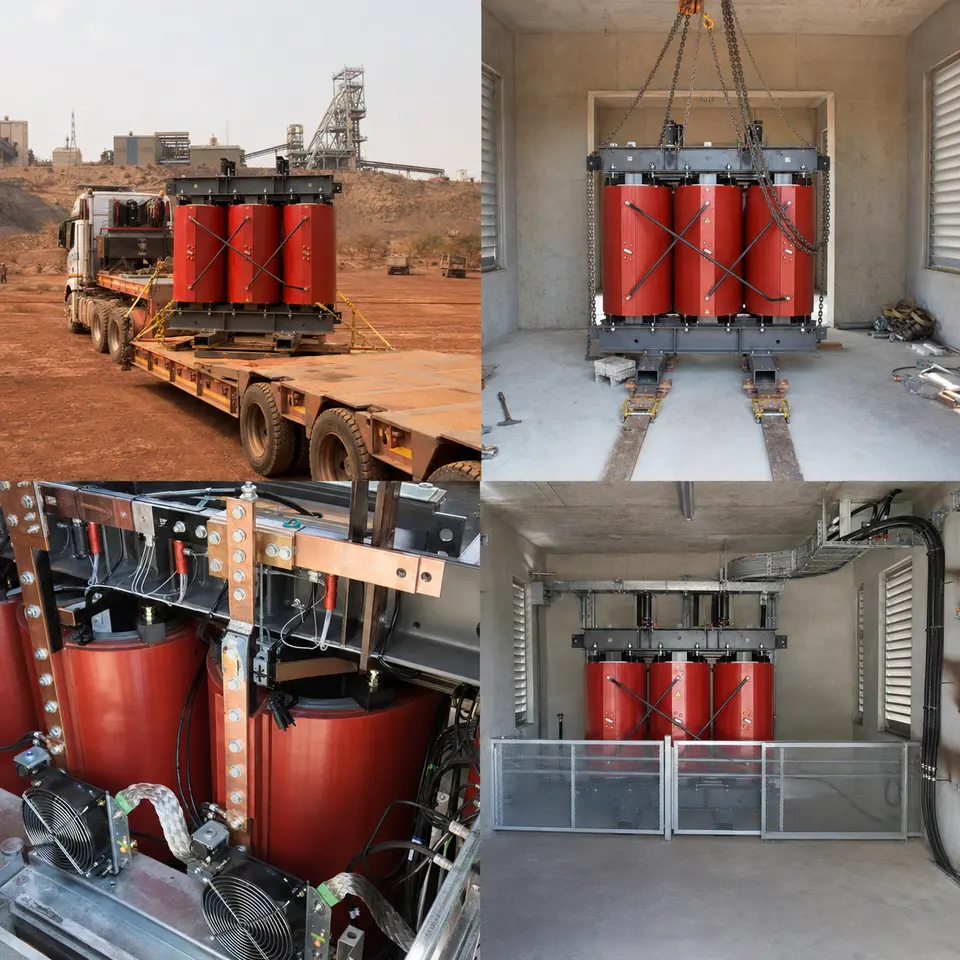

This contact sheet steps through the four stages typical of an installation of this kind: heavy transport to site, indoor positioning using skates and lifting gear, busbar and cooling connections, and the finished, protected transformer room. Access dictates the order. The room floor, plinth, cable route and earth bar are all finished and verified before the unit is ever moved in, since the space behind and beneath a transformer once it's seated stops being reachable. Connections are made only after the final position is locked in, so busbar runs and flexible links get cut to the actual geometry. Ventilation and temperature protection are proved before energisation, because on a dry-type unit these count as part of the rating itself rather than optional extras.

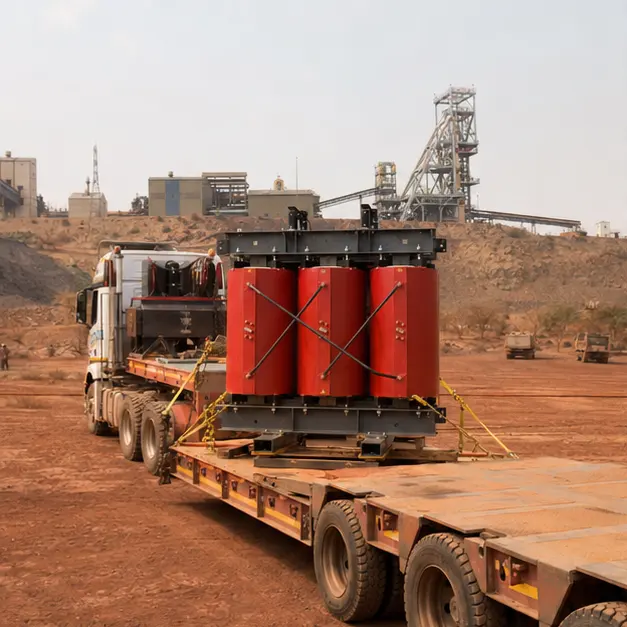

A cast-resin unit travels as a rigid, top-heavy mass built around a genuinely brittle active part. Epoxy-cast coils handle compression well but shock badly, so packaging, lashing and impact recording matter far more here than they would for an oil-filled unit, where the liquid itself damps movement. Route surveys cover axle loading, gradient, culvert and bridge capacity, and turning radii along mine access roads. On arrival the unit is inspected before it's accepted: resin surfaces checked for cracking, crazing or chipping at coil ends and spacer blocks, core clamping and winding supports checked for movement, terminal palms and tap links checked for distortion, and any shock indicator read and logged. Insulation resistance is measured on receipt to establish a baseline before the unit is moved any further.

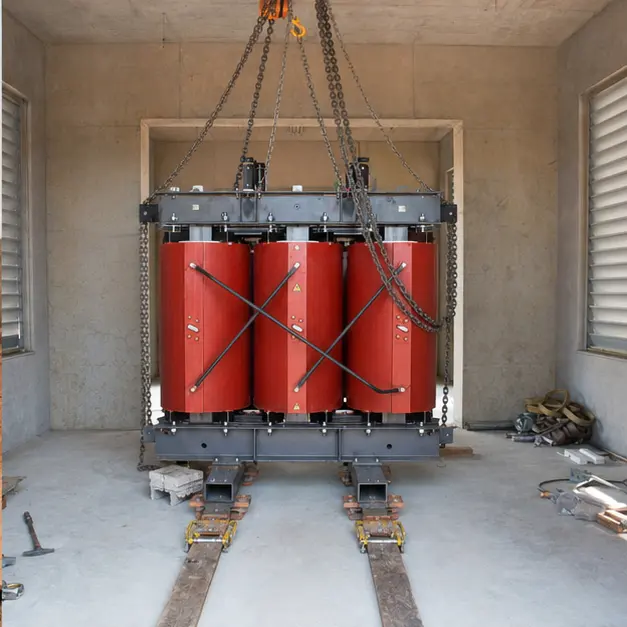

Moving the unit into the room is done on skates or rollers rather than through repeated crane lifts, since headroom indoors is typically the tightest constraint. The load path is checked first — floor slab capacity along the travel route, point loading under the skates, and any trench cover or duct crossing along the way. Because the transformer's centre of gravity sits high and off-centre, pulling is done from the designated haulage points with the pull line kept low so it doesn't induce a tilt. Final positioning onto the plinth is levelled and packed, then the unit is anchored — anti-vibration mounts, where fitted, are set to correct compression, since over-compressed mounts pass the core's 100 Hz hum straight into the building structure. Clearances to walls and neighbouring equipment are checked against the ventilation design, not just against the drawing.

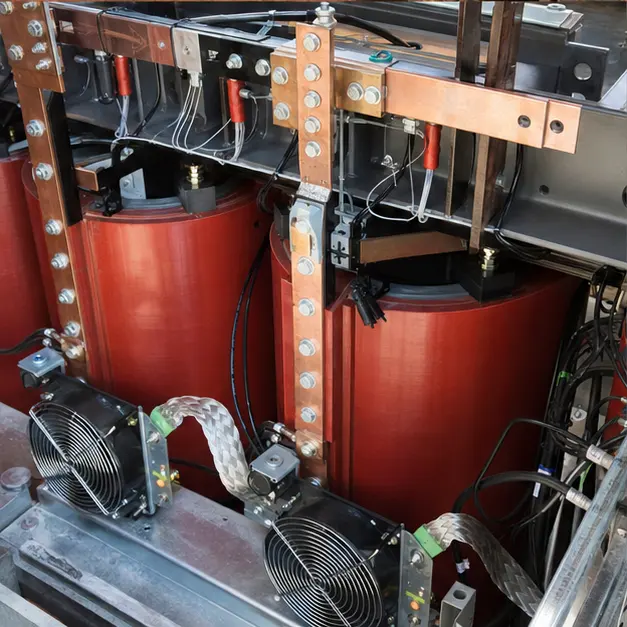

Connection work is what determines the long-term thermal performance. HV and LV joints are made with matched, cleaned and prepared contact surfaces, torqued to value and marked — because contact resistance is what turns a properly rated connection into a hot spot on a machine that has no oil to carry the heat away. Aluminium-to-copper interfaces go through bimetallic transition pieces rather than direct contact. Busbar and busduct runs enter through flexible links so thermal expansion is absorbed by the link rather than by the transformer terminal. Cooling fans, their control wiring and the PT100 temperature relay are wired and functionally proved — fan start and stop points, alarm and trip stages, and the trip's onward interlock all checked. Clearance and creepage between phases and to earthed metal are verified against the as-built arrangement, not assumed from the layout drawing.

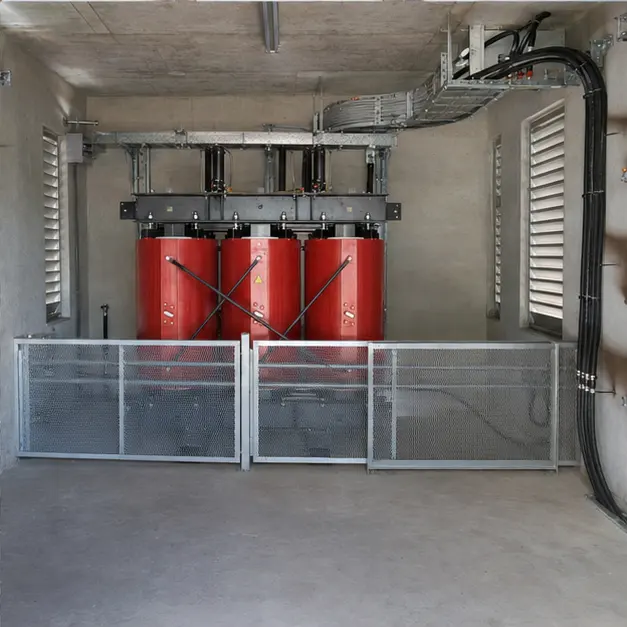

The finished configuration shows the transformer inside a segregated, ventilated, barriered room with controlled access. Before energisation the installation is proved link by link: winding insulation resistance and polarisation index recorded, turns ratio and vector group verified on every tap, winding resistance measured, and earth continuity confirmed from the core, frame, enclosure and any barrier back to the plant earth grid. Protection is proved end-to-end by injection so relay, CT circuit and trip coil are shown to work together, and the temperature relay's trip path is proved by simulation. Energisation proceeds in stages — transformer charged unloaded, then the LV board, then load applied progressively — with the first starts of the largest motors watched closely for voltage dip and winding temperature rise, since those are exactly the conditions the impedance and cooling design were chosen against.

Ways the specification can flex

For a comparable mining enquiry, Millenium can size the voltage ratio, tapping range, capacity, vector group and impedance against the plant's motor starting duty and the LV board's withstand rating, in copper or aluminium windings. Cast-resin units can be supplied to whichever insulation system temperature class and temperature-rise limit are needed, with the climatic, environmental and fire classes of IEC 60076-11 chosen for an occupied plant building, and with harmonic derating or a design factor set against drive-fed load. Cooling can be natural or forced air with fan control tied to winding temperature. Enclosures can be specified by IP rating, coating class and corrosion category, with anti-condensation heating where a plant room isn't continuously occupied. Monitoring can range from a simple two-stage temperature relay up to reporting of temperature, fan status and alarms over Modbus RTU/TCP or IEC 61850. Oil-immersed alternatives with containment remain an option where the unit sits outdoors instead.

Information we need to quote this

• A single-line diagram showing the 11 kV supply and the 0.4 kV distribution arrangement
• Incoming 11 kV details, the tapping range and step size required, and the vector group needed
• Transformer capacity and the plant's load profile, including duty cycle and load factor
• A motor schedule with the largest motor rating and its starting method, plus variable-speed drive content and the expected harmonic spectrum
• System fault level at the point of connection, LV board withstand rating, and required clearing time
• The LV system's earthing arrangement, and any plant earthing study or measured earth grid data available
• The applicable Eskom NRS and SANS references the equipment is being purchased against, plus any overriding mine standard
• Room dimensions, headroom, door and access route, floor loading, and available ventilation or air change rate
• Site ambient temperature range, altitude, dust type, and any corrosive process exposure
• The enclosure requirement — an open unit in a segregated room, or a stated IP rating — along with coating and corrosion class
• Protection philosophy, any temperature trip interlocking requirement, and communication protocol
• Delivery terms, site access route, permissible axle loading, and lifting or skating equipment available
