Compact & Box-Type Substations

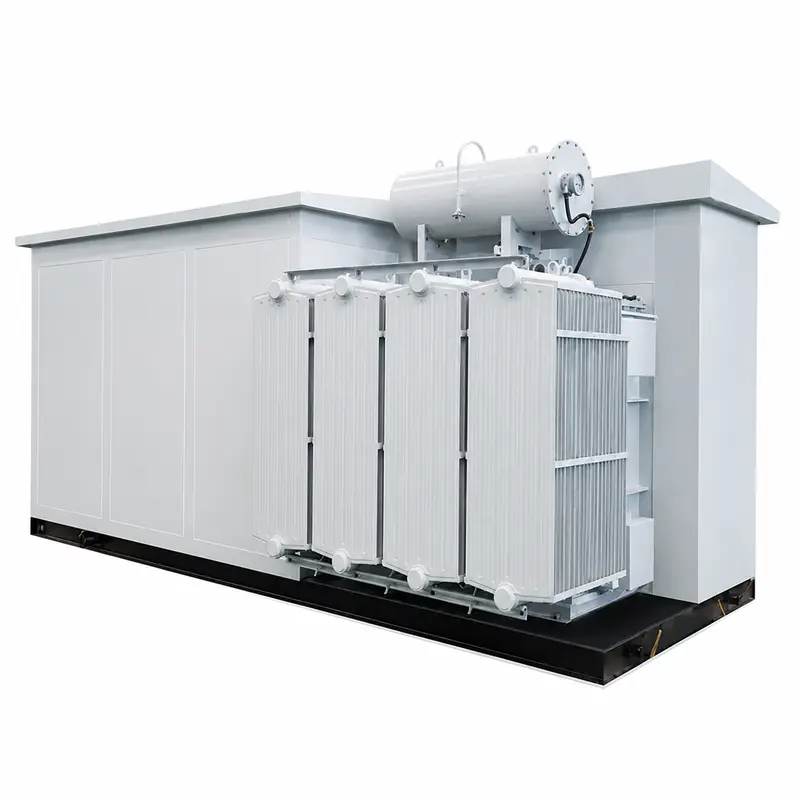

This Hua-style prefabricated substation handles photovoltaic boost duty, converting 35 kV down to 400 V. A switchgear/distribution compartment works…
| Parameter | Value |
|---|---|
| Type | Hua-style Prefabricated Substation |
| Transformer | Oil-Immersed |
| Input Voltage | 35 kV |
| Output Voltage | 400 V |
| Phase | Three Phase |
| Frequency | 50 / 60 Hz |
| Winding Material | Copper / Aluminium |
| Vector Group | Dyn11 / Yyn0 |
| Transformer Body Protection | IP68 |
| Enclosure Protection | Not less than IP54 |
| Standard | IEC / GB |
| Certification | ISO9001 |
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

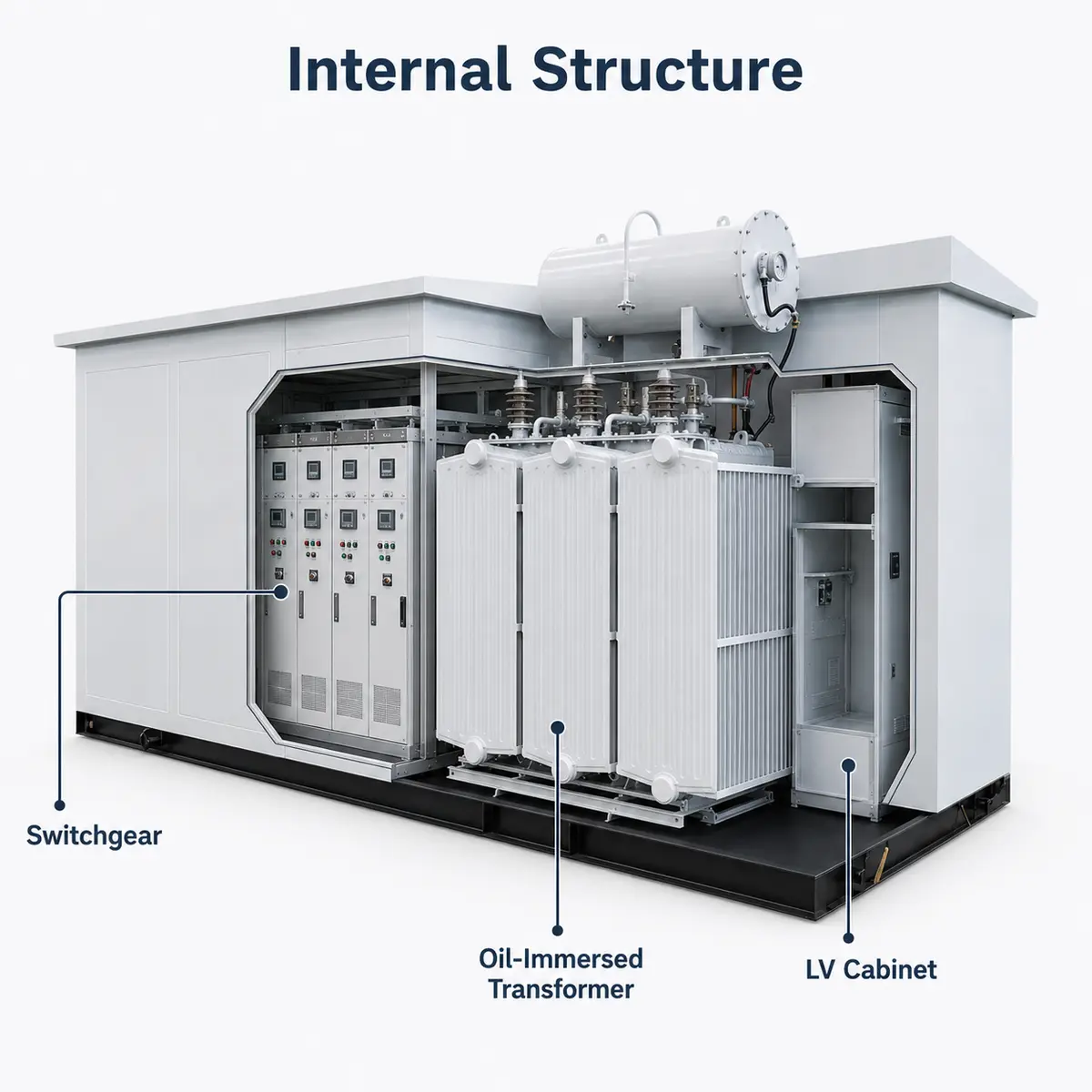

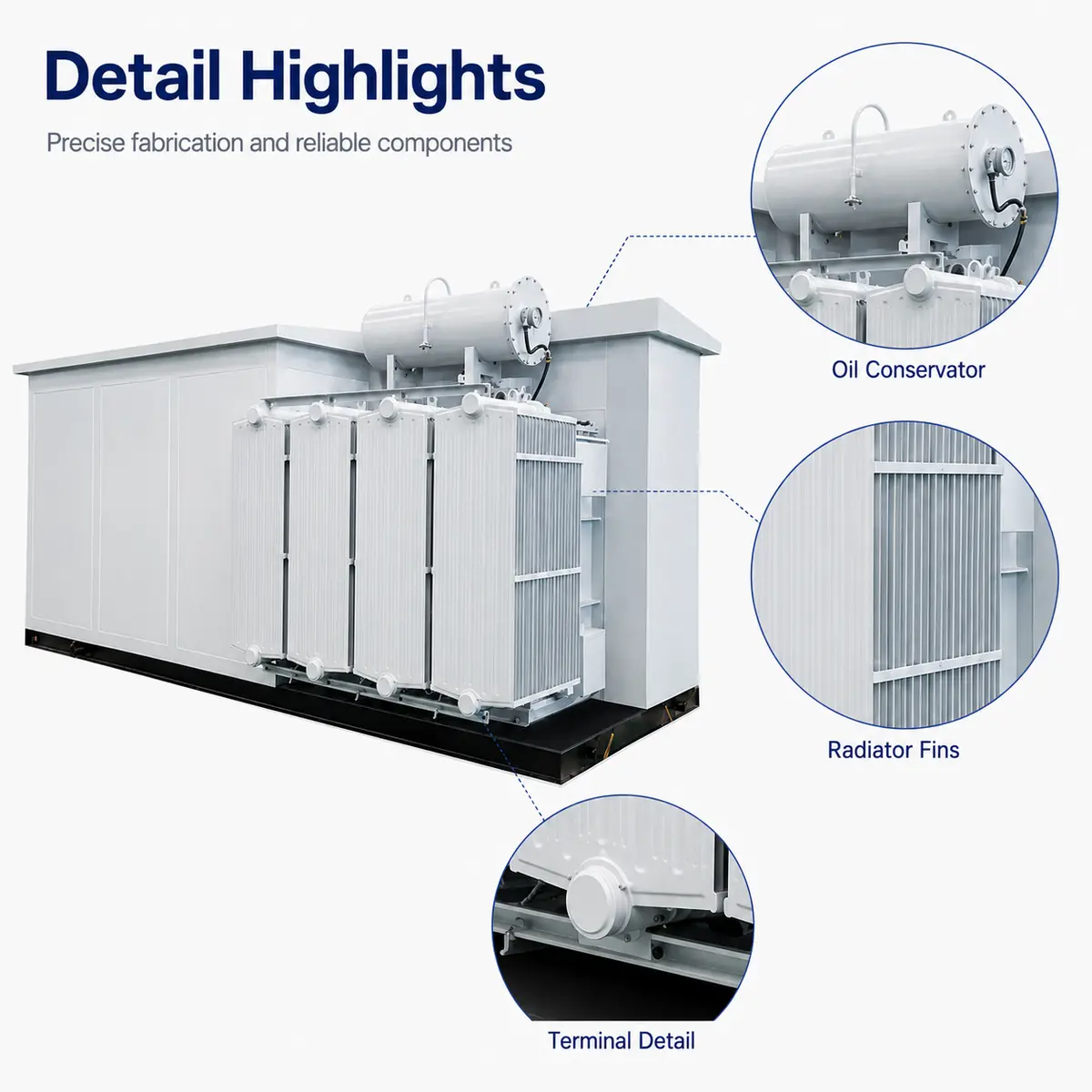

This Hua-style prefabricated substation handles photovoltaic boost duty, converting 35 kV down to 400 V. A switchgear/distribution compartment works alongside an externally mounted oil-immersed booster transformer, complete with radiator-fin cooling and an oil conservator, to deliver compact step-up capability for new-energy sites.
Photovoltaic power stations, energy-storage step-up applications, and new-energy collection and grid-connection projects.

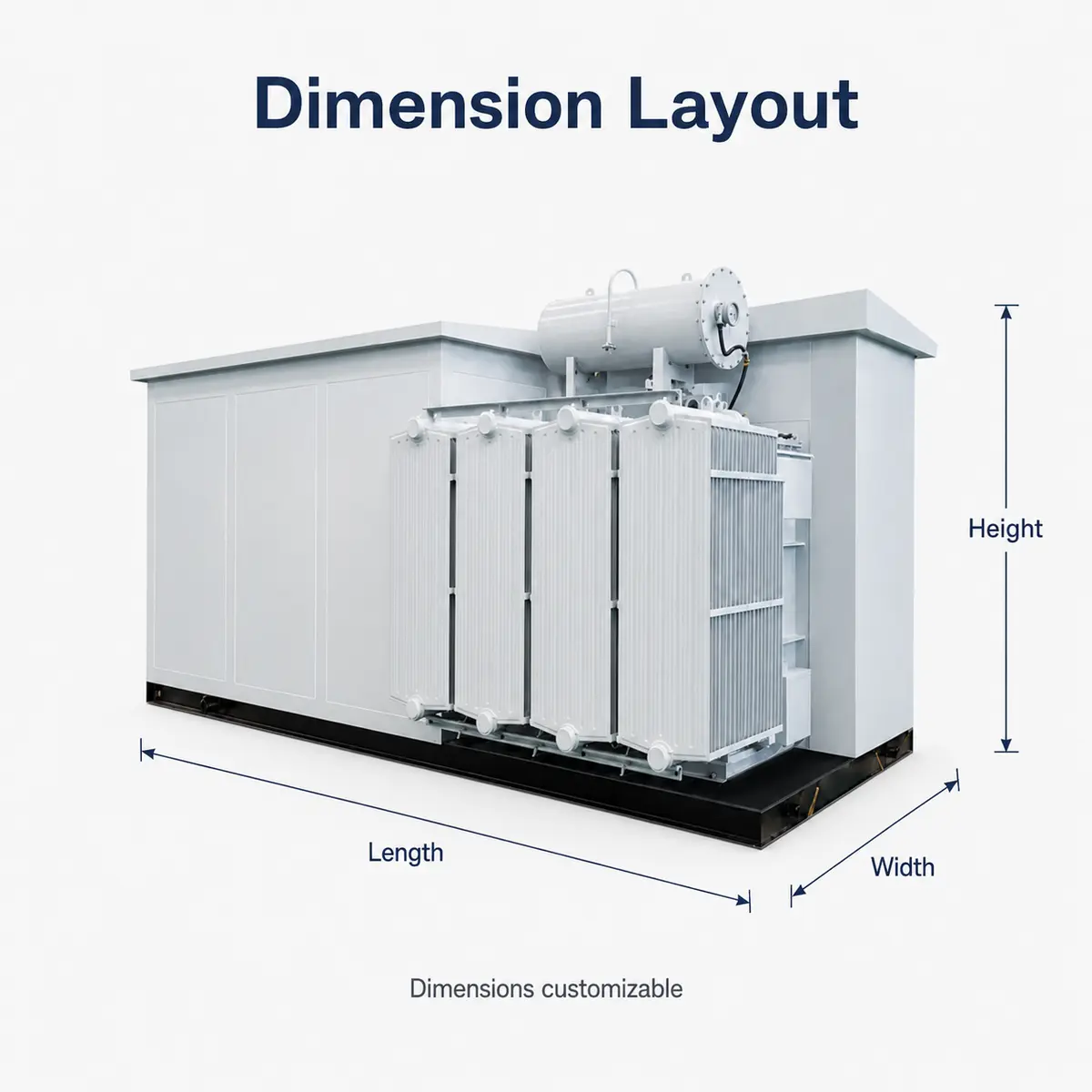

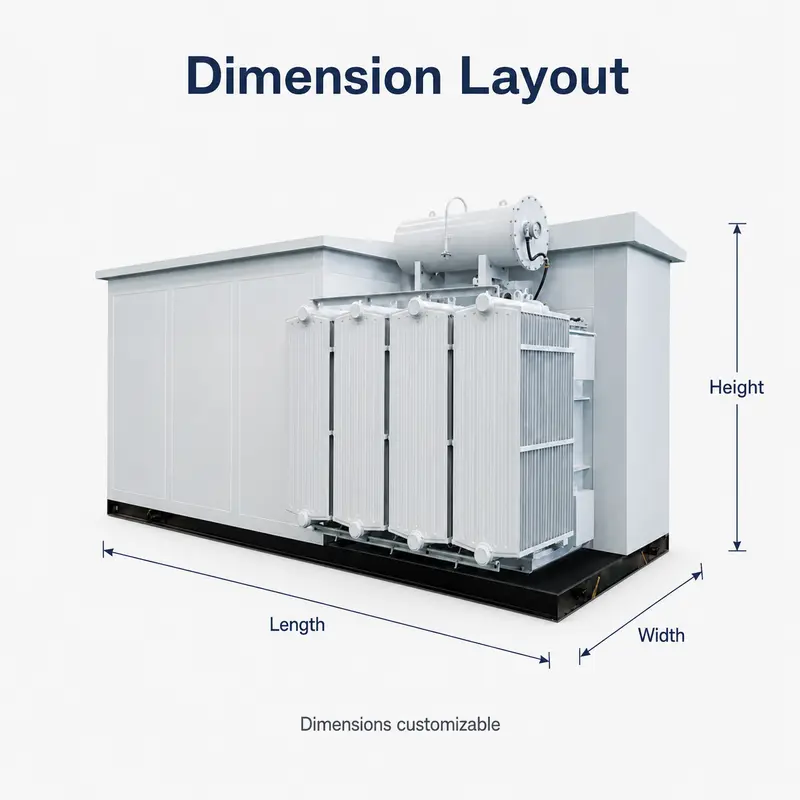

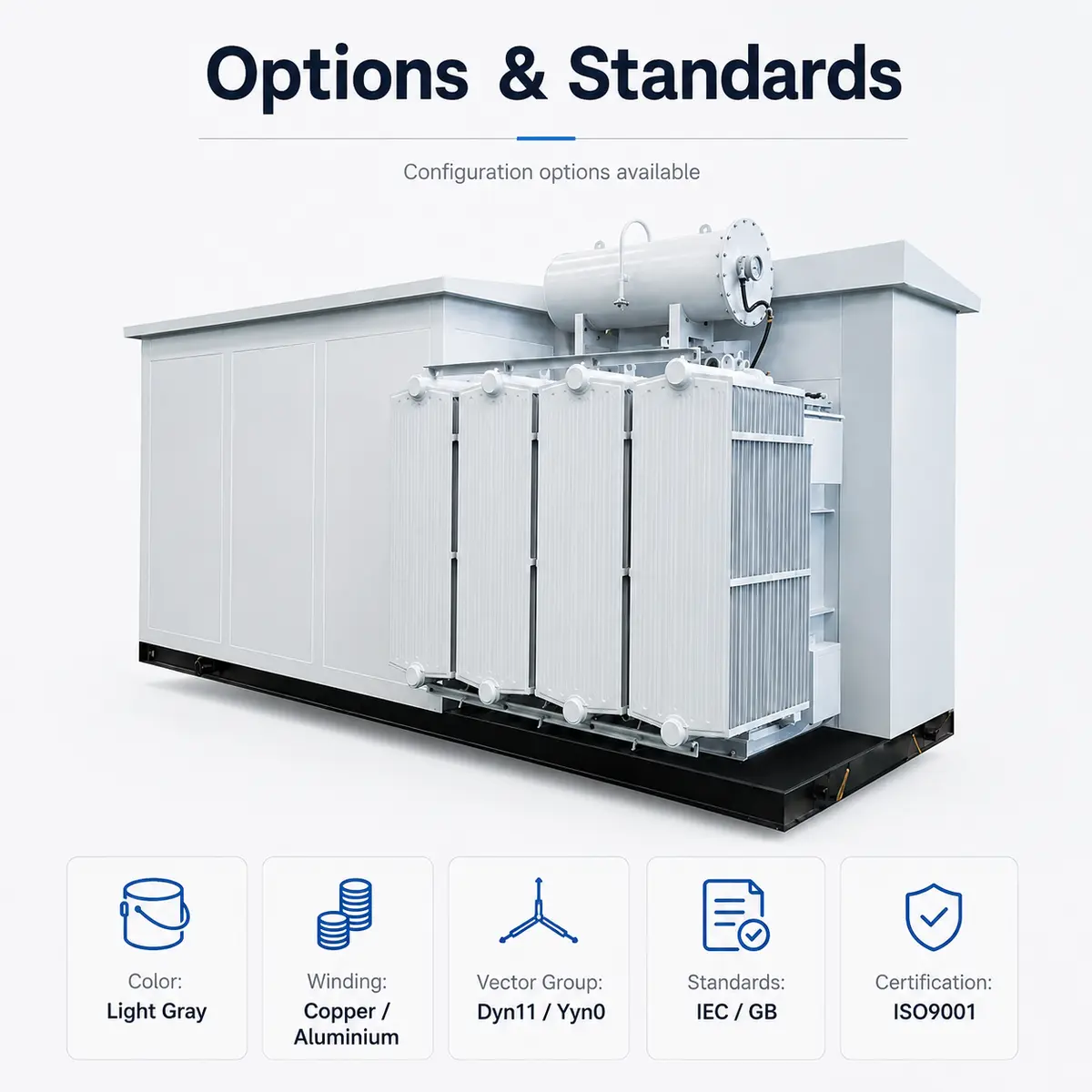

Enclosure colour, capacity, voltage ratio, transformer type, and switchgear configuration are available on request.
Every unit is manufactured to order against the specification confirmed by the customer. Please provide the required capacity, voltage ratio, and application when enquiring.
The product images shown are illustrative marketing renders; the delivered unit is manufactured to the specification confirmed at order.
Hua-style prefabricated unit designed for photovoltaic boost duty; Converts 35 kV input to 400 V output for new-energy collection; Oil-immersed booster transformer with an IP68-rated body.
Enclosure colour, capacity, voltage ratio, transformer type, and switchgear configuration are available on request.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
