Compact Three-Phase Package Substation (11–36 kV)

This prefabricated European-style package substation handles three-phase medium-voltage input at 11 kV, 33 kV, 35 kV or 36 kV and steps it down to a 400 V / 415 V output. HV, transformer and LV rooms sit together inside one ventilated all-metal cabinet, so the unit can be dropped on site and connected quickly outdoors.

Design & Construction

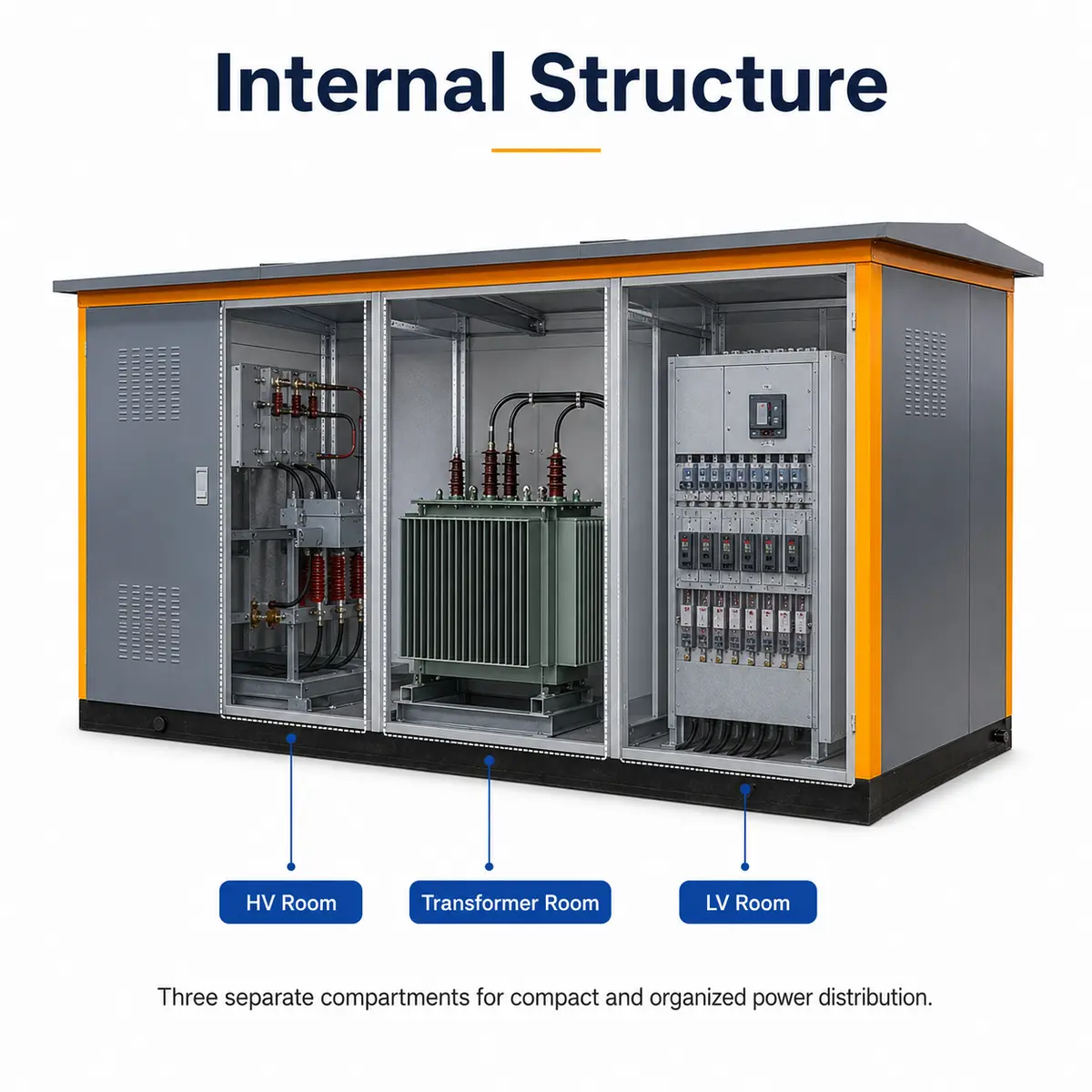

• Dedicated HV, transformer and LV rooms keep operation organized and safe

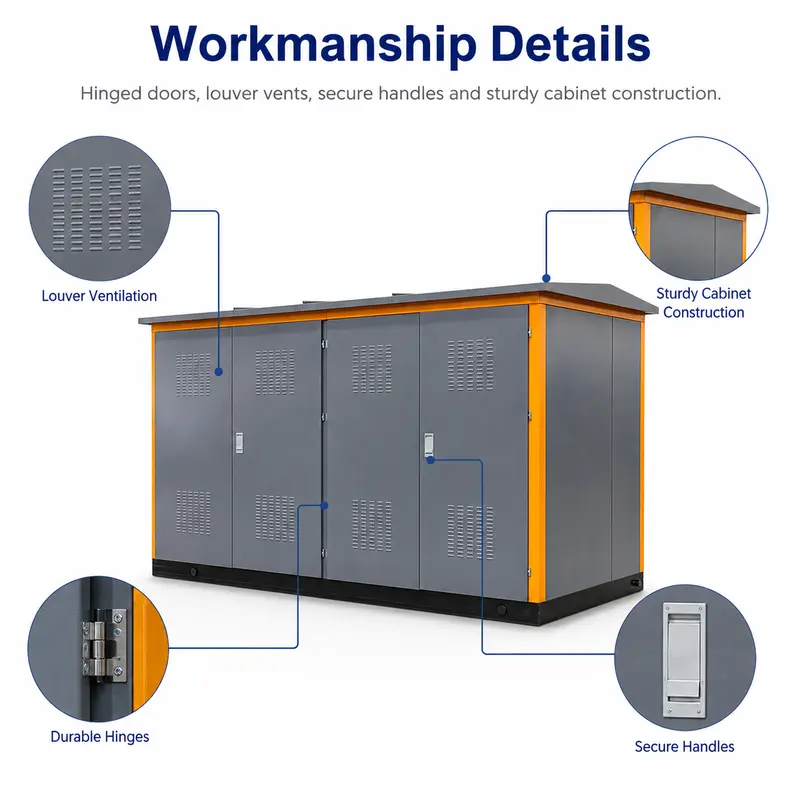

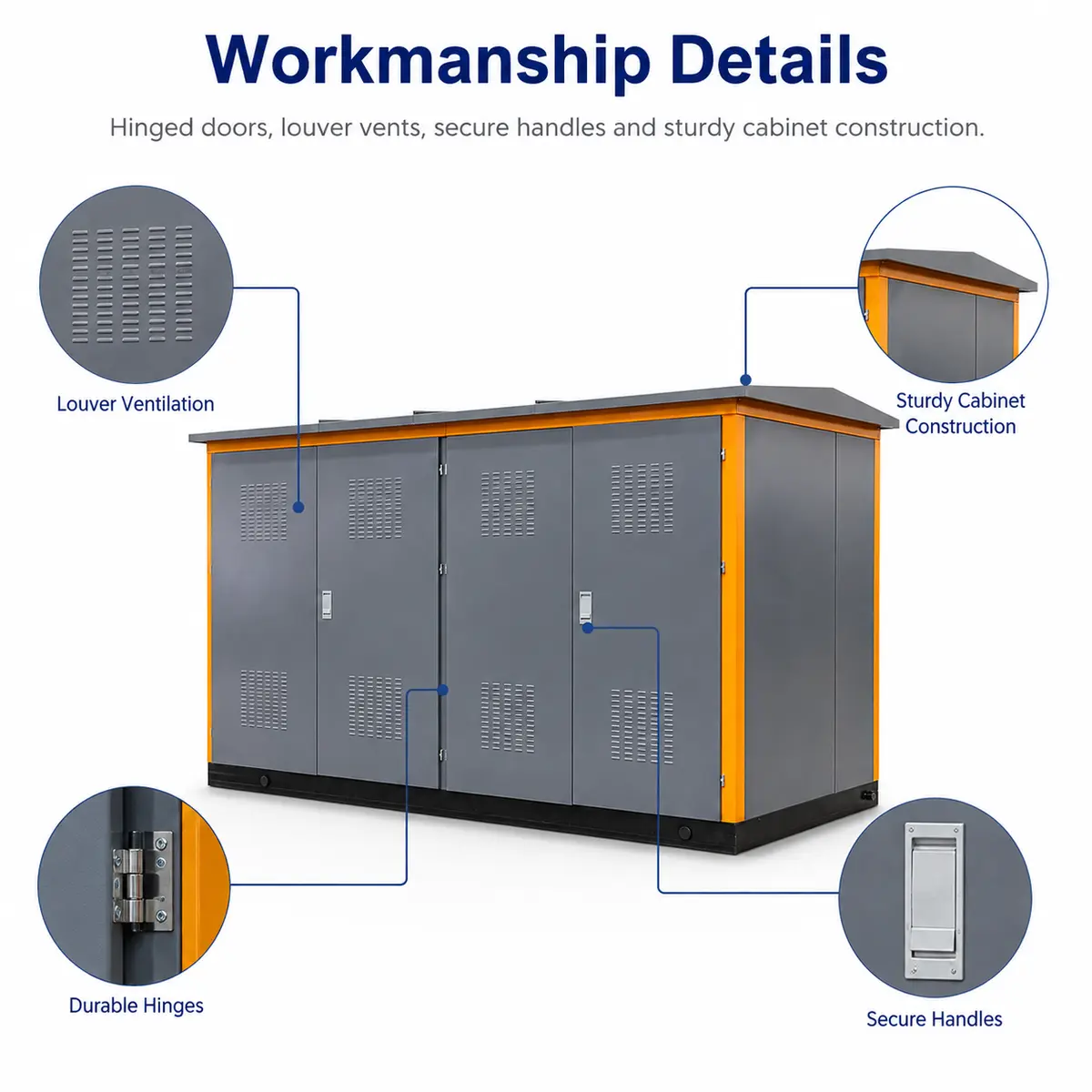

• Broad perforated louvre panels across the doors maximize cooling airflow
• Steel body with contrasting frame posts and a pitched roof to shed rain
• Set on a rigid base frame for a stable outdoor footing

Applications

Fits industrial parks, mining and infrastructure sites, commercial developments, and utility medium-voltage distribution networks.

Customisation Options

Enclosure colour, input voltage class, capacity, winding material (copper or aluminium) and compartment layout are all available to order.

Ordering Information

Manufactured to confirmed specifications. Please share the capacity, voltage ratio and site conditions needed when you enquire.

Images shown are illustrative renders for marketing purposes; the finished unit is manufactured to the specifications confirmed at order.
