This SF6 solid-insulated ring main unit brings intelligent, compact metal-enclosed switching to medium-voltage ring-network power transmission and…

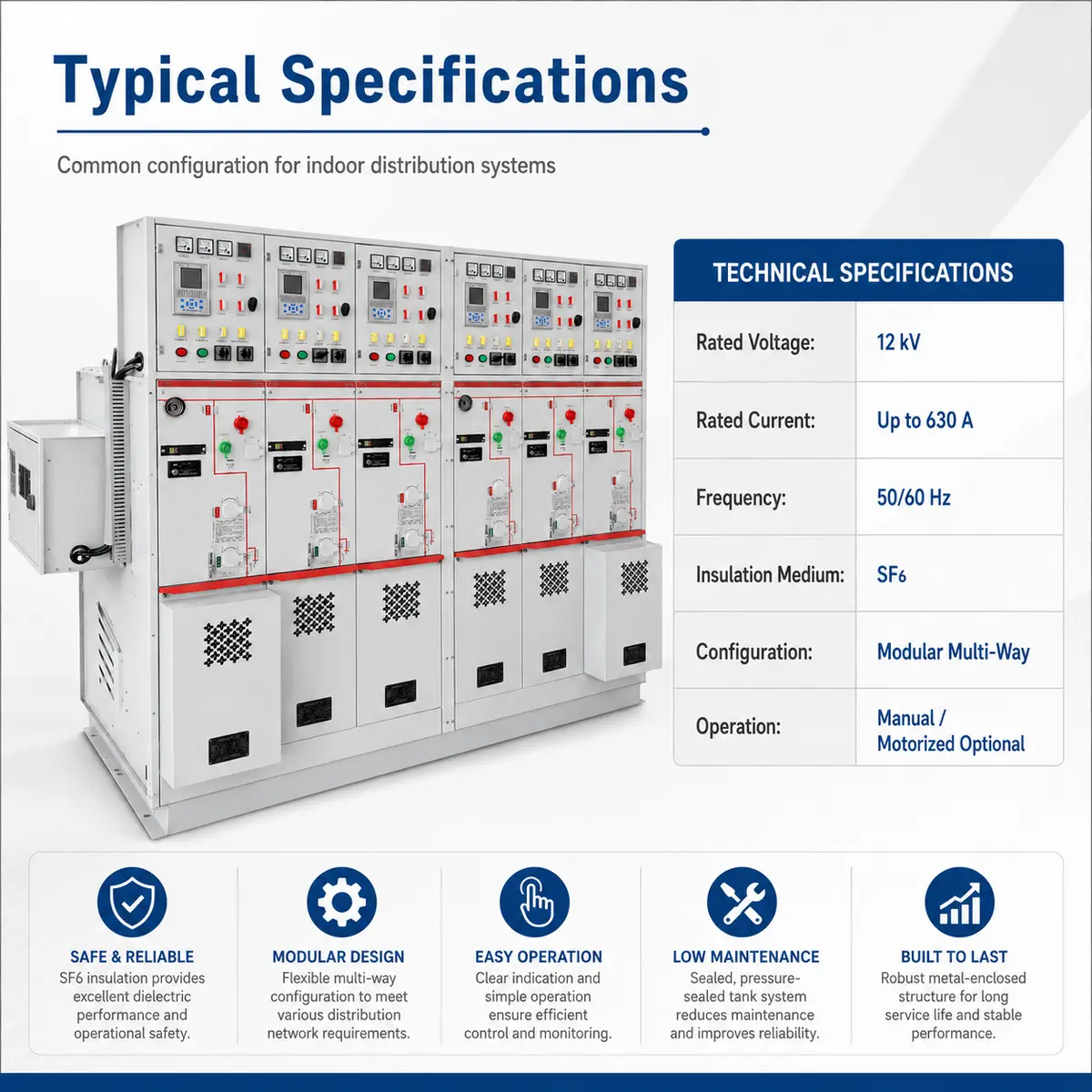

| Parameter | Value |
|---|---|
| Product Type | SF6 Solid-Insulated Intelligent Ring Main Unit (RMU) |
| Rated Voltage | 12 kV / 24 kV / 33 kV |
| Rated Current | 630 A / 1600 A / 2500 A |
| Frequency | 50 / 60 Hz |
| Protection Level | IP30 / IP32 / IP40 / IP65 / IP66 |
| Material | Aluminium-Zinc Coated Steel Plate |
| Application | Electric Power Transmission |
| Certification | ISO9001, Test Report |
These figures reflect the product data supplied to us. Final dimensions, materials, colors, and packaging depend on the sample and order that get confirmed.
Designed and tested to ISO9001, Test Report. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

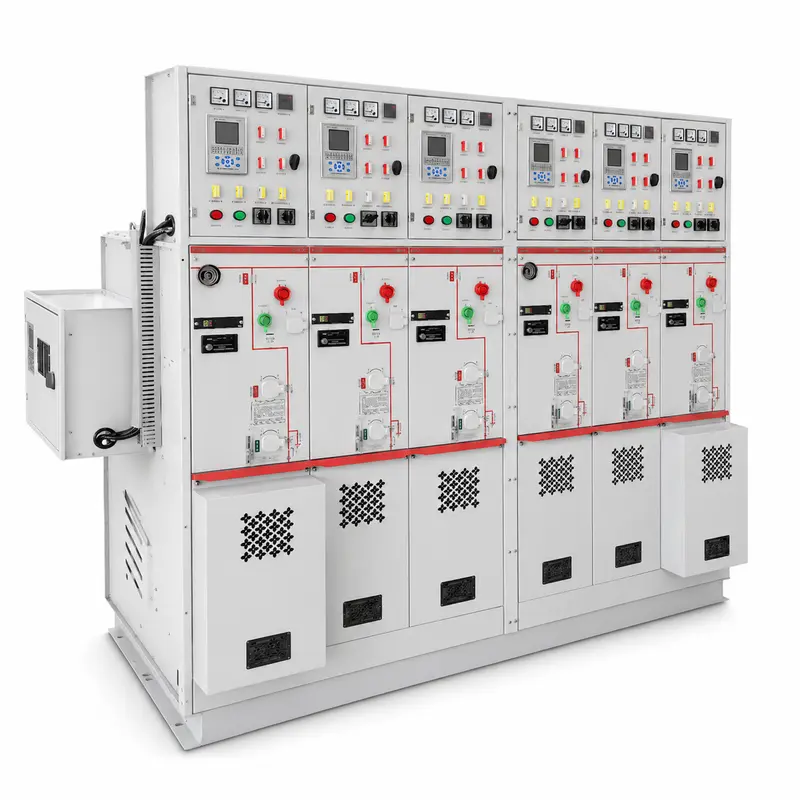

This SF6 solid-insulated ring main unit brings intelligent, compact metal-enclosed switching to medium-voltage ring-network power transmission and distribution. It covers 12kV through 33kV at currents from 630A to 2500A, wrapped in an aluminium-zinc coated steel enclosure with protection level configurable to project needs, giving ring-network systems reliable, smart switching.

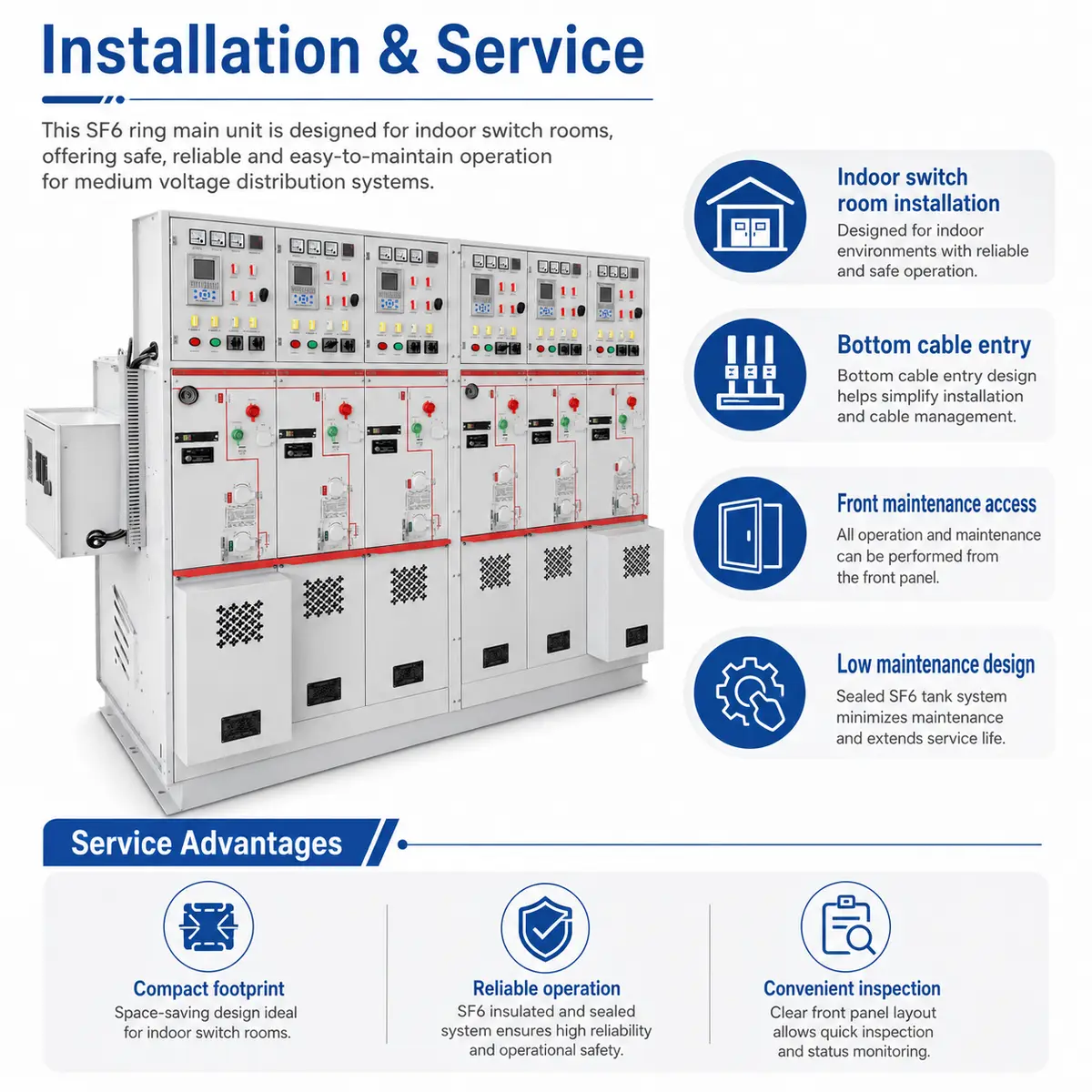

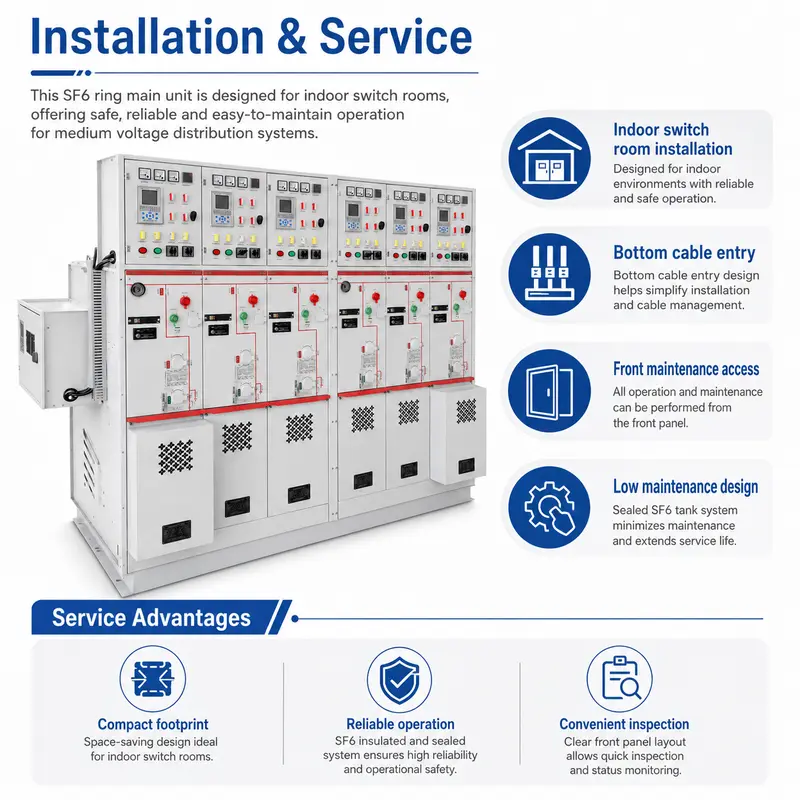

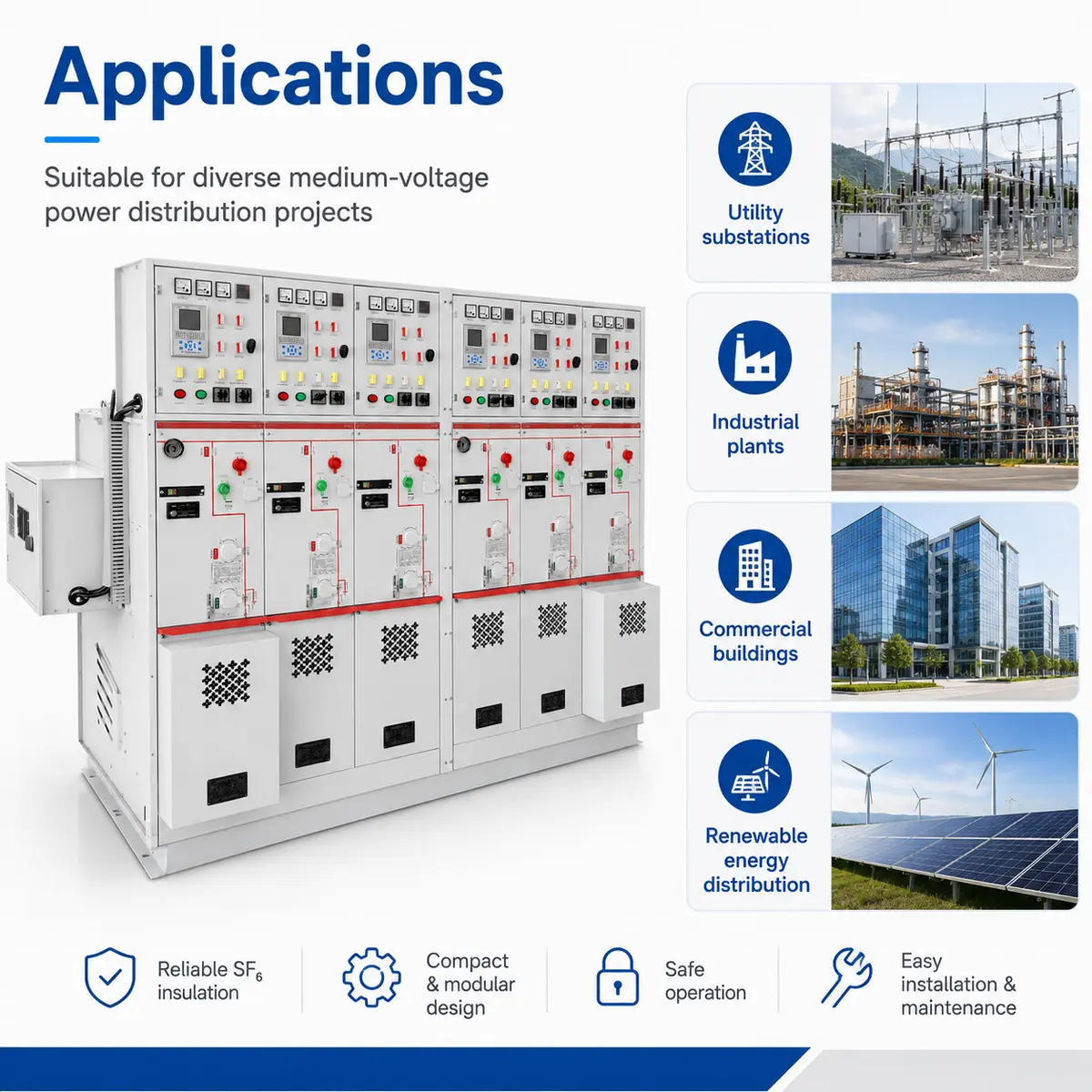

Fits indoor ring-network distribution rooms, switching stations, and medium-voltage power transmission and distribution systems spanning 12kV to 33kV.
Protection level (IP30 through IP66), voltage/current rating arrangement, and circuit scheme can be tailored to the project.
Before ordering, please confirm the rated voltage, rated current, protection level, and circuit configuration required.

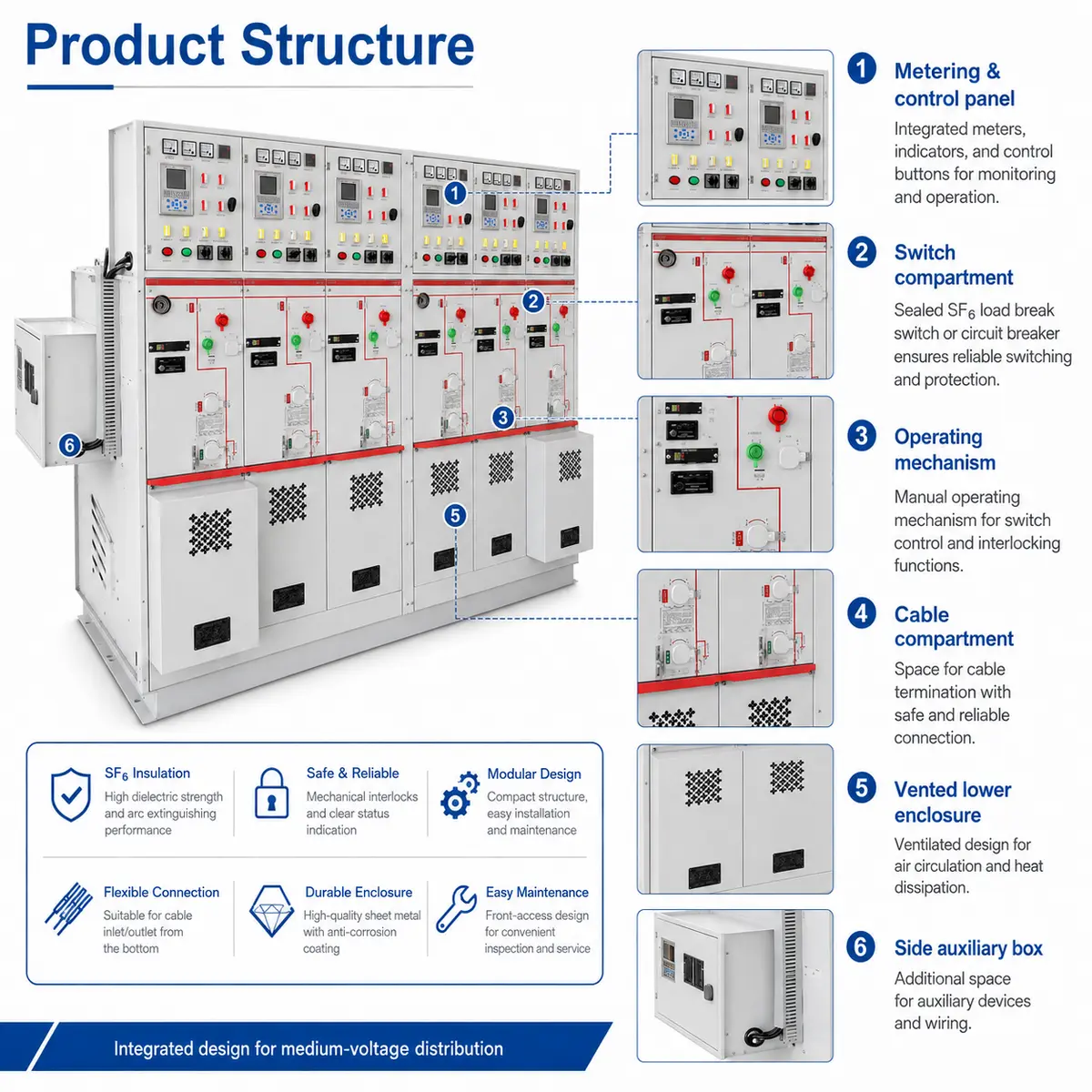

Solid SF6 insulation paired with intelligent ring main unit functionality; Broad coverage: 12kV / 24kV / 33kV at 630A / 1600A / 2500A; Compact, metal-enclosed footprint designed for ring-network layouts.
Protection level (IP30 through IP66), voltage/current rating arrangement, and circuit scheme can be tailored to the project.
Designed and tested to ISO9001, Test Report. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
