United Arab Emirates: 11 kV Commercial Switchgear Lineup

The engineering problem

Feeding a large commercial complex in the UAE from an 11 kV intake is not, on its own, a hard switching exercise. What makes the specification is that it is a thermal and corrosion problem first, with the switching problem wrapped around it.

Ambient temperature sets the tone. When shade temperatures push toward 50 °C in summer, there is almost no margin left against the 40 °C reference ambient that IEC 62271-1 and IEC 61439-1 assume. Something has to give: rated continuous current is derated, busbar cross-section is increased, the switchroom is actively cooled, or — more realistically — some combination of all three. A lineup sized purely off its nameplate current will run hot at the joints, and joint temperature is exactly what shortens insulation and silver-plating life.

Corrosion is the second driver, and the coastal Gulf environment behaves very differently from inland desert. Airborne chloride, high absolute humidity and long overnight dew periods together push the site into a high atmospheric corrosivity category. That classification, not a generic default finish, is what should determine sheet-steel treatment, the plating on current-carrying contacts, and how tightly any enclosure that breathes needs to be sealed.

Third, buildings of this scale are conventionally served from an indoor MV room — a dedicated, environmentally controlled space with restricted access, defined escape routes, provision for arc venting, and a maintenance regime built around withdrawable circuit breakers. That turns the room's geometry into a design input rather than an afterthought: panel depth, rear access clearance, trench depth and the arc-fault pressure relief path all need to be agreed before manufacture, not worked out on site.

Finally, keeping tenants supplied through any single fault or maintenance event favours a sectionalised busbar with clearly defined interlocking, so one section going down does not take the rest of the building with it.

System configuration

Installation sequence

This contact sheet lays out the four stages a project of this kind moves through: panel delivery, positioning and alignment inside the electrical room, rear cable termination and earthing, and the finished lineup ready to be energised. The order follows what access allows. The room needs to be structurally complete, dry, dust-free and climate-controlled before any panel goes in, because a metal-clad lineup behaves like a clean-room item the moment its shipping covers come off. Panels are aligned and coupled before a single cable is landed, since alignment shifts the busbar joints. Functional and primary injection testing happens while compartments are still open, and the room is only handed over once cooling and pressure-relief provisions have been proved.

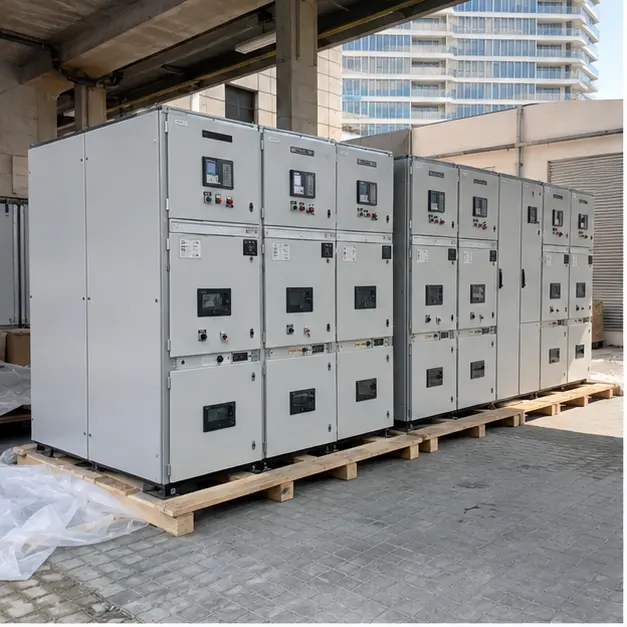

Panels arrive shrink-wrapped or crated with desiccant packs, and the first thing checked is whether they stayed dry. In a Gulf climate the real risk between the container and the switchroom is condensation, not rain: a panel that shipped cold and is opened into humid outdoor air will condense moisture on its internal insulation. Wherever practical, panels move into a conditioned space before unwrapping. Receiving inspection covers transit damage, shock-indicator status, panel identity against the lineup drawing, breaker and truck condition, and confirmation that shipping braces are still in place. Handling uses the designated base channels or lifting lugs — a metal-clad panel is top-heavy once the breaker is fitted, so breakers are normally withdrawn and moved on their own before any lifting or skating of the panel.

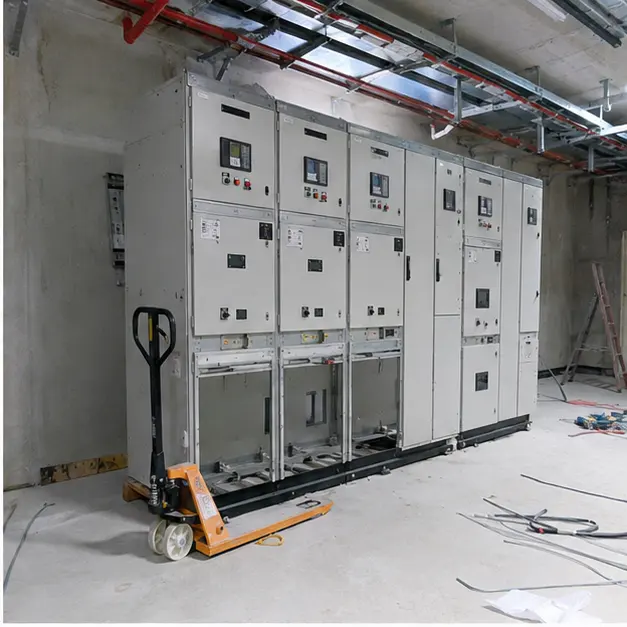

Positioning is a precision job, not simple placement. The floor or channel base across the whole run is surveyed for level and flatness before the first panel goes down, because any accumulated error shows up later as a busbar joint that will not close square. Panels are set to the datum line, shimmed as needed, bolted to the base steel and coupled to their neighbours, with the interconnecting busbar links fitted and torqued only after that. Squareness has a mechanical dimension too: withdrawable trucks have to rack freely in and out of every cubicle, and shutters and interlocks need to move without binding. Earth continuity between panels is bonded across every joint as the run goes up.

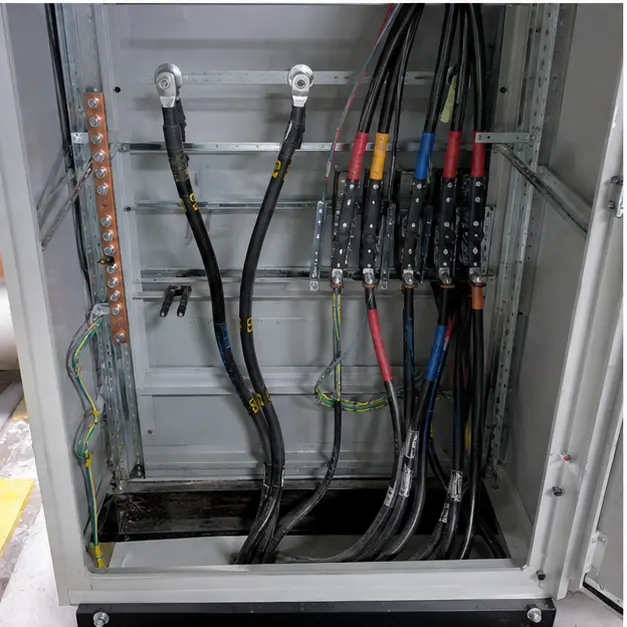

Rear-compartment MV terminations are the highest-risk workmanship in the whole installation. Screen cut-back length, removal of the semiconducting layer, surface cleanliness and correct stress-cone seating decide whether a termination lasts decades or fails within months, and in coastal humidity it pays to finish the work in one controlled session rather than leave it part-made overnight. Bending radius is respected right into the compartment; cables are cleated so neither their own weight nor any short-circuit force lands on the terminal. Screens are bonded to the earth bar through a conductor sized for the prospective earth-fault current and its clearing time. Gland plates are sealed to preserve the compartment's rating, and every terminal bolt is torqued to value and paint-marked.

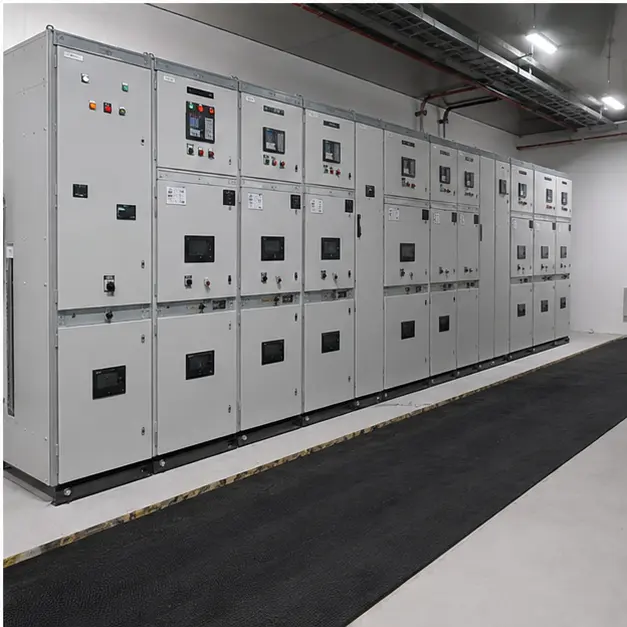

Before energisation the lineup is proved as a complete chain, not as isolated parts. Insulation resistance, and power-frequency withstand where specified, are recorded; contact resistance across every breaker pole and busbar joint is measured against value, since a high-resistance joint is where most thermal failures originate; interlock and racking sequences are proved by actually operating them; and protection is tested end-to-end by primary or secondary injection so relay, CT circuit, trip coil and breaker are all shown to work together. Earth continuity is confirmed from every panel and door back to the main earth bar. Room cooling, anti-condensation heating and the pressure-relief route are functionally checked, after which the lineup is labelled, the single-line diagram is posted, and energisation proceeds in stages.

Specification options

For a comparable enquiry, Millenium can configure the lineup around rated voltage and insulation level, busbar continuous current, short-circuit and short-time withstand rating, and the loss-of-service continuity and internal arc classification appropriate to the room. Panels can be supplied as air-insulated metal-clad with withdrawable vacuum breakers, or as SF6 or solid-insulated ring main units where footprint is the limiting factor. Protection can range from self-powered overcurrent and earth-fault relays through to full numerical protection with directional, differential and arc-flash detection, with CT and VT classes matched to tariff metering. Enclosure treatment, plating and IP rating can be specified against the coastal corrosivity category. Transformers are available as cast-resin dry-type for indoor fire load or oil-immersed with containment, and LV assemblies can be supplied in the required form of separation. Communication options include IEC 61850, IEC 60870-5-104 or Modbus TCP.

What we need to quote

• Single-line diagram showing intake, bus arrangement, sectionalising and outgoing feeders
• Incoming voltage, insulation level and the utility connection agreement or specification
• Required busbar continuous current and the outgoing feeder schedule with loads
• System fault level at the point of connection, required short-time withstand and clearing time
• Loss-of-service continuity category and internal arc classification, with the accessible sides identified
• Protection philosophy, relay preferences, and any existing grading study or settings
• Metering requirement — tariff, check or sub-metering — and the CT/VT classes it implies
• Design ambient temperature range, humidity, and whether the room is air-conditioned or ventilated
• Coastal corrosivity classification, required panel finish, plating and IP rating
• Room dimensions, ceiling height, access route, trench depth and cable entry direction
• Communication protocol, points list and the building management or SCADA interface
• Transformer requirement, LV assembly form of separation, and delivery terms
