Pole-Mounted Transformers
Carrying UL certification, this single-phase oil-filled pole-mounted transformer is offered at 25, 75 and 167 kVA, stepping 13.2 kV down to 120/240 V (custom…

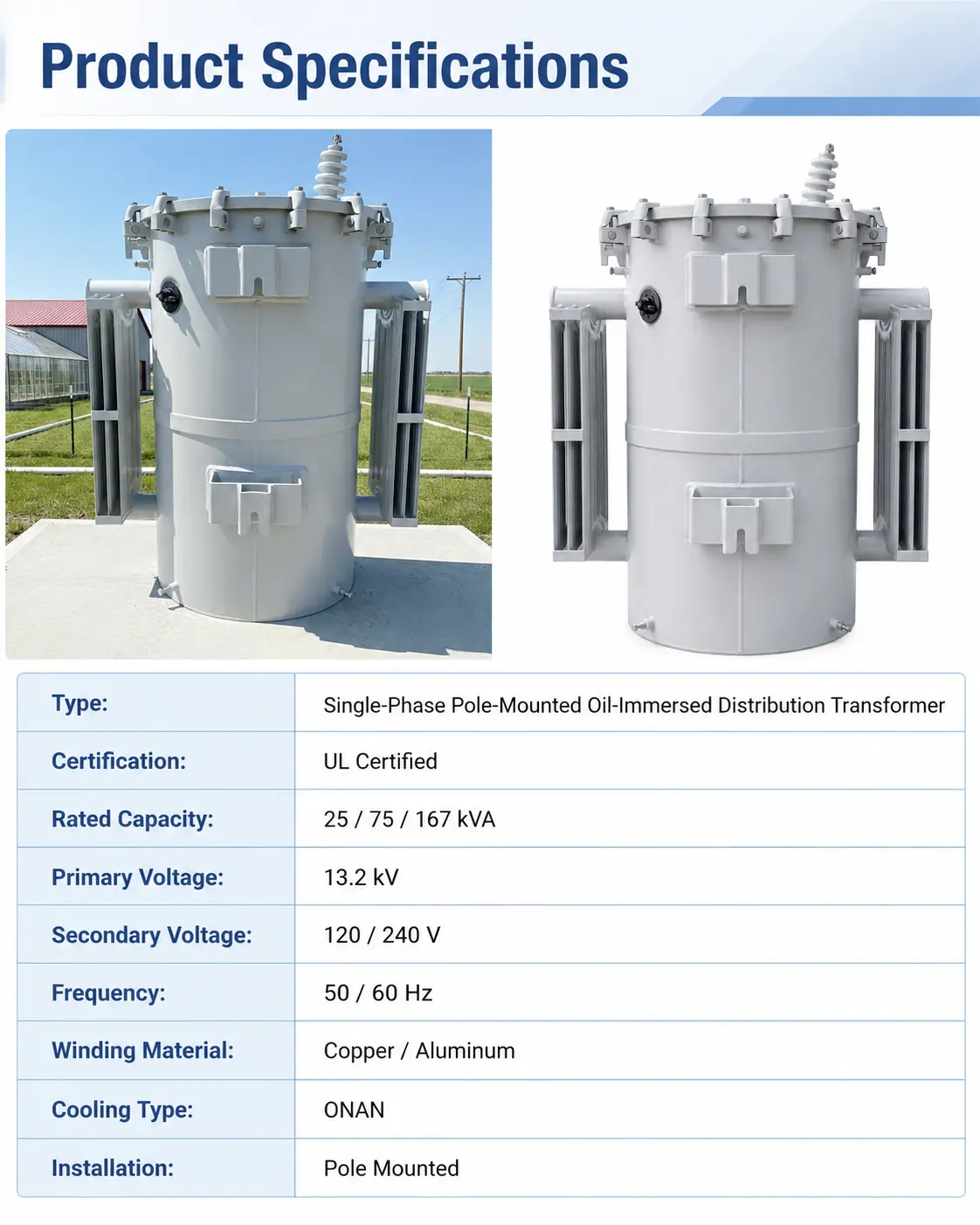

| Parameter | Value |
|---|---|
| Product Type | Single-Phase Pole-Mounted Oil-Filled Transformer |
| Rated Capacity | 25 / 75 / 167 kVA |
| Input Voltage (HV) | 13.2 kV (or custom) |
| Output Voltage (LV) | 120 / 240 V (or custom) |
| Frequency | 50 / 60 Hz |
| Phase | Single |
| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Application | Power Distribution System |
| Standard | UL / IEC / GB |
| Certification | UL, IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
Specifications reflect the supplied product data. Final dimensions, materials, colors and packaging are confirmed with the approved sample and order.
Designed and tested to UL / IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

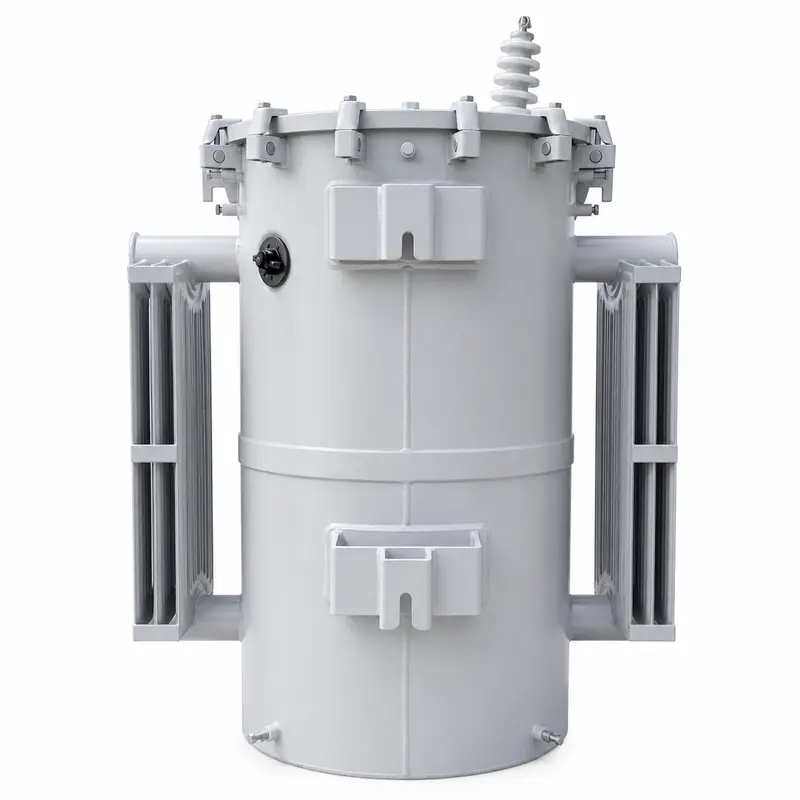

Carrying UL certification, this single-phase oil-filled pole-mounted transformer is offered at 25, 75 and 167 kVA, stepping 13.2 kV down to 120/240 V (custom available). Its sealed cylindrical tank suits outdoor utility-pole installation, and copper or aluminium windings meet both North-American and international distribution requirements under UL, IEC and additional certifications.

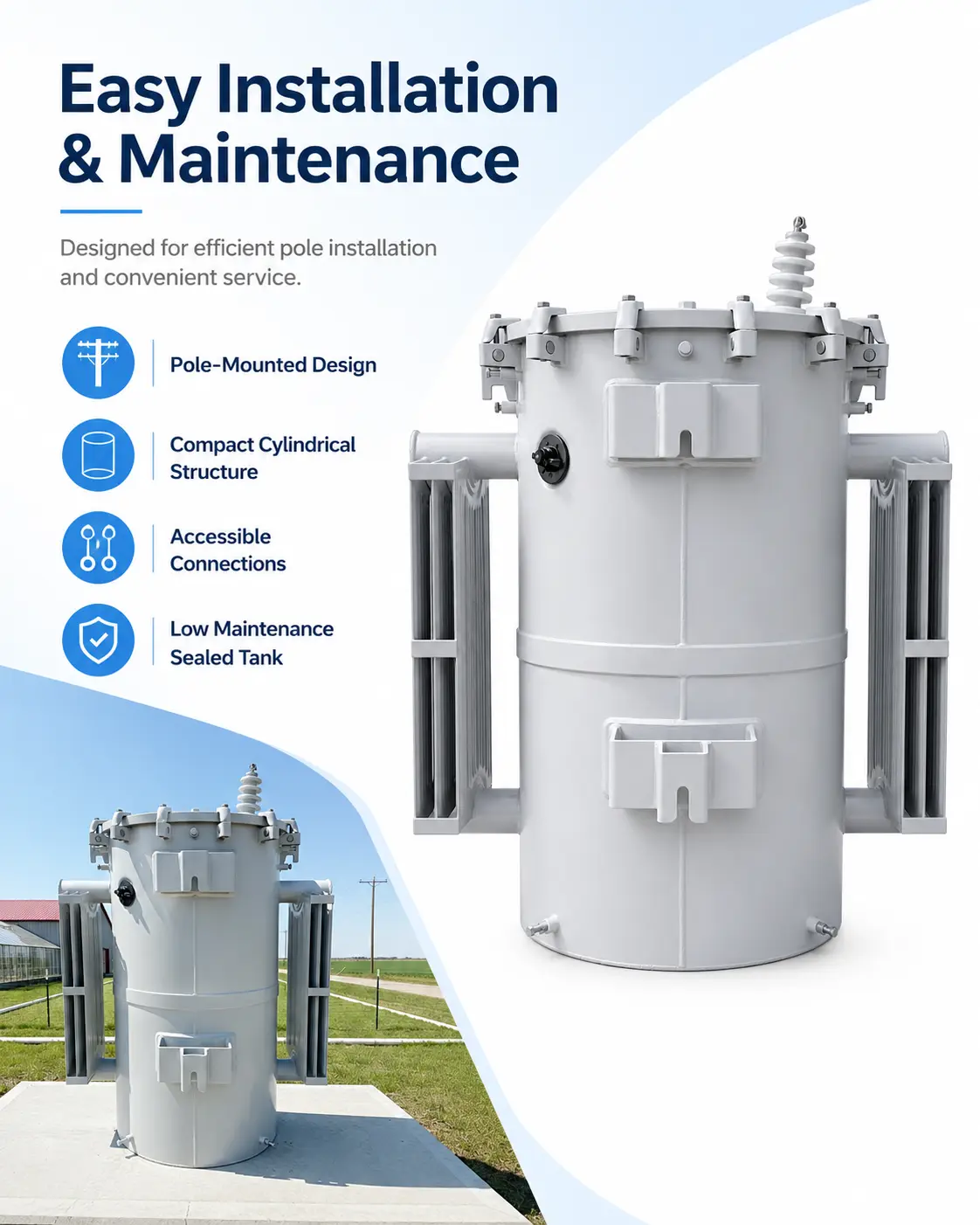

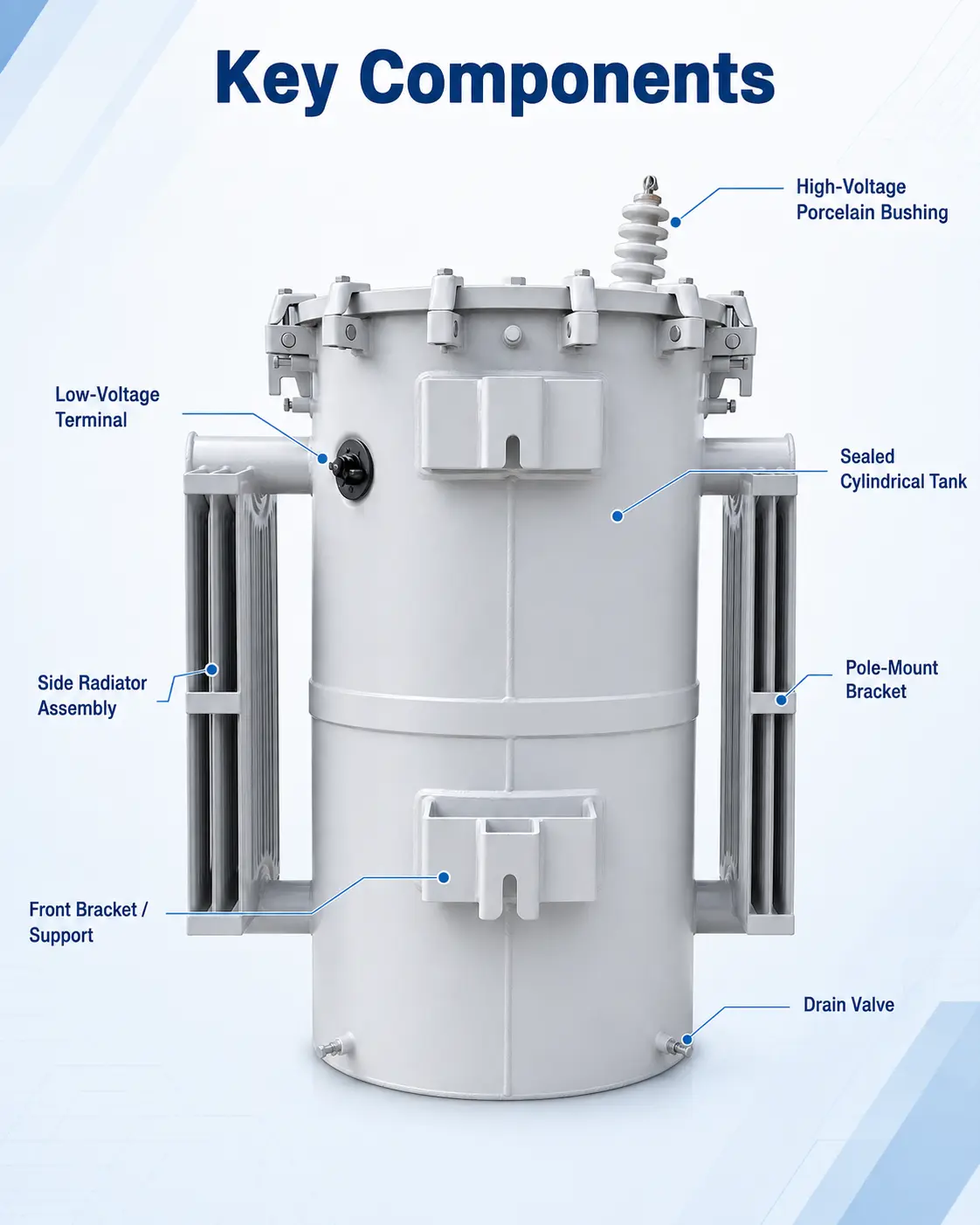

The sealed cylindrical steel tank carries high-voltage porcelain bushings on its cover and low-voltage terminals on the side, with brackets built in for direct pole mounting. UL listing confirms suitability for North-American networks, and because the tank is oil-filled and hermetically sealed, the windings stay free of moisture while the oil manages cooling — dependable single-phase performance with little maintenance.
Overhead distribution circuits for residential neighborhoods, rural electrification, farms, streets and light-commercial loads where a UL-listed single-phase pole-mounted step-down is required.
Capacity, HV/LV voltage, winding metal, bushing style and mounting hardware can be adapted to local grid standards including ANSI and IEC.

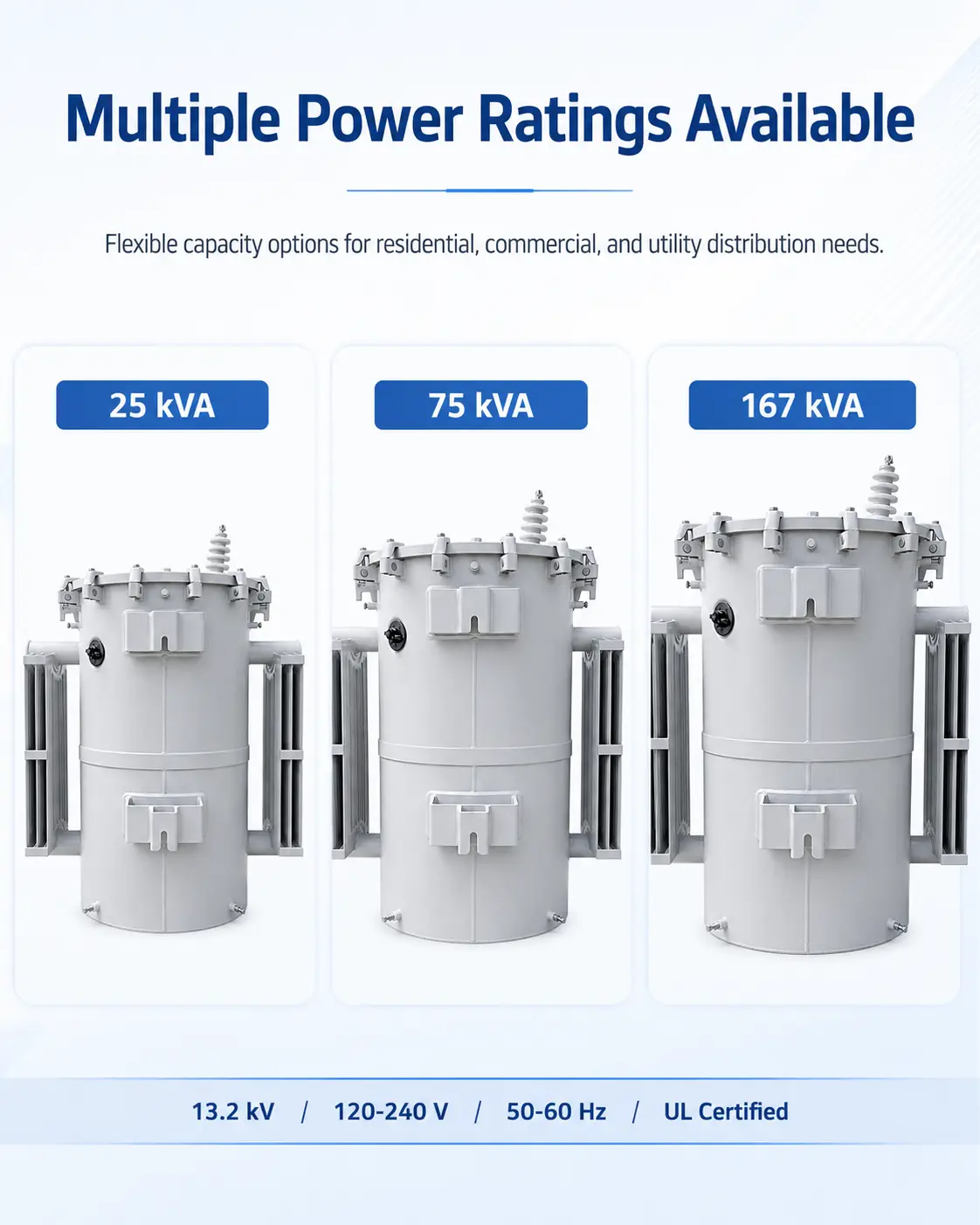

The rated capacity is 25 / 75 / 167 kVA, with an input voltage of 13.2 kV (or custom). Other ratings in the same series are quoted on request.
UL certification alongside a single-phase pole-mount build at 25 / 75 / 167 kVA; Sealed, oil-filled cylindrical tank for long, low-maintenance outdoor service; Engineered for pole and overhead-line mounting, brackets included.
Capacity, HV/LV voltage, winding metal, bushing style and mounting hardware can be adapted to local grid standards including ANSI and IEC.
Designed and tested to UL / IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
