Pole-Mounted Transformers
This oil-filled, single-phase distribution transformer mounts on utility poles and spans four ratings — 25, 50, 75 and 100 kVA — stepping a 7.62 kV primary…
| Parameter | Value |
|---|---|
| Product Type | Single-Phase Pole-Mounted Oil-Filled Transformer |
| Rated Capacity | 25 / 50 / 75 / 100 kVA |
| Input Voltage (HV) | 7.62 kV (or custom) |
| Output Voltage (LV) | 120-240 / 240-480 / 347 / 600 V (or custom) |
| Frequency | 50 / 60 Hz |
| Phase | Single |
| Winding Material | Aluminium / Copper |
| Coil Structure | Fully Sealed Construction |
| Application | Power Distribution System |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
| Package Size | 120 × 85 × 110 cm |
| Gross Weight | 60 kg |
Data above reflects the specifications supplied for this product. Exact dimensions, materials, colors and packaging are confirmed at sample approval and order sign-off.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

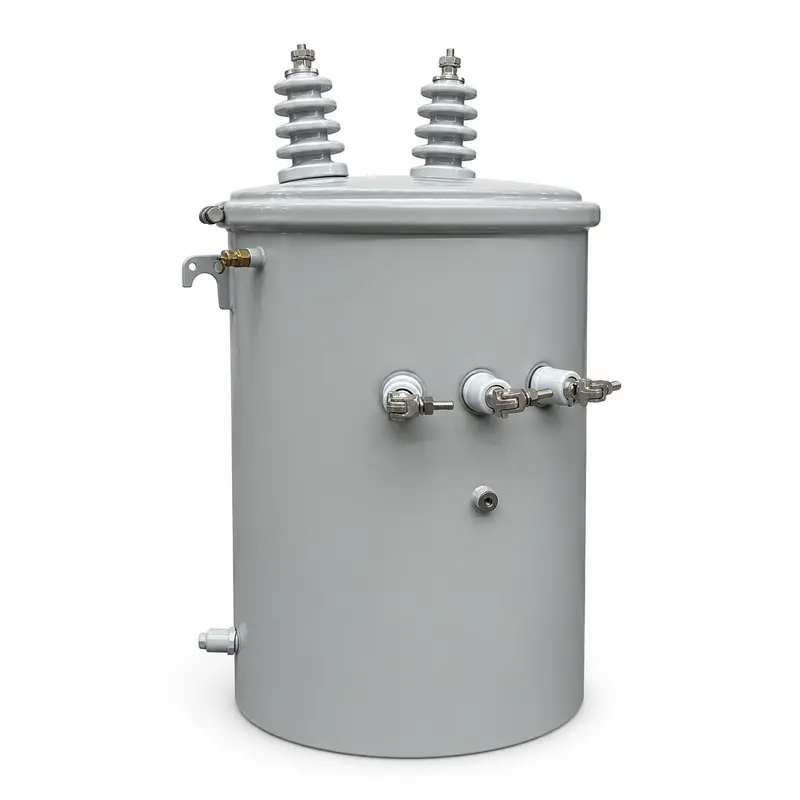

This oil-filled, single-phase distribution transformer mounts on utility poles and spans four ratings — 25, 50, 75 and 100 kVA — stepping a 7.62 kV primary down to 120–240 V (custom options available) for overhead networks. The sealed, cylindrical steel tank is engineered for outdoor pole service, and aluminium or copper windings plus IEC-aligned certification make it suitable across residential, rural and light-commercial grids.

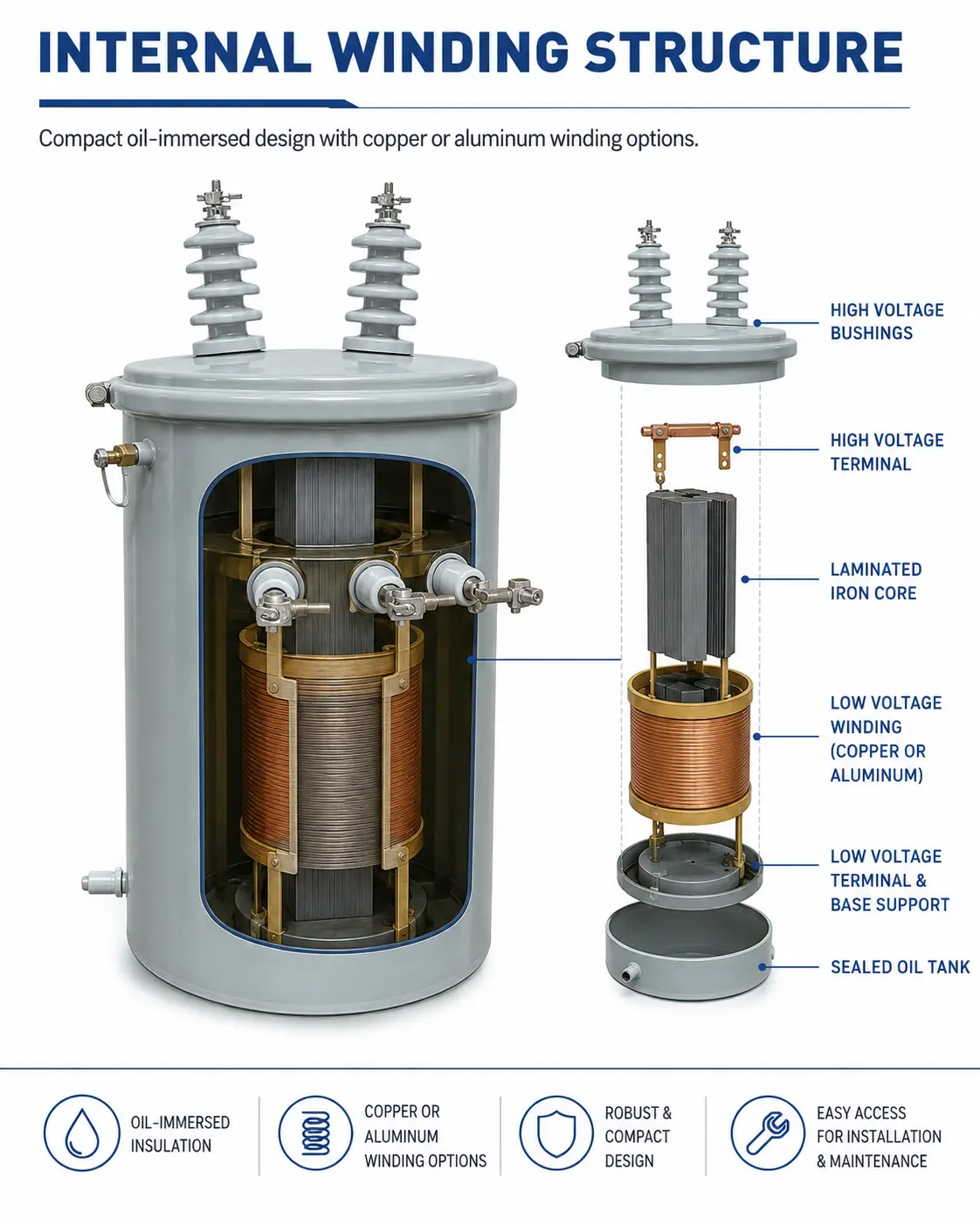

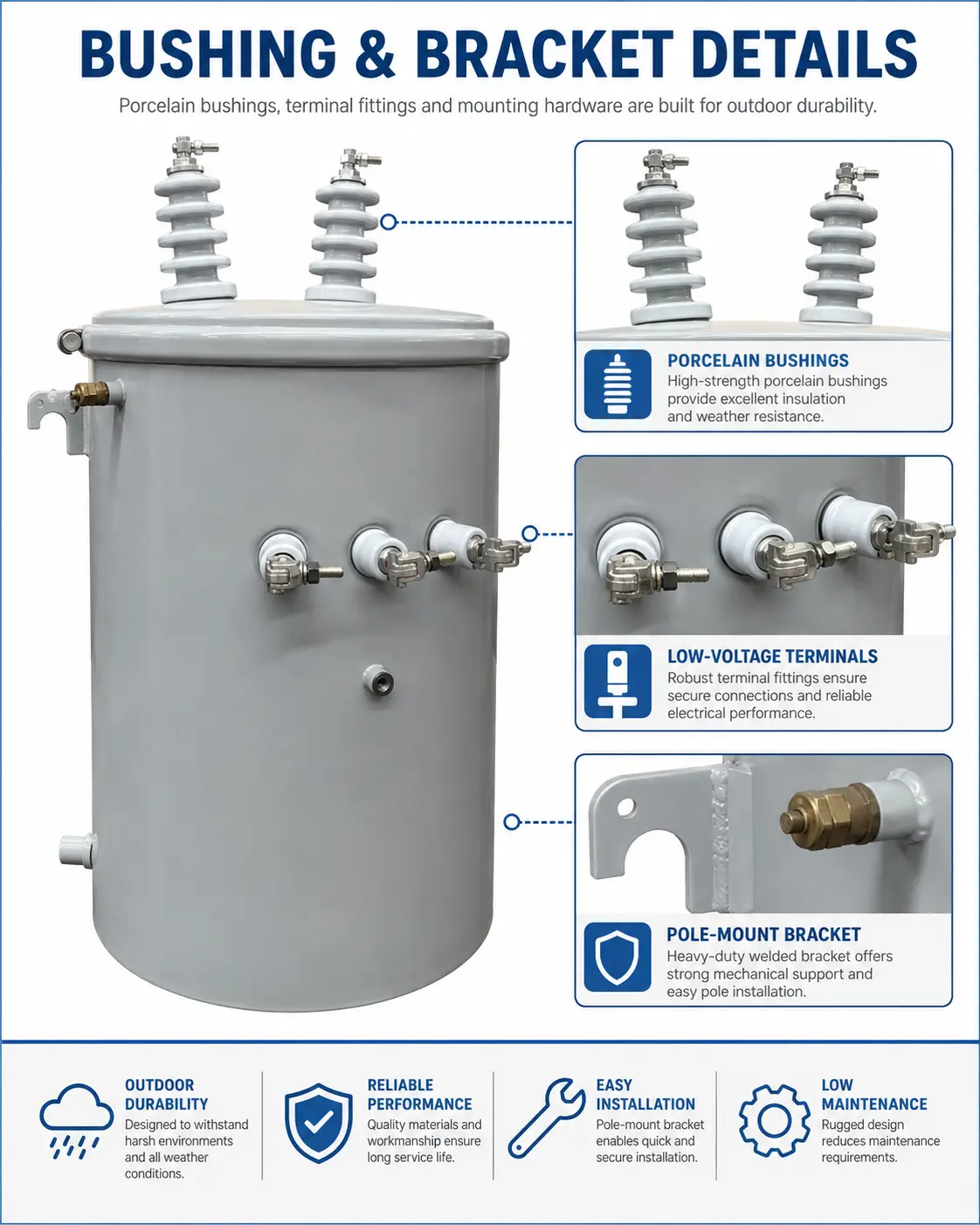

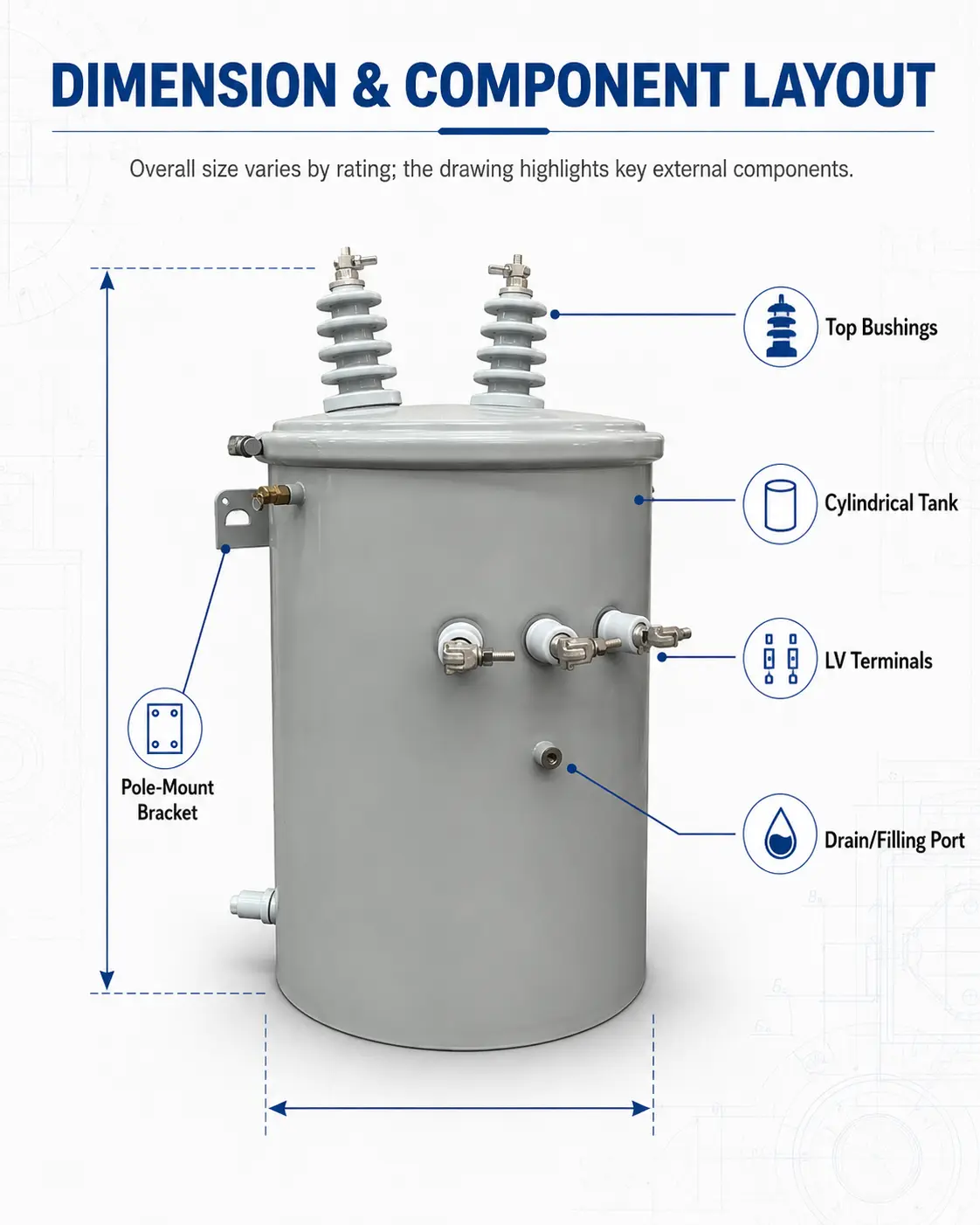

High-voltage porcelain bushings are fitted to the cover of the sealed cylindrical tank, with low-voltage terminals on the side and mounting brackets ready for direct pole attachment. Being fully oil-filled and hermetically sealed keeps moisture away from the windings and lets the oil double as the cooling medium, so the unit needs little more than routine inspection to stay reliable in single-phase service.
Overhead lines feeding residential neighborhoods, rural electrification schemes, farms, street circuits and light-commercial loads that call for a single-phase pole-mounted step-down.

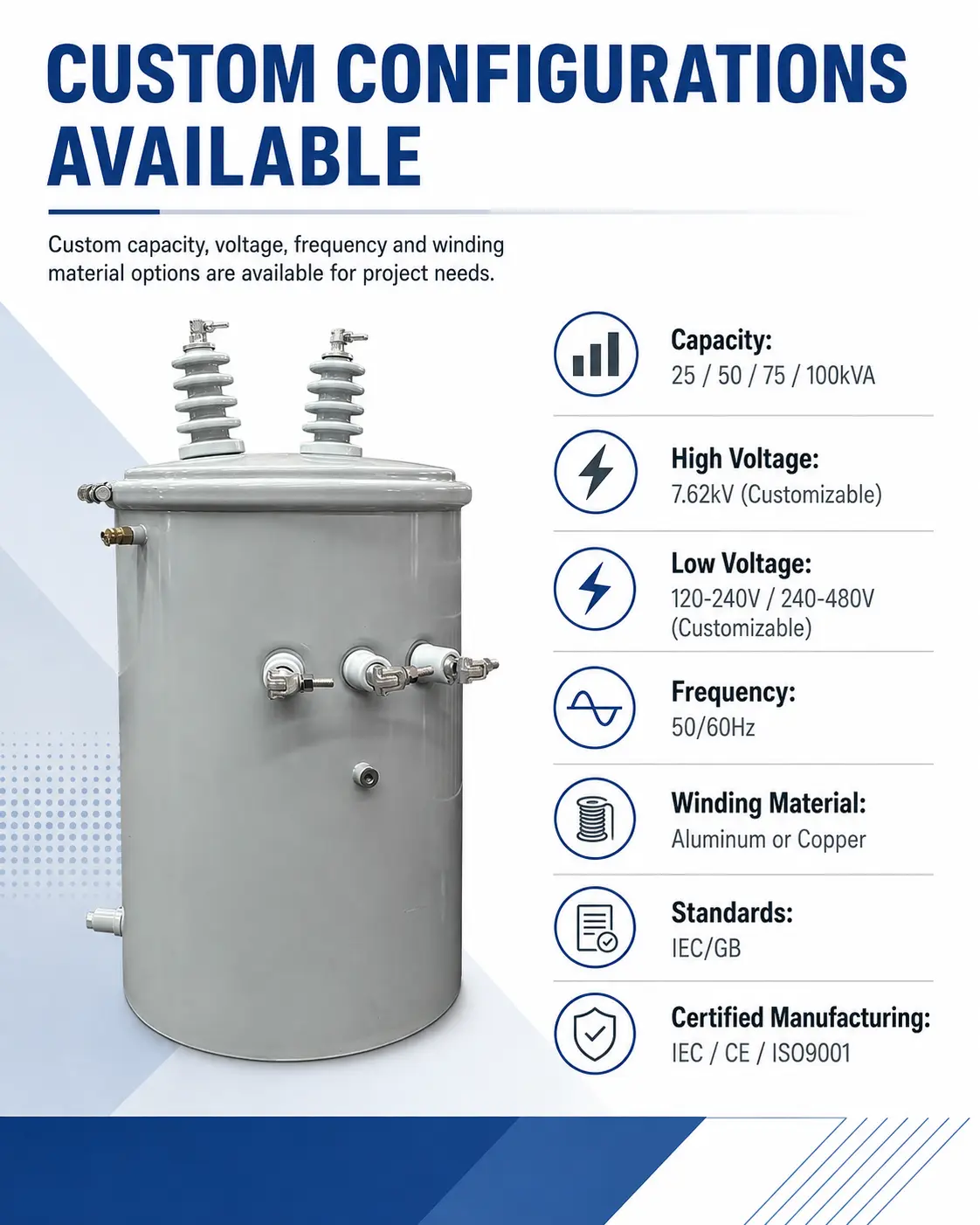

Capacity, HV/LV voltage pairing, winding material, bushing type and mounting fixtures can be adjusted to fit local standards such as ANSI or IEC.
The rated capacity is 25 / 50 / 75 / 100 kVA, with an input voltage of 7.62 kV (or custom). Other ratings in the same series are quoted on request.
Cylindrical single-phase form factor made for pole or overhead installation; Sealed oil-filled tank cuts down on field maintenance over the transformer's life; Consistent voltage regulation with low losses under distribution loading.
Capacity, HV/LV voltage pairing, winding material, bushing type and mounting fixtures can be adjusted to fit local standards such as ANSI or IEC.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
