Tanzania: 11 kV/0.4 kV Pole-Mounted Distribution Transformer

The engineering problem

Before it's an equipment challenge, rural electrification is a problem of voltage drop and losses. Loads are small, spread out and kilometres apart, so the network's real job is pushing 11 kV out as far as it can go and only stepping down to 0.4 kV close to where consumers actually are. Running LV cable too far is what produces the classic rural failure: voltage looks fine at the transformer but is unusable by the time it reaches the last house, leaving motors that struggle to start and lights that dim with every load change.

A pole-mounted transformer is the answer because it's a transformation point that doesn't need land, a fence or a foundation. It goes wherever the load is, and it can be relocated or the network extended around it as demand grows.

The duty cycle here is unusual in one particular way. Rural load factor tends to be low — real demand for only a few hours a day, next to nothing the rest of the time — so no-load loss, which runs around the clock regardless, ends up dominating lifetime energy loss far more than it would on an industrial feeder. That makes core material and no-load loss figures worth just as much attention as impedance.

The environment then sets the ceiling on reliability. East African feeders experience heavy lightning activity, and a pole-mounted unit sits exposed directly on the overhead line. Surge arresters — and specifically their earthing and lead length — largely determine whether the transformer makes it through the wet season. Dust, humidity, thermal cycling and the practical difficulty of remote maintenance all point toward keeping the arrangement simple and robust, with as few failure points as possible.

System configuration

Installation sequence

The contact sheet lays out the four stages an installation like this passes through: equipment staging, lifting and mounting on the pole, connecting protection and earthing, and the finished distribution line. The order comes down to what's still reachable later and what isn't. Earth electrode work and resistance measurement happen before the pole structure is fully dressed, since the connection point becomes awkward to get at once everything else is in place. Mechanical mounting is finished and proved before any conductor gets connected, so no live-side work ever depends on a bracket that hasn't already been checked. Testing closes things out, with the transformer proved before it's tied into the feeder.

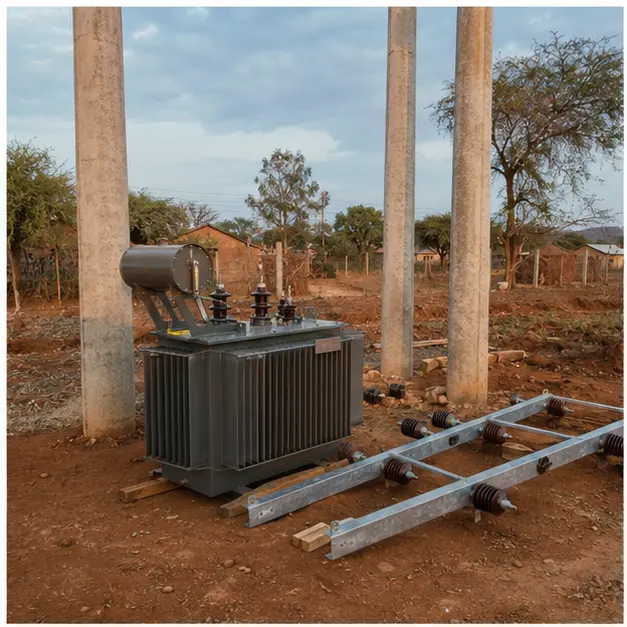

Staging counts for more on rural work than it does at a compact urban site, because a missing bracket or the wrong fuse carrier can cost an entire day of travel to fix. Equipment gets checked against the schedule and examined for transport damage: tank and radiator surfaces for dents and paint loss, bushings for chips or cracks, oil level and gasketed joints for leaks, and the nameplate checked against the ordered rating and vector group. Insulation resistance and turns ratio are usually measured at the staging point rather than up on the pole, where handling instruments is far more awkward. Poles, crossarms, insulators, fuses, arresters and earthing material get laid out per structure so the installation crew has everything it needs in one place.

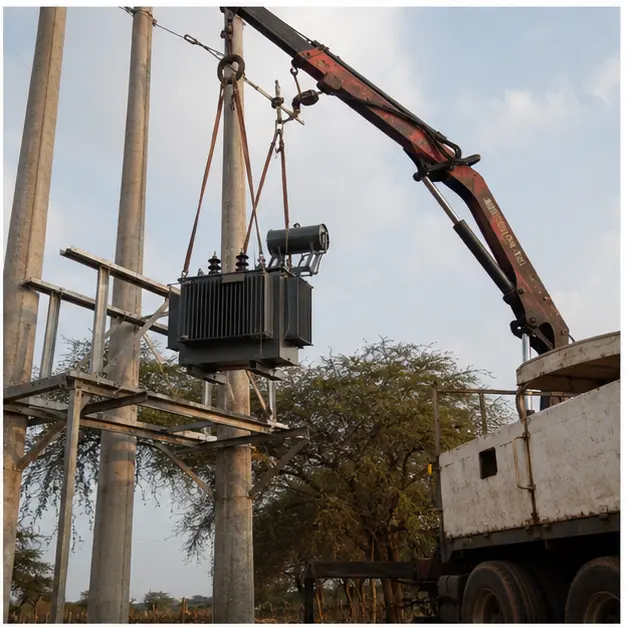

Lifting the transformer onto its pole platform is the most mechanically demanding step. It's slung from the designated lifting lugs with the sling angle kept under control — widen that angle and the tension in each leg climbs well beyond what its apparent share of the load would suggest. The pole and its foundation get confirmed adequate for the added mass and the off-centre moment it creates before the lift happens at all, and guying is checked wherever the structure also carries conductor tension. Mounting brackets sit flat against the pole and are bolted to spec, since a bracket bearing on just one edge concentrates load and works itself loose under thermal and wind cycling. Ground clearance gets confirmed against the utility standard before the job is called done.

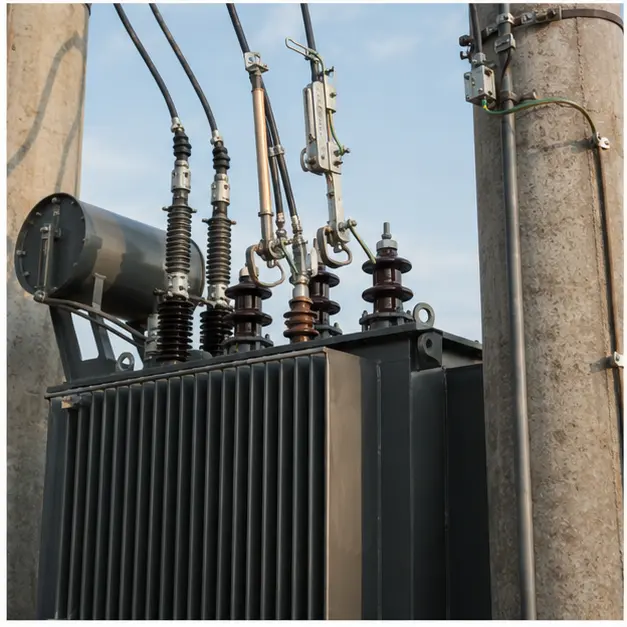

Protection and earthing are where a pole-mounted installation either holds up or fails. Surge arresters mount close to the transformer bushings with the shortest earth lead that's practically achievable — lead inductance adds a voltage of L·di/dt on top of the arrester's own residual voltage, so a long, looping earth lead can undo the very protection it's meant to provide. Arrester earth, tank earth and the LV neutral all bond to the same electrode system, avoiding a potential difference that could otherwise appear across the insulation during a strike. Electrode resistance gets measured rather than assumed, with extra rods or a counterpoise added wherever soil resistivity runs high. Fuse ratings are checked for coordination, and every connection uses the correct connector, with a bimetallic interface wherever dissimilar metals meet.

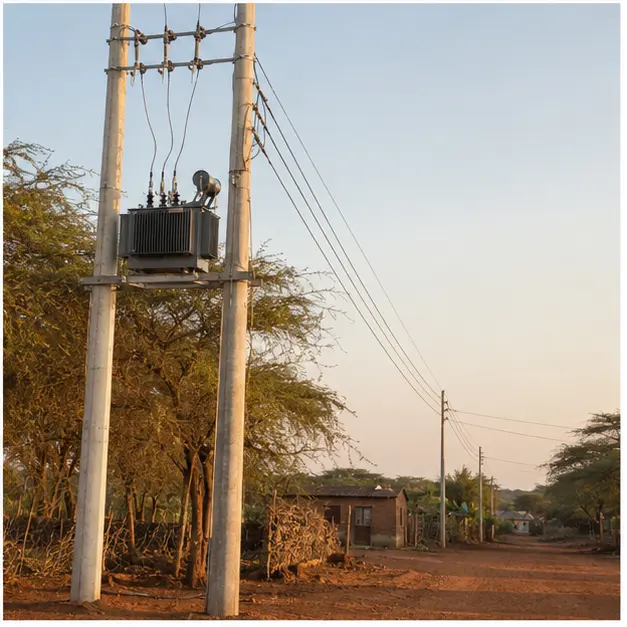

The finished line shows the transformation point at work on the overhead network. Before energisation, turns ratio, vector group and insulation resistance are verified, earth resistance is logged, and LV phase rotation and voltage are confirmed once the transformer is charged unloaded. Clearances to ground, to structures and to any crossings are checked against the utility standard, and warning signage and identification go up. Load is then brought on gradually while LV voltage is checked at the far end of the network — because the whole point of the exercise is voltage at the consumer, not at the transformer. A thermographic check of connector temperatures is worthwhile once load has settled.

Specification options

For a comparable rural enquiry, Millenium can adjust the voltage ratio and tapping range, capacity, vector group and impedance, offering copper or aluminium windings and a low no-load loss core wherever the load factor justifies the extra cost. Units can be supplied as conventional pole-mounted transformers or, where the utility standard calls for it, with integral protection built in. Bushing creepage can be increased for polluted or coastal conditions, and tank coating specified for humidity, UV and corrosion resistance. Fuse cut-outs, lightning arresters, crossarms, insulators, LV boards and connection hardware can all be supplied as a matched set built to the utility's standard drawing. Temperature-rise limits and overload capability can be set for the site ambient, and monitoring can extend to oil-level and temperature indication wherever the network operator wants that data collected.
