Pole-Mounted Transformers
Available in 25, 50, 75 and 100 kVA ratings, this single-phase oil-filled pole-mounted transformer steps an 11.4 kV (11400 V) primary down to 120/240 V, with…

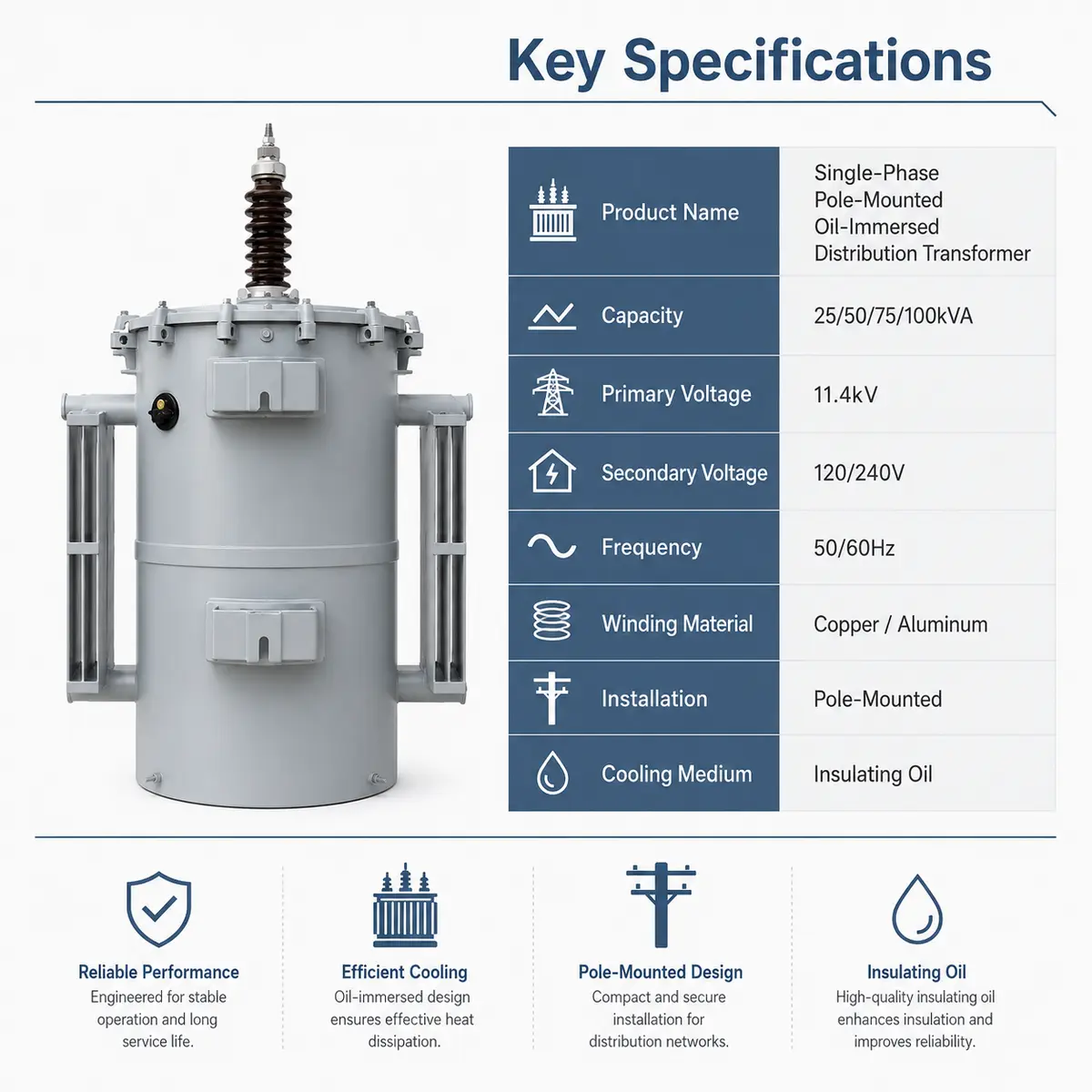

| Parameter | Value |
|---|---|
| Product Type | Single-Phase Pole-Mounted Oil-Filled Transformer |
| Rated Capacity | 25 / 50 / 75 / 100 kVA |
| Input Voltage (HV) | 11.4 kV / 11400 V (or custom) |
| Output Voltage (LV) | 120 / 240 V (or custom) |
| Frequency | 50 / 60 Hz |
| Phase | Single |
| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Application | Power Distribution System |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
Figures come from the supplied product data. Exact dimensions, materials, colors and packaging are confirmed against the approved sample and final order.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

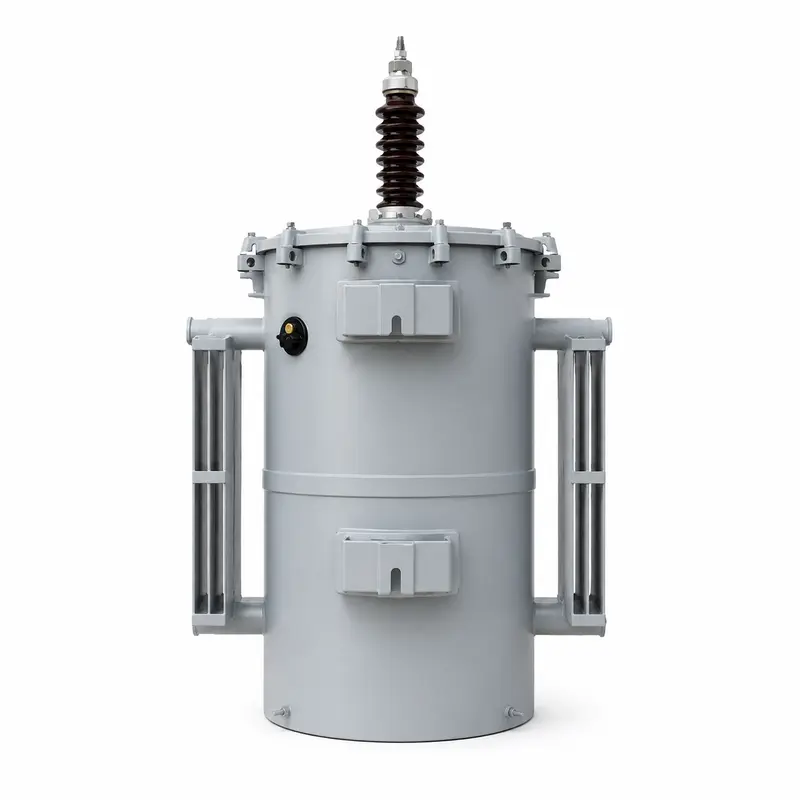

Available in 25, 50, 75 and 100 kVA ratings, this single-phase oil-filled pole-mounted transformer steps an 11.4 kV (11400 V) primary down to 120/240 V, with custom ratios available. The sealed cylindrical tank is built for outdoor pole service, and copper or aluminium windings carry IEC-based certification for residential, rural and light-commercial distribution.

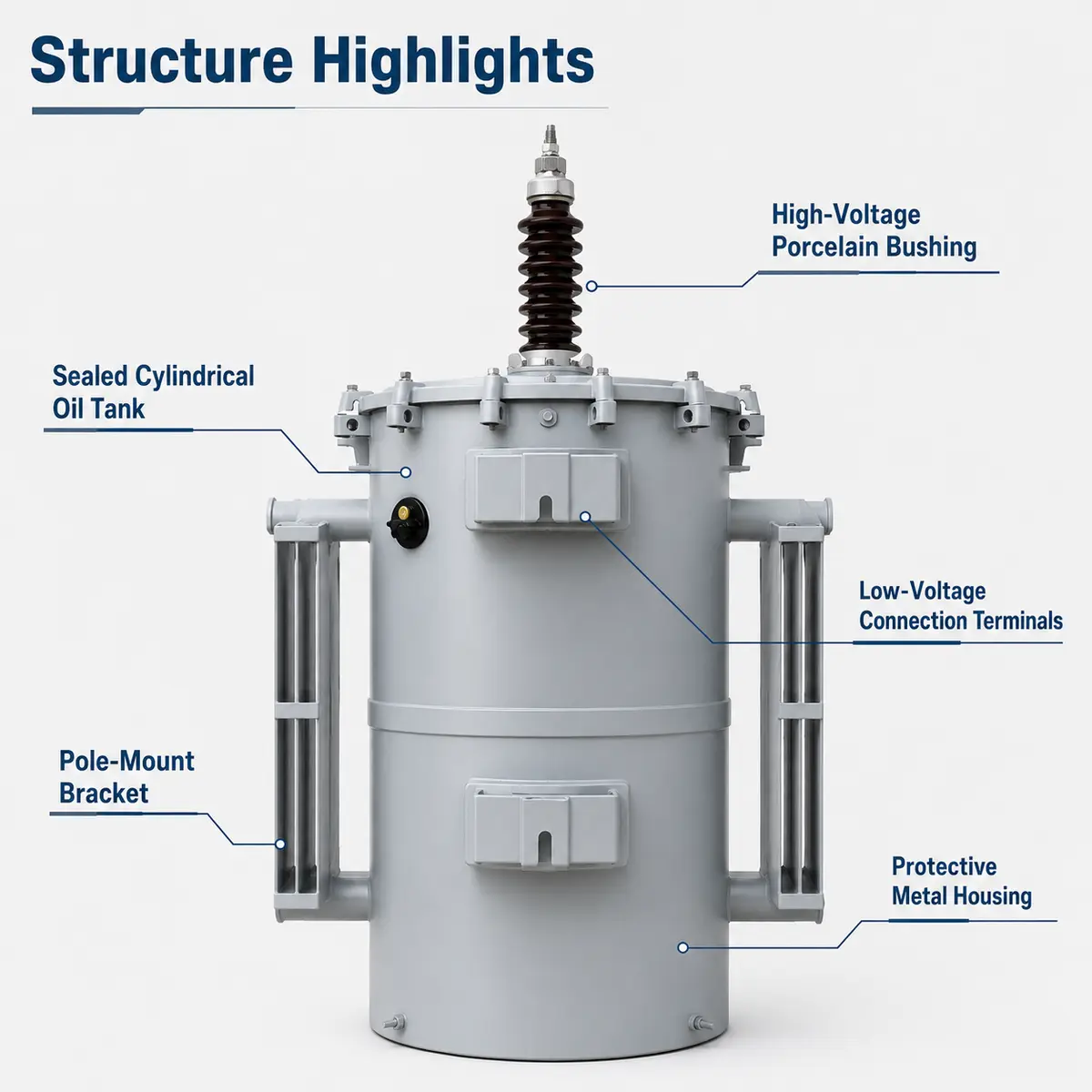

The sealed cylindrical steel tank's cover holds the high-voltage porcelain bushings, with low-voltage terminals on the side and brackets ready for pole attachment. Sealing the tank and filling it with oil protects the windings from moisture while the oil handles cooling, keeping the unit reliable with minimal maintenance across all four ratings.
Overhead distribution lines for residential neighborhoods, rural electrification, farms, streets and light-commercial loads requiring single-phase pole-mounted step-down.
Capacity, HV/LV voltage, winding metal, bushing type and mounting hardware can be matched to local grid standards including ANSI and IEC.
The rated capacity is 25 / 50 / 75 / 100 kVA, with an input voltage of 11.4 kV / 11400 V (or custom). Other ratings in the same series are quoted on request.
Single-phase pole-mount platform covering 25 / 50 / 75 / 100 kVA; Sealed, oil-filled cylindrical tank for long-lasting, low-maintenance outdoor use; Purpose-built for pole and overhead-line mounting with integral brackets.
Capacity, HV/LV voltage, winding metal, bushing type and mounting hardware can be matched to local grid standards including ANSI and IEC.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
