Pole-Mounted Transformers

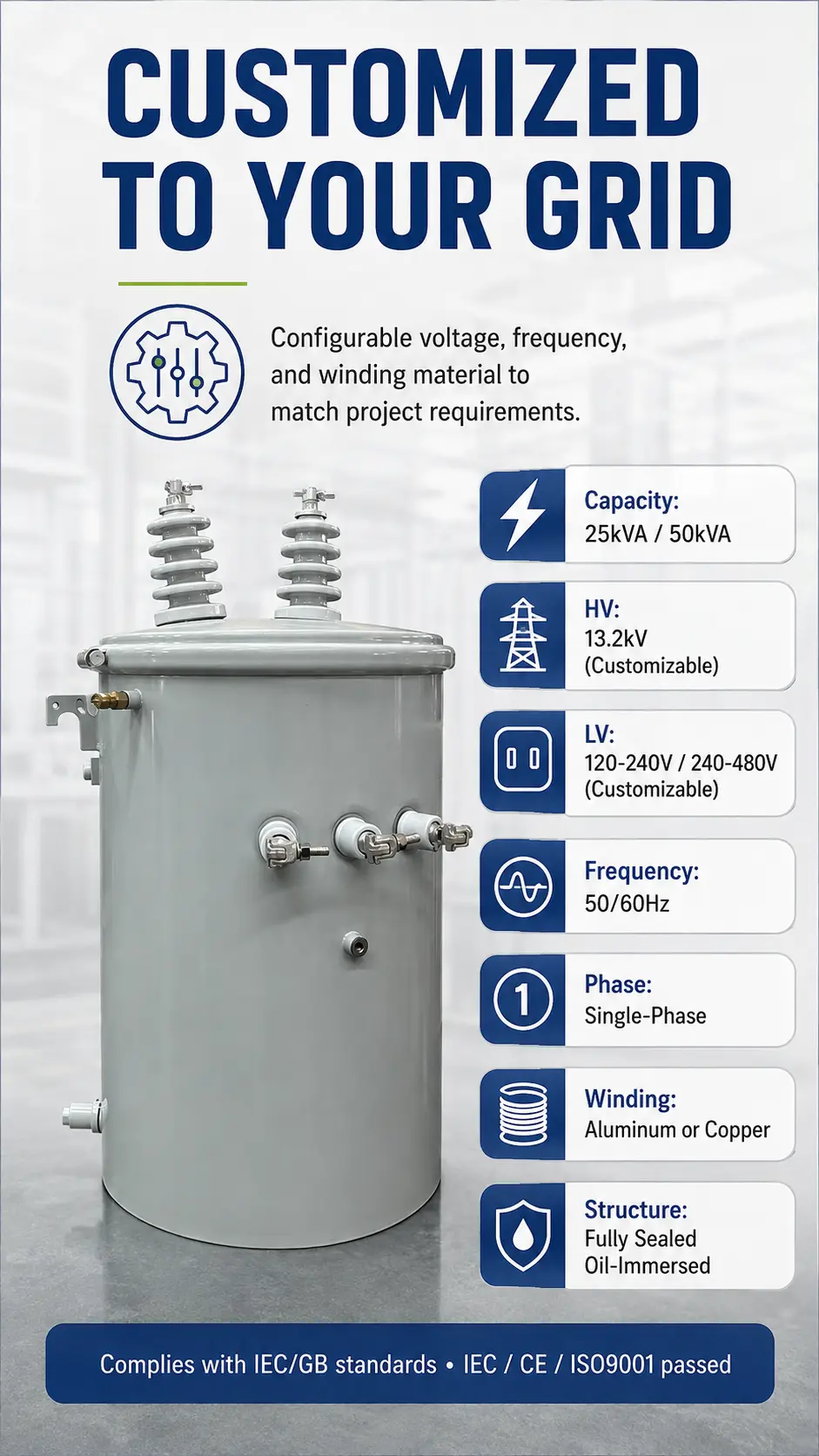

This single-phase oil-filled pole-mounted transformer comes in 25 kVA and 50 kVA ratings, stepping 13.2 kV down to 120–240 V (custom available). Its compact…
| Parameter | Value |
|---|---|
| Product Type | Single-Phase Pole-Mounted Oil-Filled Transformer |
| Rated Capacity | 25 kVA & 50 kVA |
| Input Voltage (HV) | 13.2 kV (or custom) |
| Output Voltage (LV) | 120-240 / 240-480 / 347 / 600 V (or custom) |
| Frequency | 50 / 60 Hz |
| Phase | Single |
| Winding Material | Aluminium / Copper |
| Coil Structure | Fully Sealed Construction |
| Application | Power Distribution System |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
| Package Size | 120 × 85 × 110 cm |
| Gross Weight | 60 kg |
Specifications above reflect the supplied product data. Final dimensions, materials, colors and packaging are subject to the confirmed sample and order.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

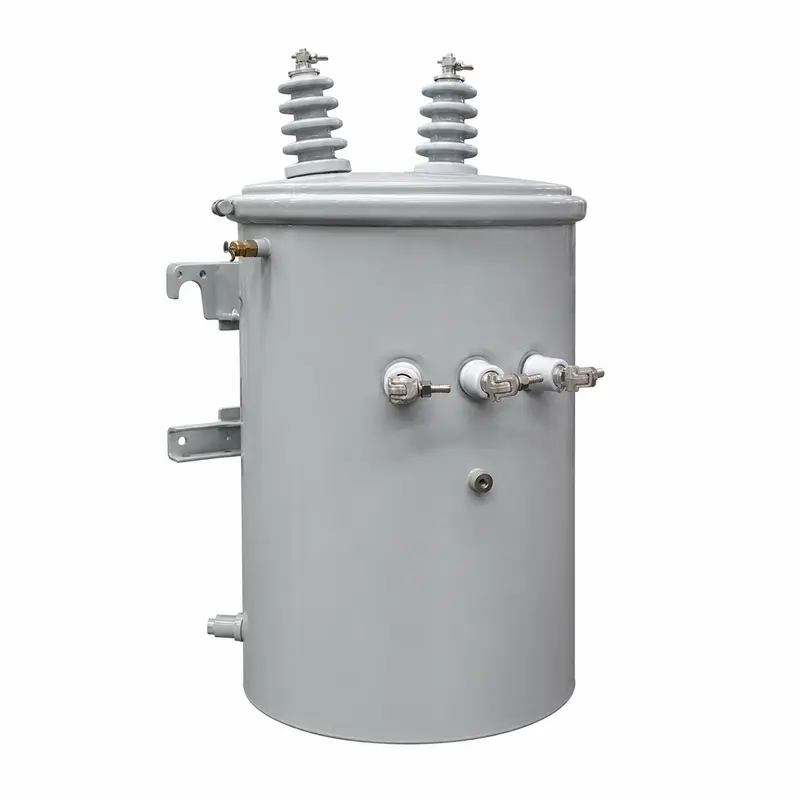

This single-phase oil-filled pole-mounted transformer comes in 25 kVA and 50 kVA ratings, stepping 13.2 kV down to 120–240 V (custom available). Its compact, sealed cylindrical tank is designed for outdoor overhead mounting on utility poles, giving reliable power to residential, rural and light-commercial networks. Windings are available in aluminium or copper, and the unit is certified to IEC and other international standards.

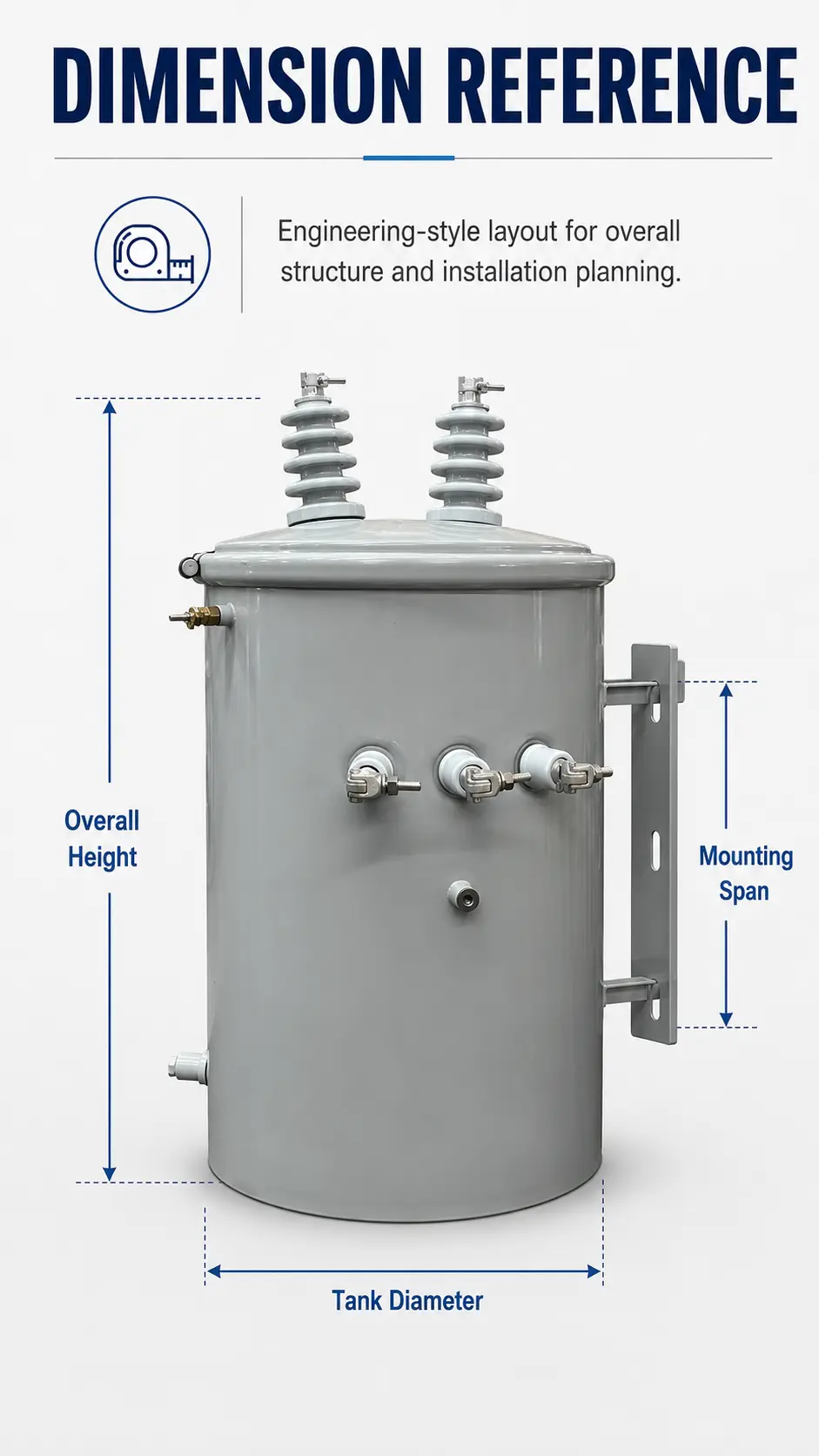

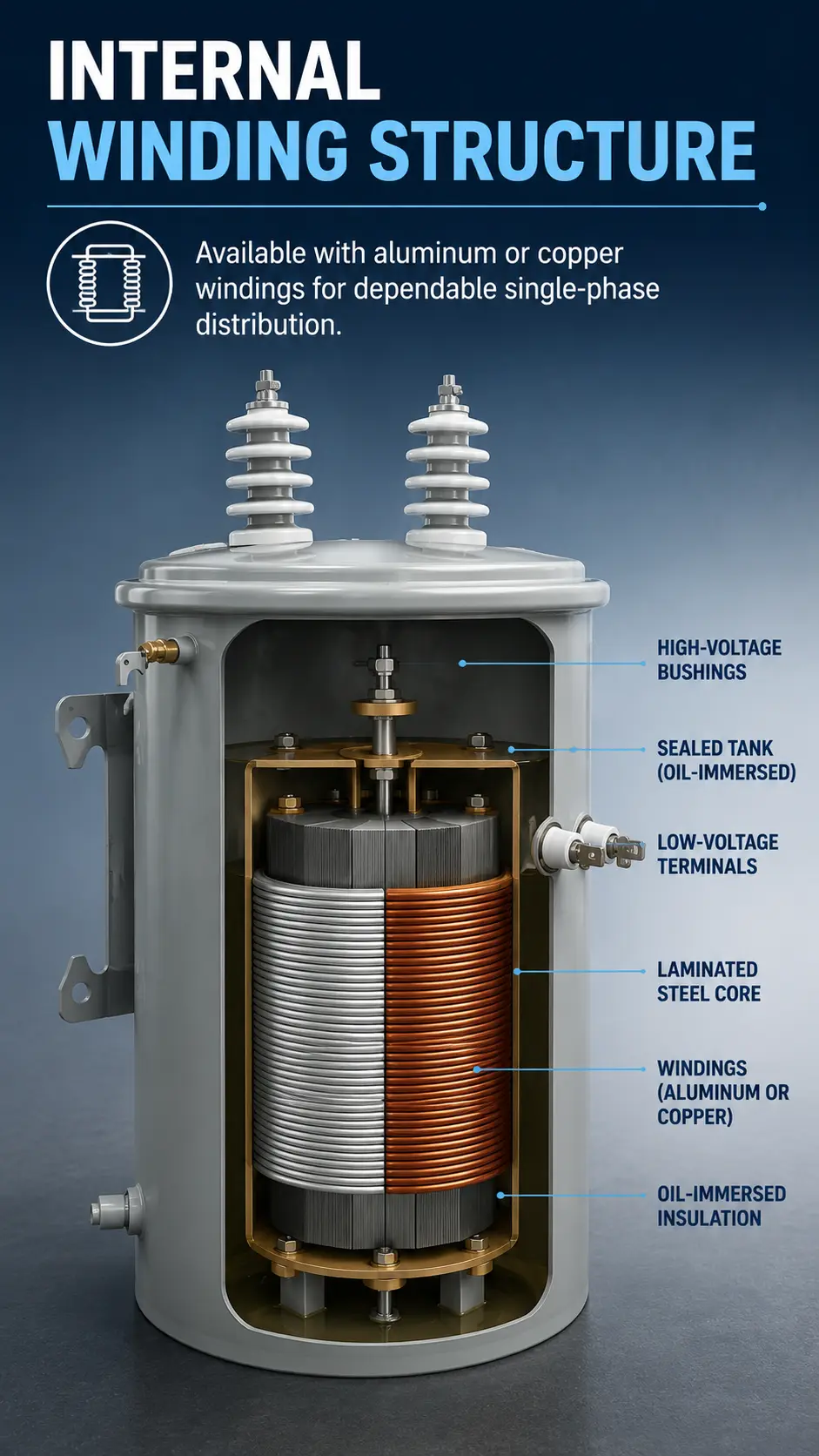

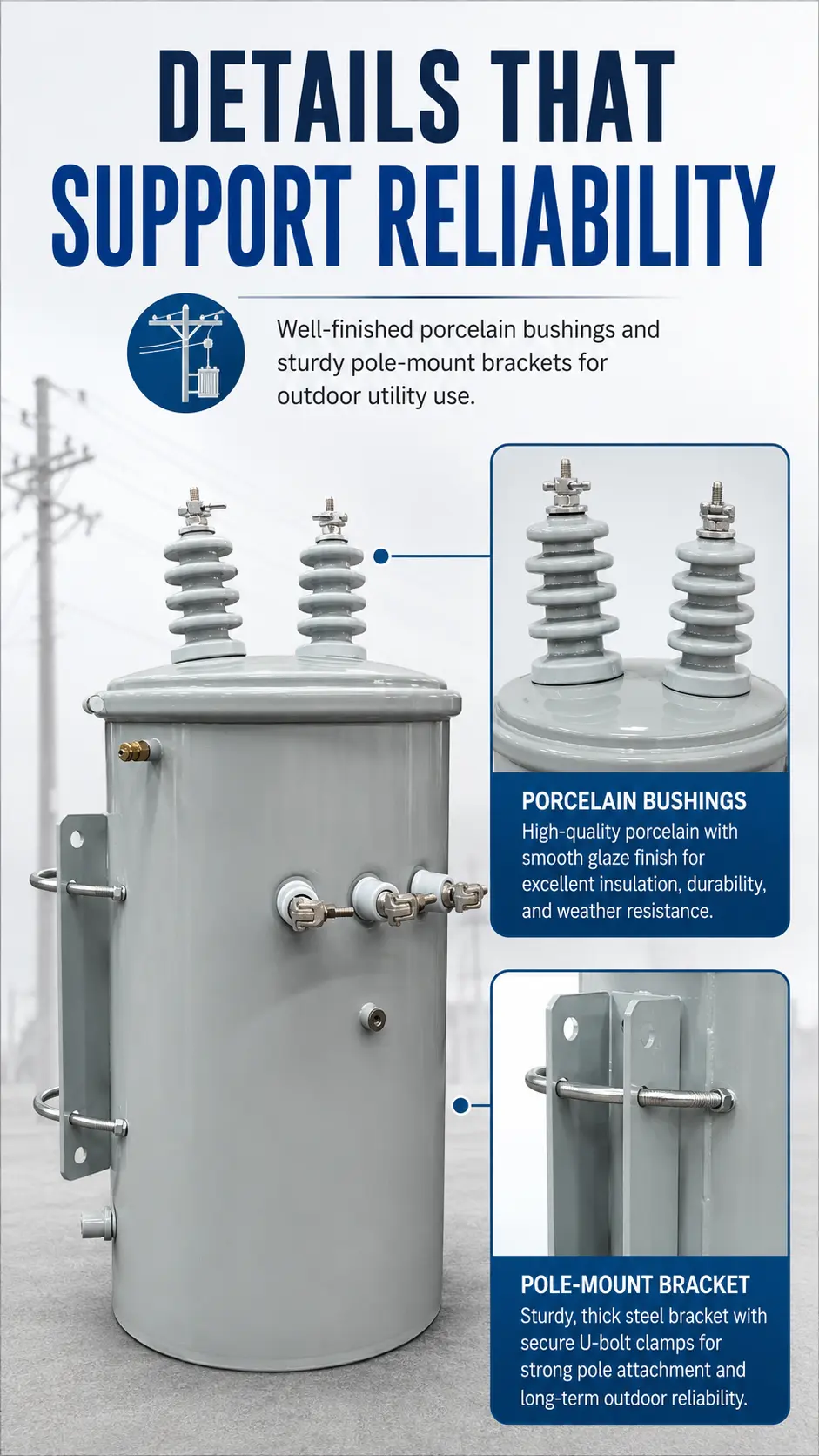

Two high-voltage porcelain bushings sit on the sealed steel tank's cover, low-voltage terminals are fitted to the side, and mounting brackets let the unit attach directly to a distribution pole. The oil-filled, hermetically sealed build keeps the windings dry and lets the oil manage cooling, so the transformer runs reliably with minimal upkeep.
Overhead distribution circuits for residential neighborhoods, rural electrification, farms, streets and light-commercial loads that call for single-phase pole-mounted step-down.
Capacity, HV/LV voltage, winding metal, bushing style and mounting hardware can be adapted to local grid standards such as ANSI or IEC.
The rated capacity is 25 kVA & 50 kVA, with an input voltage of 13.2 kV (or custom). Other ratings in the same series are quoted on request.
Compact single-phase cylindrical body sized for pole and overhead mounting; Sealed, oil-filled tank for long, low-maintenance outdoor operation; Low losses and steady voltage regulation under distribution loads.
Capacity, HV/LV voltage, winding metal, bushing style and mounting hardware can be adapted to local grid standards such as ANSI or IEC.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
Key differences between IEC and ANSI/IEEE transformer standards for 60 Hz markets: voltages, BIL, temperature rise, bushings, testing and UL listing.
· 8 min read

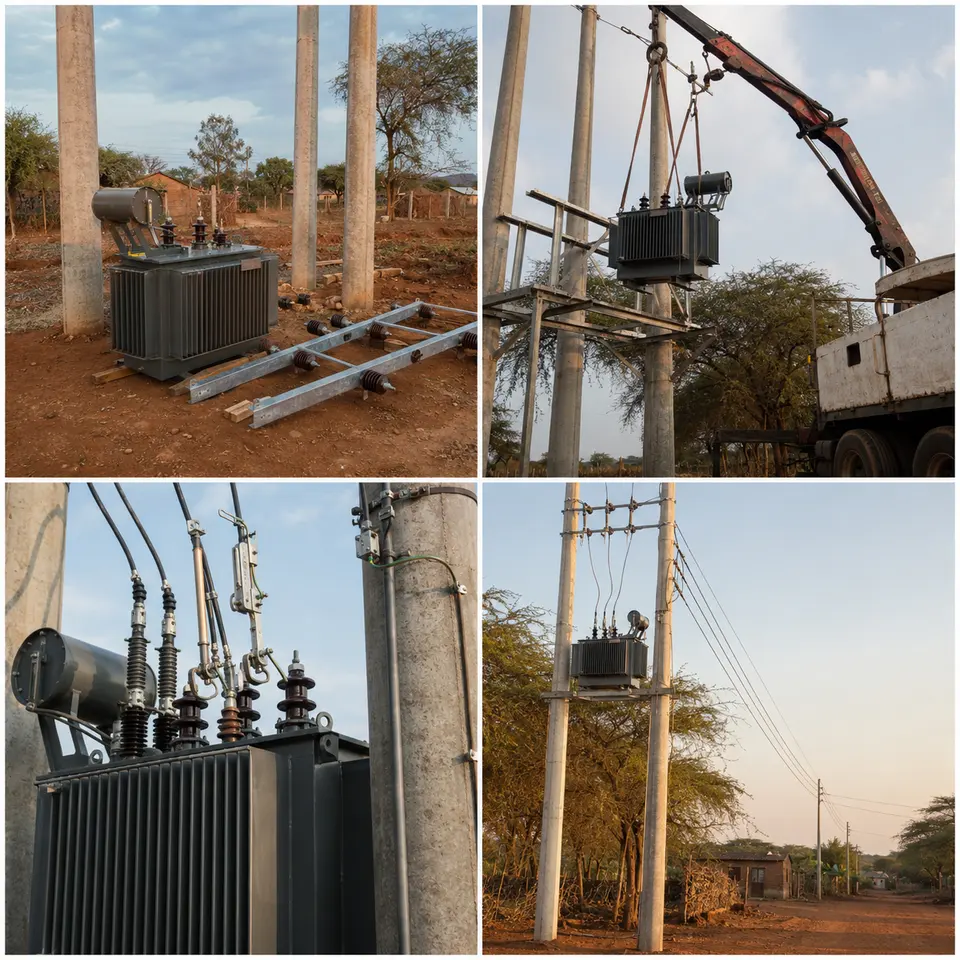

11 kV/0.4 kV pole-mounted distribution transformer — Rural distribution network extension. 11 kV incoming / 0.4 kV outgoing, 50 Hz.
