Pole-Mounted Transformers
Rated across four steps — 50, 100, 200 and 333 kVA — this outdoor single-phase oil-filled transformer steps a 13.2–13.8 kV primary down to a flexible…

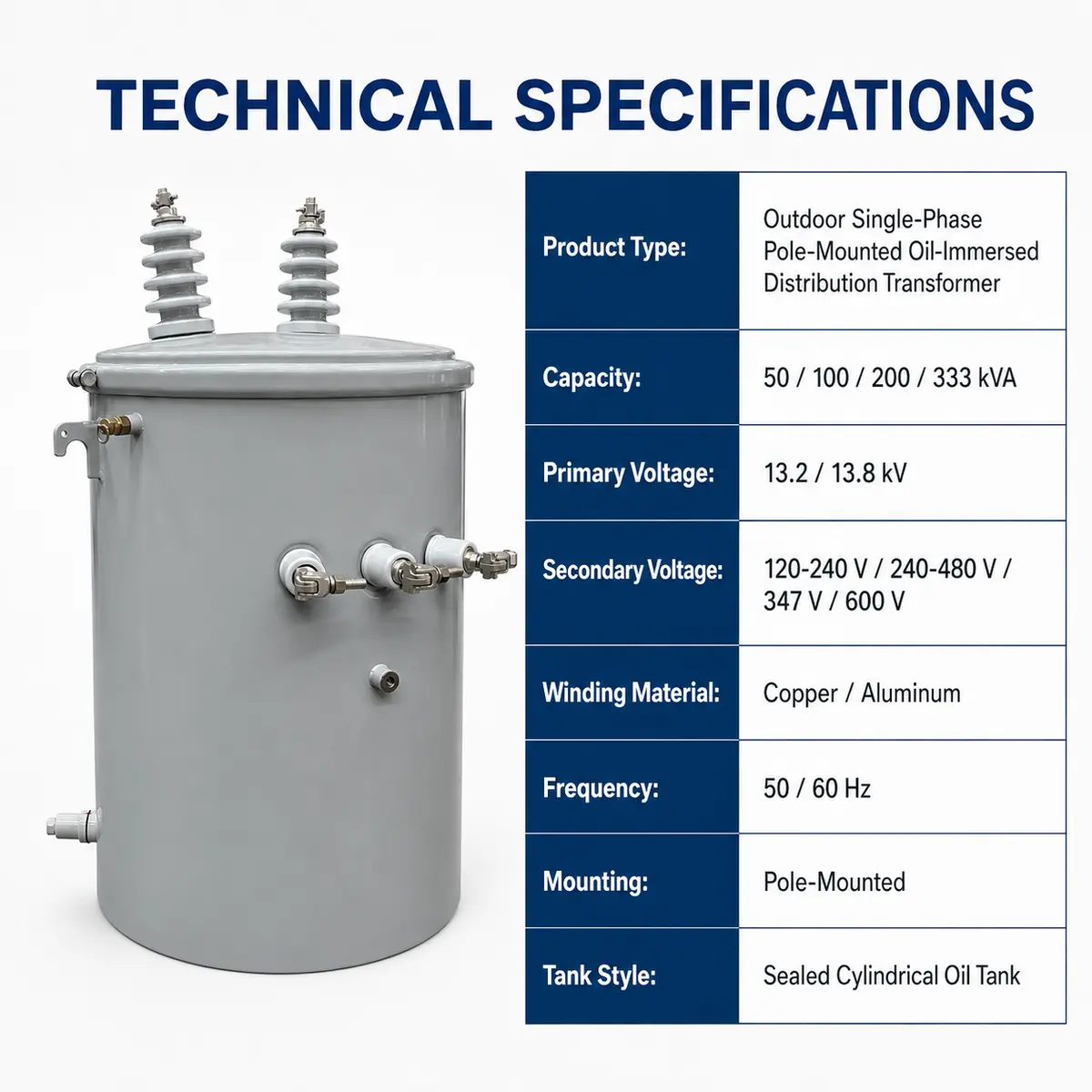

| Parameter | Value |
|---|---|
| Product Type | Single-Phase Pole-Mounted Oil-Filled Transformer |
| Rated Capacity | 50 / 100 / 200 / 333 kVA |
| Input Voltage (HV) | 13.2 / 13.8 kV (or custom) |
| Output Voltage (LV) | 120-240 / 240-480 / 347 / 600 V (or custom) |
| Frequency | 50 / 60 Hz |
| Phase | Single |
| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Application | Power Distribution System |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
Figures shown reflect the supplied product data. Exact dimensions, materials, colors and packaging are confirmed with the approved sample and final order.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

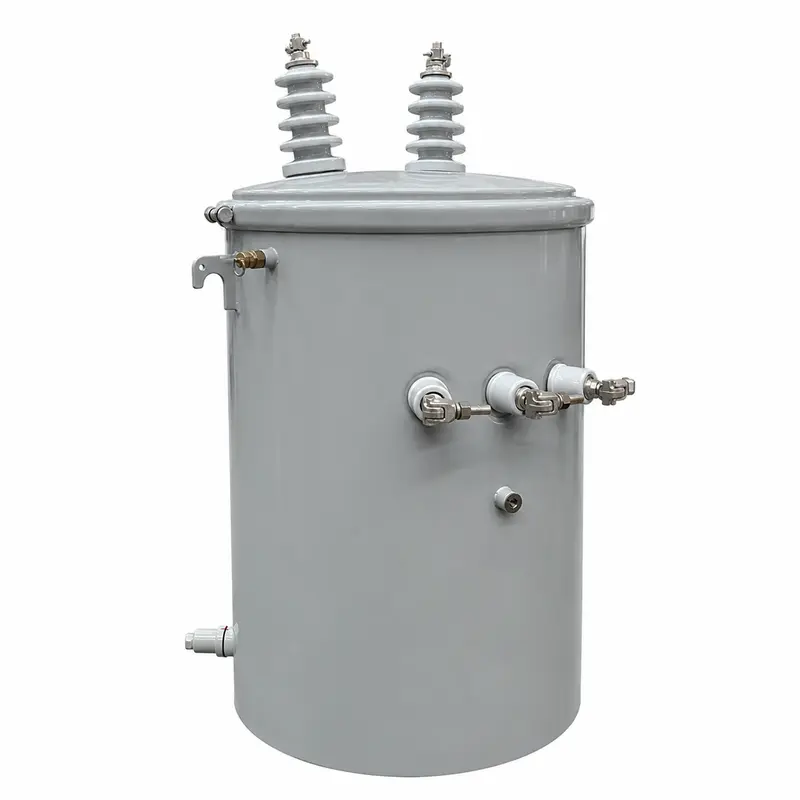

Rated across four steps — 50, 100, 200 and 333 kVA — this outdoor single-phase oil-filled transformer steps a 13.2–13.8 kV primary down to a flexible low-voltage secondary for pole-mounted overhead service. Its sealed cylindrical tank is designed for field installation on utility poles, and copper or aluminium windings meet IEC and related international standards across residential, rural and light-commercial grids.

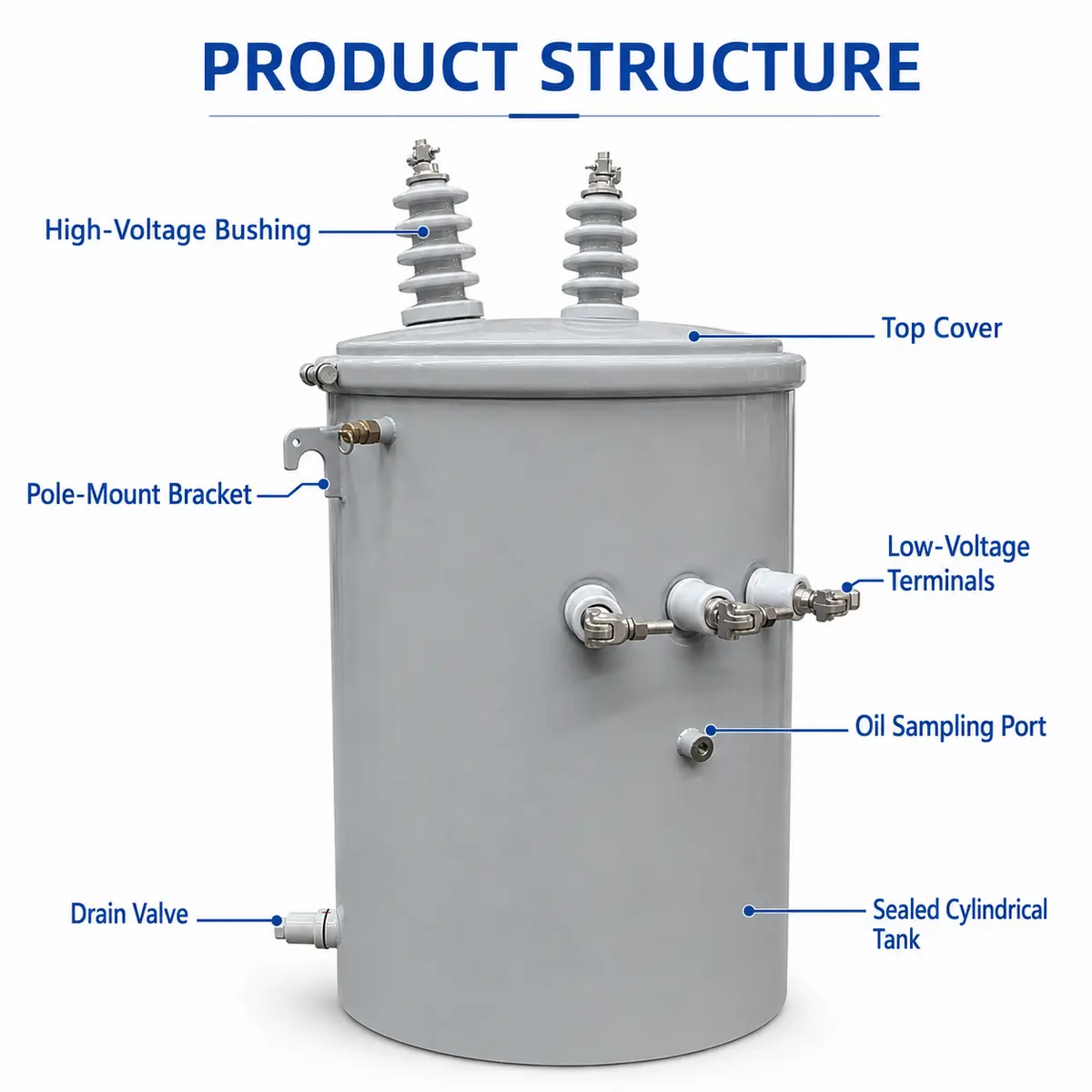

High-voltage porcelain bushings mount to the cover of the sealed cylindrical steel tank, low-voltage terminals sit on the side, and brackets are built in for direct pole fixing. The sealed, oil-filled construction keeps moisture off the windings and lets the oil handle cooling, giving dependable single-phase performance across every rating in the lineup.

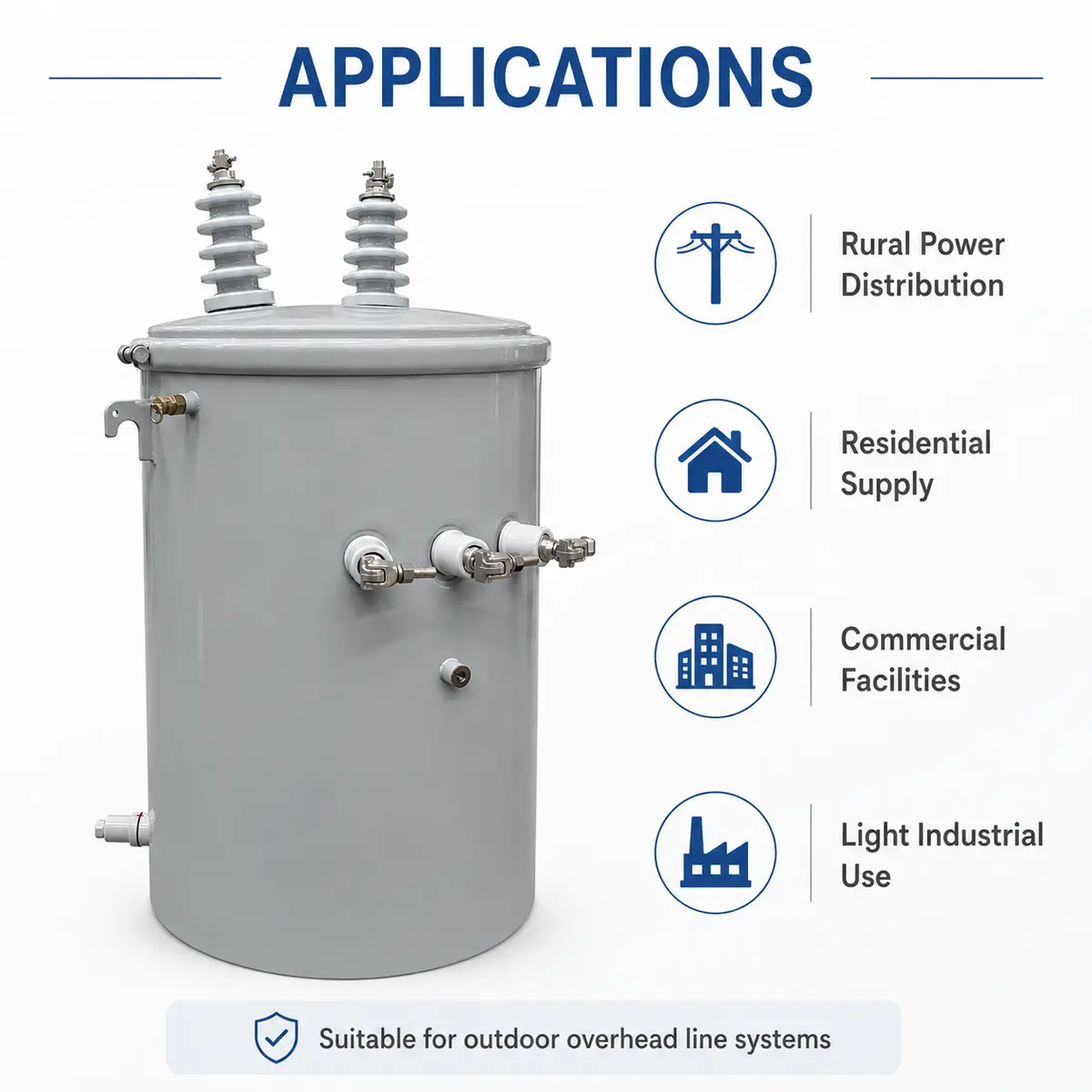

Overhead distribution circuits serving residential neighborhoods, rural electrification, farms, streets and light-commercial loads that need outdoor single-phase pole-mounted step-down.

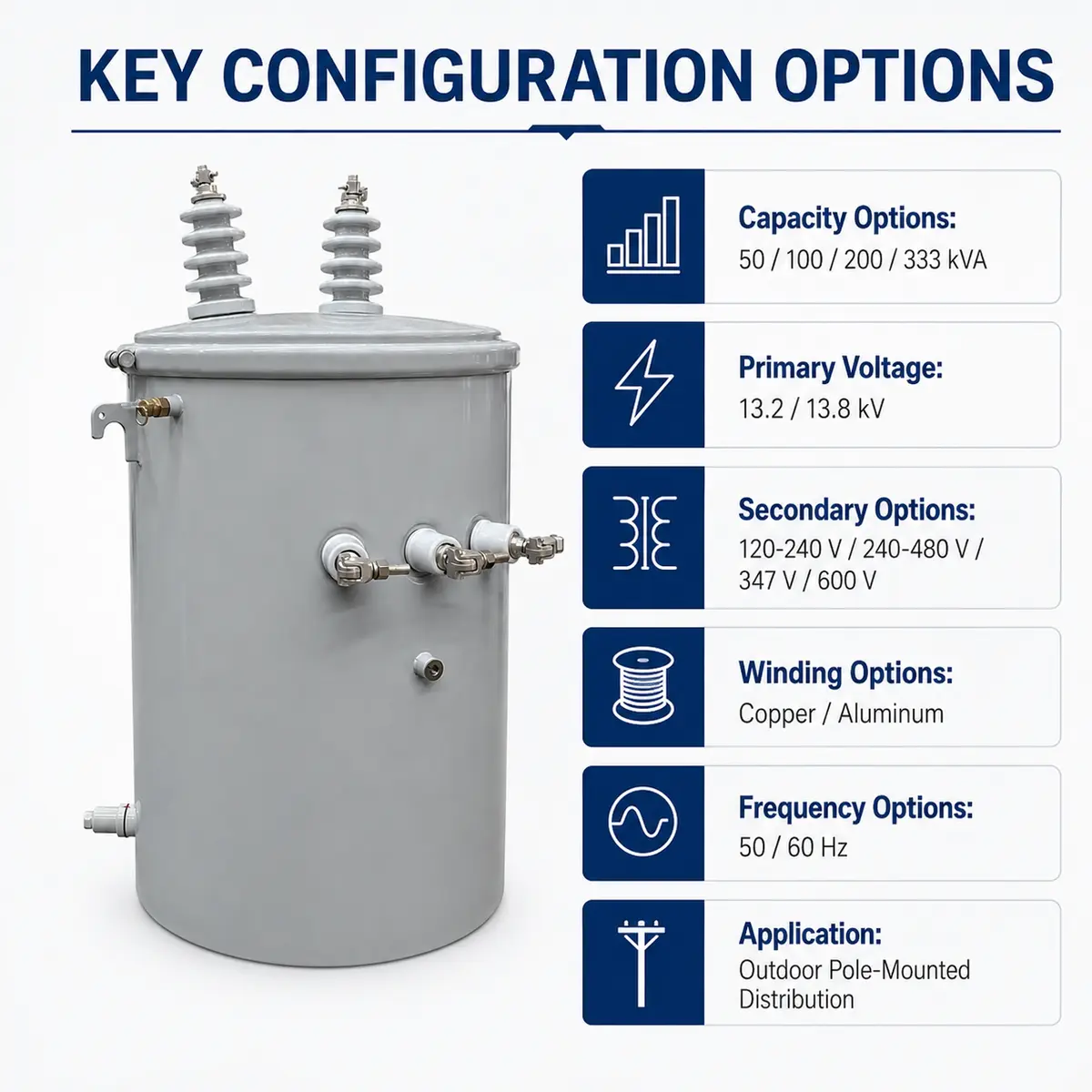

Capacity, HV/LV voltage, winding metal, bushing type and mounting hardware can be adapted to local grid standards including ANSI and IEC.
The rated capacity is 50 / 100 / 200 / 333 kVA, with an input voltage of 13.2 / 13.8 kV (or custom). Other ratings in the same series are quoted on request.
Outdoor-rated single-phase build in 50 / 100 / 200 / 333 kVA steps; Sealed, oil-filled cylindrical tank engineered for years of low-maintenance outdoor use; Made for pole and overhead-line mounting, brackets included.
Capacity, HV/LV voltage, winding metal, bushing type and mounting hardware can be adapted to local grid standards including ANSI and IEC.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
