Pole-Mounted Transformers
This 250 kVA single-phase oil-filled transformer adds CSP (Completely Self-Protected) circuitry to the standard pole-mounted platform, stepping 7.2 kV down…

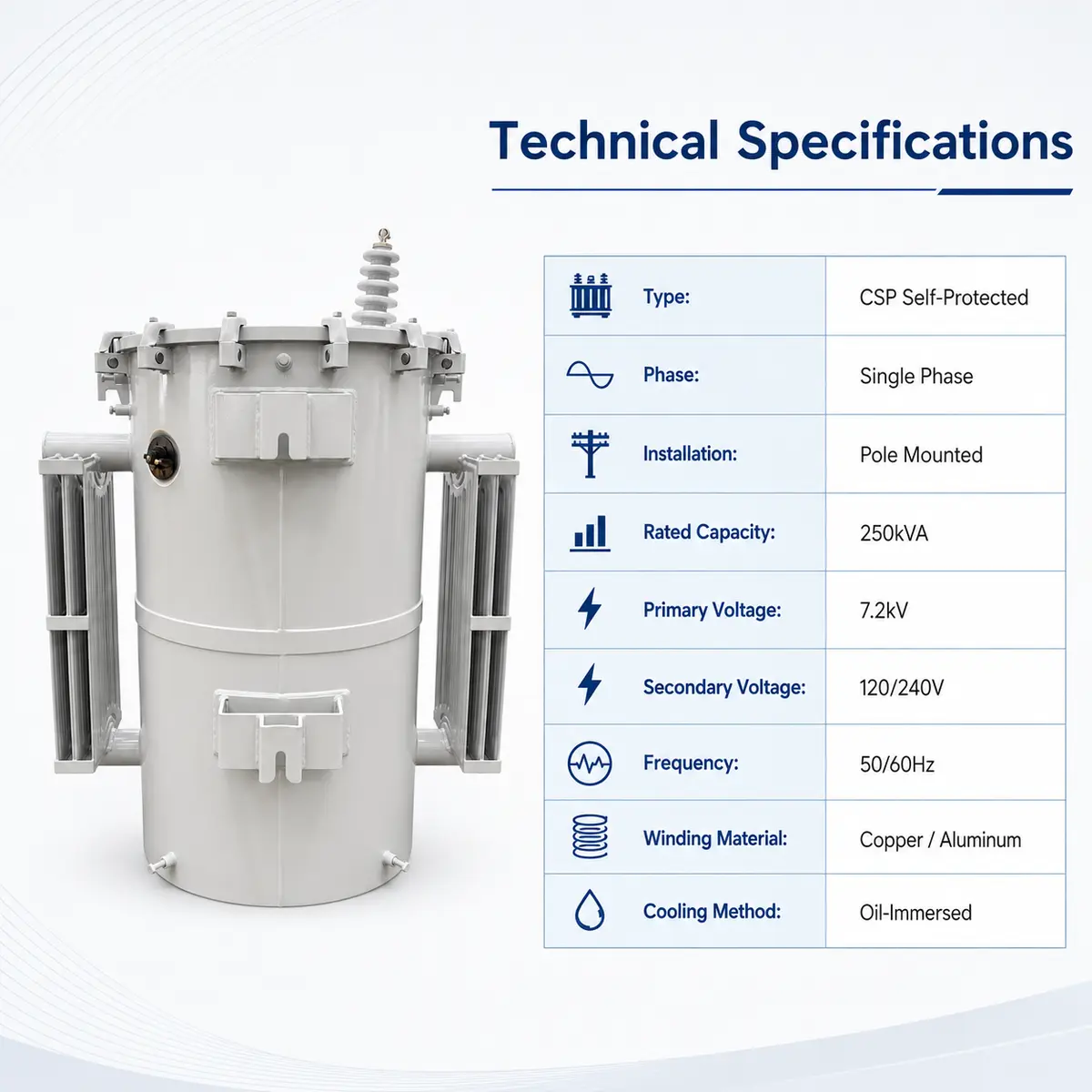

| Parameter | Value |
|---|---|
| Product Type | Single-Phase Pole-Mounted CSP Oil-Filled Transformer |
| Rated Capacity | 250 kVA |
| Input Voltage (HV) | 7.2 kV (or custom) |
| Output Voltage (LV) | 120-240 / 240-480 / 347 / 600 V (or custom) |
| Frequency | 50 / 60 Hz |
| Phase | Single |
| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Protection | CSP (Completely Self-Protected) |
| Application | Power Distribution System |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
Data reflects the specifications supplied for this product. Final dimensions, materials, colors and packaging are confirmed against the approved sample and order.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
This 250 kVA single-phase oil-filled transformer adds CSP (Completely Self-Protected) circuitry to the standard pole-mounted platform, stepping 7.2 kV down to 120–240 V or a custom secondary. Internal protection handles overload and fault conditions on its own, while the sealed cylindrical tank is built for outdoor utility-pole service — copper or aluminium windings, certified to IEC and other recognized standards.

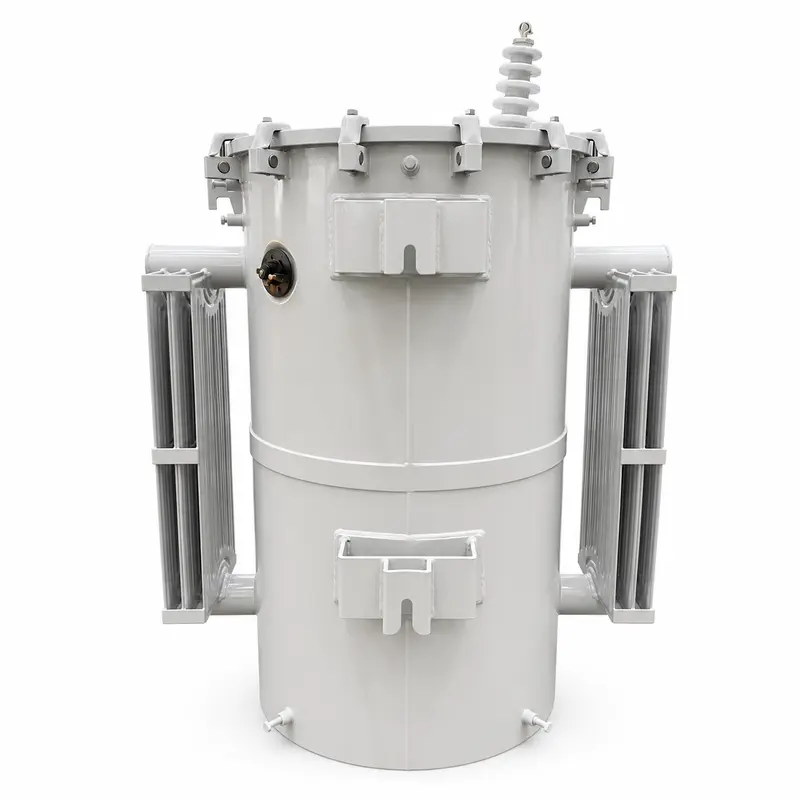

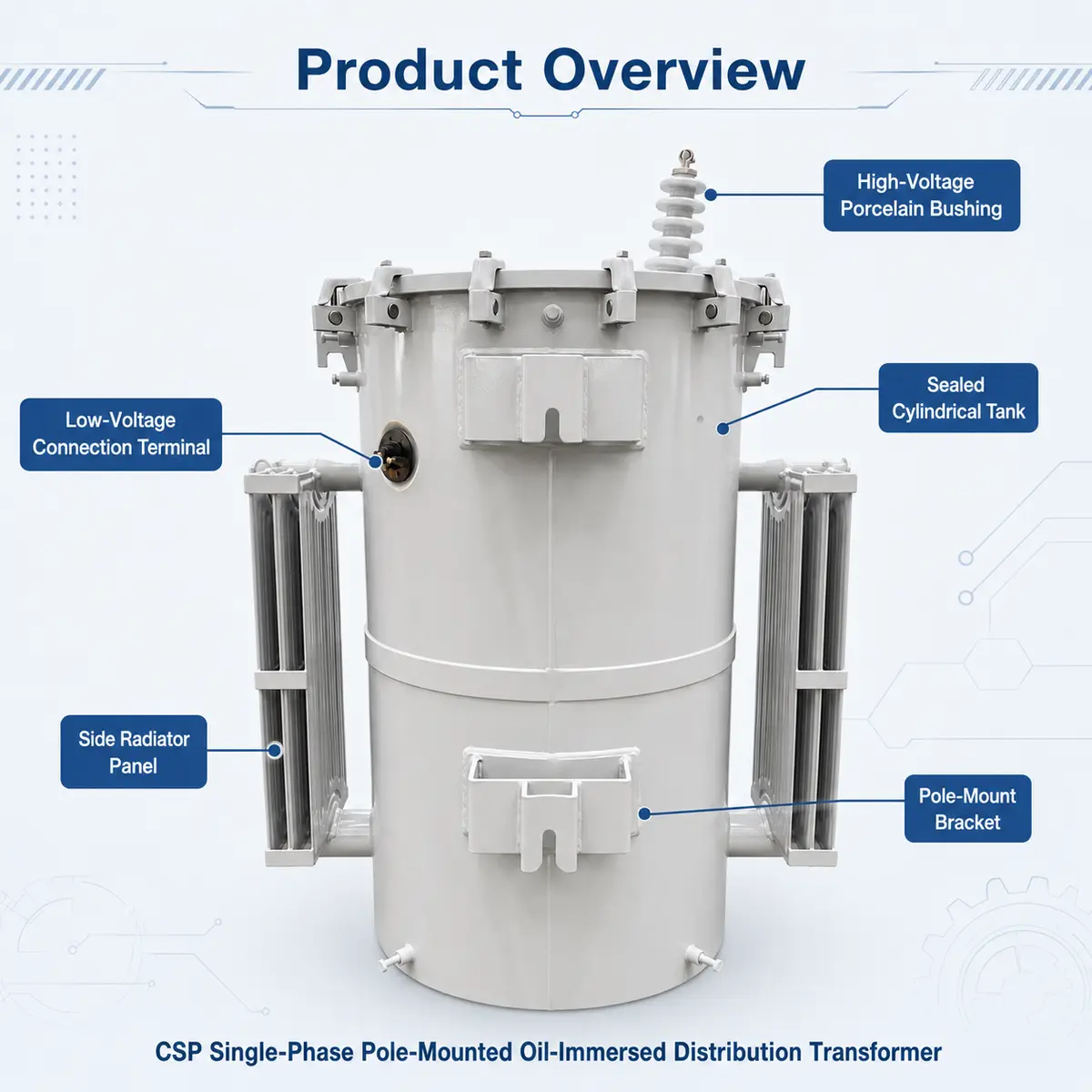

High-voltage porcelain bushings sit on the cover of the sealed cylindrical steel tank, low-voltage terminals are mounted to the side, and brackets are ready for direct pole attachment. The CSP feature bundles internal fusing and overload protection right into the unit, and because the tank is oil-filled and hermetically sealed, the windings are shielded from moisture while the oil handles cooling — giving reliable, largely maintenance-free single-phase service.

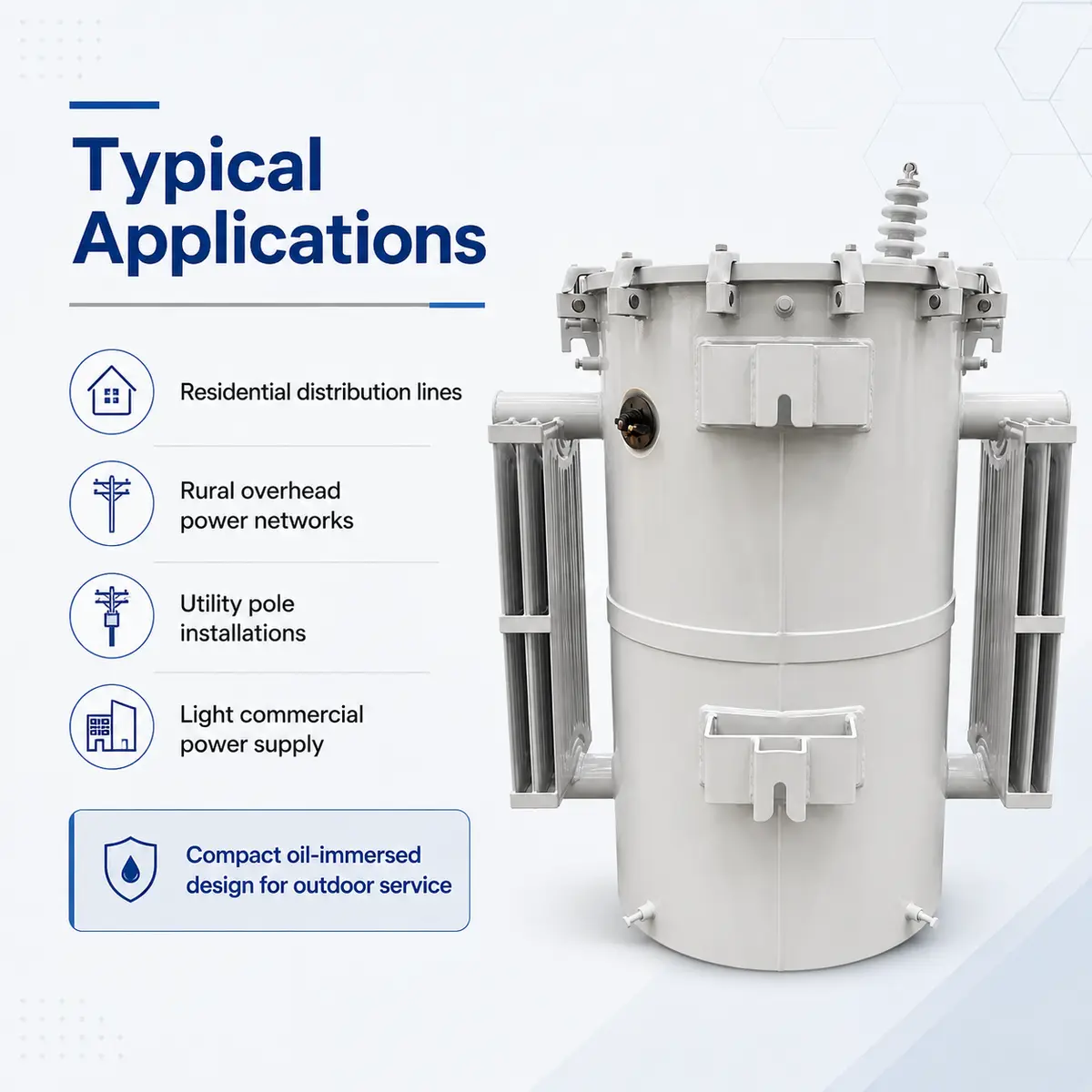

Overhead distribution lines for residential neighborhoods, rural electrification, farms, streets and light-commercial loads where self-protected single-phase pole-mounted step-down is needed.
Capacity, HV/LV voltage, winding metal, bushing type and mounting hardware can be tailored to local grid standards, ANSI and IEC among them.
The rated capacity is 250 kVA, with an input voltage of 7.2 kV (or custom). Other ratings in the same series are quoted on request.

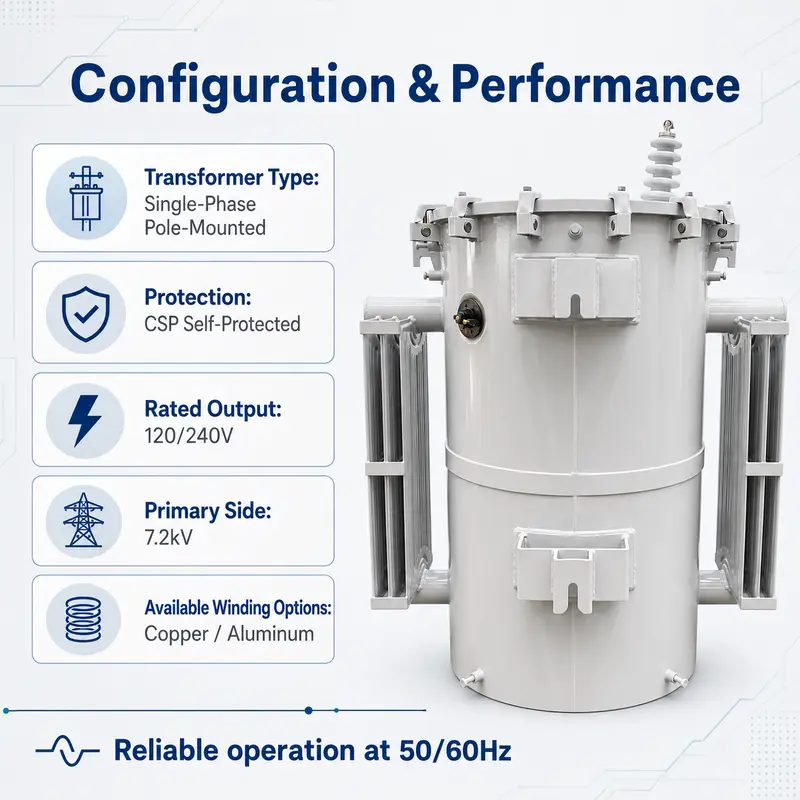

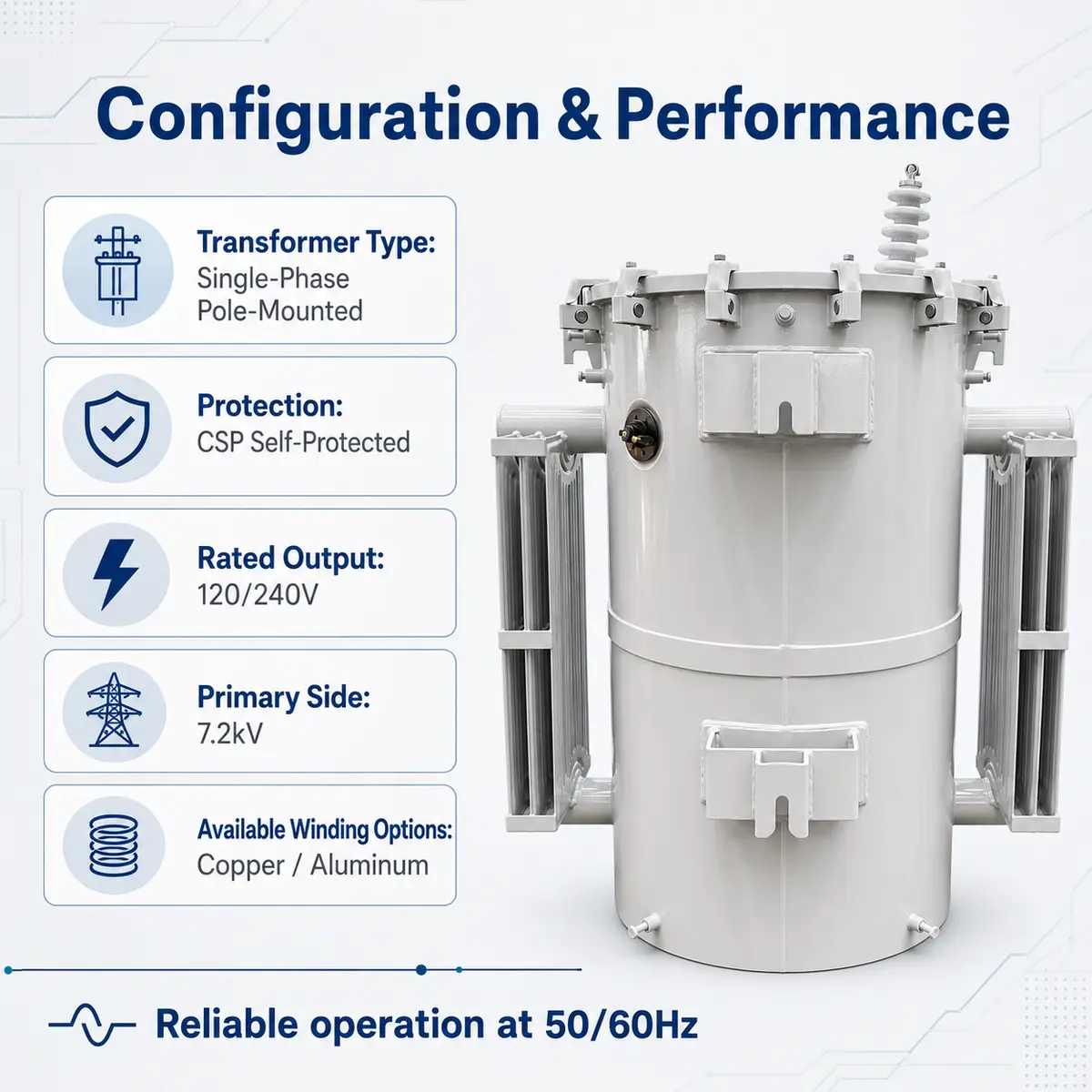

Built-in CSP protection against overload and fault conditions, no external gear needed; 250 kVA single-phase capacity aimed at overhead distribution feeders; Sealed, oil-filled cylindrical tank for long, low-maintenance outdoor life.
Capacity, HV/LV voltage, winding metal, bushing type and mounting hardware can be tailored to local grid standards, ANSI and IEC among them.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
