Pole-Mounted Transformers
Built around a low-loss toroidal (ring-wound) copper coil, this single-phase oil-filled pole-mounted transformer is typically configured at 14.4 kV / 167…

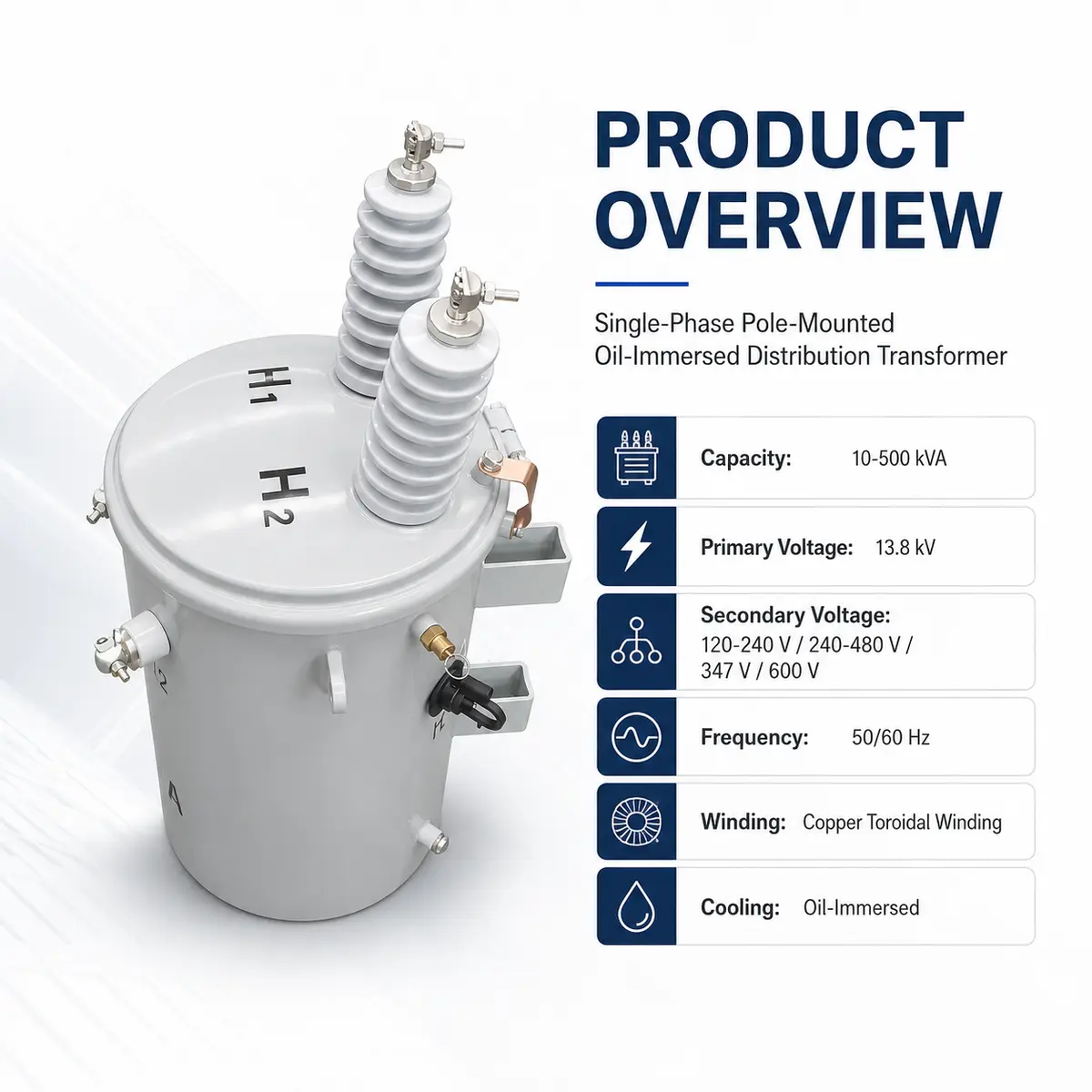

| Parameter | Value |
|---|---|
| Product Type | Single-Phase Pole-Mounted Oil-Filled Toroidal Transformer |
| Rated Capacity | 10 kVA – 500 kVA (typ. 167 kVA) |
| Input Voltage (HV) | 6 / 13.2 / 13.8 / 34.5 kV (typ. 14.4 kV, or custom) |
| Output Voltage (LV) | 120-240 / 240-480 / 347 / 600 V (or custom) |
| Frequency | 50 / 60 Hz |
| Phase | Single |
| Coil Structure | Toroidal (Ring) Coil |
| Winding Material | Copper / Aluminium |
| Core Material | Silicon Steel Sheet |
| Application | Power Distribution System |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
Figures reflect the supplied product data. Final dimensions, materials, colors and packaging are subject to sample approval and order confirmation.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

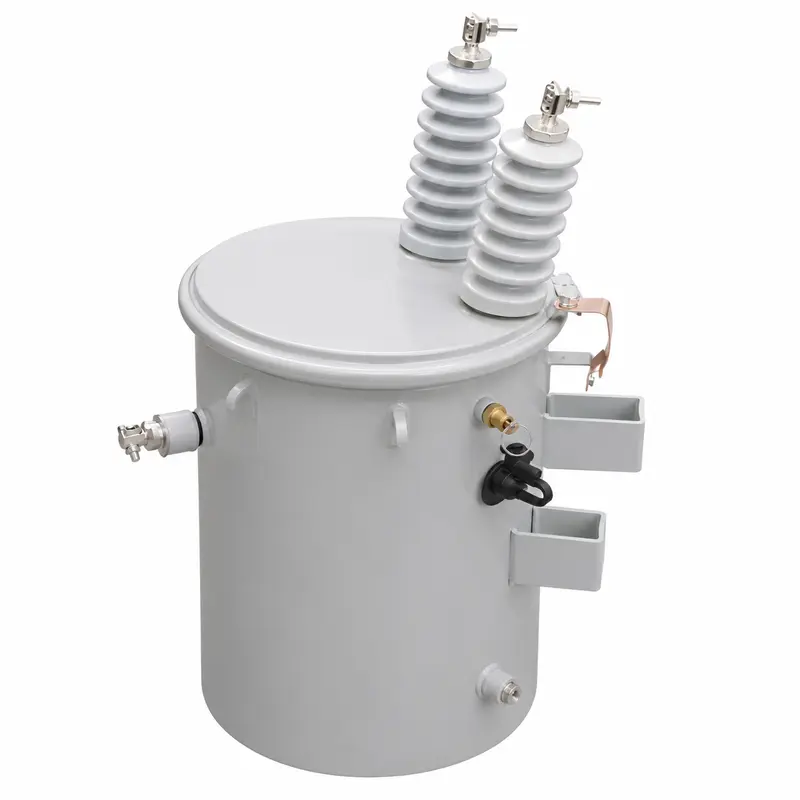

Built around a low-loss toroidal (ring-wound) copper coil, this single-phase oil-filled pole-mounted transformer is typically configured at 14.4 kV / 167 kVA, though the platform spans a 10–500 kVA range. The ring-core geometry cuts no-load loss and noise, and the sealed cylindrical tank is made for outdoor pole service, giving efficient single-phase distribution wherever it's certified to IEC and related international standards.

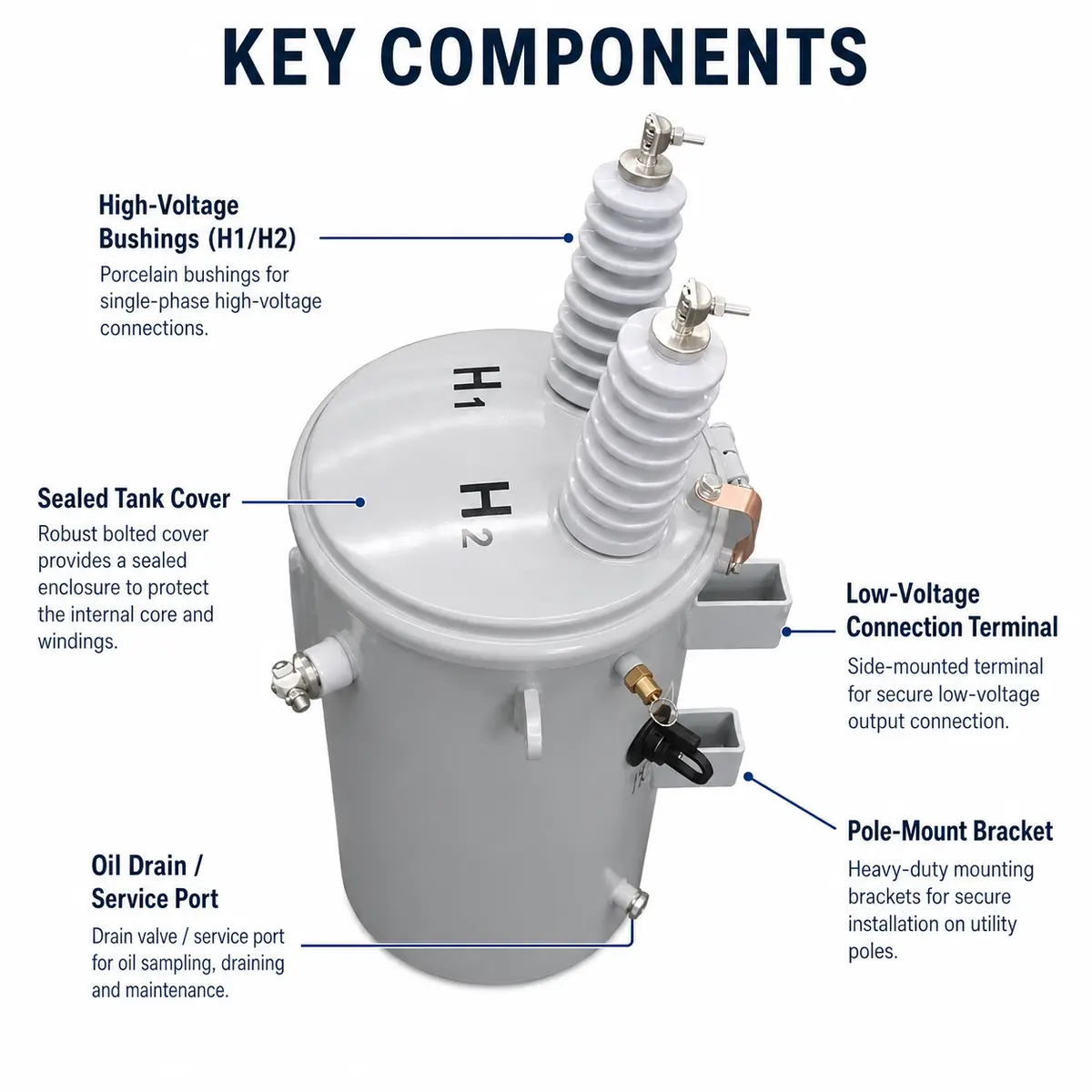

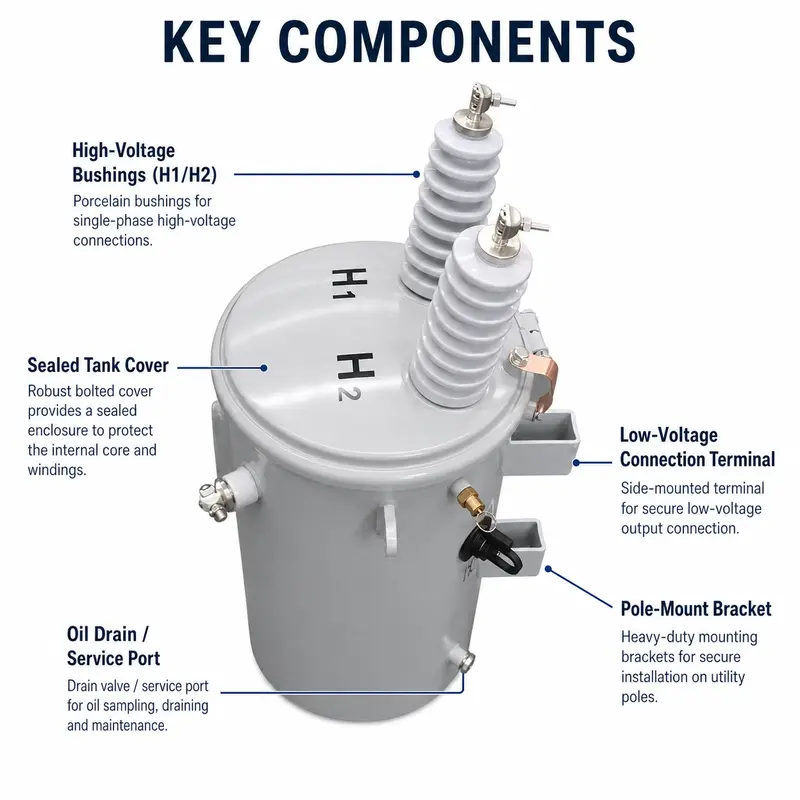

High-voltage porcelain bushings mount to the cover of the sealed steel tank, with low-voltage terminals on the side and brackets for direct pole fixing. The toroidal copper winding is what drives down losses and noise, and because the tank is oil-filled and hermetically sealed, moisture stays off the windings while the oil handles cooling — together giving efficient, low-maintenance single-phase distribution.

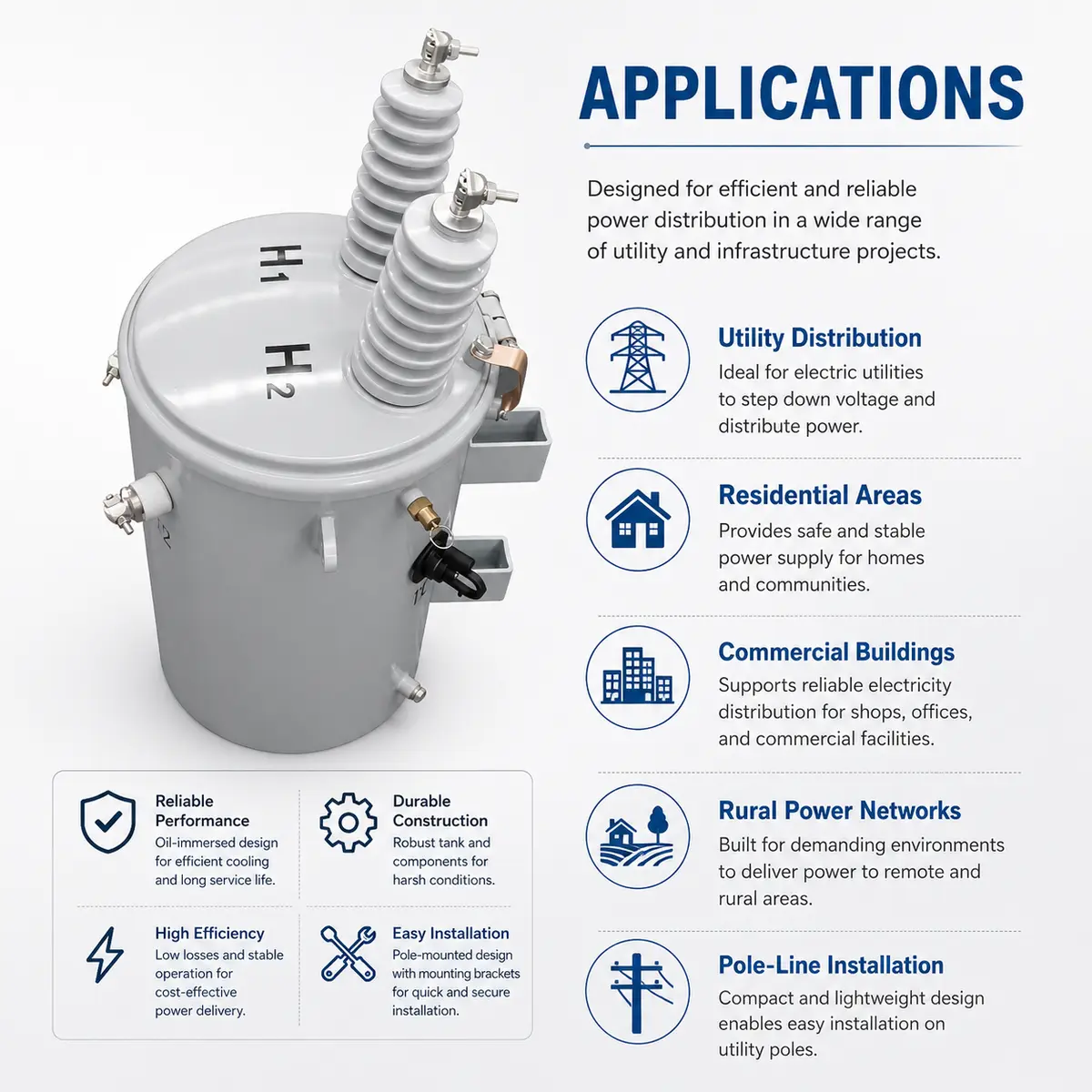

Overhead circuits for residential neighborhoods, rural electrification, farms, streets and light-commercial loads that need efficient single-phase pole-mounted step-down.
Rating, HV/LV voltage, winding metal, bushing type and mounting hardware are all adjustable to local grid codes such as ANSI or IEC.
The rated capacity is 10 kVA – 500 kVA (typ. 167 kVA), with an input voltage of 6 / 13.2 / 13.8 / 34.5 kV (typ. 14.4 kV, or custom). Other ratings in the same series are quoted on request.

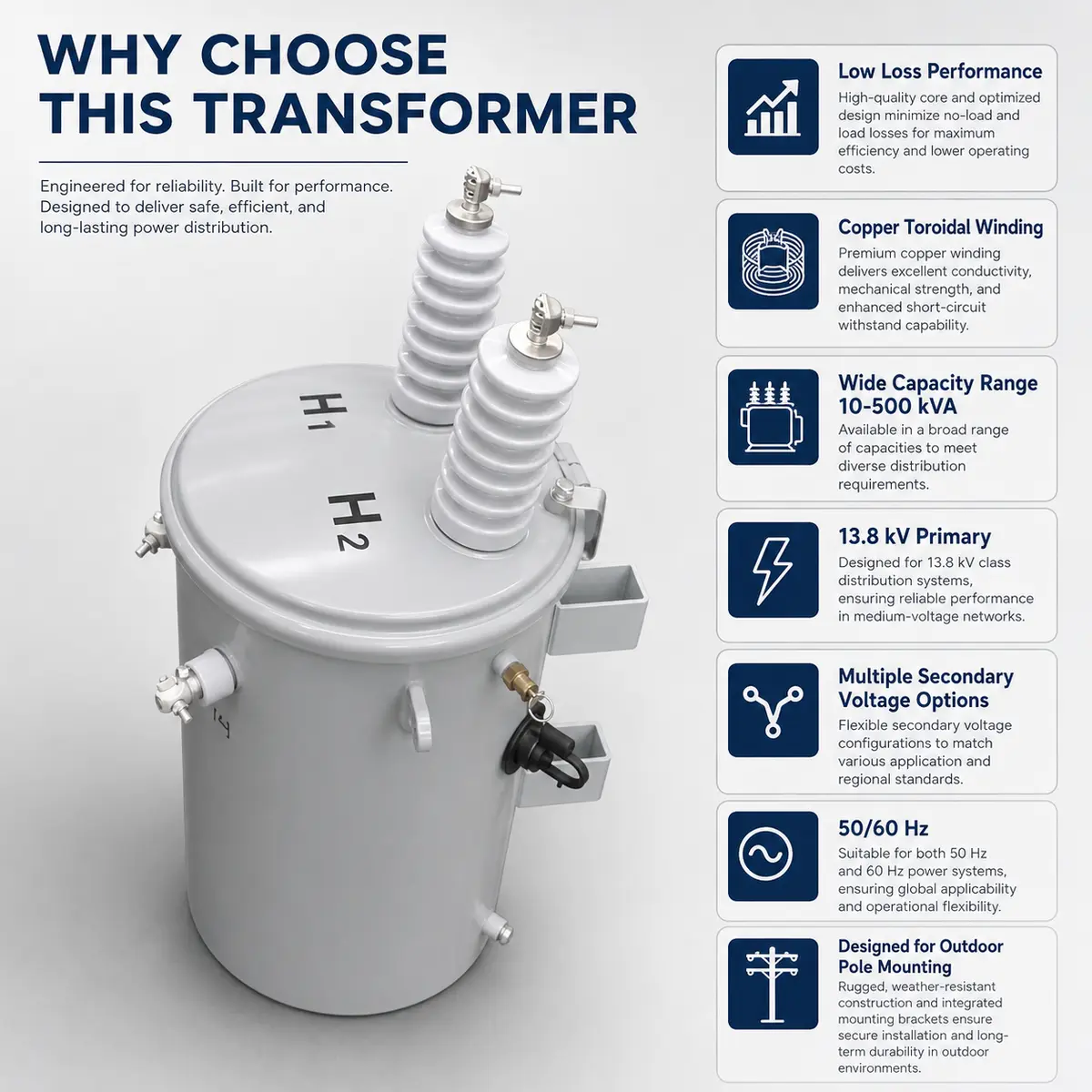

Toroidal coil construction for lower no-load losses, better efficiency, quieter operation; Broad 10–500 kVA range, with a common 14.4 kV / 167 kVA custom configuration; Sealed oil-filled cylindrical tank engineered for low-maintenance outdoor life.
Rating, HV/LV voltage, winding metal, bushing type and mounting hardware are all adjustable to local grid codes such as ANSI or IEC.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
