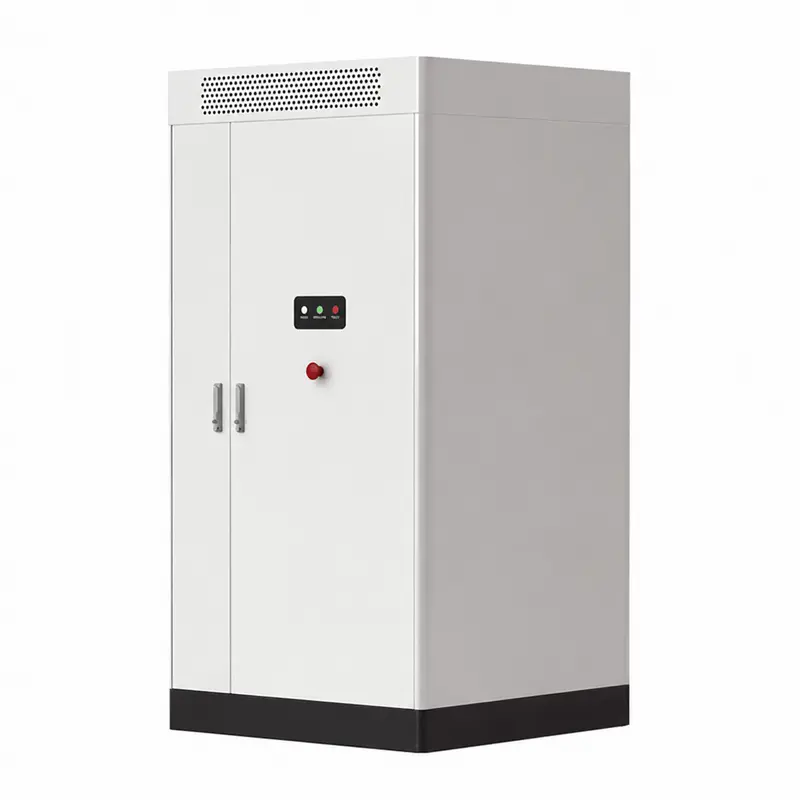

Liquid-Cooled ESS Cabinets
Built to pair with static diesel-hybrid setups, this cabinet houses lithium-ion (LFP) battery packs, a BMS and an integrated liquid-cooling loop inside one…
| Parameter | Value |
|---|---|
| Product Type | Liquid-Cooled Integrated Energy Storage Cabinet |
| Rated Output Power | Above 50 kWh |
| Battery Chemistry | Lithium-Ion (LFP) |
| Available Power Range | Above 50 kWh |
| System Type | Rack-Mounted |
| Working Voltage Range | 75 V – 109.5 V |
| Cell Configuration | 1P30S |
| Grid Connection | Off-Grid |
| Communication Ports | CAN, RS485, Ethernet |
| Enclosure Rating | IP55 |

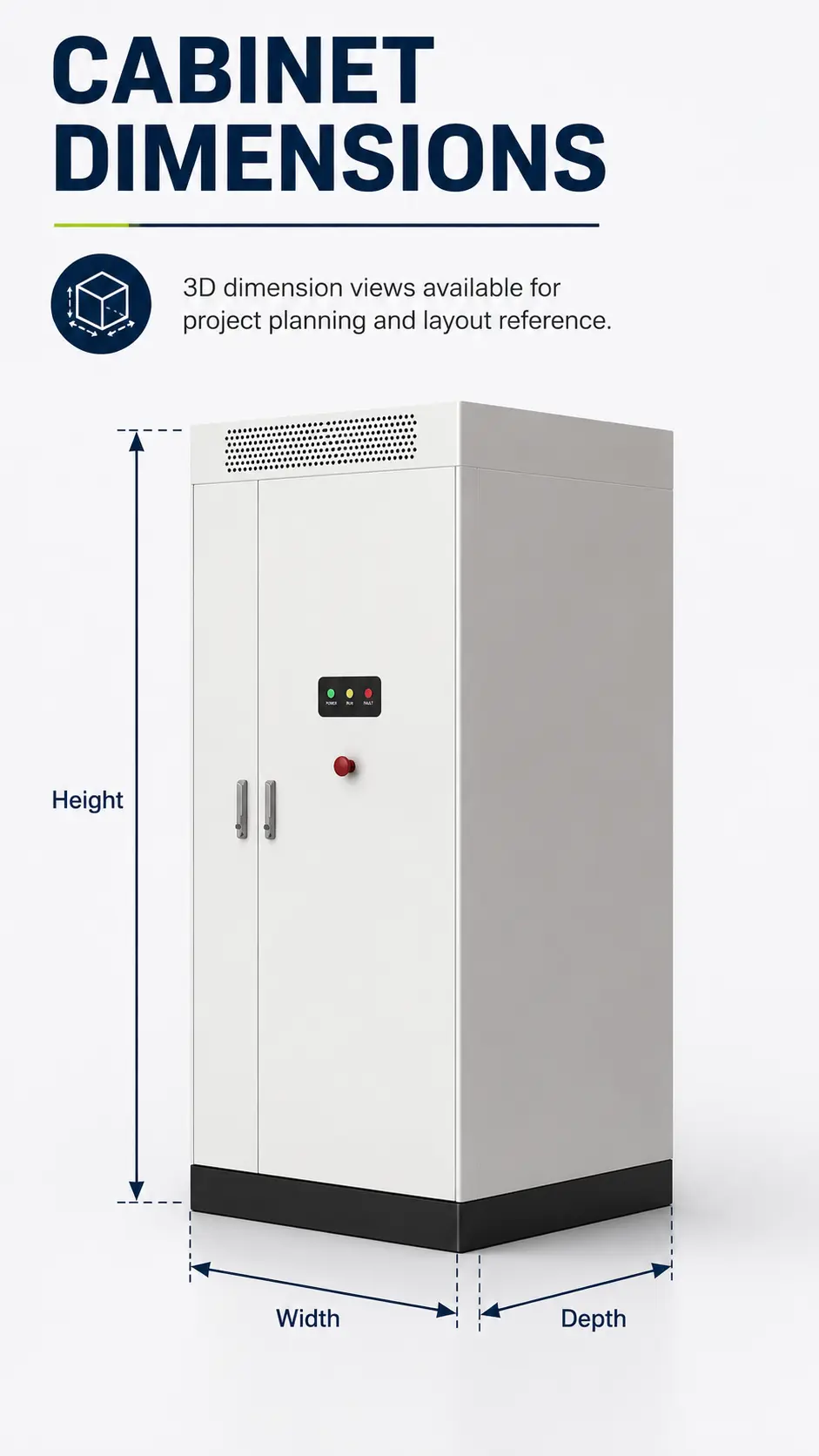

| Overall Dimensions (L×W×H) | 1325 × 1306 × 2315 mm |
| Unit Weight | 2500 kg |
| Charging Source | Solar Panel |
Values shown are drawn from the supplied product data. Final dimensions, materials, colors and packaging are confirmed at sample approval and order confirmation.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Built to pair with static diesel-hybrid setups, this cabinet houses lithium-ion (LFP) battery packs, a BMS and an integrated liquid-cooling loop inside one outdoor-rated enclosure. Coolant circulation keeps cell temperature even throughout the pack, which improves efficiency, extends cycle life and adds a margin of operating safety. The system suits commercial and industrial (C&I) storage, solar self-consumption, peak shaving and off-grid power.

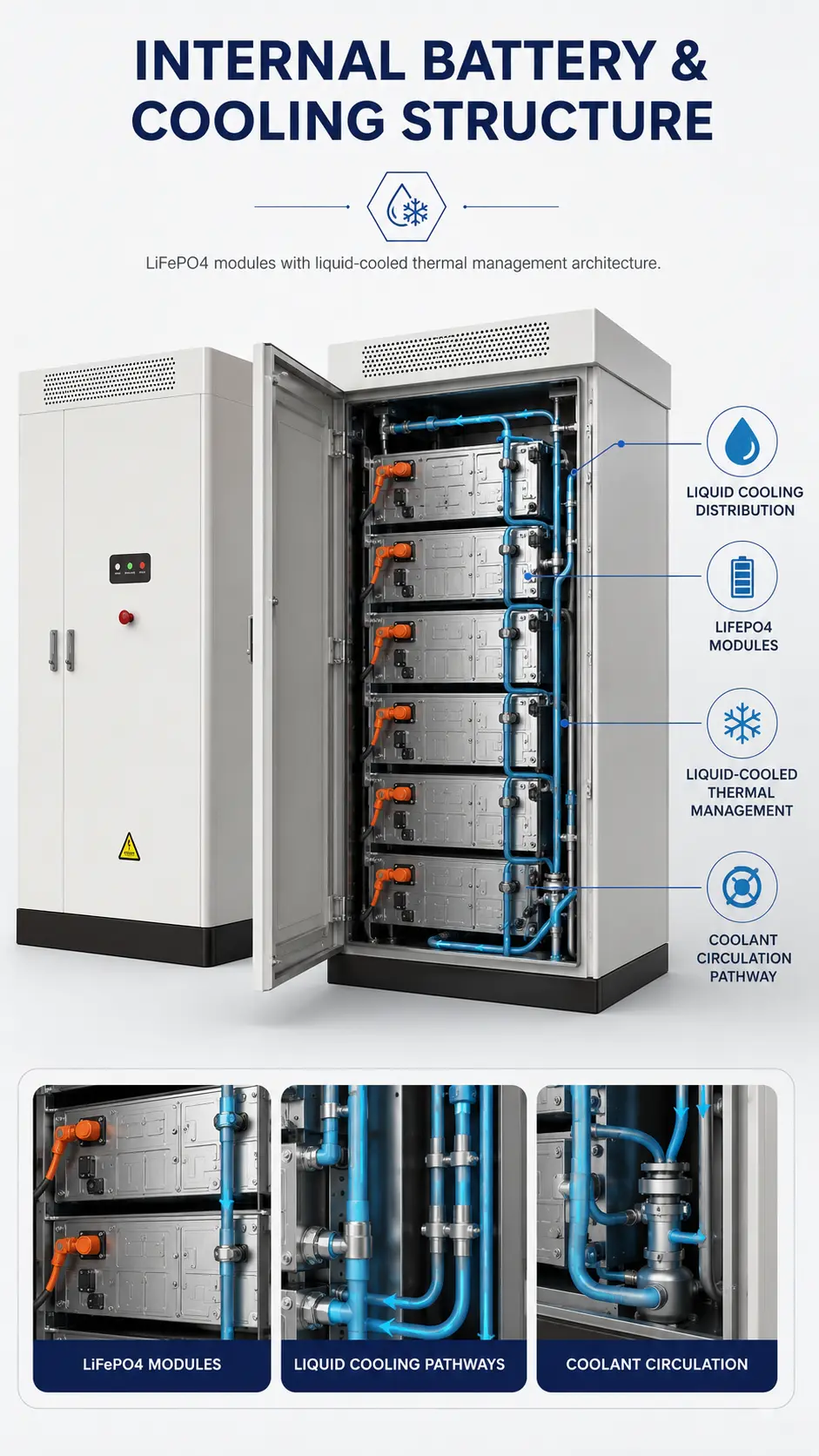

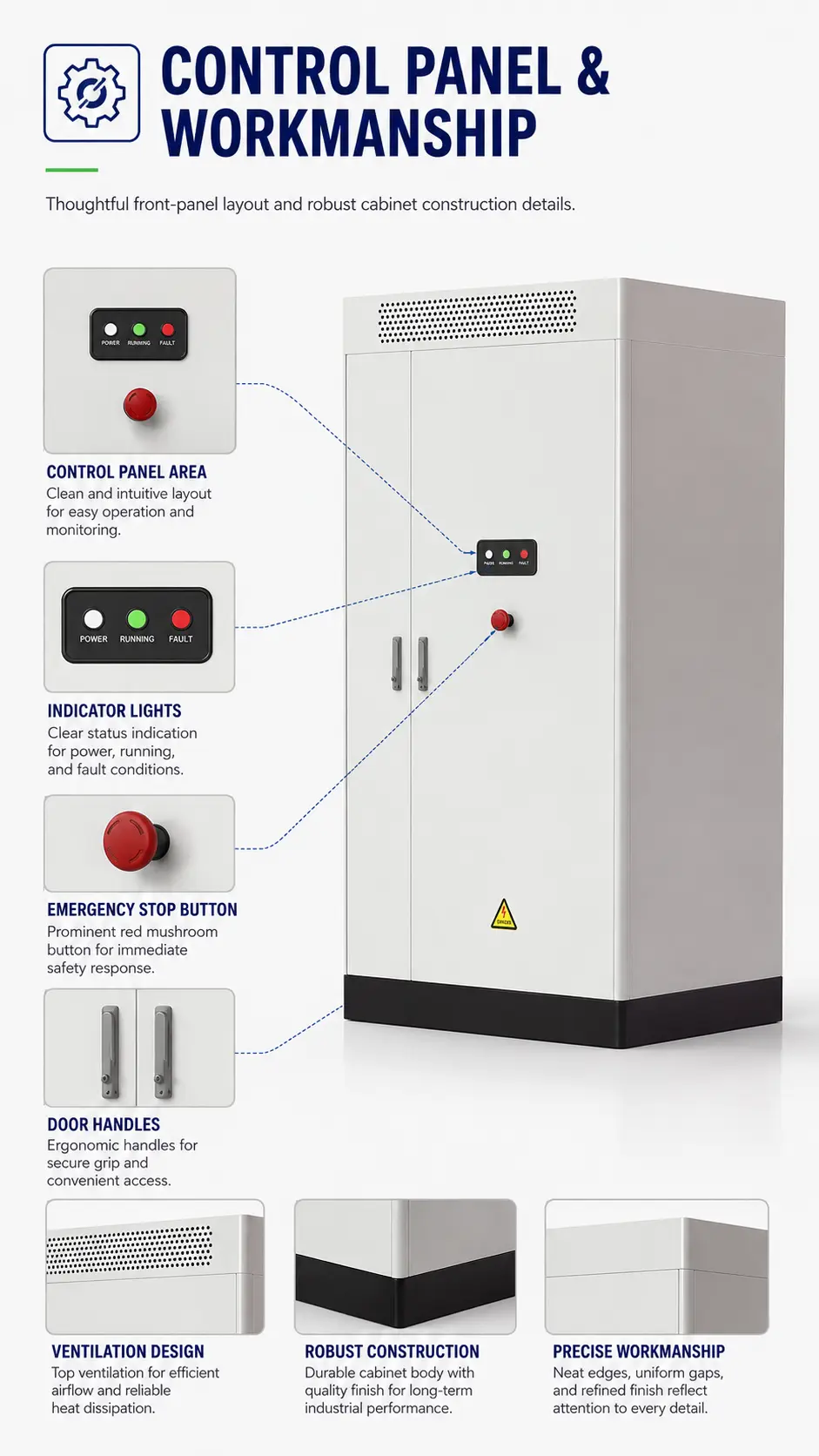

Opening the double doors reveals modular battery racks served by the integrated liquid-cooling loop, a front control/HMI panel, status lights and an emergency stop. A side vent grille keeps air moving and top-mounted lifting lugs ease transport and installation. BMS data runs over CAN, RS485 and Ethernet, connecting readily to an energy management system.
Commercial and industrial energy storage, solar-plus-storage, peak shaving and load shifting, microgrid deployments, EV-charging load support, and off-grid power for factories, campuses and remote sites.

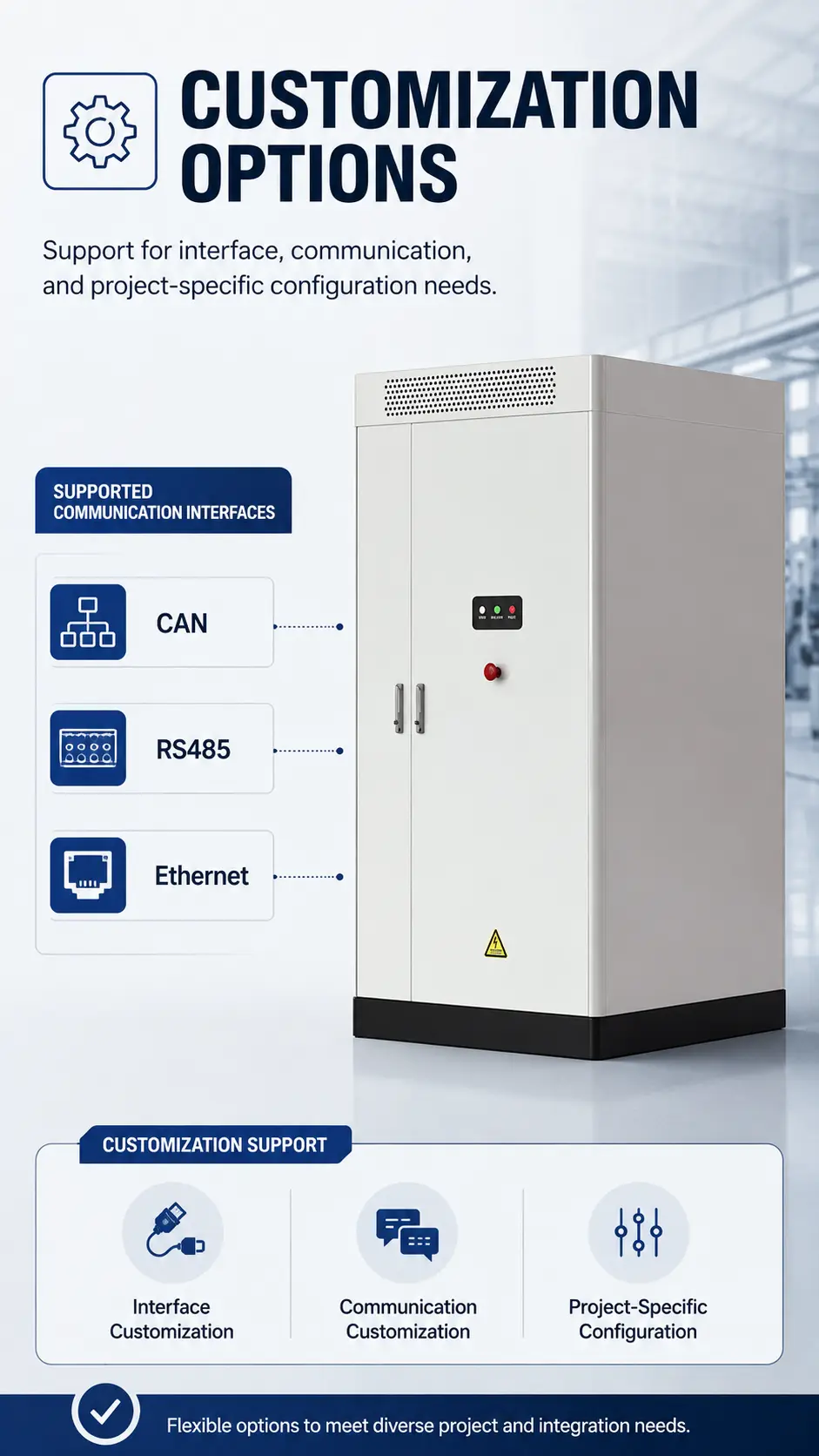

Capacity, internal configuration, grid connection mode, communication protocol and enclosure specifics can be adapted to the project.
Even cell temperatures via liquid cooling for stronger efficiency and a longer lifespan; Battery packs, BMS and cooling unified in a single cabinet; IP55-rated housing supports a broad range of outdoor sites.
Capacity, internal configuration, grid connection mode, communication protocol and enclosure specifics can be adapted to the project.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
