Liquid-Cooled ESS Cabinets
Built for a 20-year service life, this 210 kWh cabinet brings together lithium-ion (LFP) battery packs, a battery management system and an integrated…
| Parameter | Value |
|---|---|
| Product Type | Integrated Liquid-Cooled Energy Storage Cabinet |
| Energy Capacity | 210 kWh |
| Battery Chemistry | Lithium-Ion (LFP) |
| Output Power Range | Above 50 kWh |
| System Type | Rack-Mounted |
| Working Voltage Range | 75 V – 109.5 V |
| Cell Configuration | 1P30S |
| Grid Connection | Off-Grid |
| Communication Ports | CAN, RS485, Ethernet |
| Enclosure Rating | IP55 |

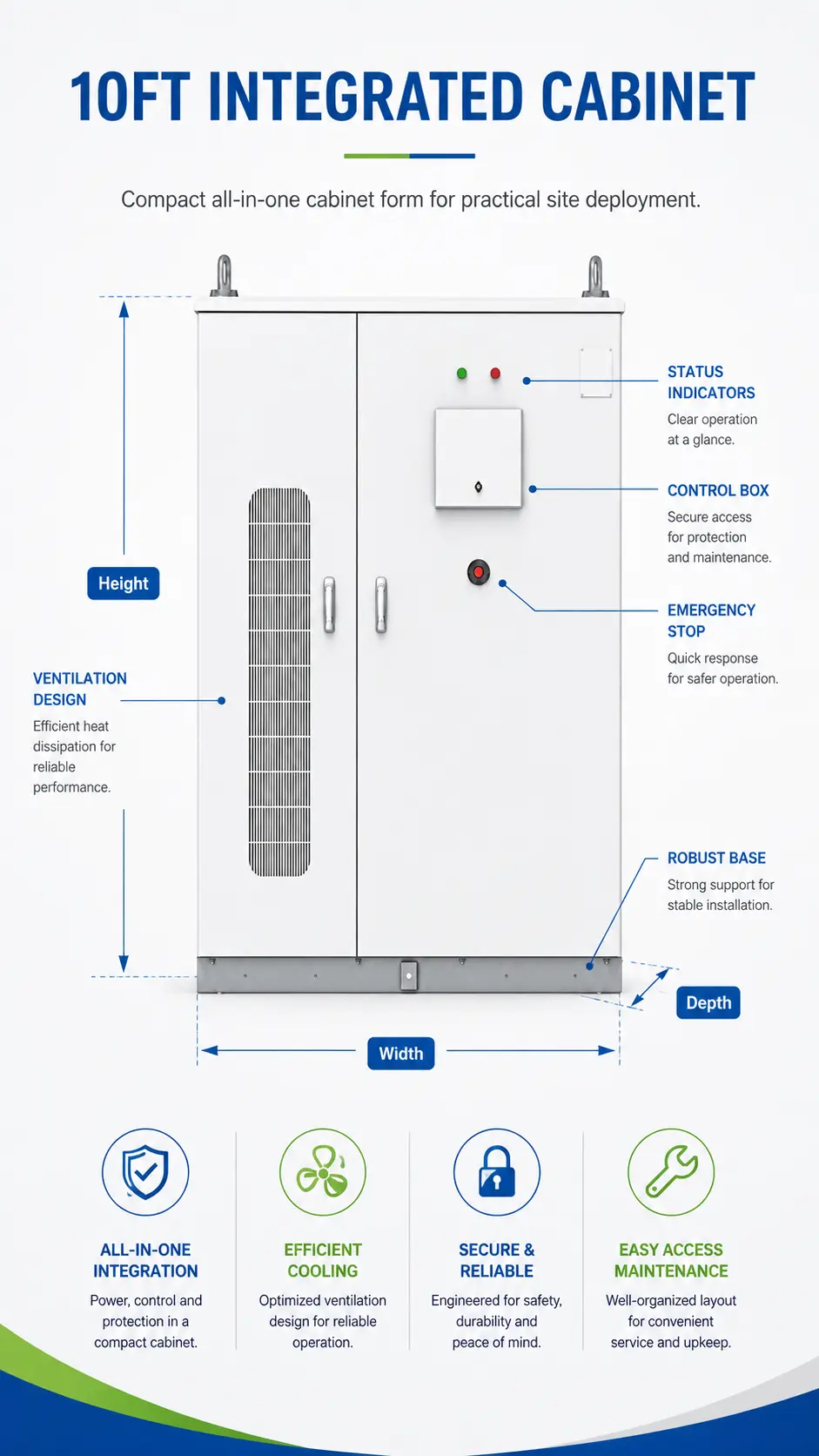

| Overall Dimensions (L×W×H) | 1325 × 1306 × 2315 mm |
| Unit Weight | 2500 kg |
| Charging Source | Solar Panel |
Figures above reflect the product data supplied to us. Actual dimensions, materials, colors and packaging may vary slightly and are confirmed at sample approval and order confirmation.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

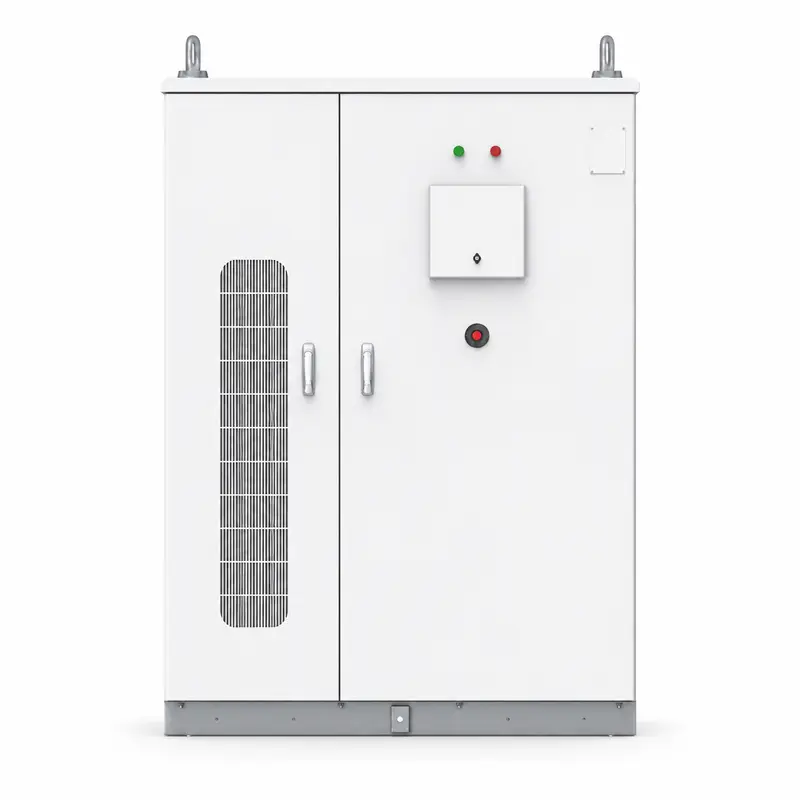

Built for a 20-year service life, this 210 kWh cabinet brings together lithium-ion (LFP) battery packs, a battery management system and an integrated liquid-cooling loop inside one outdoor-ready enclosure. The cooling circuit keeps cell temperatures even across the pack, which translates into better round-trip efficiency, a longer service life and a safer operating margin. It suits commercial and industrial storage projects, solar self-consumption, peak-shaving programs and stand-alone off-grid power.

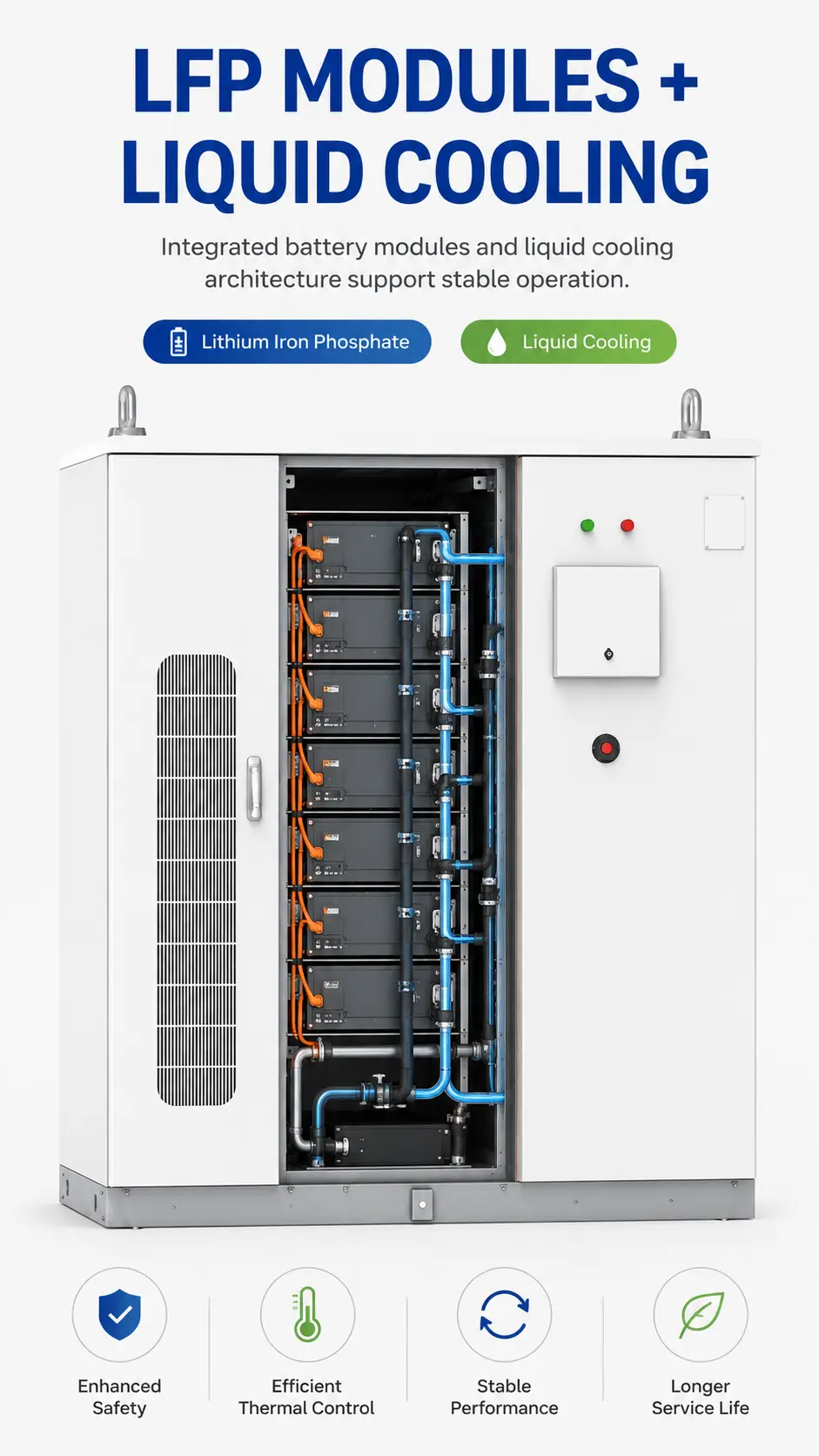

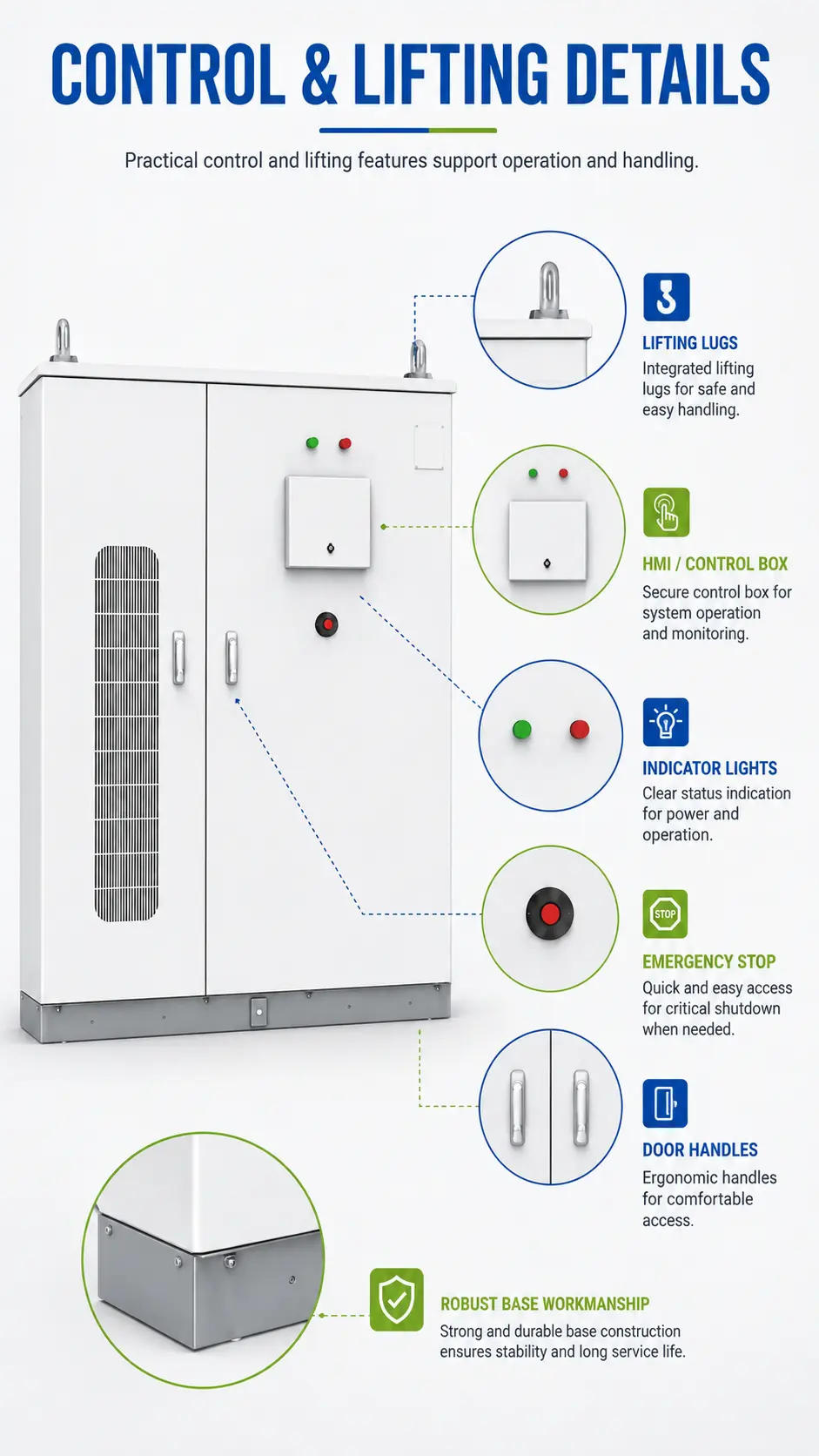

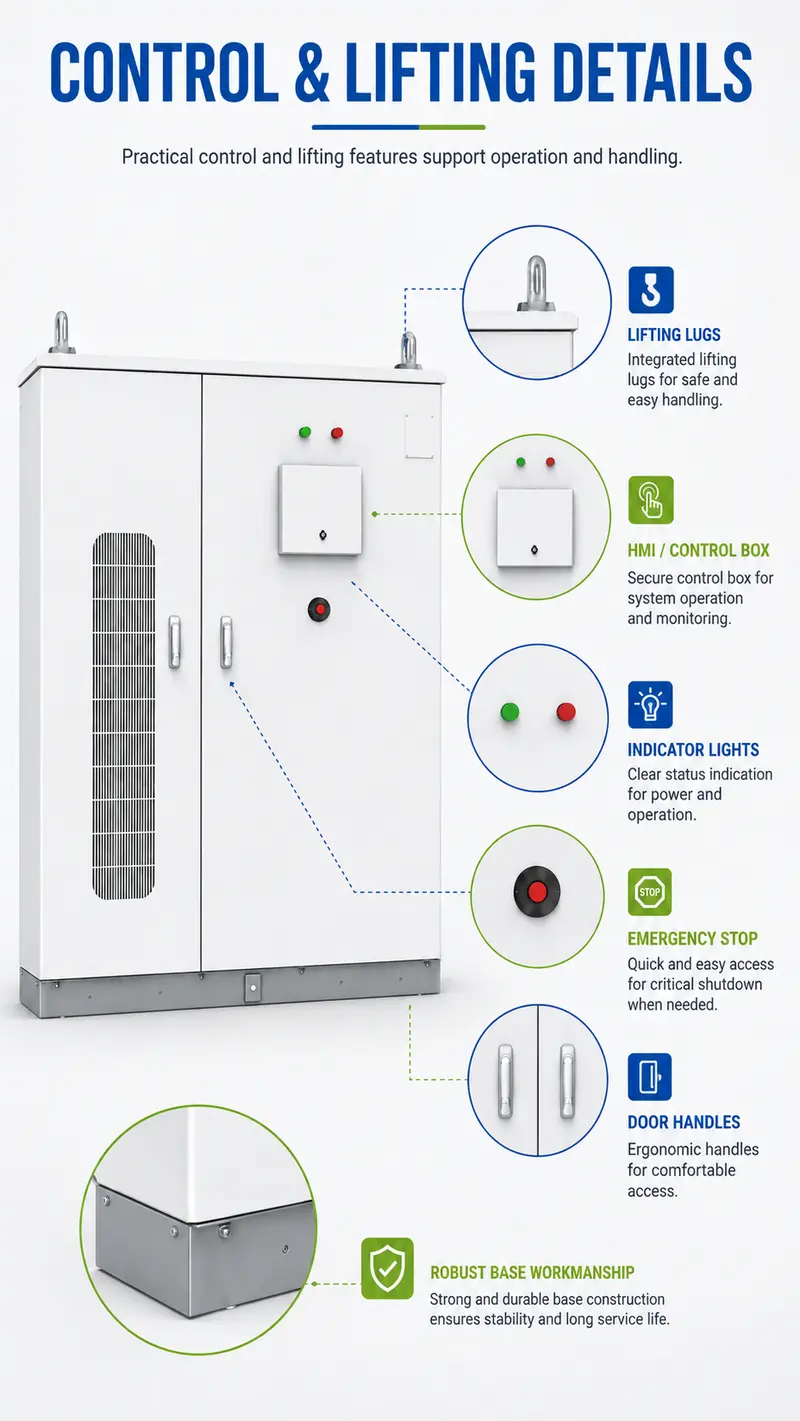

Behind its double doors, the cabinet holds modular battery racks served by an integrated liquid-cooling circuit, plus a front-mounted control/HMI panel, status lighting and an emergency-stop button. A side vent grille supports airflow and top lifting lugs make crane handling and installation straightforward. The onboard BMS talks over CAN, RS485 and Ethernet so it drops into an energy management system with minimal setup.
Fits commercial and industrial energy storage, solar-plus-storage installations, peak shaving and load-shifting duty, microgrid deployments, EV-charging load support, and off-grid power for factories, campuses and remote sites.

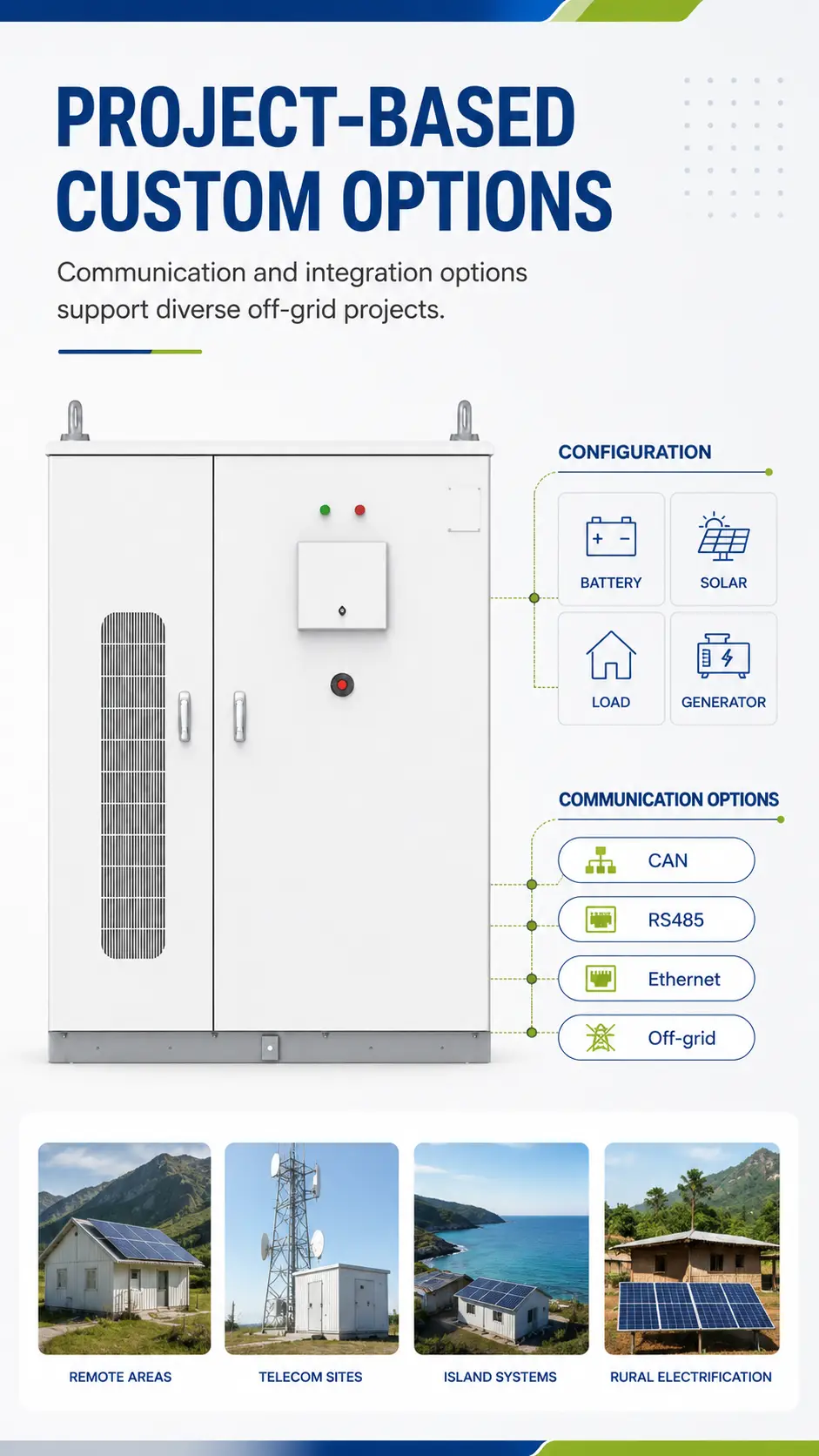

Capacity, internal configuration, grid mode (on-grid or off-grid), communication protocol and enclosure details can all be adjusted to fit the project.
The rated capacity is 210 kWh. Other ratings in the same series are quoted on request.
Even, cell-level temperature control from the built-in liquid-cooling loop, for stronger efficiency and a longer lifespan; Battery, BMS and cooling combined into one all-in-one cabinet; IP55-rated enclosure suited to a wide range of outdoor sites.
Capacity, internal configuration, grid mode (on-grid or off-grid), communication protocol and enclosure details can all be adjusted to fit the project.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
