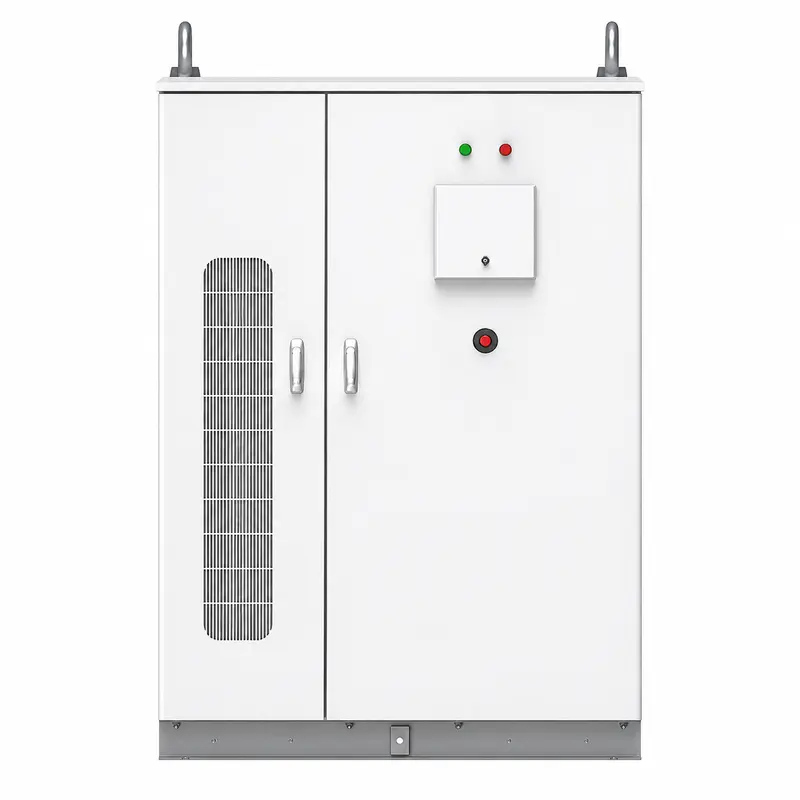

Liquid-Cooled ESS Cabinets
This liquid-cooled cabinet integrates lithium-ion (LFP) battery packs, a BMS and thermal management inside one outdoor-rated enclosure. The cooling loop…
| Parameter | Value |
|---|---|
| Product Type | Liquid-Cooled Integrated Energy Storage Cabinet |
| Rated Output Power | Above 50 kWh |
| Battery Chemistry | Lithium-Ion (LFP) |
| Available Power Range | Above 50 kWh |
| System Type | Rack-Mounted |
| Working Voltage Range | 75 V – 109.5 V |
| Cell Configuration | 1P30S |
| Grid Connection | Off-Grid |
| Communication Ports | CAN, RS485, Ethernet |
| Enclosure Rating | IP55 |

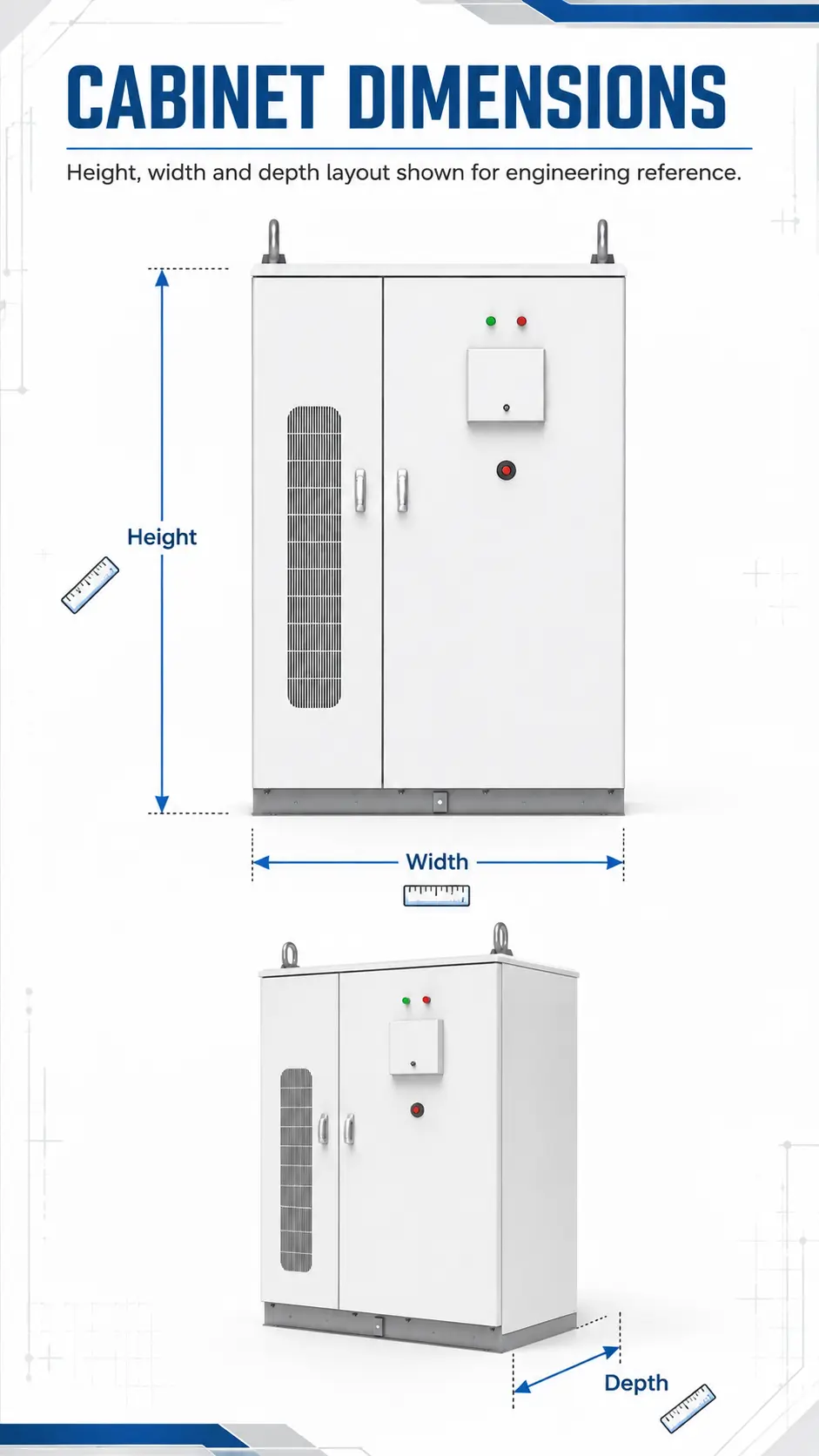

| Overall Dimensions (L×W×H) | 1325 × 1306 × 2315 mm |
| Unit Weight | 2500 kg |
| Charging Source | Solar Panel |
The figures above reflect the supplied product data. Final dimensions, materials, colors and packaging are confirmed once a sample is approved and the order finalized.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
This liquid-cooled cabinet integrates lithium-ion (LFP) battery packs, a BMS and thermal management inside one outdoor-rated enclosure. The cooling loop keeps every cell in a tight, even temperature band, which raises efficiency, extends cycle life and improves operating safety. It's designed for commercial and industrial (C&I) storage, solar self-consumption, peak shaving and off-grid use.

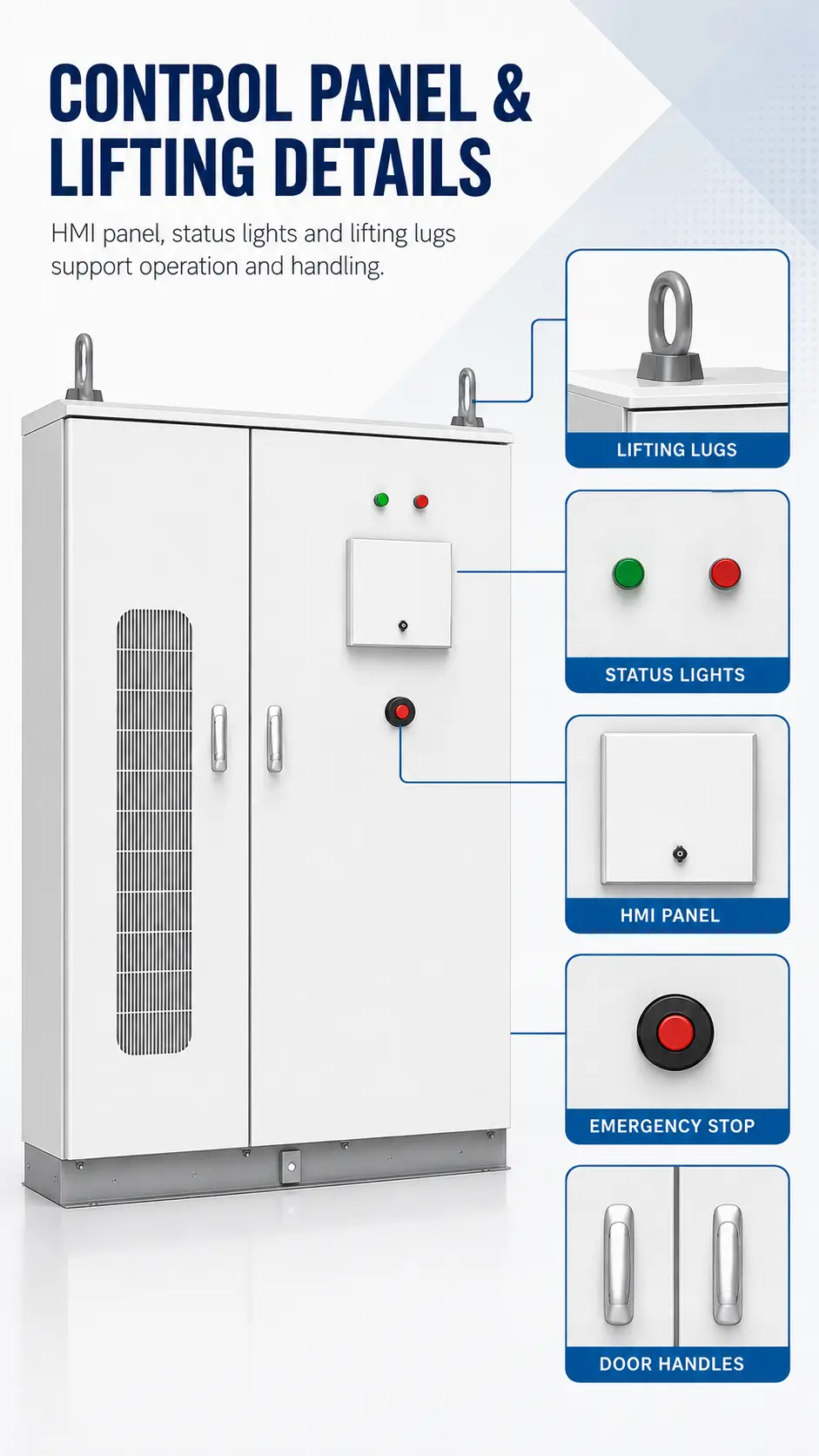

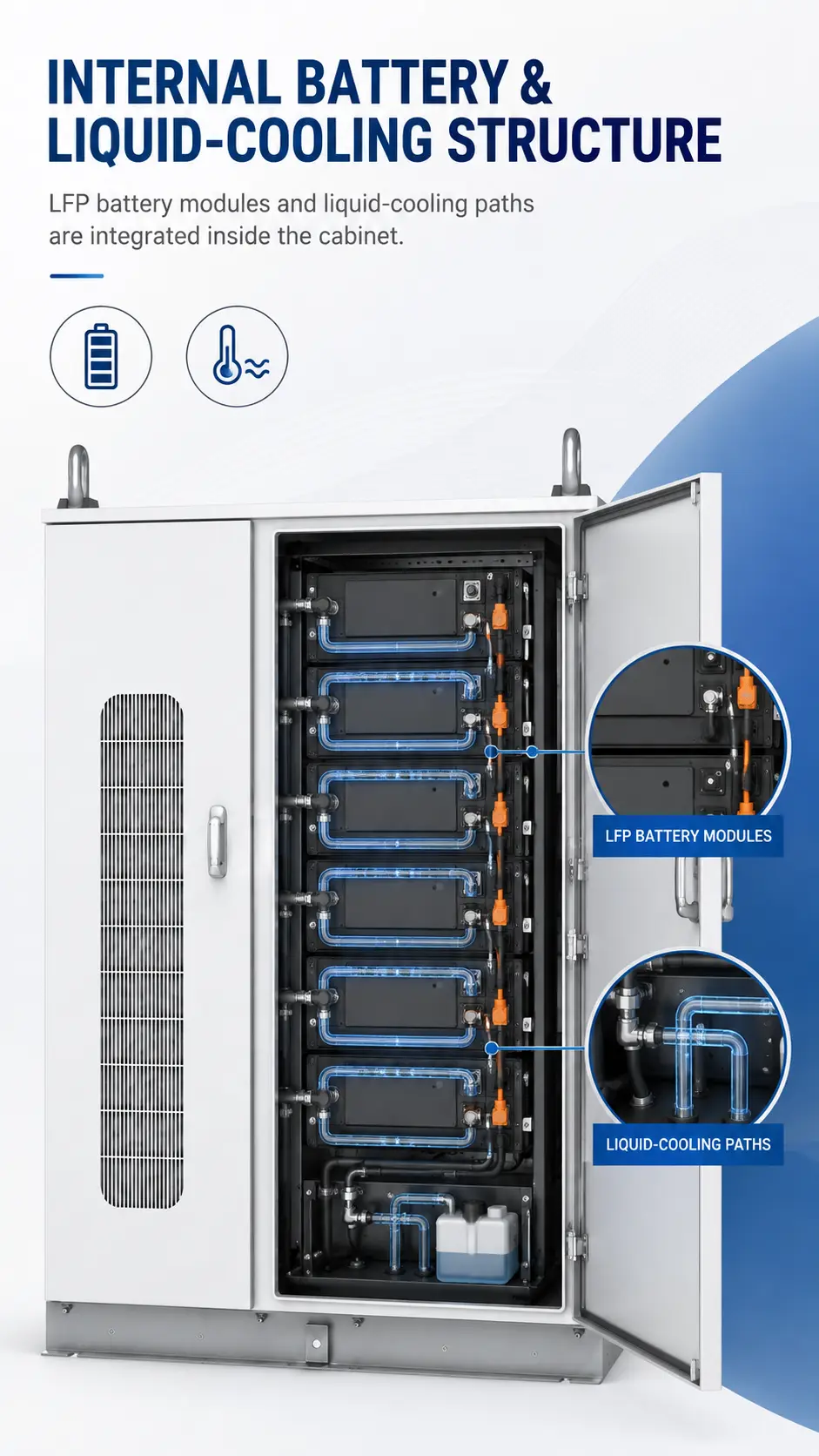

Behind the double doors are modular battery racks cooled by an integrated liquid loop, plus a front control/HMI panel, status indicators and an emergency-stop button. A side vent grille assists airflow, and top lifting lugs make handling and installation easier. The BMS communicates over CAN, RS485 and Ethernet, allowing quick integration with an energy management system.
Commercial and industrial energy storage, solar-plus-storage pairing, peak shaving and load shifting, microgrids, EV-charging support, and off-grid power for factories, campuses and remote sites.
Capacity, configuration, grid connection mode, communication protocol and enclosure options can be tailored to project requirements.
Liquid-cooled thermal management keeps cell temperature even, for stronger efficiency and longer life; Battery, BMS and cooling combined into a single integrated cabinet; IP55 outdoor rating for flexible site placement.
Capacity, configuration, grid connection mode, communication protocol and enclosure options can be tailored to project requirements.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
