Liquid-Cooled ESS Cabinets
Offered across a 30–240 kW power range, this integrated cabinet combines lithium-ion (LFP) battery packs, a BMS and liquid-cooling thermal management in a…
| Parameter | Value |
|---|---|
| Product Type | Liquid-Cooled Integrated Energy Storage Cabinet |
| Rated Power | 30 / 60 / 90 / 120 / 150 / 180 / 210 / 240 kW |
| Battery Chemistry | Lithium-Ion (LFP) |
| Output Power Range | Above 50 kWh |
| System Type | Rack-Mounted |
| Working Voltage Range | 75 V – 109.5 V |
| Cell Configuration | 1P30S |
| Grid Connection | Off-Grid |
| Communication Ports | CAN, RS485, Ethernet |
| Enclosure Rating | IP55 |

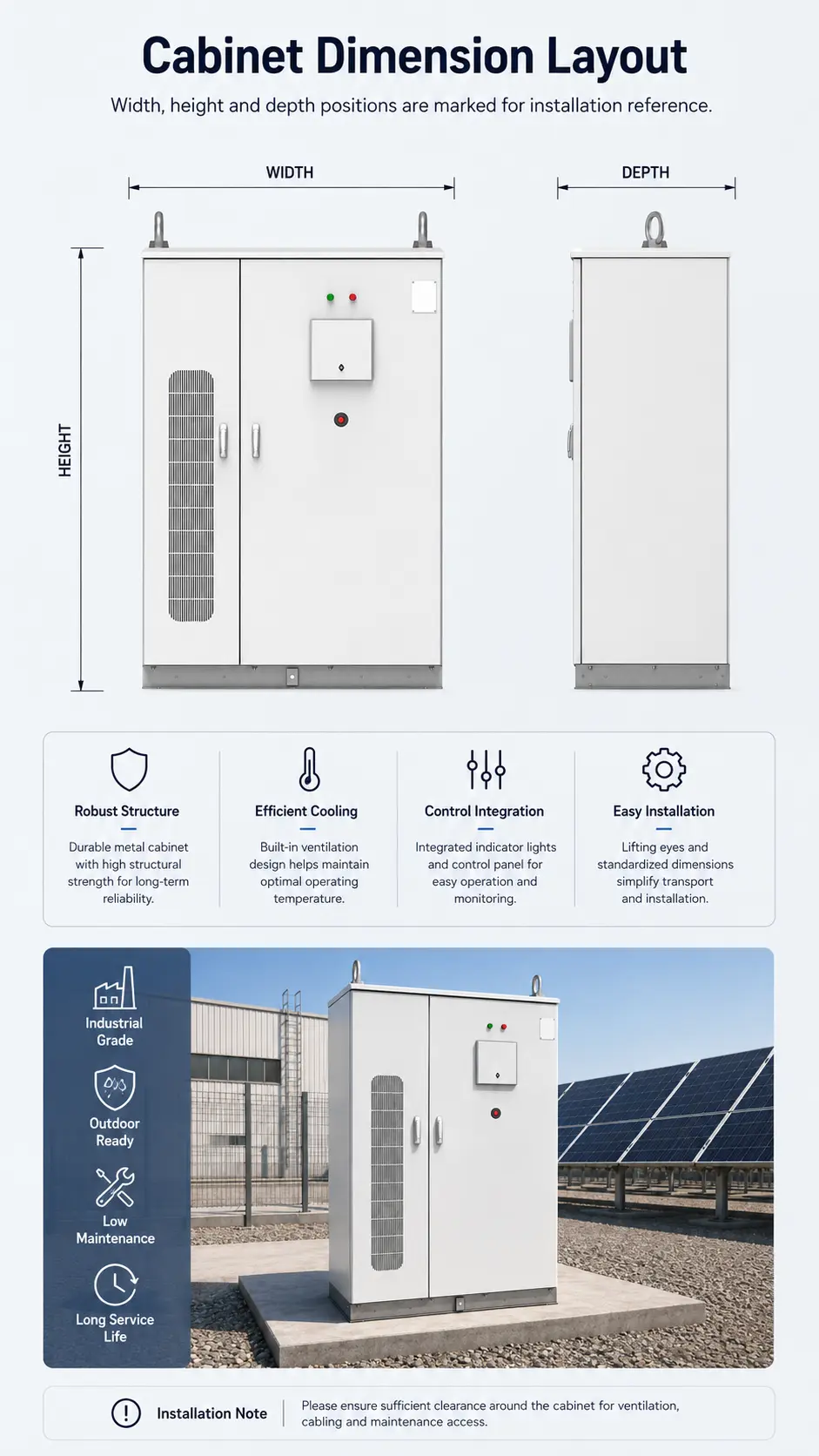

| Overall Dimensions (L×W×H) | 1325 × 1306 × 2315 mm |
| Unit Weight | 2500 kg |
| Charging Source | Solar Panel |
Figures above are based on the supplied product data. Final dimensions, materials, colors and packaging are set once a sample is confirmed and the order is placed.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
Offered across a 30–240 kW power range, this integrated cabinet combines lithium-ion (LFP) battery packs, a BMS and liquid-cooling thermal management in a single outdoor-rated enclosure. The coolant loop keeps every cell in a consistent, optimal temperature band, which raises efficiency, extends cycle life and improves operating safety. It targets commercial and industrial (C&I) storage, solar self-consumption, peak shaving and off-grid applications.

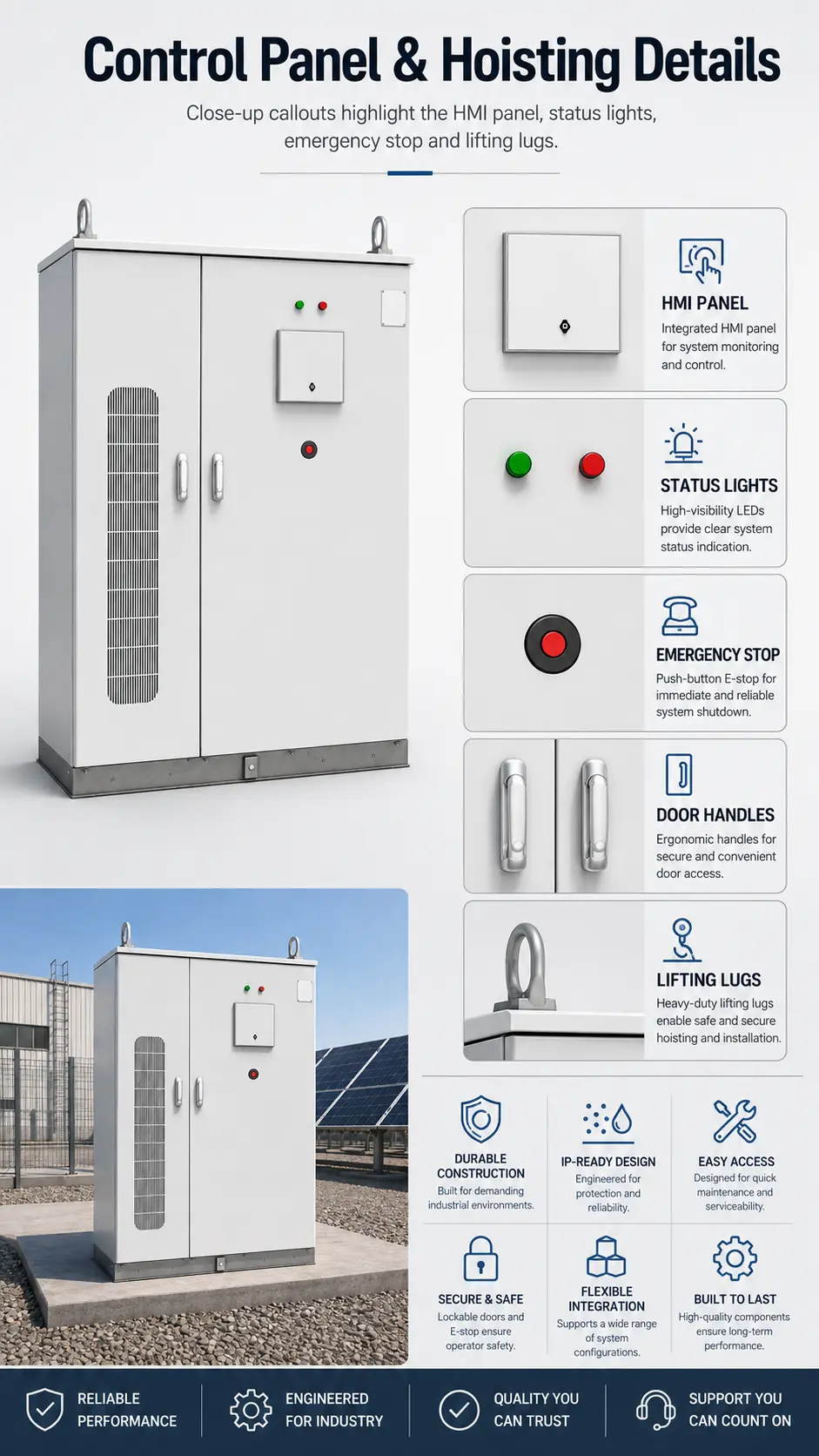

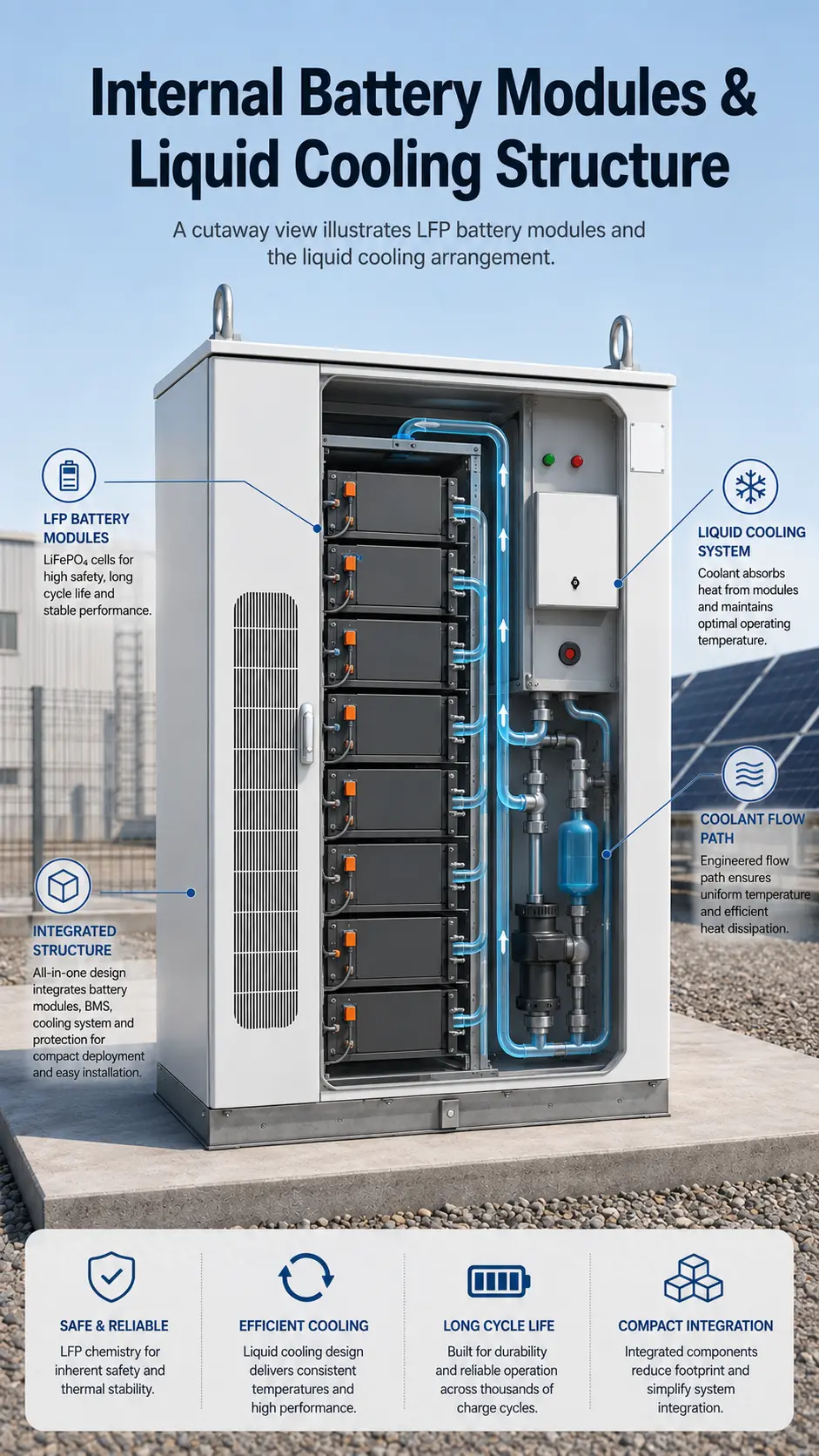

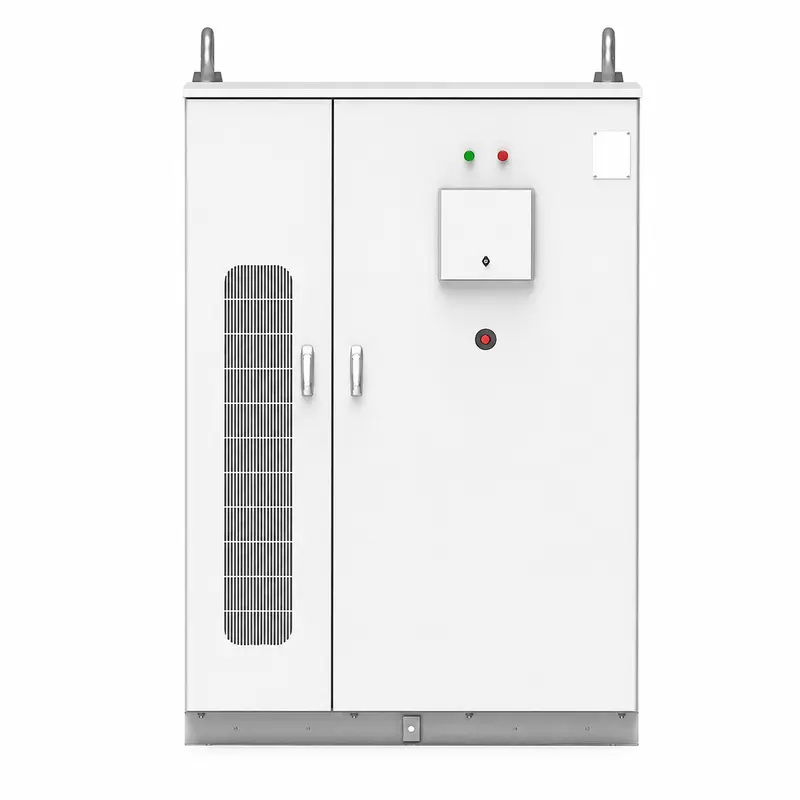

The double-door cabinet holds modular battery racks cooled by an integrated liquid loop, a front control/HMI panel, status indicators and an emergency-stop button. A side vent grille supports airflow and top lifting lugs ease installation and service work. BMS communication runs over CAN, RS485 and Ethernet for direct EMS integration.
Commercial and industrial energy storage, solar-plus-storage, peak shaving and load shifting, microgrids, EV-charging support, and off-grid power for factories, campuses and remote sites.

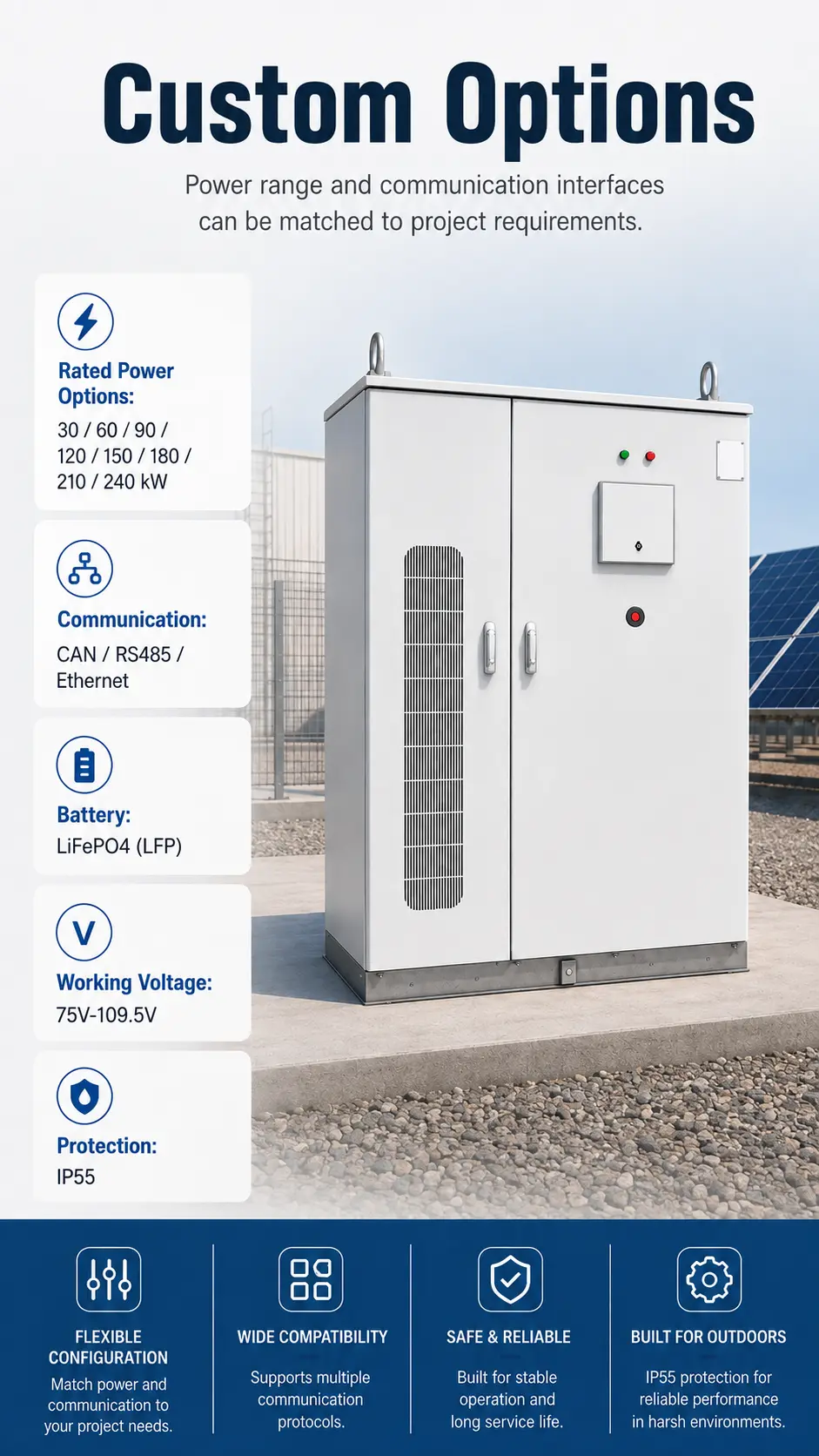

Capacity, configuration, grid connection mode, communication protocol and enclosure options can be customized to the project.
Liquid cooling keeps cells at a uniform temperature, boosting efficiency and lifespan; Battery, BMS and cooling arrive combined in one cabinet; IP55 outdoor rating for flexible site placement.
Capacity, configuration, grid connection mode, communication protocol and enclosure options can be customized to the project.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
