Liquid-Cooled ESS Cabinets
Engineered around a DC 1000 V architecture, this cabinet integrates lithium-ion (LFP) battery packs, a BMS and liquid-cooling thermal management inside a…
| Parameter | Value |
|---|---|
| Product Type | Liquid-Cooled Integrated Energy Storage Cabinet |
| System DC Voltage | DC 1000 V |
| Rated Output Power | Above 50 kWh |
| Battery Chemistry | Lithium-Ion (LFP) |
| Available Power Range | Above 50 kWh |
| System Type | Rack-Mounted |
| Working Voltage Range | 75 V – 109.5 V |
| Cell Configuration | 1P30S |
| Grid Connection | Off-Grid |
| Communication Ports | CAN, RS485, Ethernet |
| Enclosure Rating | IP55 |

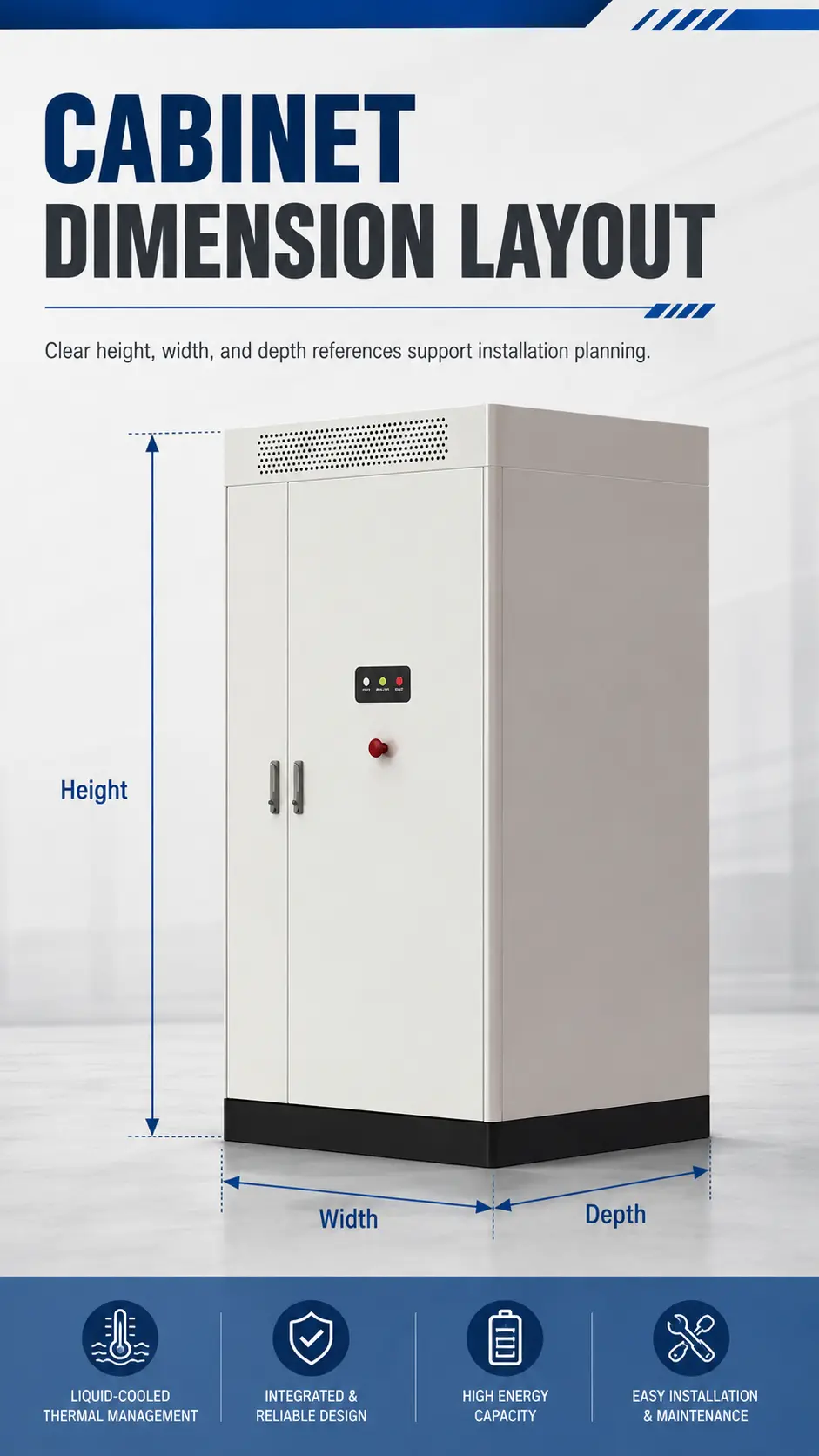

| Overall Dimensions (L×W×H) | 1325 × 1306 × 2315 mm |
| Unit Weight | 2500 kg |
| Charging Source | Solar Panel |
Specifications above reflect the supplied product data. Final dimensions, materials, colors and packaging are confirmed at sample approval and order confirmation.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

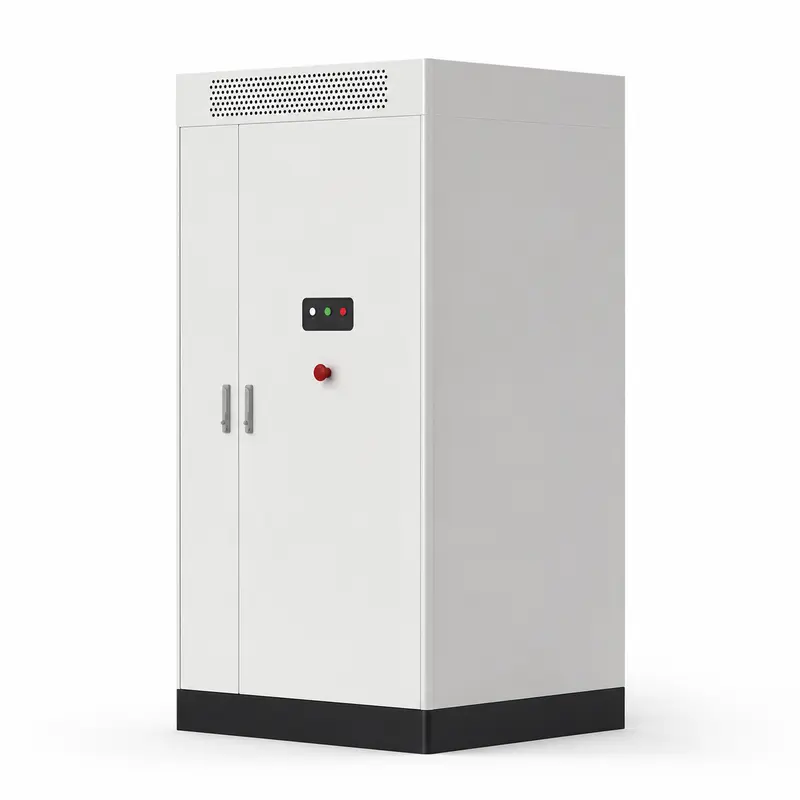

Engineered around a DC 1000 V architecture, this cabinet integrates lithium-ion (LFP) battery packs, a BMS and liquid-cooling thermal management inside a single outdoor-rated enclosure. The cooling loop keeps cells at a consistent, optimal temperature, which lifts efficiency, extends cycle life and adds a safety margin. It is intended for commercial and industrial (C&I) energy storage, solar self-consumption, peak shaving and off-grid applications.

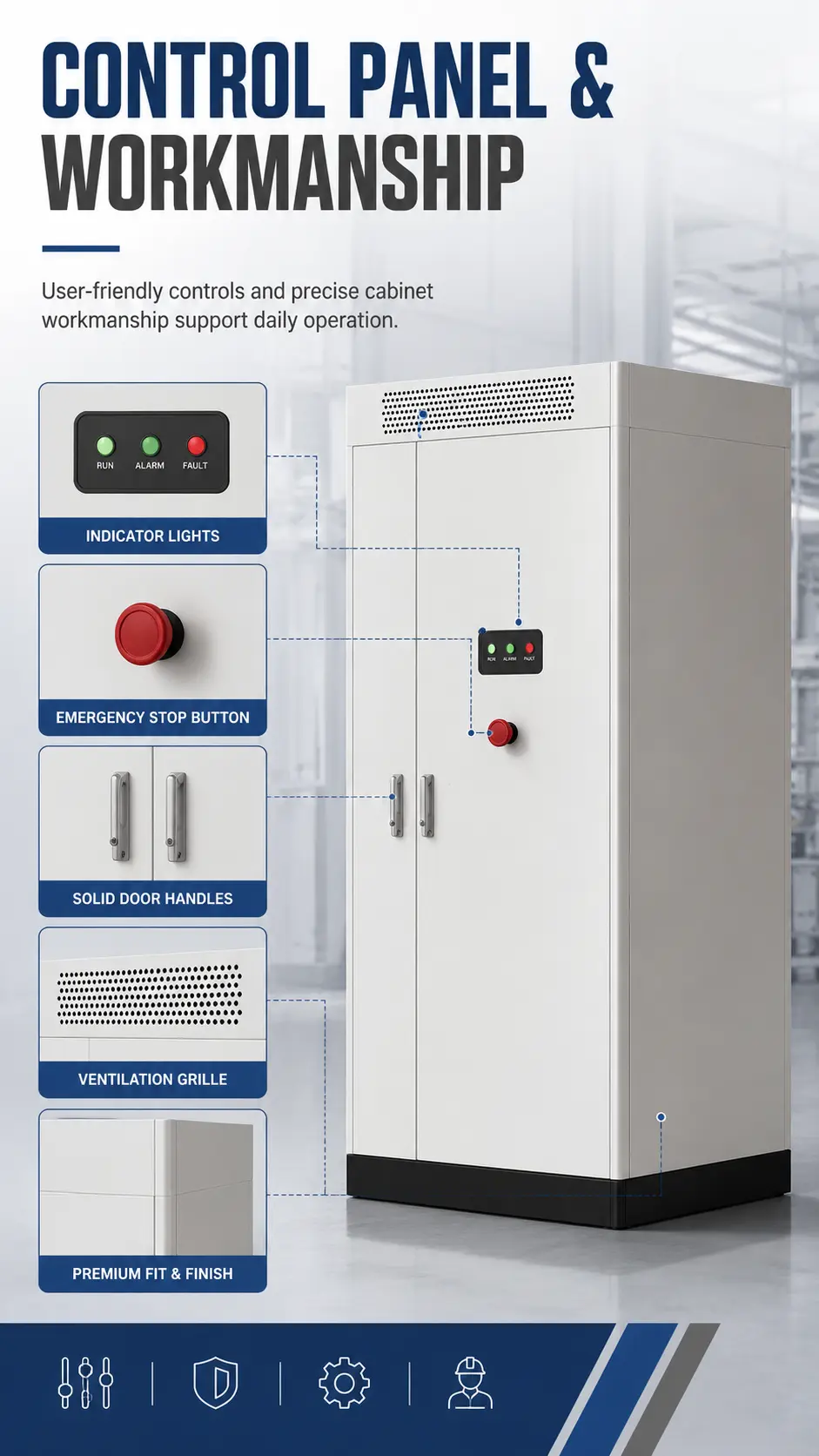

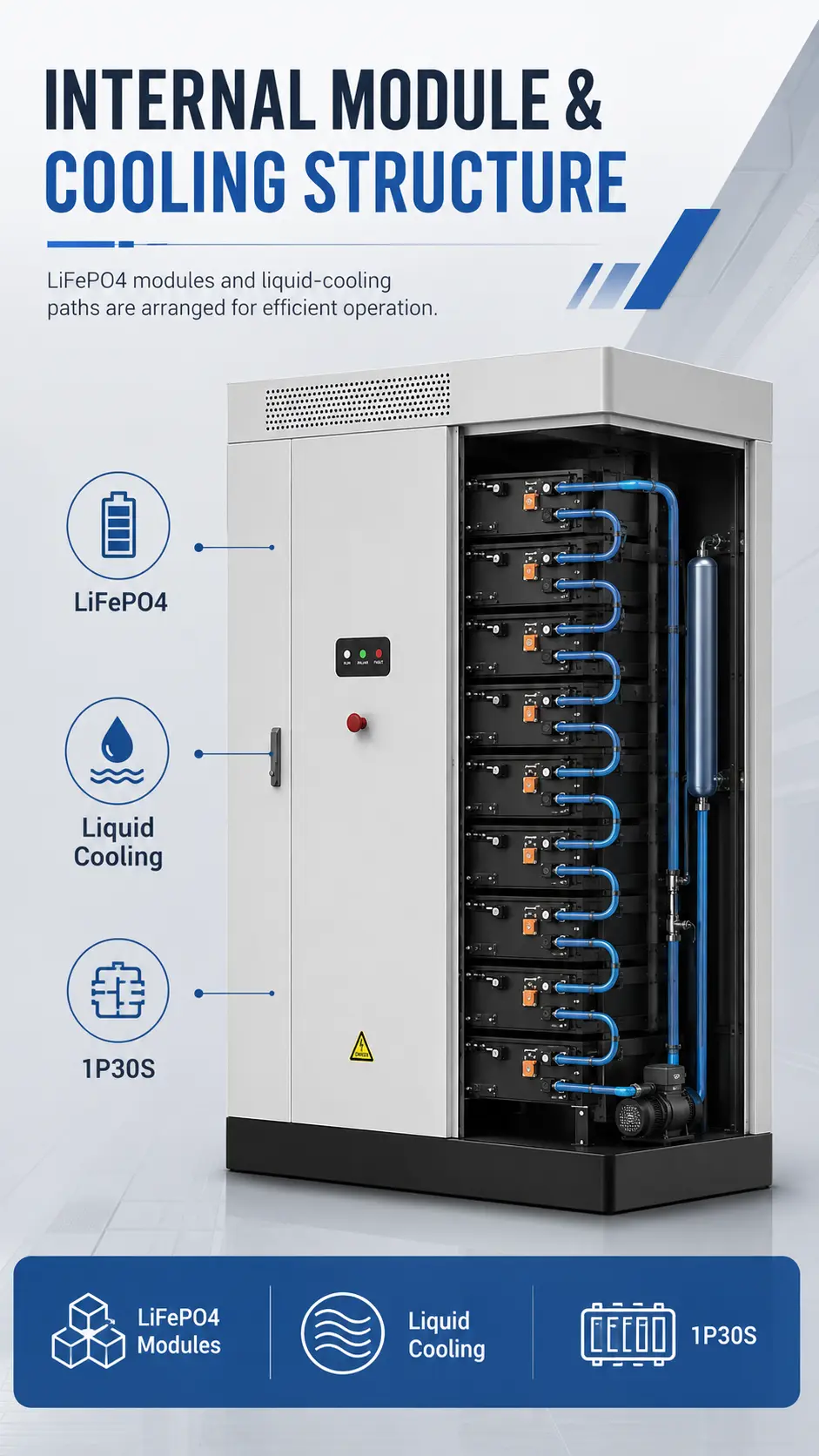

Behind the double doors sit modular battery racks cooled by an integrated liquid loop, together with a front control/HMI panel, status indicator lights and an emergency-stop button. A side vent grille assists airflow and top lifting lugs simplify handling during installation. BMS data travels over CAN, RS485 and Ethernet, so it connects readily to an energy management system.
Commercial and industrial energy storage, solar-plus-storage pairing, peak shaving and load shifting, microgrids, EV-charging support, and off-grid power for factories, campuses and remote sites.

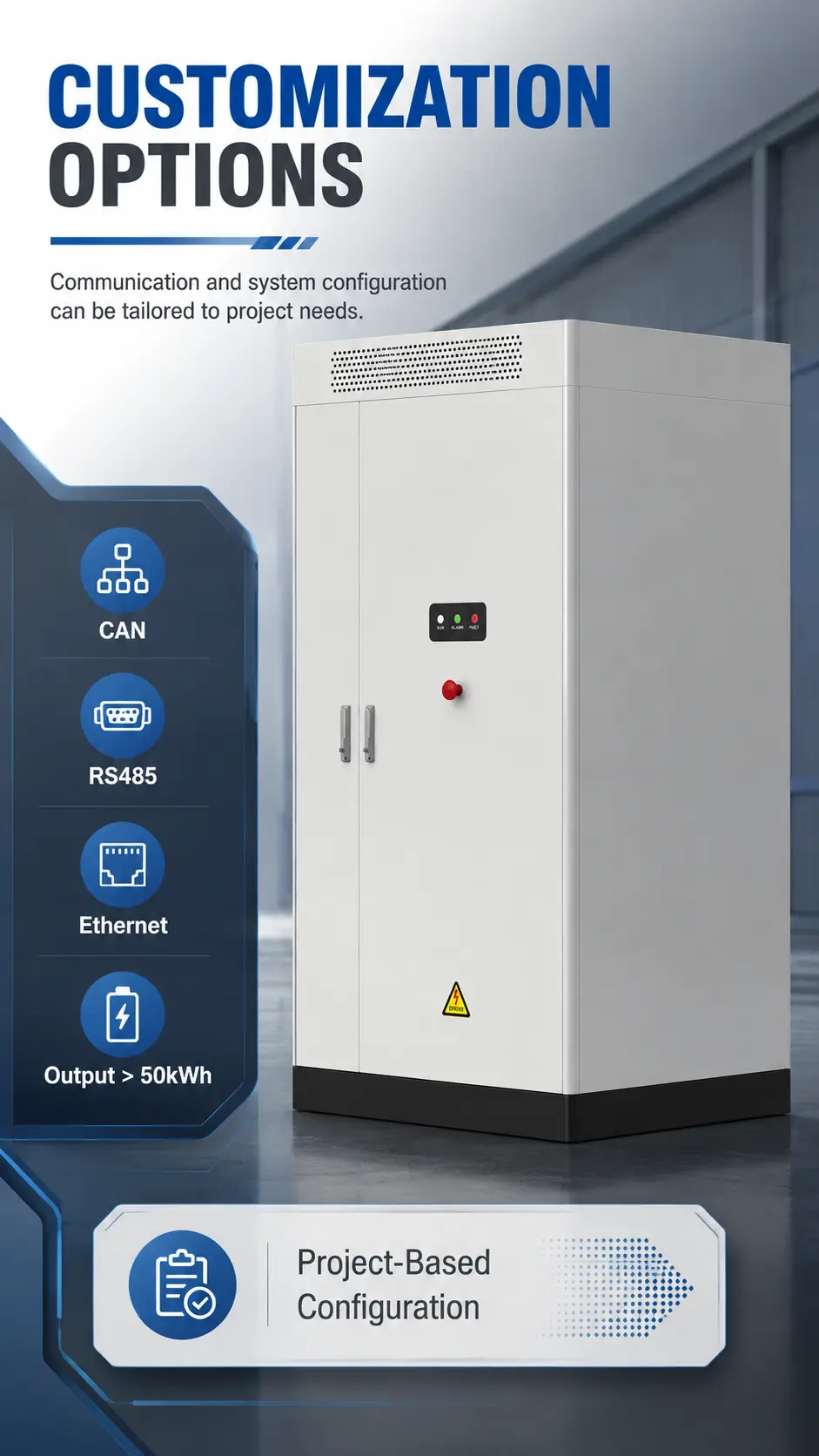

Capacity, configuration, grid connection mode, communication protocol and enclosure details can be adjusted to the project.
Liquid-cooling loop keeps cell temperatures uniform, supporting higher efficiency and longer service life; Battery, BMS and cooling combined into one integrated cabinet; IP55 outdoor rating for flexible site placement.
Capacity, configuration, grid connection mode, communication protocol and enclosure details can be adjusted to the project.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
