Liquid-Cooled ESS Cabinets
Rated at 100 kW / 93 kWh, this customizable cabinet combines lithium-ion (LFP) battery packs, a BMS and liquid-cooling thermal management within one…
| Parameter | Value |
|---|---|
| Product Type | Liquid-Cooled Integrated Energy Storage Cabinet |
| Rated Power | 100 kW |
| Energy Capacity | 93 kWh |
| Battery Chemistry | Lithium-Ion (LFP) |
| Output Power Range | Above 50 kWh |
| System Type | Rack-Mounted |
| Working Voltage Range | 75 V – 109.5 V |
| Cell Configuration | 1P30S |
| Grid Connection | Off-Grid |
| Communication Ports | CAN, RS485, Ethernet |
| Enclosure Rating | IP55 |

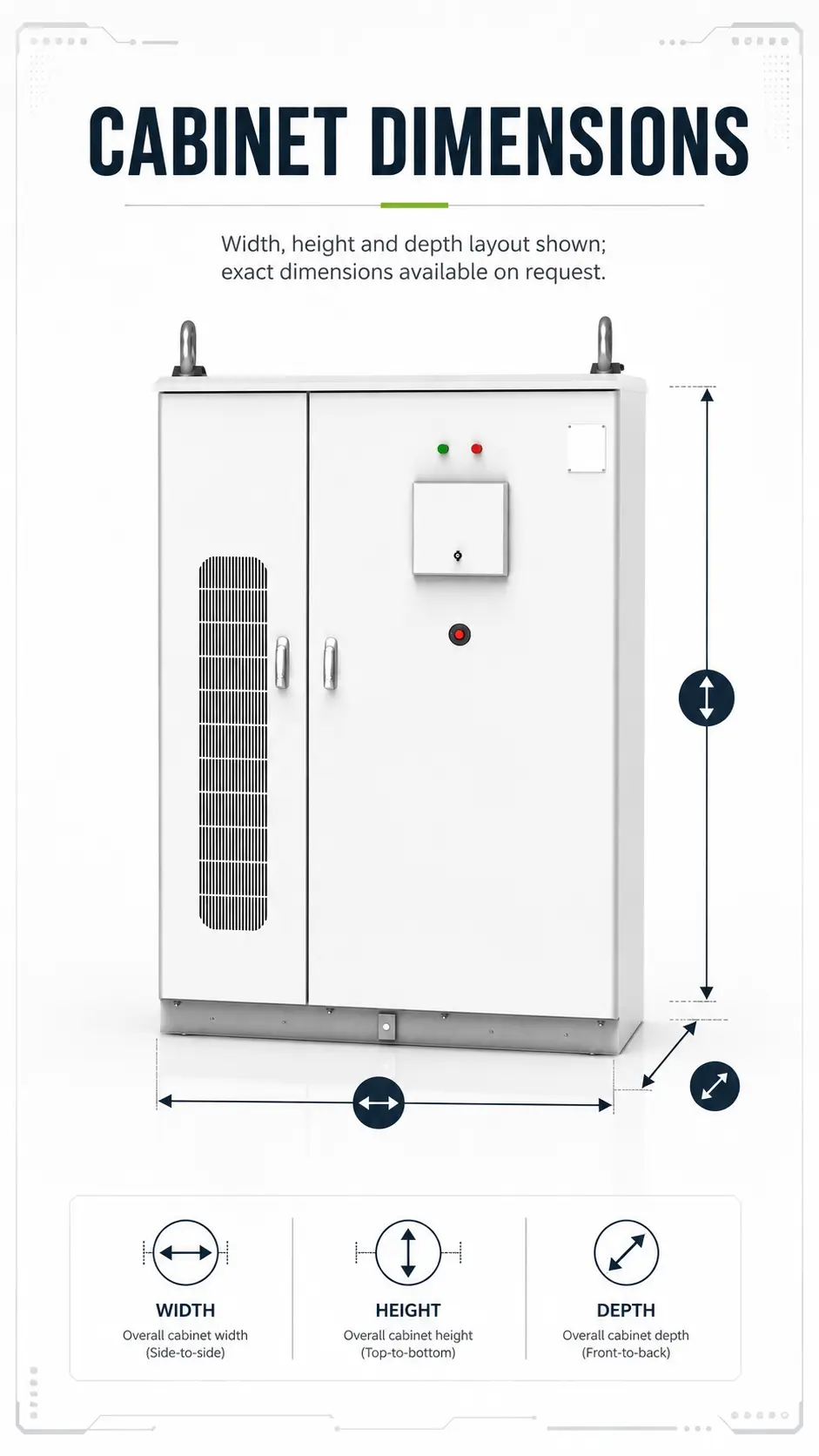

| Overall Dimensions (L×W×H) | 1325 × 1306 × 2315 mm |
| Unit Weight | 2500 kg |
| Charging Source | Solar Panel |
Figures above are based on the supplied product data. Final dimensions, materials, colors and packaging are set once a sample is confirmed and the order is placed.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

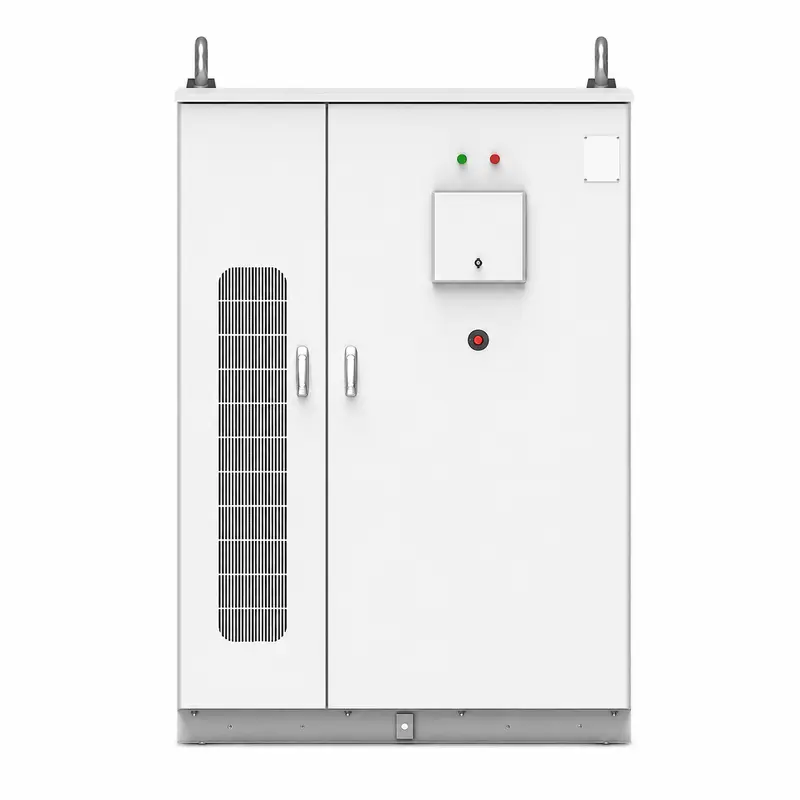

Rated at 100 kW / 93 kWh, this customizable cabinet combines lithium-ion (LFP) battery packs, a BMS and liquid-cooling thermal management within one outdoor-rated housing. The cooling loop keeps every cell within a tight, even temperature range, which raises efficiency, extends cycle life and improves operating safety. It's suited to commercial and industrial (C&I) energy storage, solar self-consumption, peak shaving and off-grid projects.

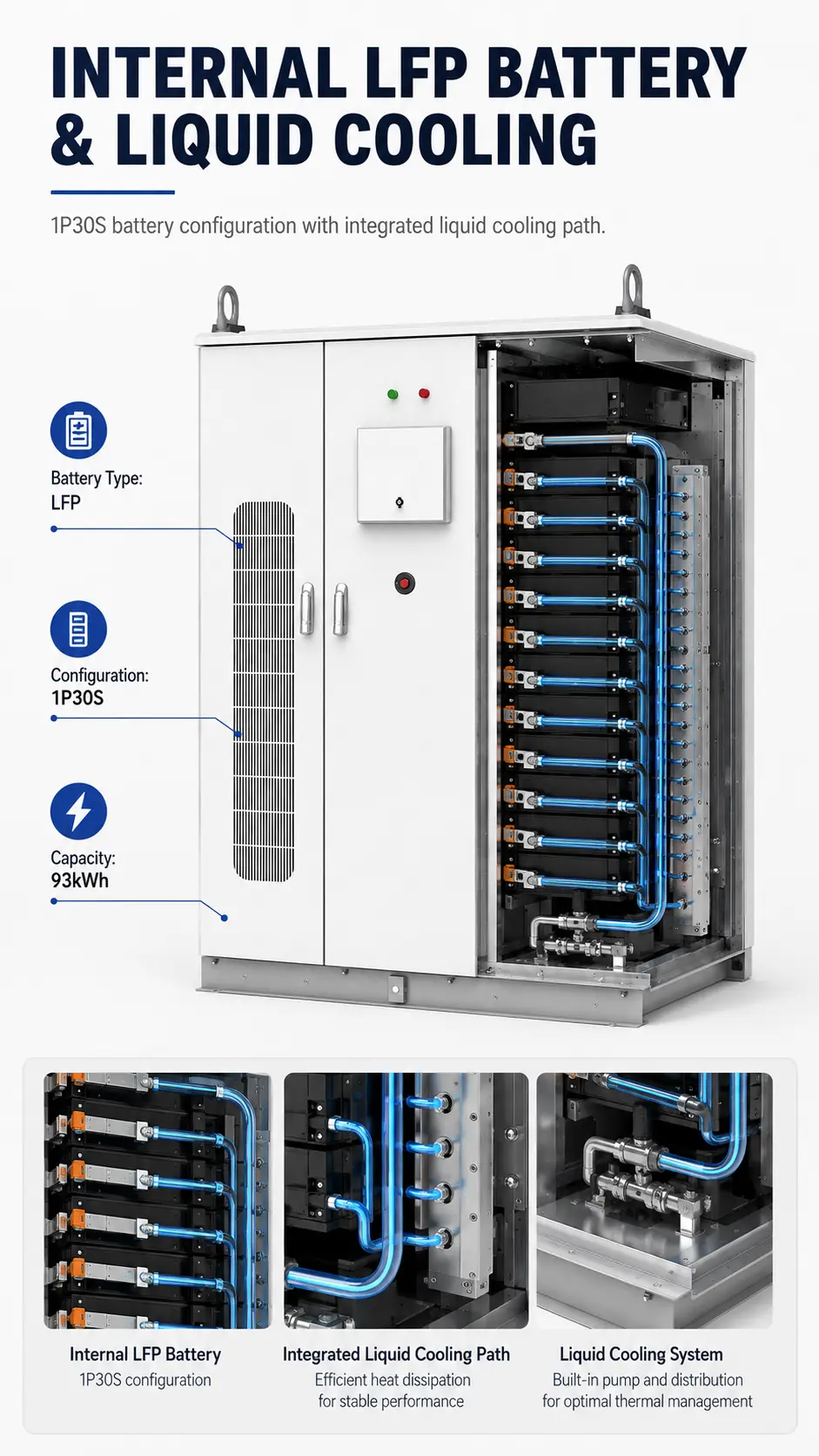

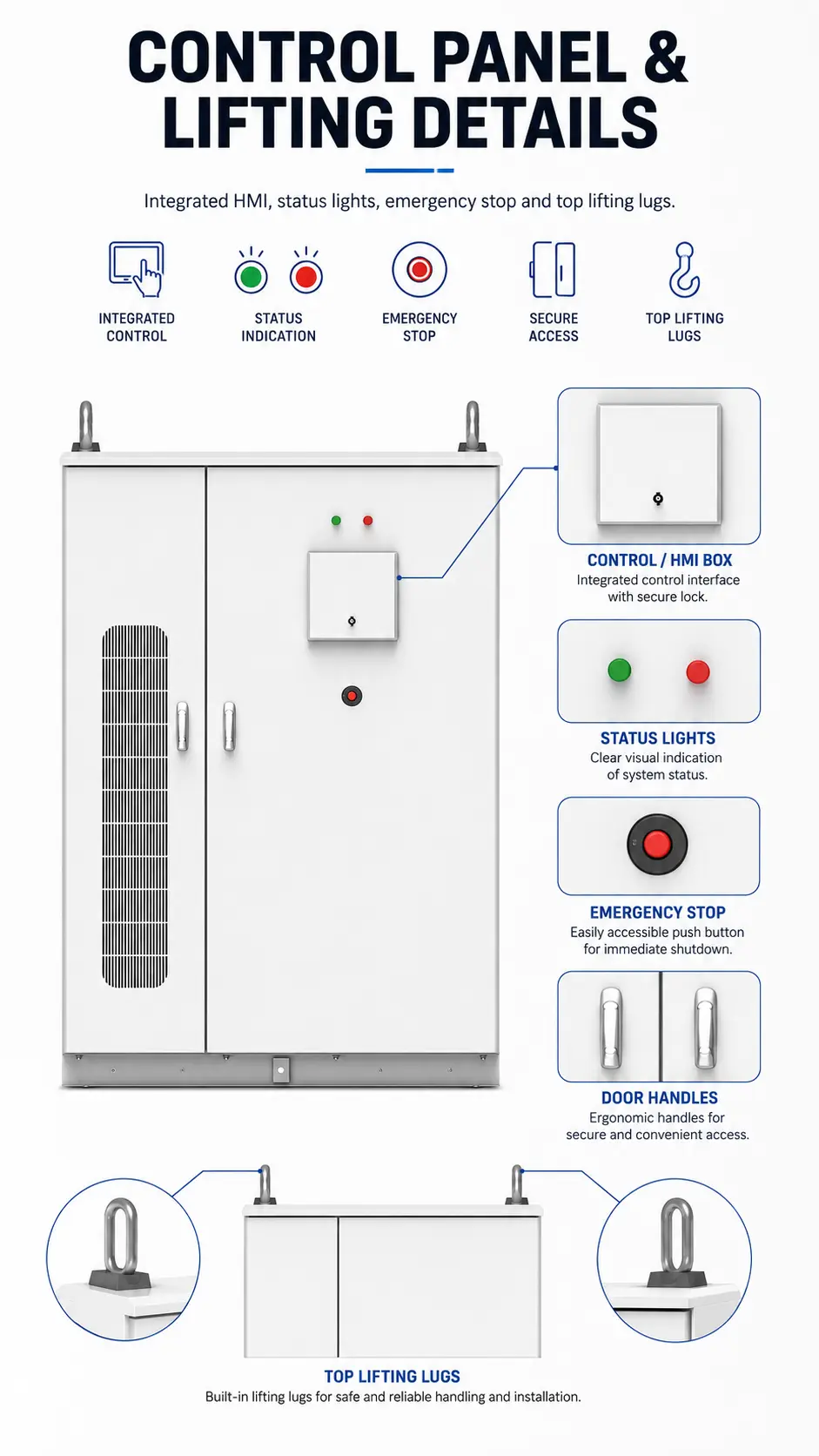

Open the double doors and you'll find modular battery racks cooled by an integrated liquid loop, plus a front control/HMI panel, status indicators and an emergency-stop switch. A side ventilation grille supports airflow, and top lifting lugs ease installation and service work. The BMS reports over CAN, RS485 and Ethernet for quick integration with an energy management system.
Commercial and industrial energy storage, solar-plus-storage, peak shaving and load shifting, microgrids, EV-charging support, and off-grid power for factories, campuses and remote sites.

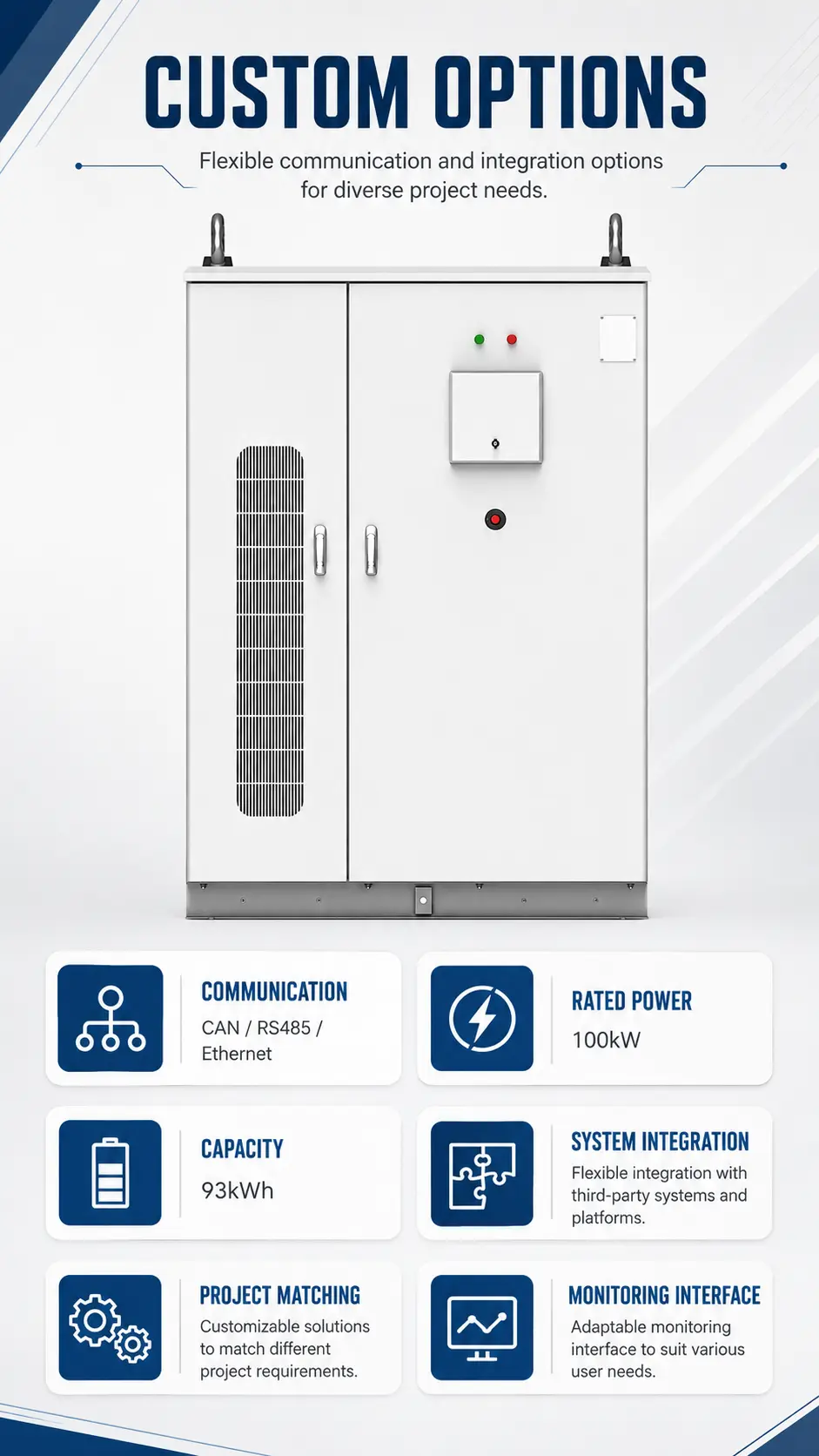

Capacity, configuration, grid connection mode, communication protocol and enclosure options can all be tailored to project requirements.
The rated capacity is 93 kWh. Other ratings in the same series are quoted on request.
Even cell temperatures from the liquid-cooling loop drive better efficiency and a longer lifespan; Battery, BMS and thermal management arrive combined in a single cabinet; IP55-rated housing suits a broad range of outdoor deployments.
Capacity, configuration, grid connection mode, communication protocol and enclosure options can all be tailored to project requirements.
Designed and tested to IEC 60076 / IEC 62271. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
