Vietnam: 22 kV/0.4 kV Compact Prefabricated Substation

The engineering problem

Industrial sites in Vietnam typically take their supply at 22 kV, and a manufacturing plant then needs that stepped down to 0.4 kV as near to the load as the layout will allow. Distance is expensive twice over — once in the LV copper it takes to reach the load, and again in the voltage drop that undermines motor starting.

A compact prefabricated substation solves this by packing MV switching, the transformer and LV distribution into one factory-built enclosure that can simply be set down in the yard, close to production, instead of requiring a purpose-built masonry room. What's left for the civil works is a foundation and a trench.

The climate is really what drives the harder design decisions. Both northern and southern Vietnam stay humid through most of the year, with an extended wet season and frequent lightning. Condensation forming inside an outdoor MV enclosure is a real threat to insulation, so ventilation, anti-condensation heating and drainage carry as much weight as the switchgear's electrical rating. Coastal and delta locations bring chloride exposure into the picture as well, which shapes the coating class more than it does the electrical design.

Heat is the other factor: a sealed enclosure traps whatever losses the transformer generates. IEC 62271-202's enclosure classification exists exactly because a transformer that runs fine in open air can push past its temperature-rise limit once boxed in. So a system like this gets sized against the enclosure class, not against the transformer nameplate in isolation.

System configuration

Installation sequence

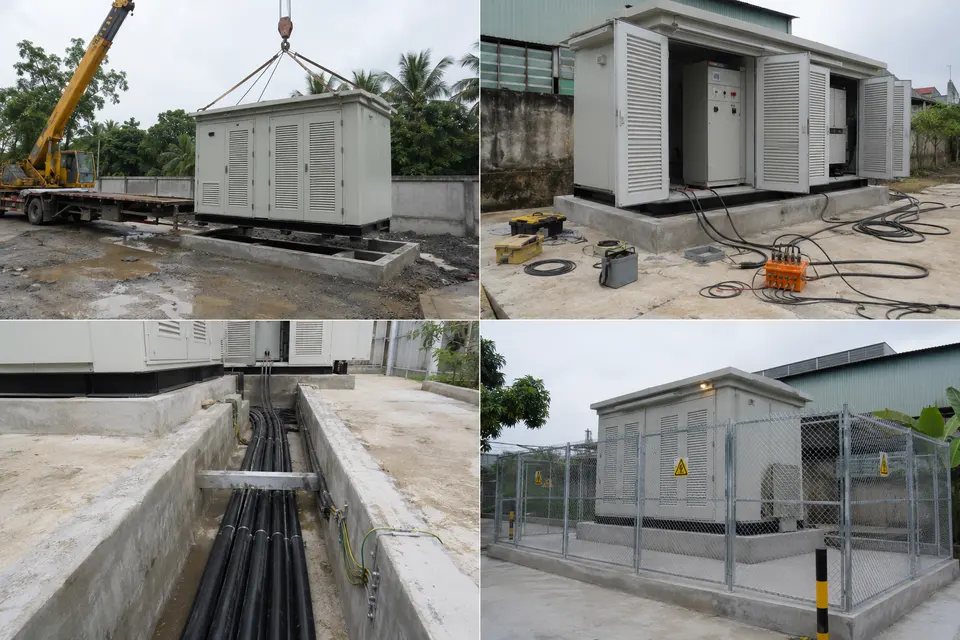

The contact sheet lays out the four working stages typical of an installation like this: delivery; placement and testing; cable and earthing work; and the finished installation. Looking at them as a sequence shows why the order can't be shuffled. Foundation and earth-electrode work has to be complete and proved before the enclosure lands on it, since the electrode connection is usually buried and unreachable afterward. Cable pulling comes after placement so the actual route lengths get measured rather than guessed at. Any testing that would need the enclosure opened happens before the site is fenced and handed over. Each stage boxes in the next, which is exactly why the sequencing gets worked out at design stage rather than improvised on site.

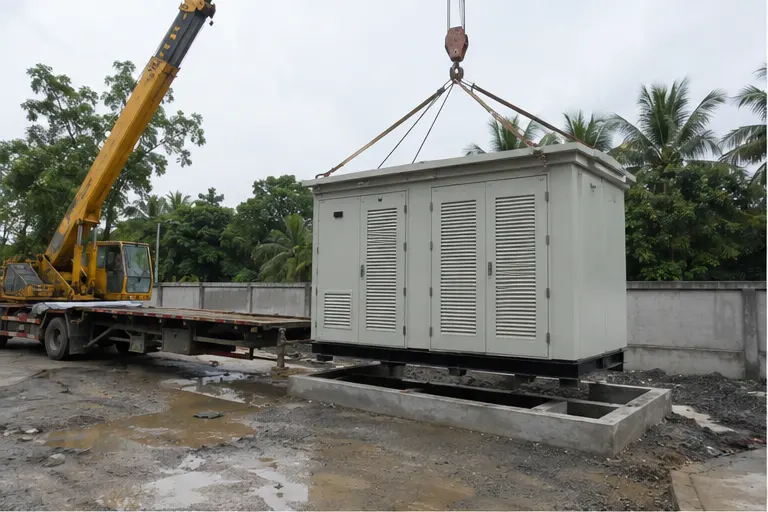

A compact substation of this kind ships as a single integrated unit, and transit is where it's most exposed. It's tall and comparatively light, with the transformer's mass sitting low and off to one side, so the lashing arrangement needs to control sideways movement, not just hold the unit down. When it arrives, the enclosure gets checked for transport damage, door and louvre alignment, and — for an oil-immersed transformer — oil level and any hint of leakage at the gasketed joints. Impact recorders, if the unit has them, are read before it's signed for. Lifting only ever uses the designated points, with spreader beams sized so the slings don't bear on the enclosure walls.

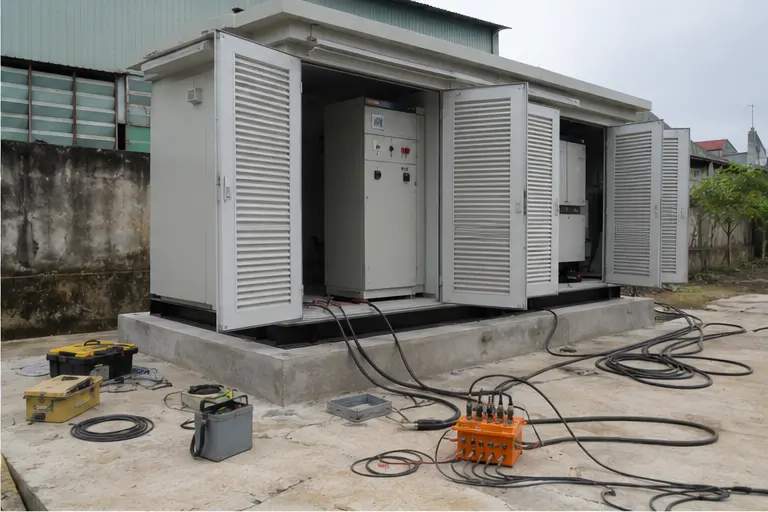

The unit goes onto its prepared concrete foundation and gets levelled. Level matters on both the mechanical and electrical side: an enclosure sitting out of level loads the base frame unevenly, puts extra stress on door seals and can leave water pooling on the roof, while an out-of-level oil-immersed transformer will give an inaccurate oil-level reading. Once it's bolted down, insulation resistance is checked on both the MV and LV sides, transformer ratio and vector group are confirmed, and the mechanical interlocks between switch, earth switch and cable-compartment access are exercised by hand rather than taken on faith. Protection settings get checked against the grading study. All of this happens here, before the cable trench closes up and access becomes harder.

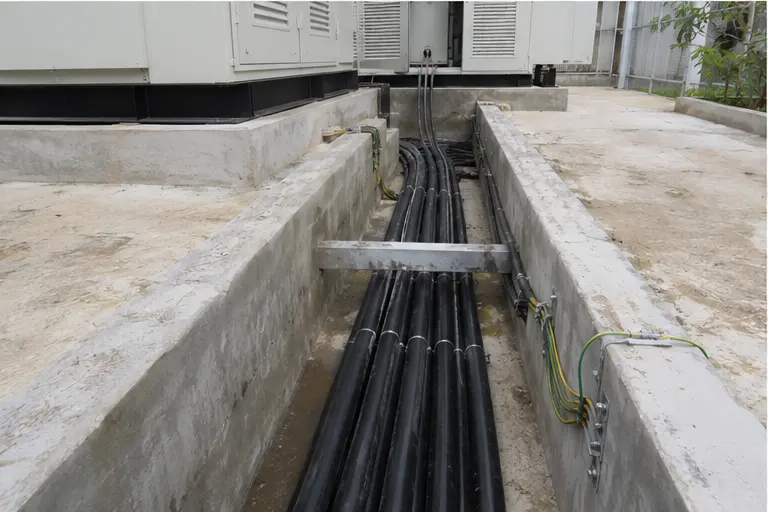

MV and LV cables get pulled, terminated and glanded, and the earthing system is finished off. Pulling tension and sidewall pressure are kept under control so neither the conductor nor its insulation is damaged going around bends — the minimum bending radius applies just as much at the gland plate as it does in the trench. MV terminations rise or fall on clean screen cut-back and a properly seated stress cone, and cable screens bond to the enclosure earth bar through a conductor rated for the earth-fault duty. The external earth electrode is connected and its resistance measured, with step and touch potential assessed given the location is publicly accessible. Gland plates are sealed to hold the enclosure's declared IP rating.

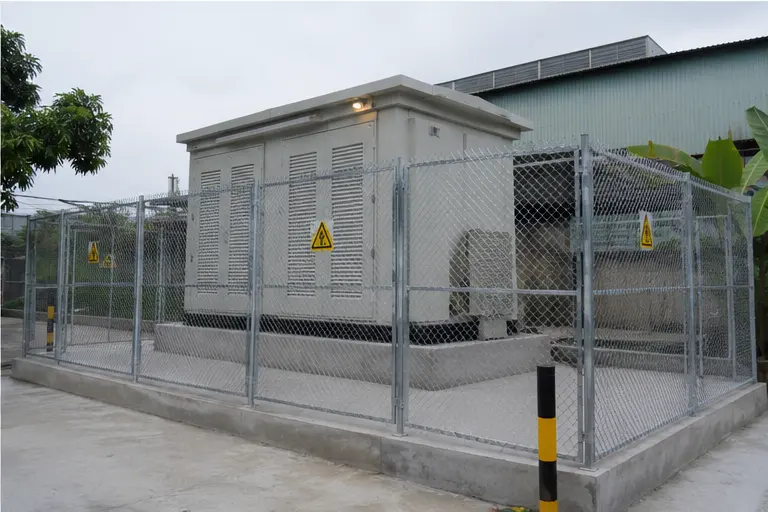

In its finished state, the enclosure sits fenced, labelled and closed up. Fencing and clearance distances form part of the safety case for any outdoor MV installation on a site where non-electrical staff are working nearby. Before anything is energised, the system gets proved end to end: earth continuity from every enclosure part back to the main bar, protection tested by injection through the relay, CT circuit and trip coil together, and interlocks confirmed. Energisation happens in stages — the transformer is charged unloaded first, then load is brought on gradually while temperatures, LV voltage and any monitoring outputs are watched. Warning signage, access control and as-built schedules round out the handover.

Specification options

For a comparable enquiry, Millenium can adjust the voltage ratio and tapping range, transformer capacity, vector group and impedance, and offer copper or aluminium windings. The transformer itself can be oil-immersed or cast-resin dry-type, with insulation and temperature class matched to the plant's fire strategy and the enclosure's ventilation capacity. MV switching options include SF6 or solid-insulated ring main units, or an air-insulated metal-clad panel where the plant expects to extend later. LV assemblies can be built to whatever form of separation and short-circuit withstand rating the site calls for. Enclosures can be specified by IP rating, corrosion protection class and coating system, with forced ventilation, anti-condensation heating and lighting added as needed. Protection and monitoring can include winding-temperature indication, alarm contacts, and communication over Modbus, IEC 61850 or DNP3.

What we need to quote

• Single-line diagram, or the intended incoming and outgoing arrangement
• Incoming voltage and tapping range, and the outgoing LV voltage and system earthing
• Required transformer capacity and the plant's load profile, including motor starting duty
• System fault level at the point of connection and the required withstand rating and duration
• Number, size and type of MV and LV cables, and their entry direction
• Protection philosophy and any grading study or utility relay settings
• Local utility or network operator specification and approval requirements
• Site ambient temperature range, humidity, altitude and pollution or salinity level
• Enclosure IP rating, corrosion class, coating specification and any colour requirement
• Communication protocol and the plant SCADA or monitoring interface required
• Foundation and trench arrangement, site access route and available lifting capacity
• Delivery terms, destination port, documentation language and test certificates required
