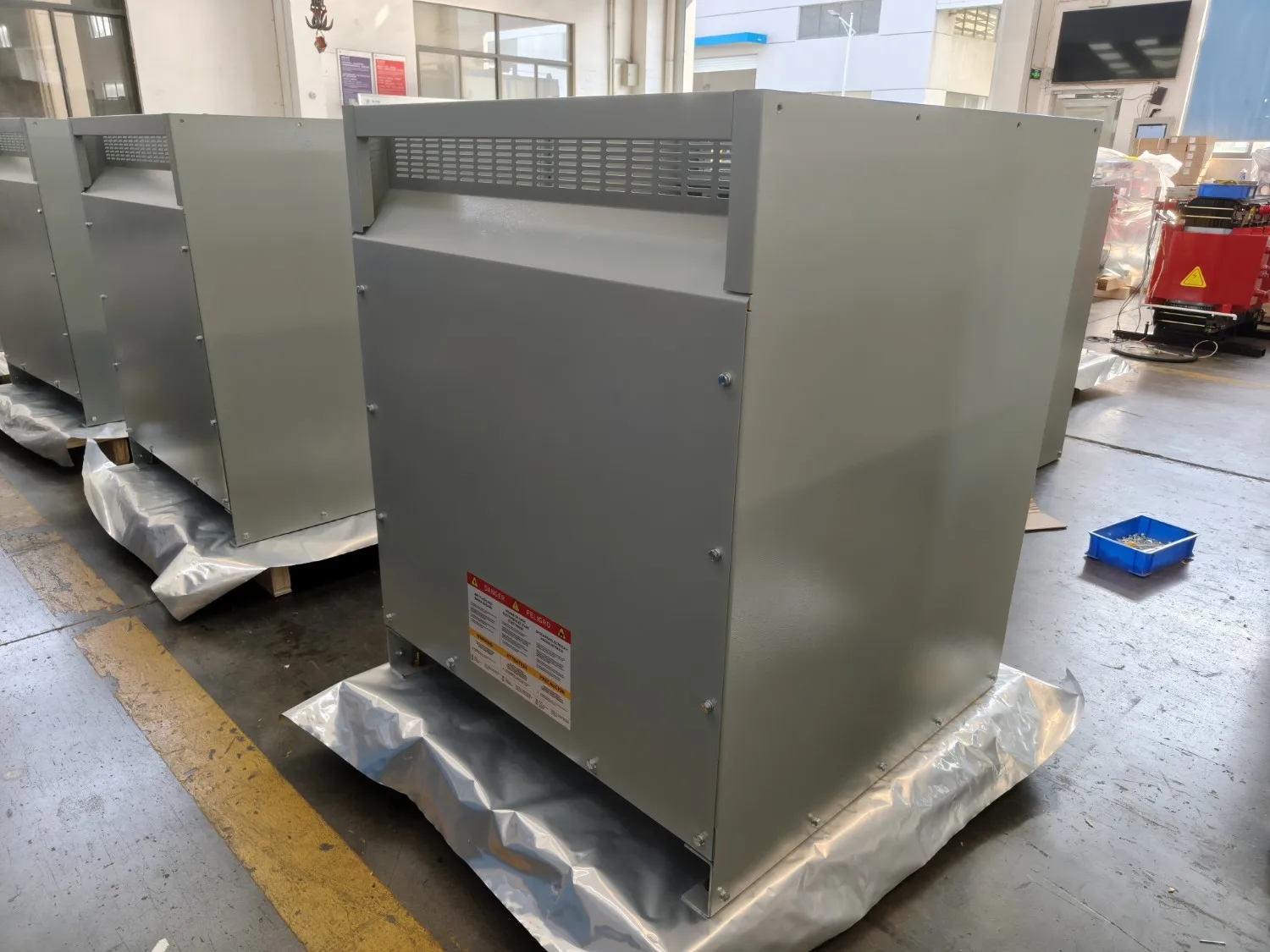

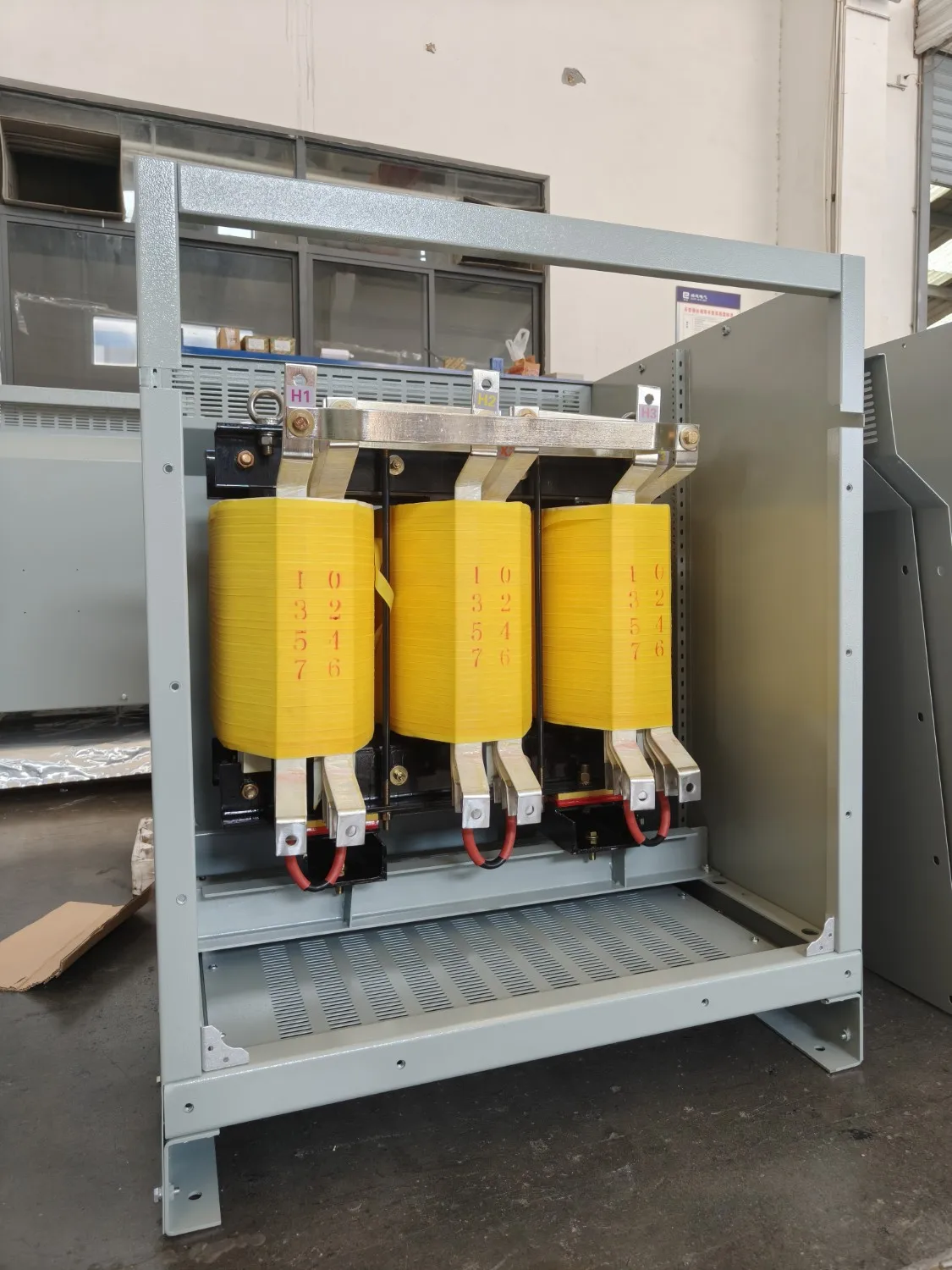

Low Voltage One Transformer Three-phase Isolation 24 v Input 230v Output Isolation Transformer for Industrial Power Supp
Engineered for specialized industrial power supply applications, this low voltage three-phase isolation transformer delivers precise voltage conversion from a 24V input to a stable 230V output. The special dry-type design ensures complete electrical isolation, protecting sensitive control circuitry and manufacturing equipment from ground faults and transient surges. Its compact footprint and high-efficiency core make it an ideal choice for automated assembly lines and heavy-duty industrial machinery requiring reliable step-up power.
Key Specifications
- Product Type: Low Voltage Three-Phase Isolation Transformer
- Input Voltage (Primary): 24 V AC
- Output Voltage (Secondary): 230 V AC
- Phase: Three-phase
- Rated Capacity: 5 kVA (Customizable per industrial requirement)
- Insulation Level: Class H
- Cooling Method: AN (Air Natural)
- Application: Industrial Power Supply
Low Voltage One Transformer Three-phase Isolation 24 v Input 230v Output Isolation Transformer for Industrial Power Supp
Certified & Verified Enterprise
Ready to Upgrade Your Power Infrastructure?
Secure your energy supply with the 1000 KVA / 1250 KVA 11 KV Step Down Cast Resin Dry Type Power Transformer. Engineered with CRGO core and UL certification for maximum reliability. Get factory-direct pricing and professional engineering support today.
Technical Specifications
Comprehensive parameters for the Low Voltage One Transformer Three-phase Isolation 24 v Input 230v Output Isolation Transformer for Industrial Power Supp
Need Complete Details?
Download our comprehensive product catalog and technical manual for full engineering data and installation guidelines.
Download PDF Manual| Parameter | Specification Details |
|---|---|
| Phase | Three-phase |
| Rated Capacity | 5 kVA (Customizable up to 50 kVA) |
| Primary Voltage | 24 V |
| Secondary Voltage | 230 V |
| Frequency | 50/60 Hz |
| Vector Group | Dyn11 |
| Cooling Method | AN (Air Natural) |
| Insulation Class | Class H |
| Core Material | Premium Cold-Rolled Grain-Oriented (CRGO) Silicon Steel |
| Design Standard | IEC 61558-2-4 / CE Compliance |
| Enclosure Protection | IP20 (Standard) / IP23 (Optional) |
| Application | Industrial Power Supply, Automation Equipment |
| Certification | CE, ISO9001, RoHS |
| Warranty | 24 Months |
