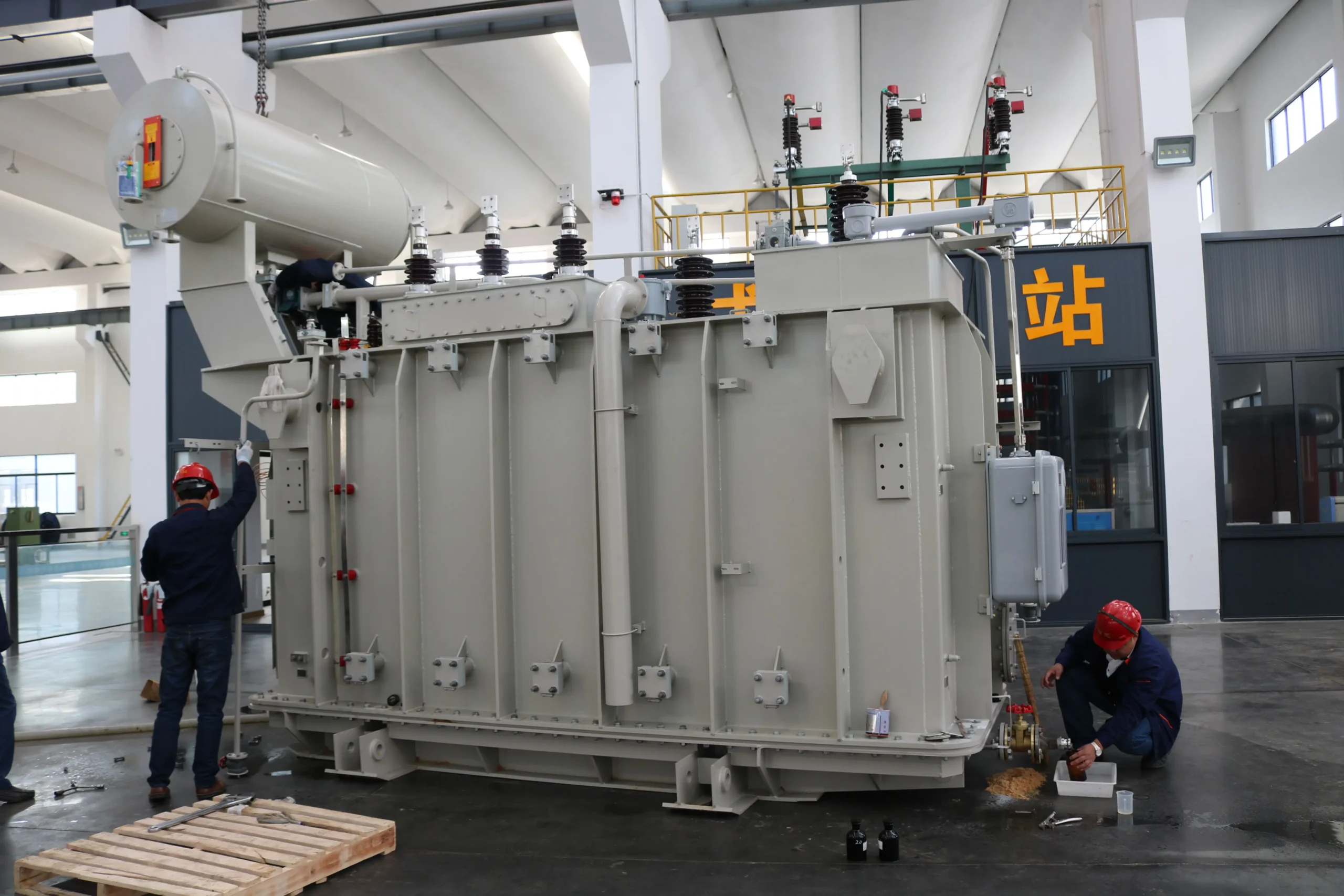

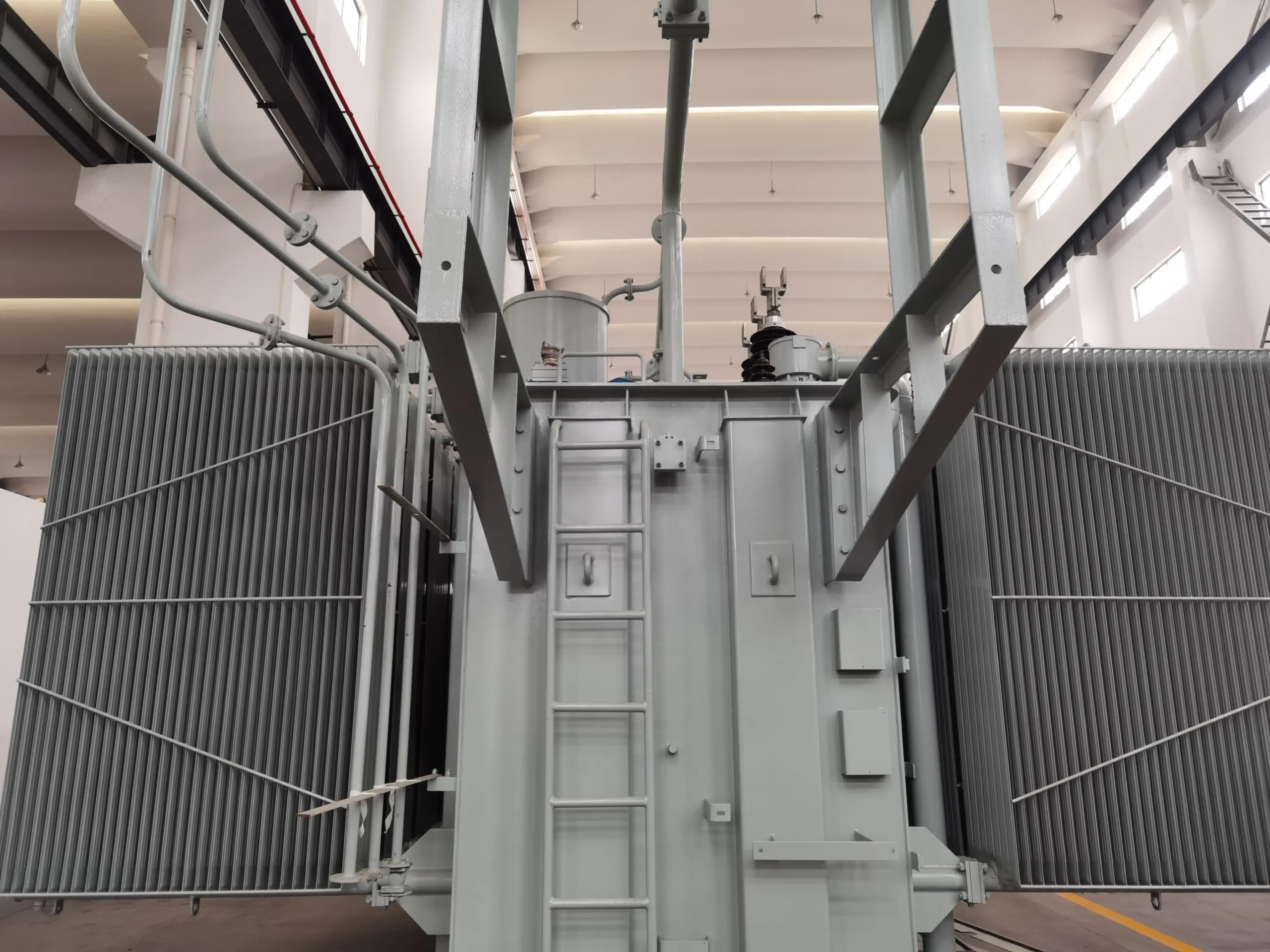

High Voltage Main Power Transformer 5000kVA 10 Mva 63000 KVA Power Transformer Price
High Voltage Main Power Transformer 5000kVA 10 Mva 63000 KVA Power Transformer Price
Designed for robust high-voltage utility and industrial substation applications, this oil-immersed main power transformer is available in versatile capacities including 5000kVA, 10 MVA, and up to 63000 KVA. It provides exceptional thermal management and grid reliability for heavy-duty power generation facilities and regional transmission networks.
Key Specifications
- Rated Capacity Range: 5000 kVA, 10 MVA, up to 63000 kVA
- High Voltage Level: Up to 132 kV (Customizable for 69kV or 110kV grids)
- Low Voltage Level: 11 kV / 33 kV
- Transformer Type: Oil-Immersed Main Power Transformer
- Cooling Method: ONAN / ONAF automatically controlled
- Vector Group: YNd11
- Efficiency / Losses: Low no-load and load losses optimized for transmission
- Compliance Standard: IEC 60076 & IEEE C57.12.00
High Voltage Main Power Transformer 5000kVA 10 Mva 63000 KVA Power Transformer Price
Certified & Verified Enterprise
Ready to Upgrade Your Power Infrastructure?
Secure your energy supply with the 1000 KVA / 1250 KVA 11 KV Step Down Cast Resin Dry Type Power Transformer. Engineered with CRGO core and UL certification for maximum reliability. Get factory-direct pricing and professional engineering support today.
Technical Specifications
Comprehensive parameters for the High Voltage Main Power Transformer 5000kVA 10 Mva 63000 KVA Power Transformer Price
Need Complete Details?
Download our comprehensive product catalog and technical manual for full engineering data and installation guidelines.
Download PDF Manual| Parameter | Specification Details |
|---|---|
| Phase | Three Phase |
| Rated Capacity | 5000 kVA / 10 MVA / 63000 kVA |
| Primary Voltage | 69 kV / 110 kV / 132 kV |
| Secondary Voltage | 11 kV / 33 kV |
| Frequency | 50 Hz / 60 Hz |
| Vector Group | YNd11 / YNyn0 |
| Cooling Method | ONAN / ONAF |
| Insulation Class | Class A |
| Core Material | Cold-Rolled Grain-Oriented (CRGO) Silicon Steel |
| Windings Material | 100% Electrolytic Copper |
| Tap Changer | On-Load Tap Changer (OLTC) available |
| Design Standard | IEC 60076 / IEEE C57 |
| Application | Step-Down Utility Substation / Heavy Transmission |
| Warranty | 36 Months |
Get Your Customized Power Solution
Provide your project requirements and our technical engineers will generate a detailed, competitive quotation for the 1000 KVA / 1250 KVA Cast Resin Dry Type Transformer within 12 hours.
12470V / 11KV Step Down Cast Resin Transformer
- Cooling: AN/AF
- Standard: IEC 60076/ANSI
- Vector Group: Dyn11 / Yyn0
- Voltage: 415V / 400V Output
If you have urgent technical questions or bidding deadlines, feel free to contact our senior engineering sales team directly:
Tel / WhatsApp: +8617502139434
Email: sales@millenium-electric.com
Visit Contact Page →We offer full customization for voltage ratings, winding materials (Copper/Aluminum), and enclosure dimensions to seamlessly integrate with your existing power infrastructure and comply with local grid standards.
We provide secure, sea-worthy vacuum packing to prevent humidity and corrosion during transit to any global sea port. Backed by a standard 1-Year comprehensive warranty with lifetime remote technical support.
